reference to the Tag light.....
I don't have any pics of the wiring, but looking at the harness that runs to the tailgate, i remember just breaking out those wires to the existing tag light and putting and disconnect on, then running a longer lead to my new tag location.
I don't have any pics of the wiring, but looking at the harness that runs to the tailgate, i remember just breaking out those wires to the existing tag light and putting and disconnect on, then running a longer lead to my new tag location.
Jul 18, 2013 | 01:00 PM
#1884
That way they are wired up to come on with your running lights, richard.... and you can run them down and out the wiring loom grommet at the bottom/driver side, then up through the bumper and swingout.... Just leave some play for the tire swinging out a bit factor.....
Can't wait! Very great project!
Can't wait! Very great project!
Jul 18, 2013 | 01:33 PM
#1886
Thread Starter
Registered User
Joined: Apr 2012
Posts: 2,817
Likes: 2
From: Los Angeles CA
I understand what you mwan Mark. But what I'm asking RBX is did you just grab the wires from the tailgate license plate right iff the actual area where you mount the stock bulbs. Or did you run wires from tire carrier light to under the truck and tap into some wires under the truck?
God I hope I'm making sense right now lol. Like your wires aren't just hanging there off the stock tailgate license plate area when not connected are they?
God I hope I'm making sense right now lol. Like your wires aren't just hanging there off the stock tailgate license plate area when not connected are they?
Jul 18, 2013 | 02:51 PM
#1888
Registered User
Joined: Jul 2012
Posts: 2,365
Likes: 4
From: Idaho
all you need is a tap off the trailer harness connector or where you'd connect to it when you turn on your running lights (the small 194/T10 bulb in the drivers taillight) thats all the licence plate lights are just extra running lights
bumper looks excellent and i like the design of the jerry can protector! awesome thinking!!
inside it you might want to pop a couple drain holes so water dont sit in it i know calif dont get much of it but...
bumper looks excellent and i like the design of the jerry can protector! awesome thinking!!
inside it you might want to pop a couple drain holes so water dont sit in it i know calif dont get much of it but...
no i dont sorry rich
i looked at my PDF for my 88 an looks like the wire is green/blue which jives with that i remember when i was in there fixing that rear corner
wouldn't be hard for ya pull the drivers side tail light an inside look at the connectors the small bulb and the run light on the 1157 should be on the same line the other will be the ground (white/black) (test light time) tap off the live wire run it down through the drain hole or make one just under the taillight run that up to your license plate light
or you could get real adventurous and find the license plate light wire in the loom going right there on the drivers side of the tail gate an tap into that one
ya might need a ground depending on how well the pivot conducts but that can only be seen once youve got things hooked up
i looked at my PDF for my 88 an looks like the wire is green/blue which jives with that i remember when i was in there fixing that rear corner
wouldn't be hard for ya pull the drivers side tail light an inside look at the connectors the small bulb and the run light on the 1157 should be on the same line the other will be the ground (white/black) (test light time) tap off the live wire run it down through the drain hole or make one just under the taillight run that up to your license plate light
or you could get real adventurous and find the license plate light wire in the loom going right there on the drivers side of the tail gate an tap into that one
ya might need a ground depending on how well the pivot conducts but that can only be seen once youve got things hooked up
thats what he said..wait that was me.. HEY!
Jul 18, 2013 | 03:02 PM
#1890
RB, you mean tap into the Loom where I did for wiring on my rear panel lights, using the door lock detection wiring and so forth? In the panel or for before it enters the Tailgate?
Jul 18, 2013 | 03:41 PM
#1893
Registered User
Joined: Jul 2012
Posts: 2,365
Likes: 4
From: Idaho
yep upper left part that harness in the plastic cover
Jul 18, 2013 | 05:25 PM
#1894
Thread Starter
Registered User
Joined: Apr 2012
Posts: 2,817
Likes: 2
From: Los Angeles CA
Ohhh sweet ok see now i know what you guys all mean lol. I'm a visual learner so seeing pictures of what you guys are talking about is much much better for me. :laugh. Thank you guys.
And talking about wiring look what came in today.
Talk about super quick shipping huh!

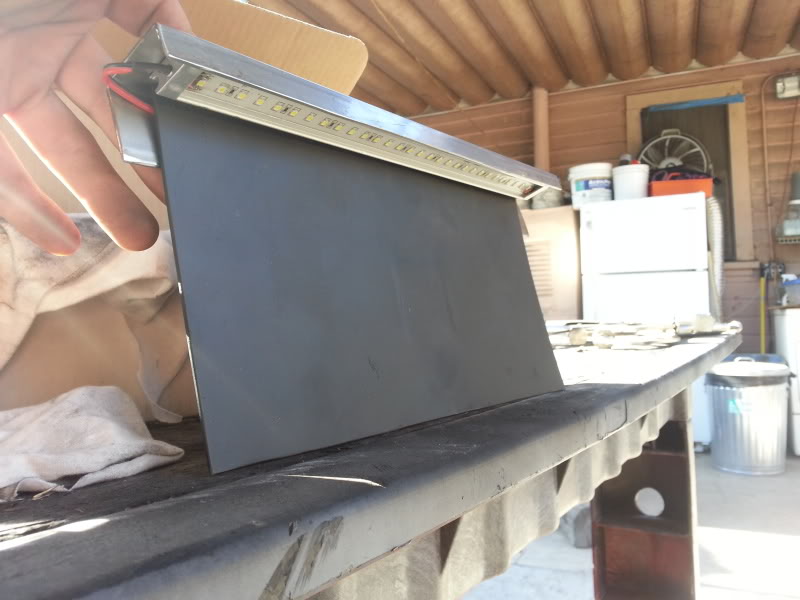

This is what i meant by making a lip on that license plate holder for the LED light. This is exactly how i want it. BTW yes it does have a magnetic back. but i want to use the clips to make sure it'll hold securely.

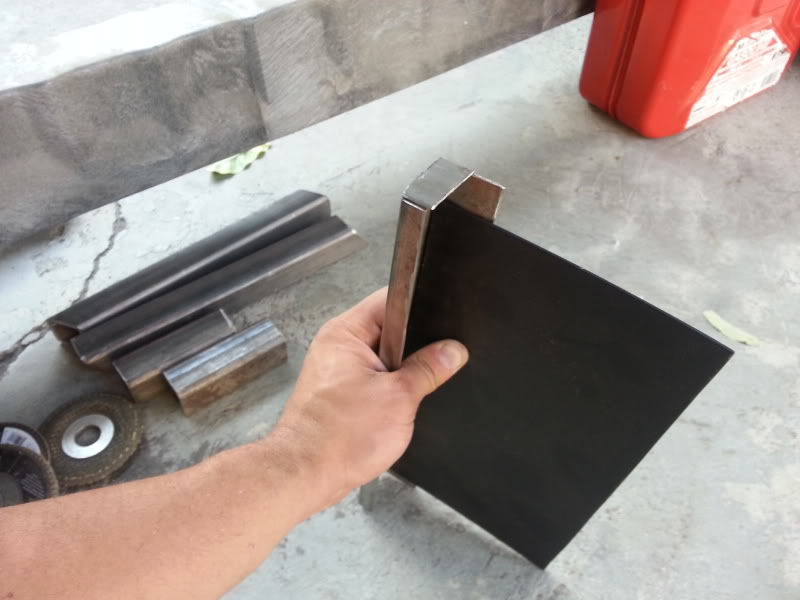

Thinking about adding 2 side caps what do you think? Probably more at an angle? i dunno. Didnt have time to pull out the welding machine today so im gonna have to hold off till tomorrow. Also, i'm gonna have to find some male/female wiring clips for these wires. i might have some put away. i'm gonna have to dig through my things here at home.
And talking about wiring look what came in today.
Talk about super quick shipping huh!
This is what i meant by making a lip on that license plate holder for the LED light. This is exactly how i want it. BTW yes it does have a magnetic back. but i want to use the clips to make sure it'll hold securely.
Thinking about adding 2 side caps what do you think? Probably more at an angle? i dunno. Didnt have time to pull out the welding machine today so im gonna have to hold off till tomorrow. Also, i'm gonna have to find some male/female wiring clips for these wires. i might have some put away. i'm gonna have to dig through my things here at home.
Jul 18, 2013 | 05:44 PM
#1896
Registered User
Joined: Mar 2012
Posts: 7,122
Likes: 680
Hi Richard & guys!
Yeah, end caps are good. Keep the light drier.

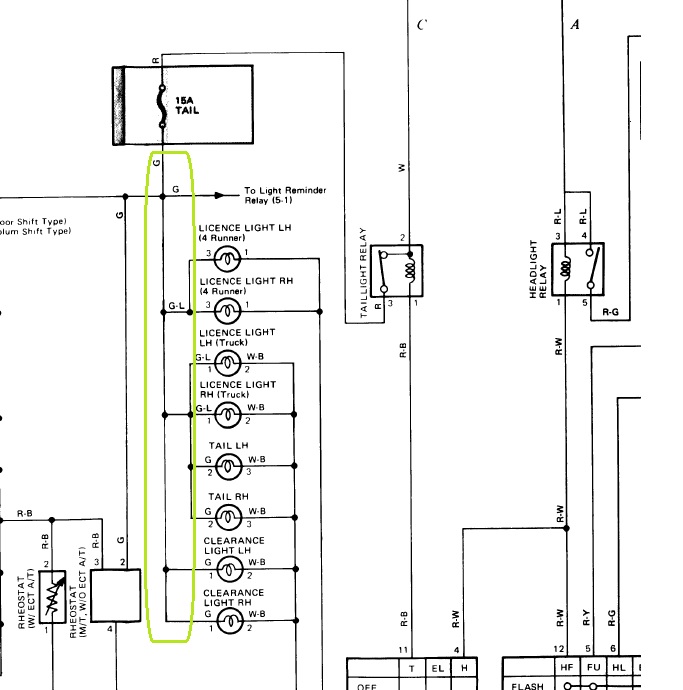

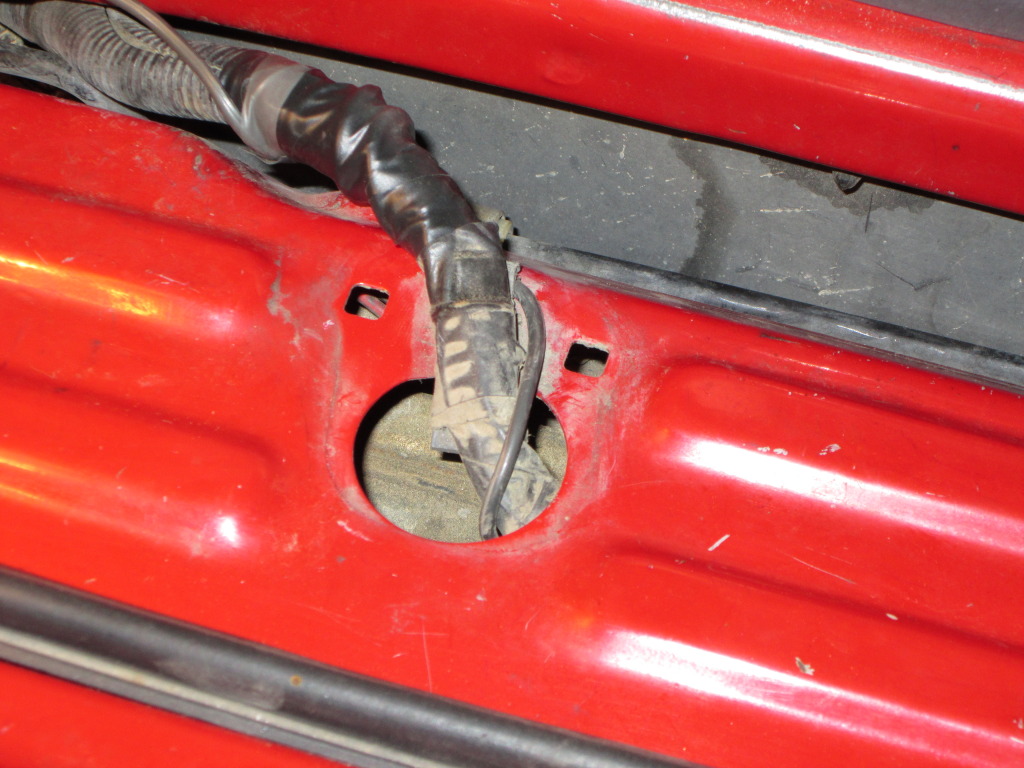

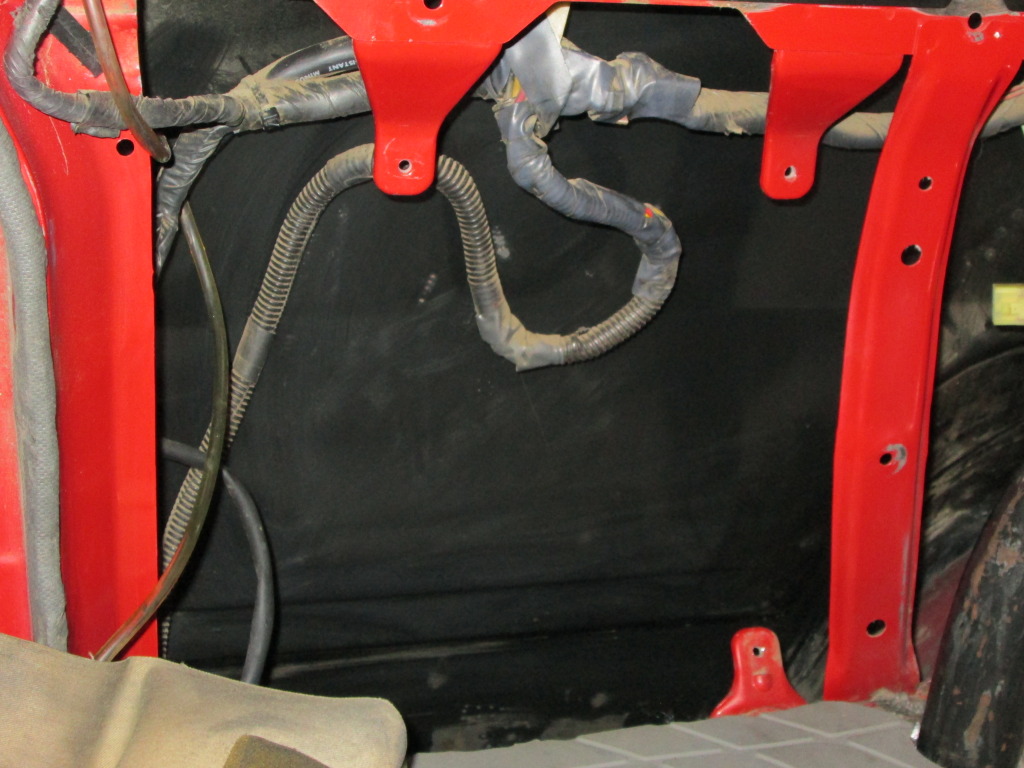

For tapping into taillight wiring, you'd want to find the equivalent of this on your V6.
Don't tap near or where it flexes into the tailgate- more prone to strain. Cleaner & better to tap into rear taillight, from inside the left taillight cavity closest to your swing-away hinge.
Like Will said ^^(drivers side tail light an inside look at the connectors the small bulb and the run light on the 1157 should be on the same line the other will be the ground (white/black) (test light time) tap off the live wire run it down through the drain hole or make one just under the taillight run that up to your license plate light)
Better to to run a dedicated ground wire all the way back to the taillight cavity, than to rely on things that slide/pivot
Yeah, end caps are good. Keep the light drier.
For tapping into taillight wiring, you'd want to find the equivalent of this on your V6.
Don't tap near or where it flexes into the tailgate- more prone to strain. Cleaner & better to tap into rear taillight, from inside the left taillight cavity closest to your swing-away hinge.
Like Will said ^^(drivers side tail light an inside look at the connectors the small bulb and the run light on the 1157 should be on the same line the other will be the ground (white/black) (test light time) tap off the live wire run it down through the drain hole or make one just under the taillight run that up to your license plate light)
Better to to run a dedicated ground wire all the way back to the taillight cavity, than to rely on things that slide/pivot
Last edited by RAD4Runner; Jul 18, 2013 at 10:08 PM.
Jul 19, 2013 | 09:11 AM
#1897
Thread Starter
Registered User
Joined: Apr 2012
Posts: 2,817
Likes: 2
From: Los Angeles CA
Hi Richard & guys!
Yeah, end caps are good. Keep the light drier.
For tapping into taillight wiring, you'd want to find the equivalent of this on your V6.
Don't tap near or where it flexes into the tailgate- more prone to strain. Cleaner & better to tap into rear taillight, from inside the left taillight cavity closest to your swing-away hinge.
Like Will said ^^(drivers side tail light an inside look at the connectors the small bulb and the run light on the 1157 should be on the same line the other will be the ground (white/black) (test light time) tap off the live wire run it down through the drain hole or make one just under the taillight run that up to your license plate light)
Better to to run a dedicated ground wire all the way back to the taillight cavity, than to rely on things that slide/pivot
Yeah, end caps are good. Keep the light drier.
For tapping into taillight wiring, you'd want to find the equivalent of this on your V6.
Don't tap near or where it flexes into the tailgate- more prone to strain. Cleaner & better to tap into rear taillight, from inside the left taillight cavity closest to your swing-away hinge.
Like Will said ^^(drivers side tail light an inside look at the connectors the small bulb and the run light on the 1157 should be on the same line the other will be the ground (white/black) (test light time) tap off the live wire run it down through the drain hole or make one just under the taillight run that up to your license plate light)
Better to to run a dedicated ground wire all the way back to the taillight cavity, than to rely on things that slide/pivot
Also want to weld the light lip onto that license plate holder.
Jul 19, 2013 | 02:09 PM
#1899
Richard, if you weld the light end will you be able to easily remove it if it fails? super bright LED's is great with customer service and they will probably ship you one before you even return one that goes bad... and it's very unlikely that it will go bad... but just in case??????
