You guys are right with the end caps. It would have been harder to remove the light in case it ever failed. So I left them off.
-----------------------------------------

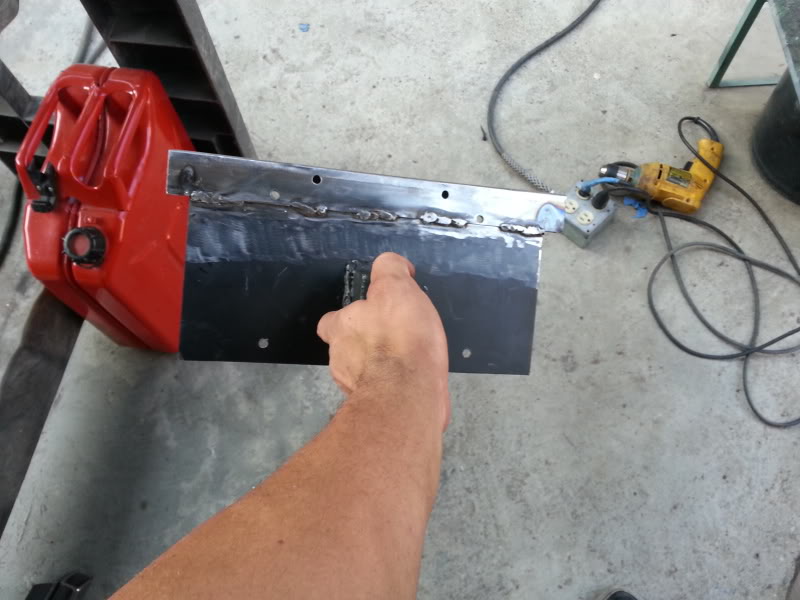

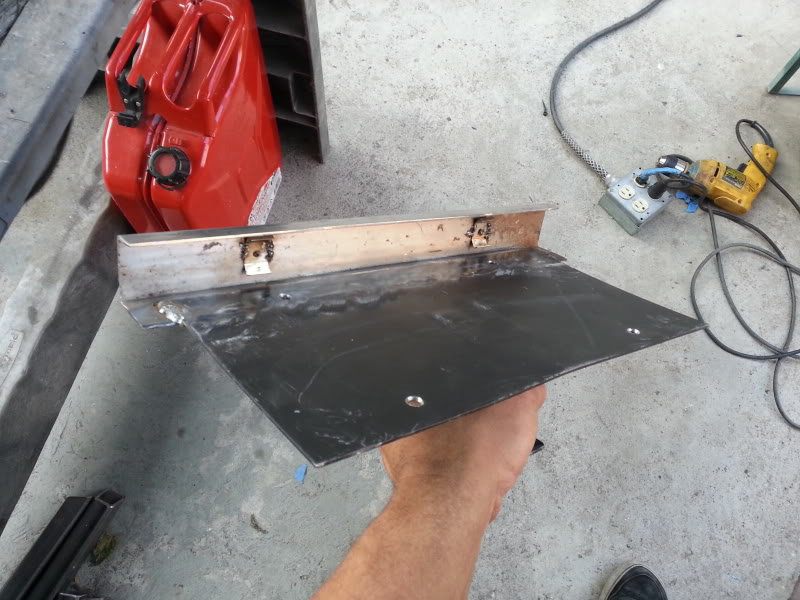

We got so much done in these past 2 days. Yesterday I welded on clips to license plate lip. And welded the lip piece to the plate.




Primed and painted. And drilled those license plate lights.

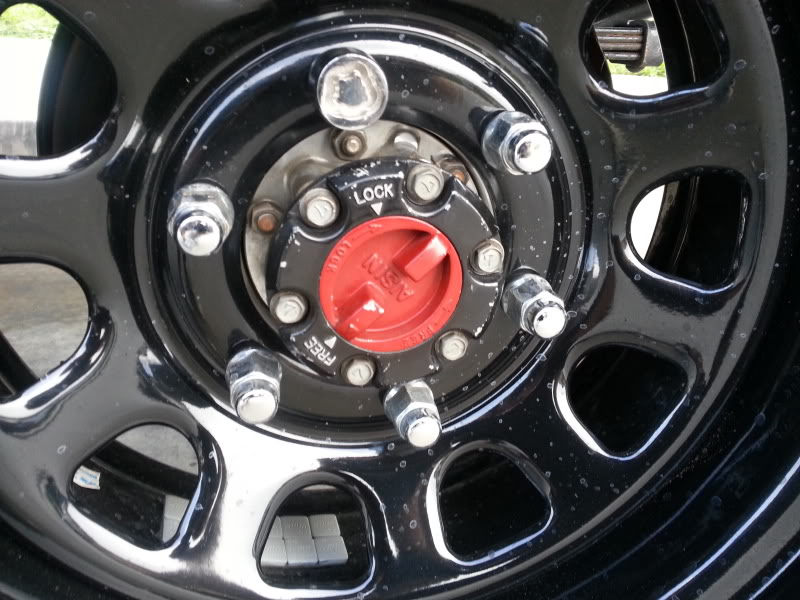

I finally bought wheel locls for my rims. When each rim is $50-60 and each tire is $250-280 a small $16 fee is well worth thr sacrifice to protect your investment.

------------------------------------------

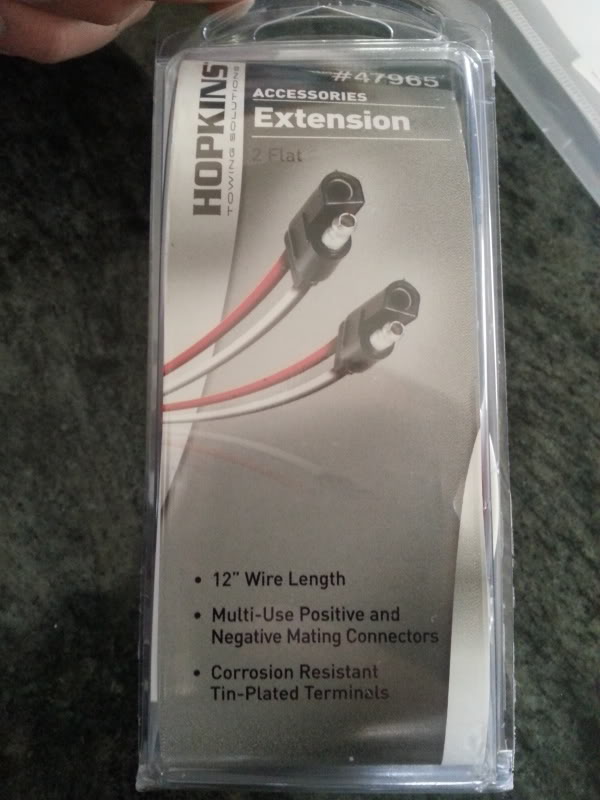

Today in the morning I went to O'Reilly's and bought this 2 wire male female waterproof and corrosion proof trailer wire connect/disconnect wire. Bought it for only $3.

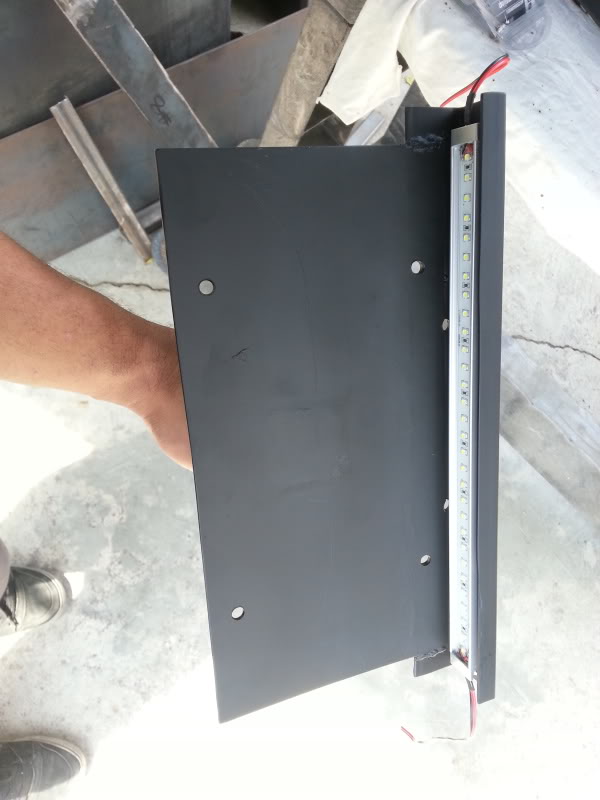

Mounted the LED strip.

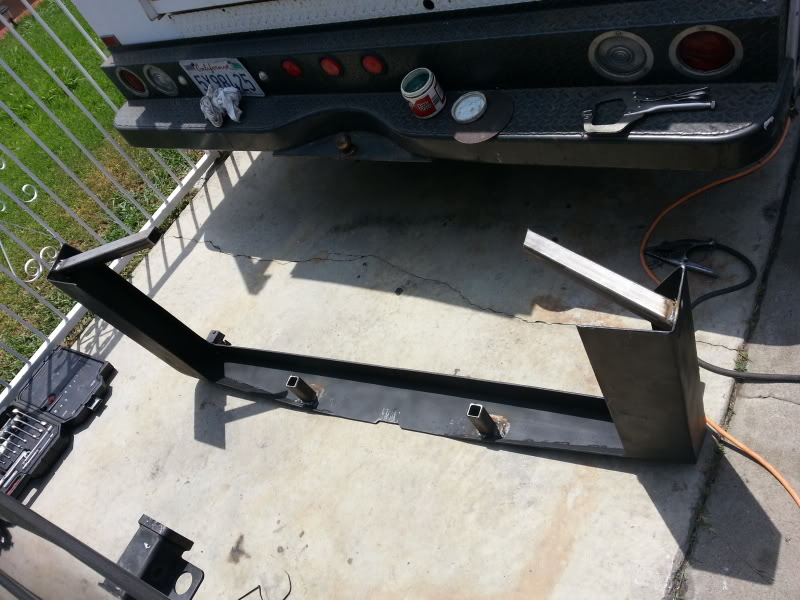

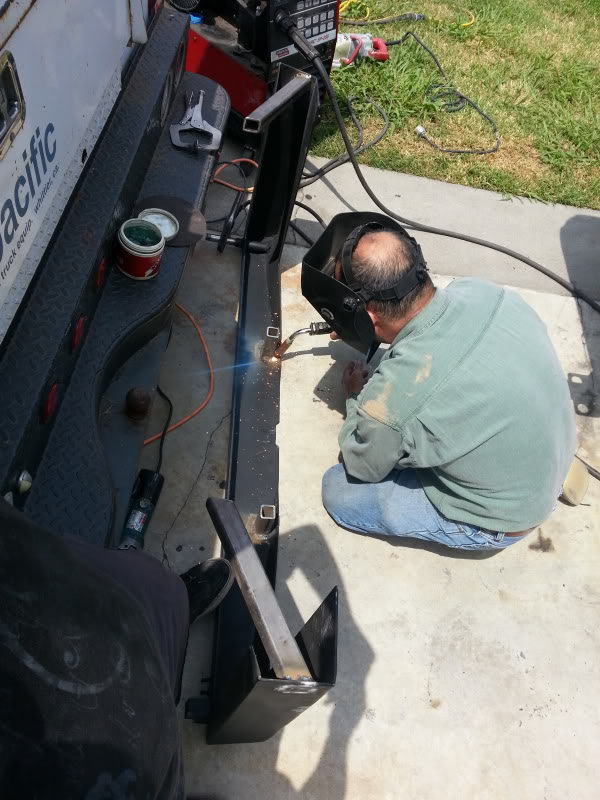

Then the welding began. We welded the the four 1/4" thick tubing to be the mounting points of the bumper. Dad did all the welds on this. I don't have confidence in myself to weld something so important on securely.

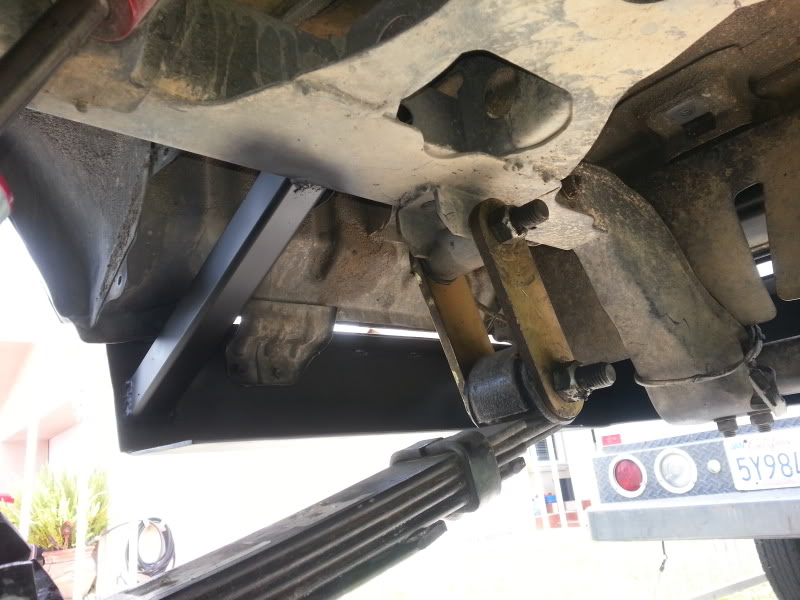

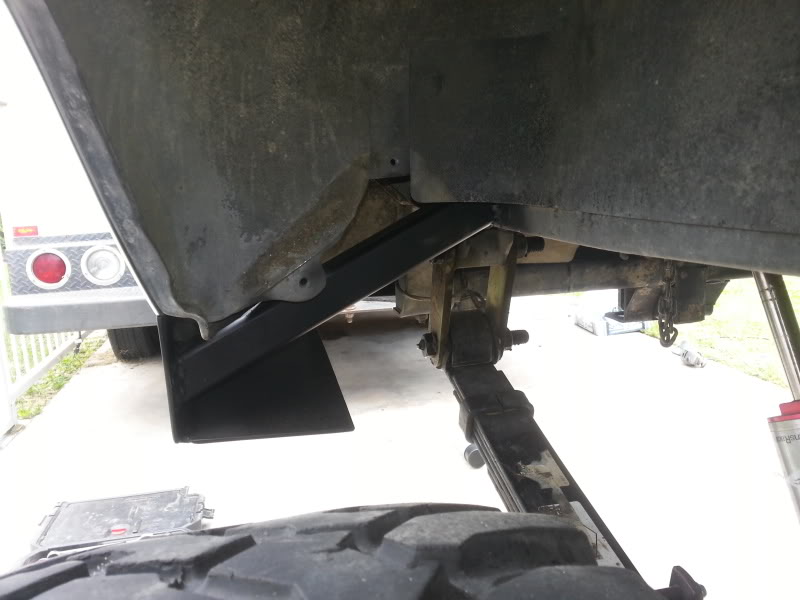

Here are the points my dad welded the bumper to. The longer side brackets got welded straight to the frame.



The front has 3 points were its welded. Around the front box part of the hitch. And these two 4" tubes.


Had my little helper come over today to help out. She volunteered to help. Lol
Greasing up the Inside wall of the spindle.


Then I taught her how to properly grease bearings by hand. Gosh she looks so hot in this picture lol



We also had to weld on a new piece of steel that wasn't planned to be part of the plan but it was very necessary to have. This little triangle acts as a stop for the tire swing. I found that once on the truck my tire swing would want to swing all the way around to the side of the truck. So it was absolutely needed to keep from swinging out in front of on coming traffic on the street or worse. Hwy/fwy.

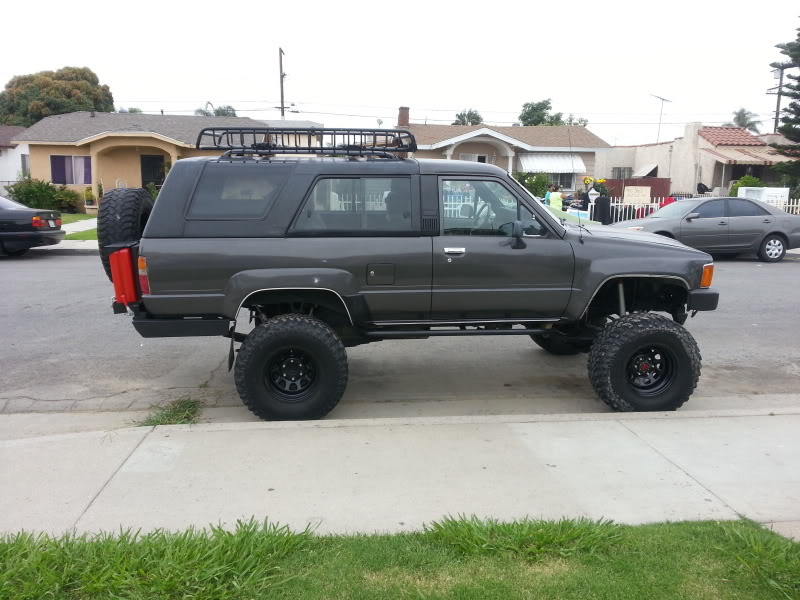

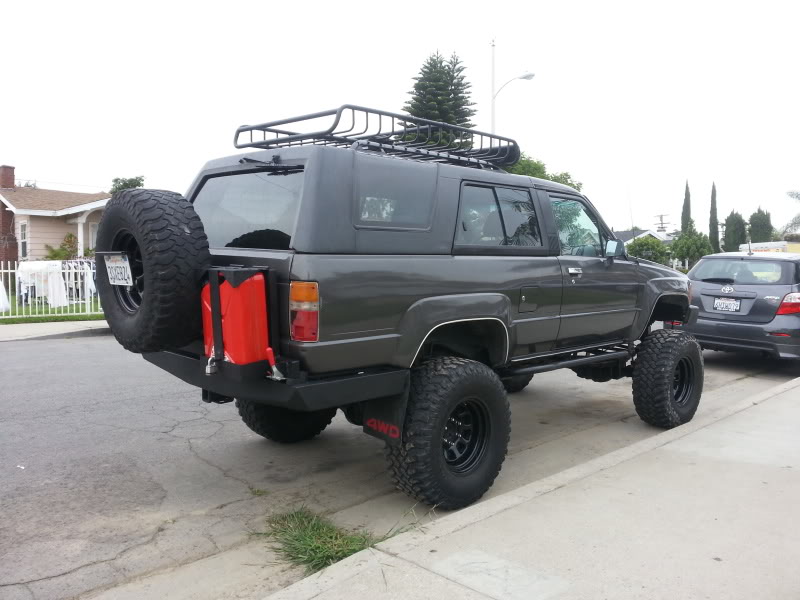

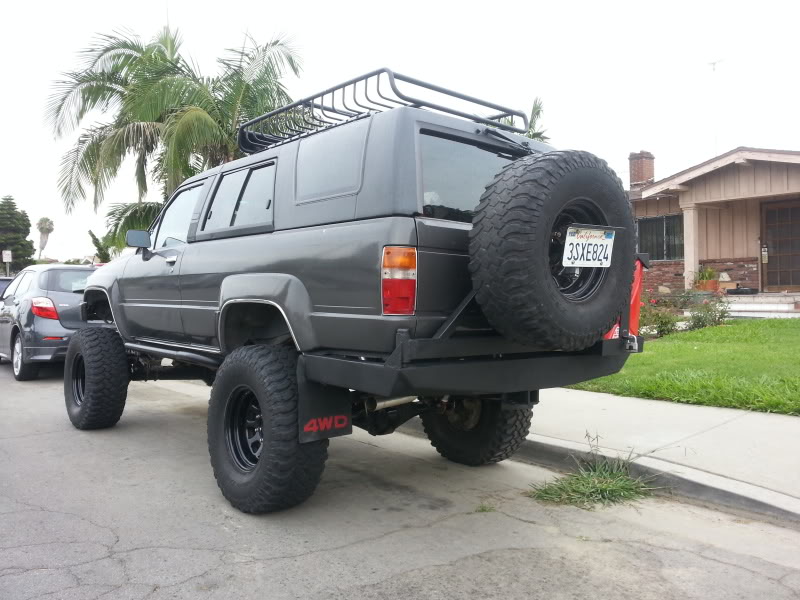

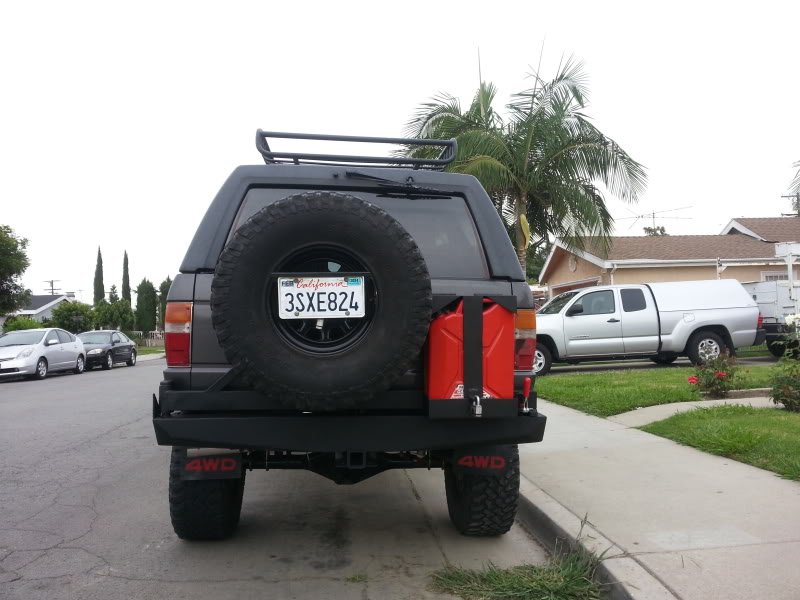

And here is my sexy Kingsford. All finished up.




License plate sits very nicely perfectly in the center of the wheel.

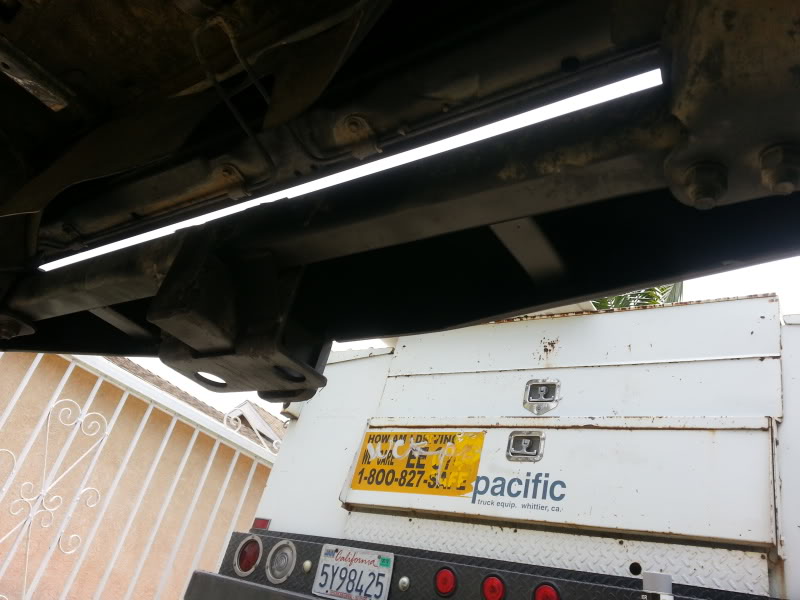

Close up of how the LED strip looks omce all mounted.


------------------------------------------

I'm so happy guys. I really am. This is definitely one hard project to do. It was very time consuming. And although costly it was still 1/4th the price of what I would have paid anywhere else to buy already made or custom made. I enjoyed this project a lot too. Had to put my brain to work on this project for everything we incorporated into it.

Here is some shots faby took of my dad and I working having a hot fun day baking under the ridiculous temperature only to have it rain for 2 hours unannounced later on.




------------------------------------------

EDIT:
Due to the rain we had I didn't get enough time to wire up the LED strip. I will get to it tomorrow and hopefully upload some night time shots for ya by the end of the day. I did however get started on wiring it all together inside the house. So this license plate holder is good to go now. Just need to tap I to the correct wires tomorrow and we're good to go.



Freaking Bad Arssssse! That is so darn cool brudda! Very nice work. ....

Good talking today, however brief. ... I have lots of wiring coming up myself, with four switches and all kinds of other crap! lol.

You and your dad did an awesome job man it looks great!



that is an epic bumper an swing i want a night shot please of the lights lol

hows she swing out? did you make a small hole for a hold pin like the 2nd gens have? drain hole for the jerry can?



Bumper looks great Richard, good job the satisfaction of yours being one of a kind is priceless, the fact you and your pops made a project out gives you memories for ever congrats man.



Such a great job! Gongrats! Looks incredible. Your rig's got !



Looking great. Congratulations on a job well done.

Do you notice the weight back there at all?



congratz on the bumper. looks great



Thanks guys. I think it came out looking really clean. It does feel heavier in the rear end though. I do agree with you jason. Its one of a kind and not to be cocky but it does look a lot better then what alot of smaller local fabricators make. I looled around on private craigslist fabricators and a few small name companies that are a drive away but still have websites and I really didn't like their work at all. And looks a heck of a lot better then what a few other yotatech, pirate4x4, Ttora etc... members have made in the past. Don't get me wrong I did see a few awesome fabbed up bumpers for people who did it themselves but there were a lot of others that I don't think took as much time in it to make with all these corners/shapes and stuff like my dad and I did. Every time I see this bumper I will always think of my dad. So that's a great memory. Glad he took an interest in something I like. Tell you what though. This experience definitely made me feel more attached to my truck now that it has more sentimental value to it!

Lmao yes she has a big booty now.

Thanks man. And After driving it around all day today and yesterday I have to say that I do feel a bit of drag in the rear. I mean after all the metal components all added up to 110lb so plus the empty jerry can, and the extra tire on steel rim. I'm esimating about 140lb or so.

I did make 2 holes in the jerry can tray. Down on the lowest 2 corners.

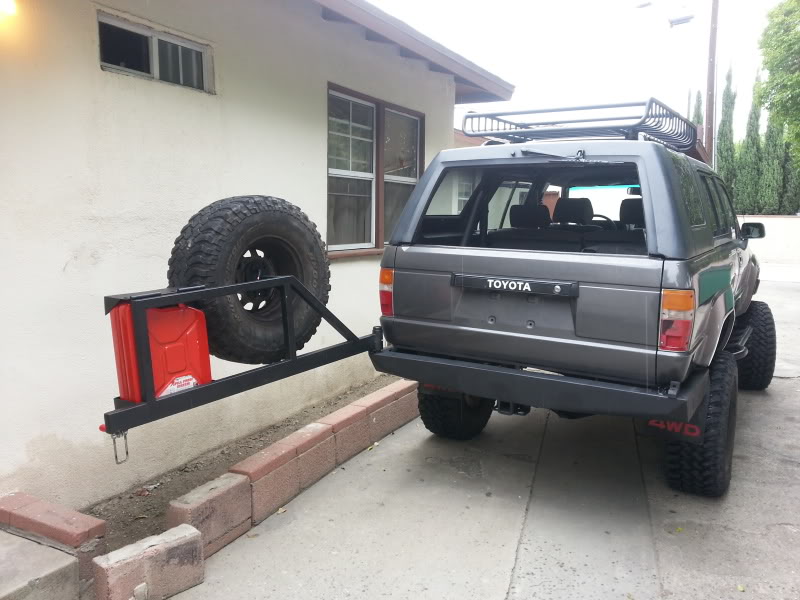

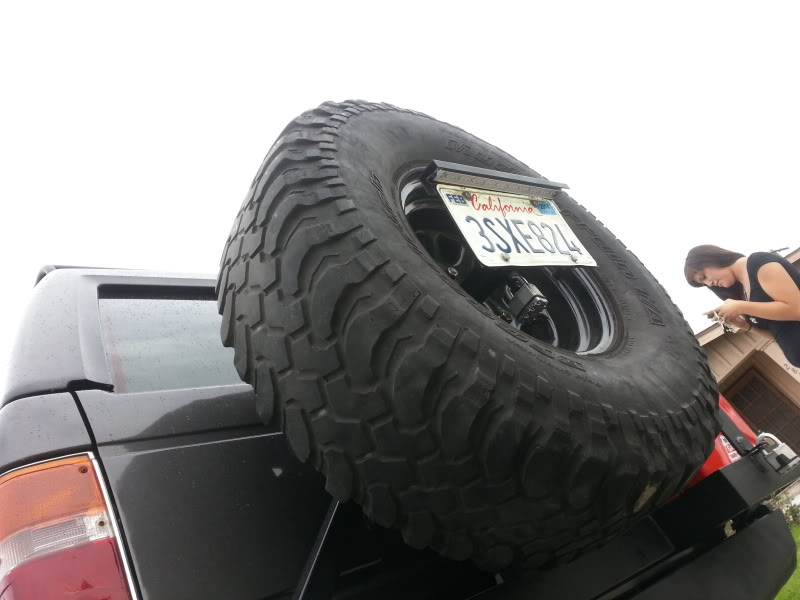

As for how the tire swing looks like while open. Here's a picture.


I will get to the night time pictures you asked for on that rear license plate light. I got it to work but I ran into a couple of problems. That I want to address in another post.

Ill post up those pix and details in a few minutes guys.



richard its time for you to move to imageshack photobucket has broke all your images for their upgrade spam

http://imageshack.us/



Omg you're kidding! All of my images? Or just the recent pix? Jeez nooo I even deleted a bunch of old pictures and and lota of videos so I could make room for more pix.



all the ones on this page are doing it

went back to the 16th um pg 94 an those are as well



Ok i just jumped on my PC and seen that yes every single picture i have ever uploaded onto the photo bucket is displaying that picture message. wow...... All my walk throughs.... all my progress.jeez...

Just deleted a bunch of videos and pictures. gonna delete all the ones i really dont need. just to make some more space. As of right now i am at 95% full. so my pictures should be showing up by now. But on my account Photobucket dispplays a message saying "Your bandwidth limit will reset in 3 days." So i'm assuming by wednesday my pix will be up once the stupid people on Photobucket realize that HEY HE IS STILL UNDER HIS 100% CAPACITY! Wow.... talk about being mad right now. i seriously hope that this problem if fixed quickly. Gonna have to sent them a message pleading with them to please take that off since i am now under the limit.

That website you linked; ImageShack.us Does that have a limit as well?



5 gig of space till ya have to pay my stuff in my thread an a few pages elsewhere so far is less than a gig



Flickr test....
[/url]

Got it.... So the HMTL code doestn work on flicker. I would need to use the BBCode. Which is the same thing as an IMG code on photobucket.
BTW i thought id try out FLICKR since i read that their free user package includes 1 Terabyte work of storage.

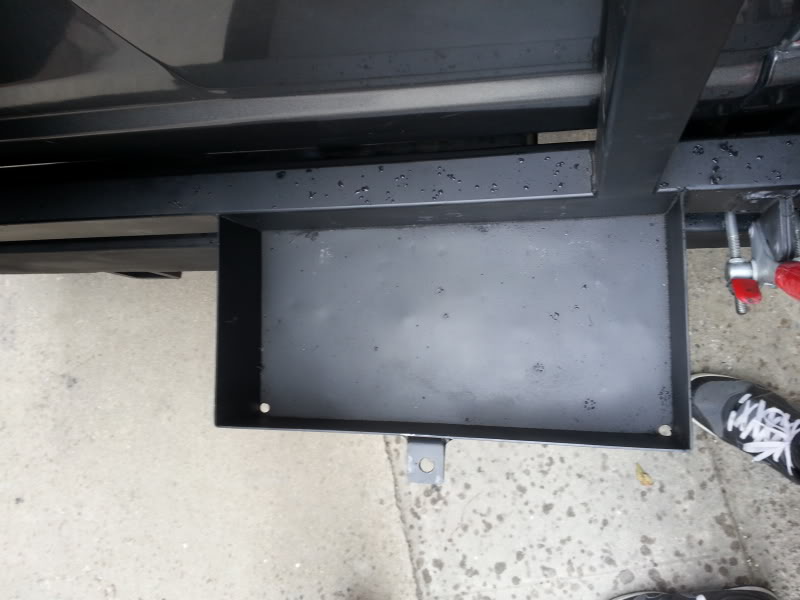

Here is the 2 holes i made in the Jerry can holder pare. The plate here is kind of slanted so i drilled the holes in the lower corners where the water would accumulate.
