habanero's 1996 4Runner Build-Up Thread
#1861
Contributing Member
Thread Starter
96 4Runner 261,6xxx miles
Made a mess. Okay, really I got the wiring done from the locker to the door sill.
I noticed that the existing plug had 4 wires that were also in my locker harness but not used for the locker. I took the wires out of the old connector male and female and put them in the 'new' male and female connectors.
That equals just one connector instead of two.
There was also half a black connector next to the locker connector that had ground wires running to it. I ran the two grounds for the locker to it using the other connector half that I had grabbed from the junkyard.
And the whole mess fits on a plastic doo-dad that snaps into place and holds everything safely out of the way.
Made a mess. Okay, really I got the wiring done from the locker to the door sill.
I noticed that the existing plug had 4 wires that were also in my locker harness but not used for the locker. I took the wires out of the old connector male and female and put them in the 'new' male and female connectors.
That equals just one connector instead of two.
There was also half a black connector next to the locker connector that had ground wires running to it. I ran the two grounds for the locker to it using the other connector half that I had grabbed from the junkyard.
And the whole mess fits on a plastic doo-dad that snaps into place and holds everything safely out of the way.
Last edited by habanero; 07-02-2017 at 06:21 PM.
#1863
Registered User
Join Date: Aug 2011
Location: Dallas, TX
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
Did you happen to take any additional photos of the light bulb and plastic key surround? I need to get back in there on my own '96 SR5 and replace the t-shaped white plastic insert, but I'm not exactly sure where it goes, and so I was wondering whether it would be obvious once I take apart the dash...?
#1864
Contributing Member
Thread Starter
hrt4me- lemme look and see what I've got.
Edit: Well, the last pic was about as much pic of the ignition as I took. However, I will be opening it back up soon to finish off my locker wiring and to work on my next project so I can get pics then. Should be pretty easy to figure out, if it's the part I'm thinking of. 4 10mm bolts on the bottom panel and the piece over the ignition switch carefully pops off.
-------------------------------------------------------------------------
Rained all day today but I still got into an impromptu and necessary for my sanity project. Several days ago the blower motor suddenly started sounding like an aircraft.
Remove kick panel, unplug blower motor, unscrew 3 T-25 torx screws, blower motor complete with cage will come straight down and out. I've got pics of this somewhere on the thread- post 2 for contents. Anyway, found the why:
Seeds, dirt, pine needles, oak blooms, and a dried out wet-wipe? Maybe it found a bit of mousie nest to suck up somewhere.
Edit: Well, the last pic was about as much pic of the ignition as I took. However, I will be opening it back up soon to finish off my locker wiring and to work on my next project so I can get pics then. Should be pretty easy to figure out, if it's the part I'm thinking of. 4 10mm bolts on the bottom panel and the piece over the ignition switch carefully pops off.
-------------------------------------------------------------------------
Rained all day today but I still got into an impromptu and necessary for my sanity project. Several days ago the blower motor suddenly started sounding like an aircraft.
Remove kick panel, unplug blower motor, unscrew 3 T-25 torx screws, blower motor complete with cage will come straight down and out. I've got pics of this somewhere on the thread- post 2 for contents. Anyway, found the why:
Seeds, dirt, pine needles, oak blooms, and a dried out wet-wipe? Maybe it found a bit of mousie nest to suck up somewhere.
Last edited by habanero; 07-02-2017 at 06:21 PM.
#1866
Contributing Member
Thread Starter
#1868
Contributing Member
Thread Starter
It went lock. unlock. lock. unlock. today. Still not quite done with the wiring yet. More later.
#1870
Contributing Member
Thread Starter
Not too much. Trying to make the instrument panel switch light work. Hubby's suggested a relay so that's what I'm going to try. Otherwise it's just putting everything together and using the diagrams in my links + some figuring of my own. Got home a little later in the day than intended (trail build, go figure) but it's still about done. Hopefully those aren't famous last words...
#1871
Contributing Member
Thread Starter
Did you happen to take any additional photos of the light bulb and plastic key surround? I need to get back in there on my own '96 SR5 and replace the t-shaped white plastic insert, but I'm not exactly sure where it goes, and so I was wondering whether it would be obvious once I take apart the dash...?

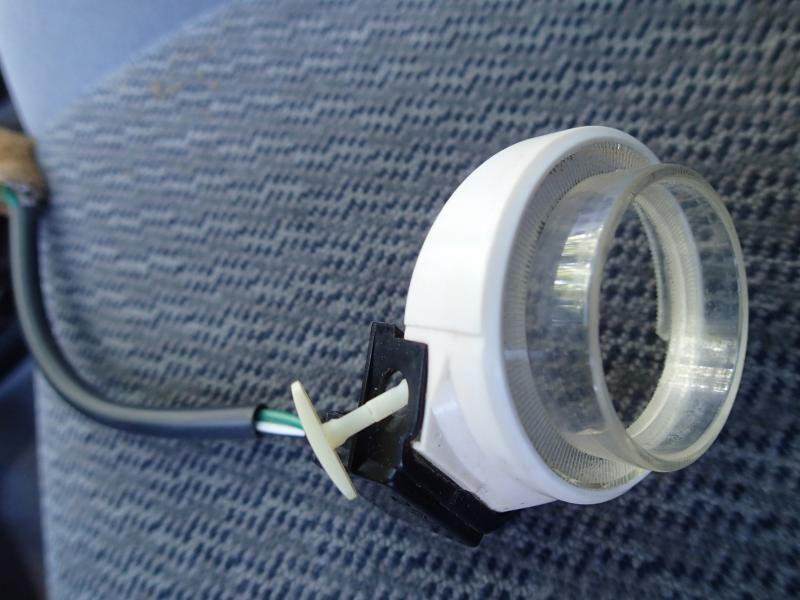

Assembly. You can see the bulb, the socket just keys in. Below the bulb you can see the black plastic has a hole in it.
This hole is where the t-shaped piece fits:
See the hole just to the lower right and behind where the key goes in?
Slide plastic bit down until the corresponding holes align:
And push it in. On mine the fit is pretty loose but that's okay because the surround keeps it in.
That piece of trim is held in by clips and pops off once you get the lower panel loose.
And that's probably about 4 pics too many for explaining but there you go.
Last edited by habanero; 07-02-2017 at 06:23 PM.
#1872
Contributing Member
Thread Starter
Oh yeah....
96 4Runner 261,870 miles
96 4Runner 261,870 miles
Last edited by habanero; 07-02-2017 at 06:23 PM.
#1873
Contributing Member
Thread Starter
And did I mention?
Got it! No locker ECU, no pre-wiring, lots of help from a few threads and wiring schematics. It wouldn't have gone so well without the willingness of others to share what they've done.
Got it! No locker ECU, no pre-wiring, lots of help from a few threads and wiring schematics. It wouldn't have gone so well without the willingness of others to share what they've done.
Last edited by habanero; 07-02-2017 at 06:23 PM.
#1874
Contributing Member
Join Date: Nov 2010
Location: Columbia River Gorge, Oregon...east side
Posts: 5,125
Likes: 0
Received 2 Likes
on
2 Posts
Sweet! That is a COOL red light! seems appropriate for your researching and preparation.
Great work, as always.
Great work, as always.
Last edited by rworegon; 05-18-2014 at 05:31 PM.
#1875
Contributing Member
Thread Starter
Thanks RW! Now it's a matter of time telling how well I interpreted all that research....
#1877
Contributing Member
Thread Starter
I've verified that it's locking-and unlocking- but actual driving test? Not yet. Gotta get it off pavement to do that. Soon!
#1878
Contributing Member
Join Date: Nov 2010
Location: Columbia River Gorge, Oregon...east side
Posts: 5,125
Likes: 0
Received 2 Likes
on
2 Posts
I figured you'd had it out around the garden area by now for a test drive. lol.
So, that is where the ignition ring light sits. Guess I better replace the burned out bulb in mine sometime soon.
So, that is where the ignition ring light sits. Guess I better replace the burned out bulb in mine sometime soon.
#1879
Contributing Member
Thread Starter
The beginning of my own wiring info, gathered in bits from a few sites, consolidated and redrawn from my notebook with a few of my notes:
