Update!......soon, lol. Have to get home... Really spotty connection. I think I found the problem to my turn signals drama... Feel free to go ahead and guess until I get back! Lol...

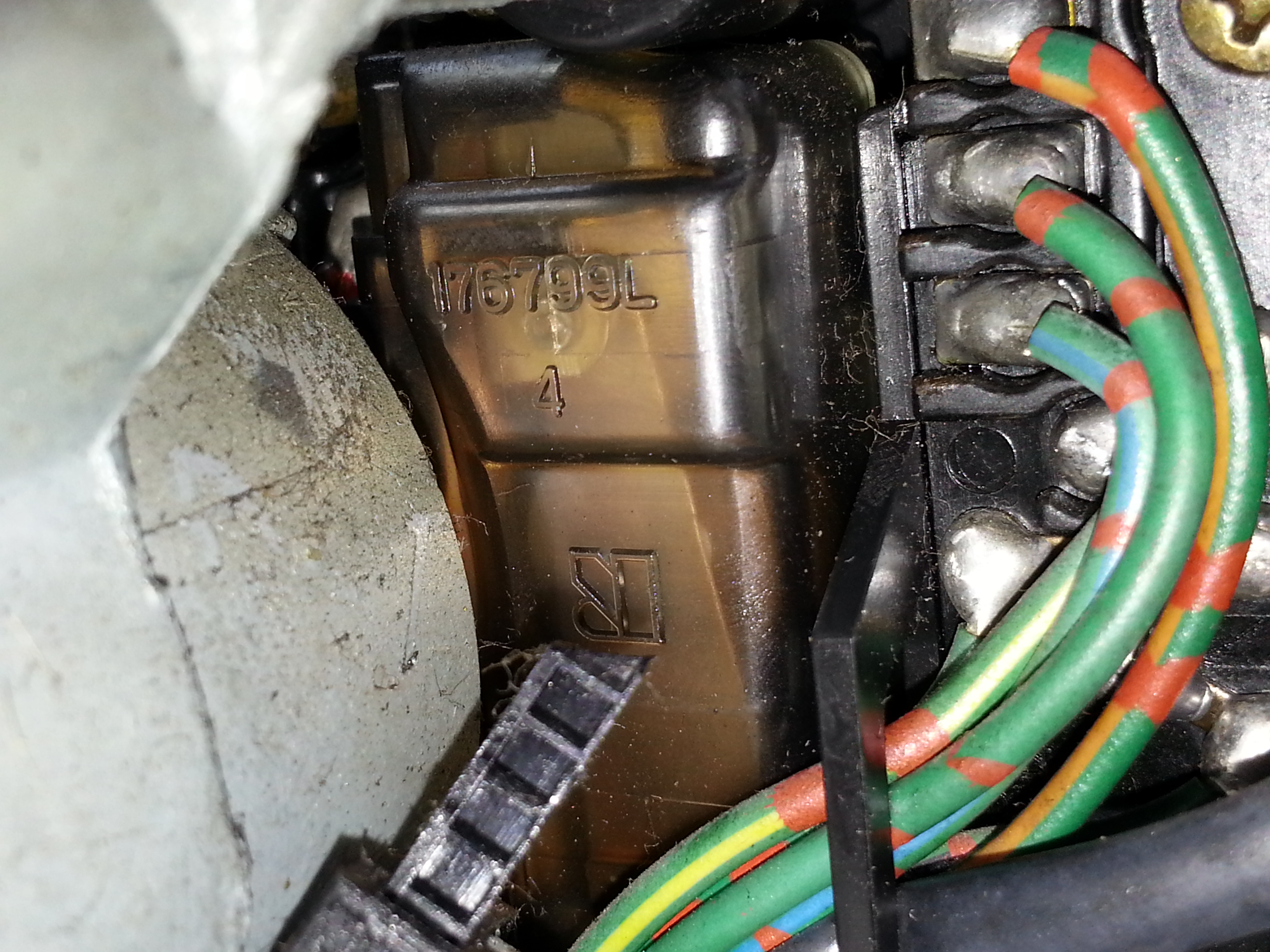

Today, I dug in to my turn signal drama... I pulled the horn top and the column cover, and I've never seen so much of a dust bunny convention in my life! Here you can see the back of the left lever / turn signal/headlight combination stalk and encapsulated portion behind it.... This was completely covered to where you couldn't see anything, even the soldering points and especially not that covered portion which I'm assuming is for the signals/ positive portion of the circuit...

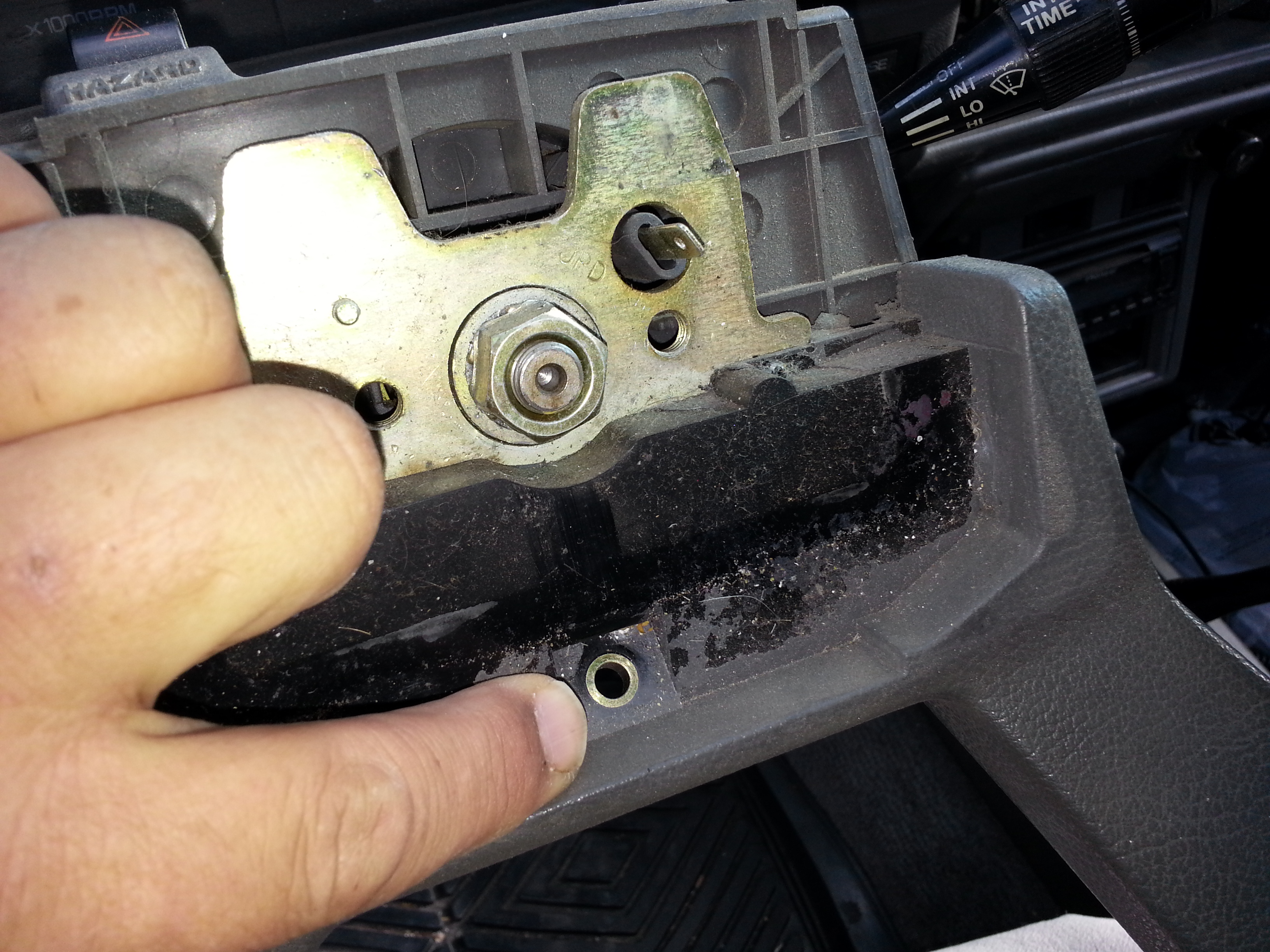

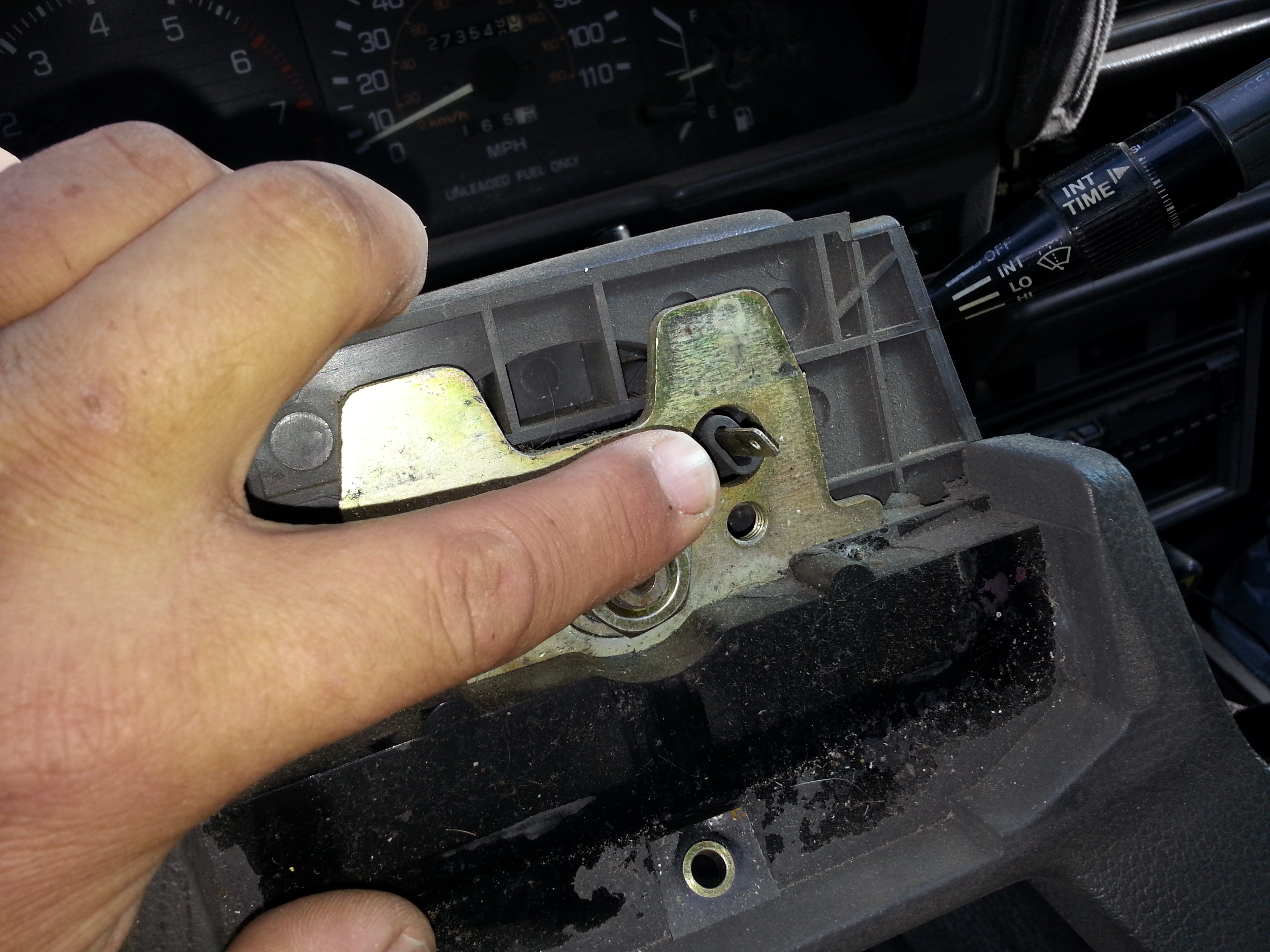

When you lift the lever to turn the signals a little spring loaded button on the opposite side of the steering wheel goes in and out of these valleys ( looks pretty much like a Trail Gear logo)... That is the clicking you here as you turn the signal from left to center to right.... In the center, its a larger Valley which doesnt allow that button to be depressed all. As you go to the right or the left with the lever, the little spring loaded button makes contact by actually pressing in, pretty much the opposite of the door ajar button... From what I know that is how to switch ground works within the signal.

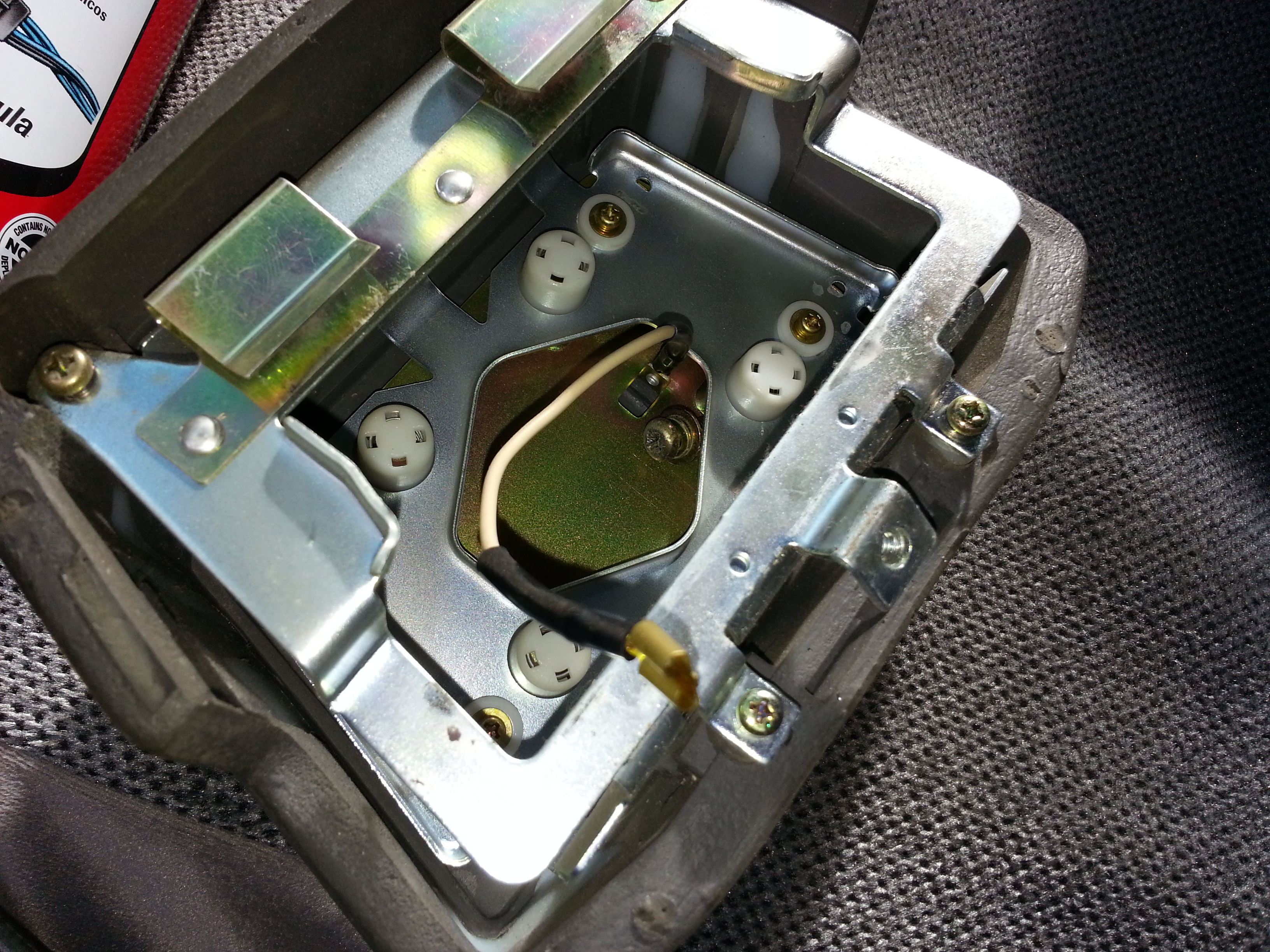

Here is the horn connector, and the threaded hole when you remove the screw and then slide the horn cover over the top and off...

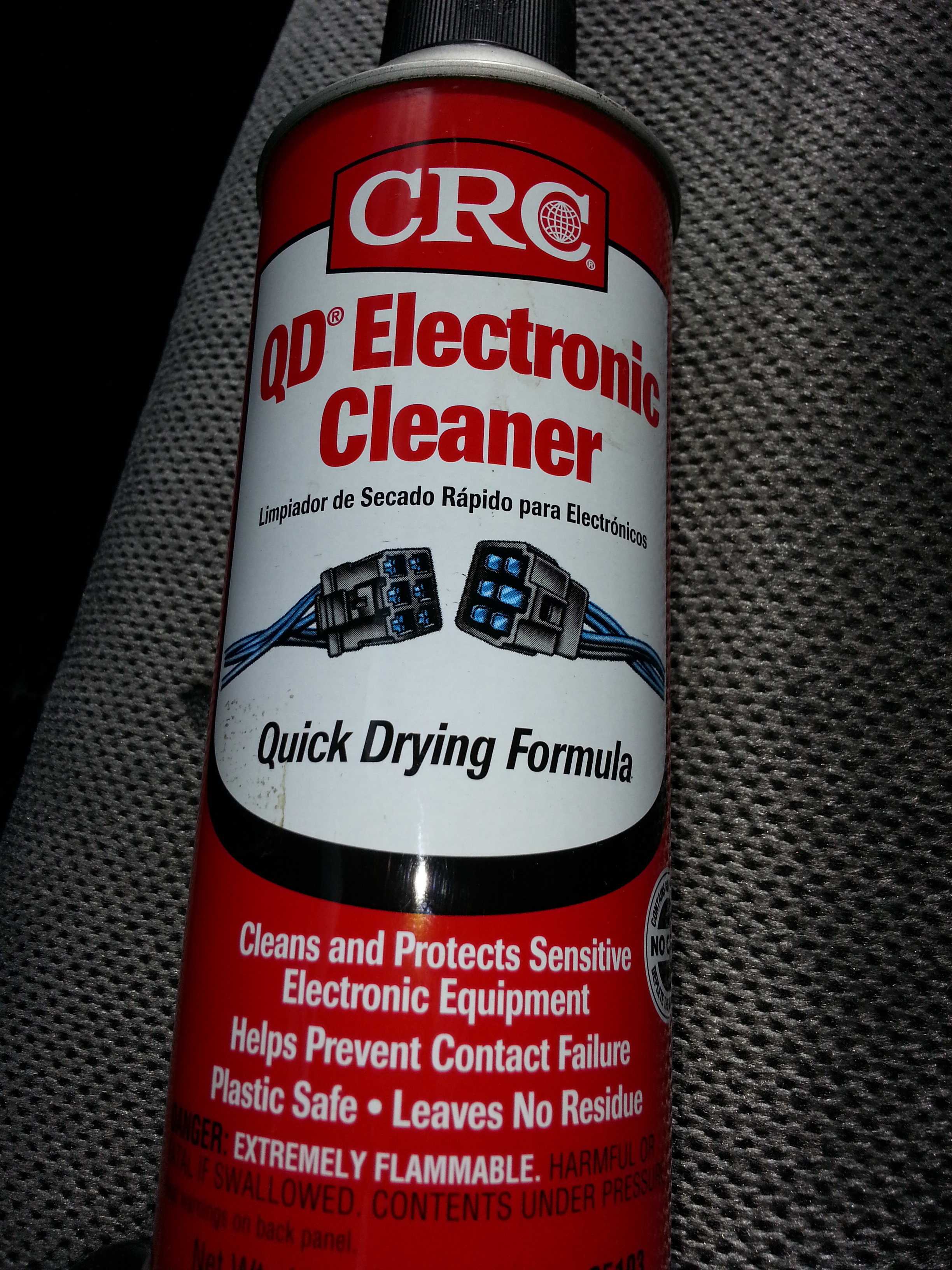

I used a toothbrush and quite a bit of this to get everything cleaned up with in the stone column Electrical...



At some point, I realized that I needed to get the steering wheel puller, but just by happenstance, I did not have a parts runner... While I waited for the Honda to come back, something had been gnawing on me all day in regards to, "What have you most recently dug into, Mark? What did you actually mess with last before heading up to Big Bear?"... I realized that in spite of all the electrical I've been doing, I never really messed with any of the circuits related to the turn signals... In fact, the problems I'm having are all tied together with the engine fuse circuit within the driver side kick panel fuse block... Nothing I've added is tied to that stuff. I jumped off the dome circuit and the defog circuit... That's it. Suddenly, that knocking on my noggin literally forced me to get out of the truck and start investigating the trailer wiring connector and everything related... Before I left on the trip I tied the trailer connector to the bumper in a way that it wouldn't be dragging on the ground or fall loose or hang up on something and rip out from the driver side tail lights...

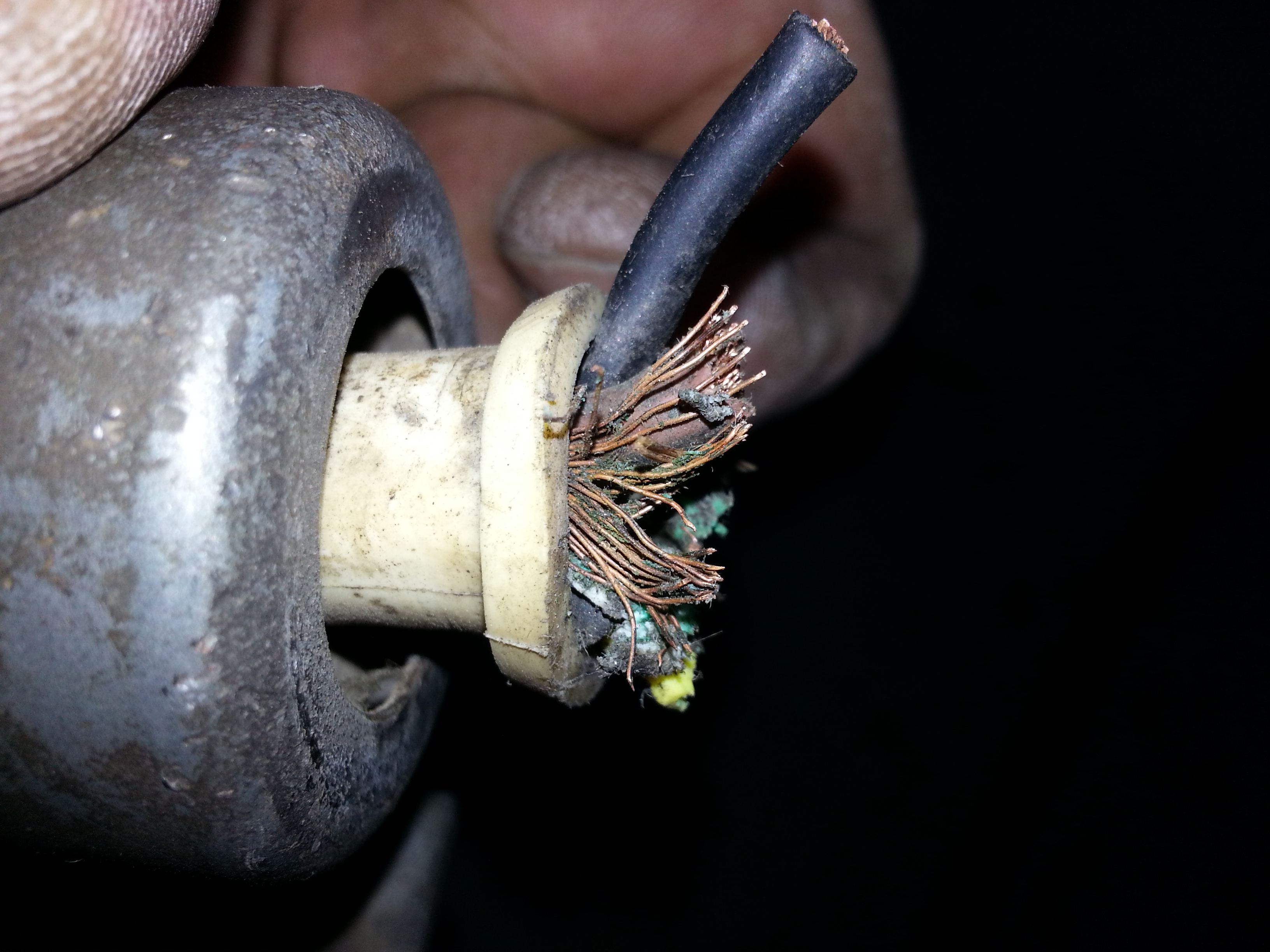

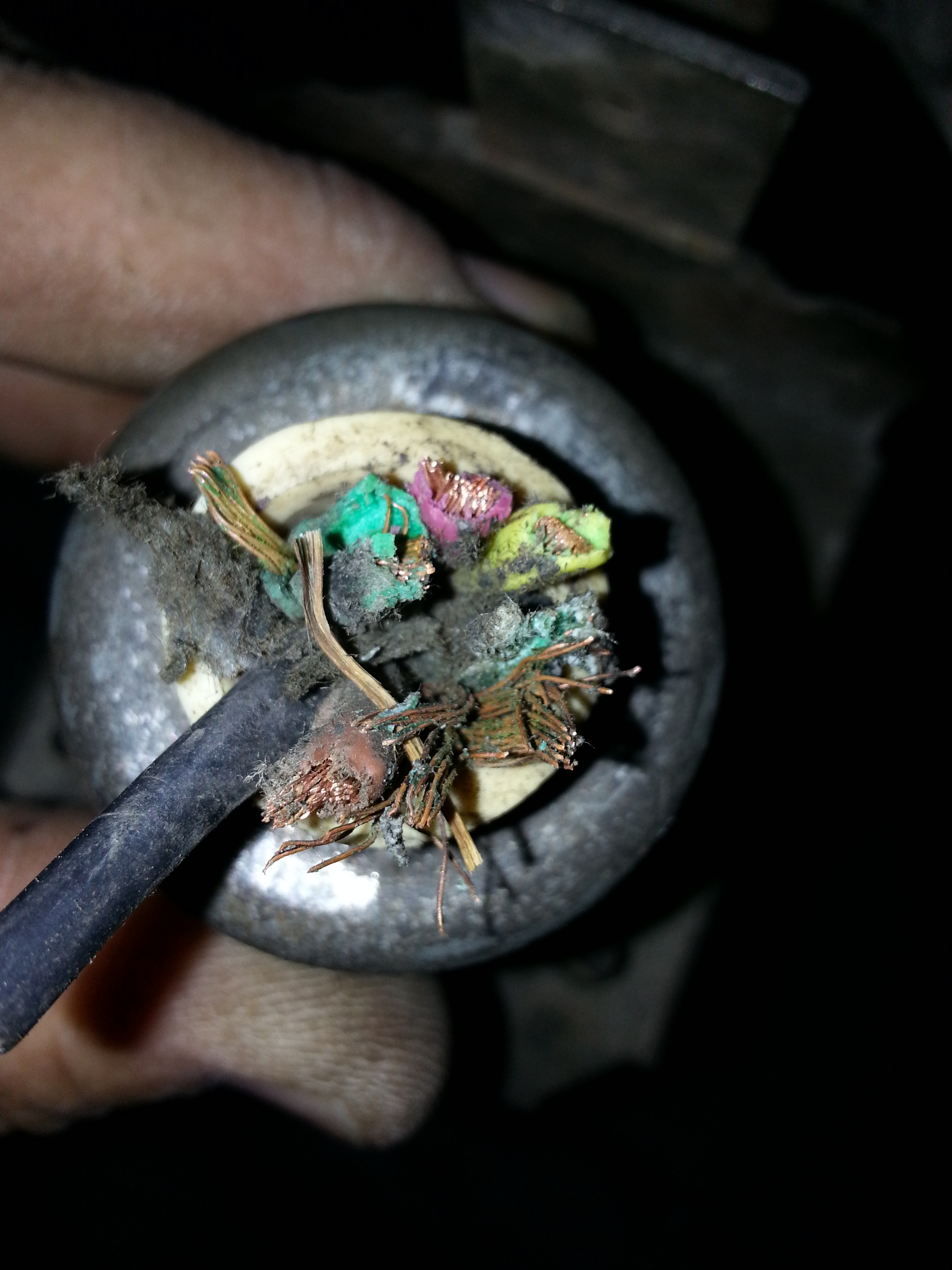

As I started digging into that trailer wiring connector, which I would have sworn it was disconnected, I got 10.5 volts at the turn signal pin in that connector... As I was inspecting it, I bent the wiring a little bit away from the back of the connector housing, which is like a metal lighter socket, and I saw this...( keep in mind, this is after I've cut it away, which all cleaned up now ... But look at how to of the positive wires are completely bare )....

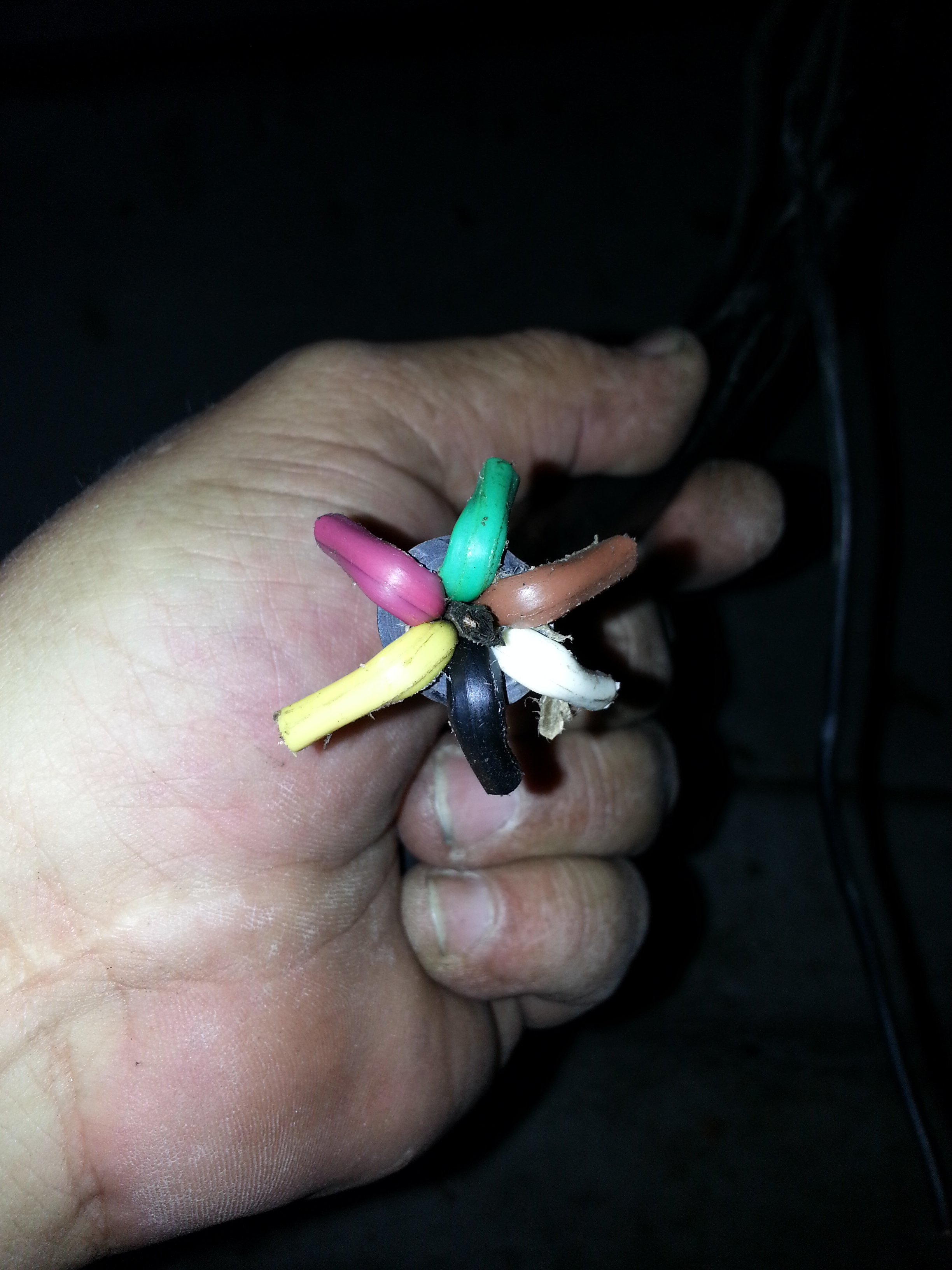

Trimmed back, and every single wire hereafter was heat shrink covered and capped.....



The problem appears to be gone...


I had plenty of other video showing how I was testing the trailer circuit at the trailer wiring connector... Along with other video showing how to turn signal worked and so forth... I accidentally deleted them.... ... sorry... I'm going to check the recycle bin or whatever of my phone... But I think they're gone. I was hoping to share that as it made a lot more sense of address again, just how everything works in there.

************************

PS: I completely forgot about 10 times now to post pictures but answer the question about my tires...



so it was an old trailer wiring connector out back?
well boss i can say those wires look JUST like the oil sender wire ive had issues with corroded black an green in the insulation

glad ya found it!

ooh nice rubber SHINY!



Problem solved! It makes sense because trailer wiring often gets abused, and that was one of the last things you messed with - LOL!



Only time will tell if I have to tear into the combination switch section in the steering column... But I really really doubt that has anything to do with it. I ran the signals for about 20 minutes all together this evening... While turning hard and pressing the brakes, etc. Not a single hiccup!

I also cleaned up everything really well like you can see in that one picture, and I tested the high beam constant on switch and could not get it to act up. I'm not sure, so I sent time will definitely tell that as well. If that persists, the text about 10 minutes max to get the steering wheel off and all the covers. As soon as stuffers its head I'm going right at it from now on when it comes to that crap. I mean that kind of stuff to lead to a fire... For now all the wiring is cleanly capped and when I am ready for a trailer I will simply wire up a new connector...

Thanks again, so much, Ray! I can't begin to explain how critical your help was and is.



Anytime I have an electrical issue to deal with, the first things I check is the stereo harness and see if it is done with an adapter plug or someone hardwired it in. The other area is the trailer wiring. There are kits for both. I suggest wiring it back to orginal and get this kit below for $20. It works great and solves all the other issues for me. When you first hook up a trailer the lights wont light up immediatley. It is like it is charging some capacitor or something. It takes a few seconds to activate, but you will see what I mean when a trailer is hooked up.


PN# 43315.



Hmmm,.... mine has 6 wires... how comeses uncle Terry? Haha. .. No, but seriously though... Why!?!? Hahaha...

As far as my stereo, it is hardwired and with an adapter plug... I soldered the Toyota OE connector to the stereo I got just last year. As a matter of fact I believe I got it for myself for my birthday? By the way, those Polk 690DXi's? LOVE them!

One of my future Electrical involved steps is too change my 1- 2 Channel amp that is going to my sub, alone, to a 5 channel for all 5 speakers. I have high end Blaupunkt 4 inch in the dash, hi end Polk Audio in the rear and the 10 inch JL Audio competition sub in the rear as well....

I have a 4 Channel right now sitting in my garage, but I don't want to run 2 amps....I just want to remain with one 5 channel under the passenger seat. I even thought about moving that into the panel, but I think it breathes better under the seat!

My birthday is Thanksgiving Day this year, so I'm trying to think up A good story to get my dad in the truck with me just to go on a little mild putt putt run around body beach in Lake Havasu. But if he doesn't want to I'm not going to give him any hassle about it. I just think that would be so great to get him out of the house and doing something he used to really love....

My dad was the biggest auto buff out of all of my families or friends families lives.... He said everything from hypo 240Z's, to a 1960's XJ-12, Goldwing Mercedes, a 40's MG Conv., A early 60's Mercedes hardtop convertible that one many shows, A built V8 equipped 60's bright orange VW squareback, and then he started getting into four wheel drives... And he had one of the sickest 92 Broncos, Eddie Bauer version, with everything... Man was that thing clean. .... The cars are countless but he had tons of Toyotas, including 3 Toyota Cressidas of three different generations.... Of course, what I miss more is just seeing him out and active... I understand that he's older and he's feeling it... Its just sad when you know that they would feel so much better if they just did a little bit more to get the heart going and so forth. Kind of defeating himself, in other words... It's tough. But I gotta give him props, he did go to the Bahamas with mama Sue... I couldn't believe my stepmother got him out there... And it's awesome. Of course before they even got back he said he had a good time but he's never going to do it again. I told her, "You get his ass to Graceland next year!" They are both big Elvis fans hahaha.



So we see you got the km2's, which I thought were totally BA on my Runner and my '83(sometimes wish I'd kept them instead of the at's), but why? Were your km1's starting to crack and dry rot?



I am not 100% sure, but on my 3rd Gen and other trucks that have the big barrel connector like that in our part of the country, usually means electric power for trailer brakes. I only see that on heavy trailers or trailers that pull heavy loads.

My camper has trailer brakes. I never see that style plug on light duty trailers. I am guessing it is for trailer brakes.

Does your have a box on the dash area, that is used for setting how hard the brakes apply on the trailer.

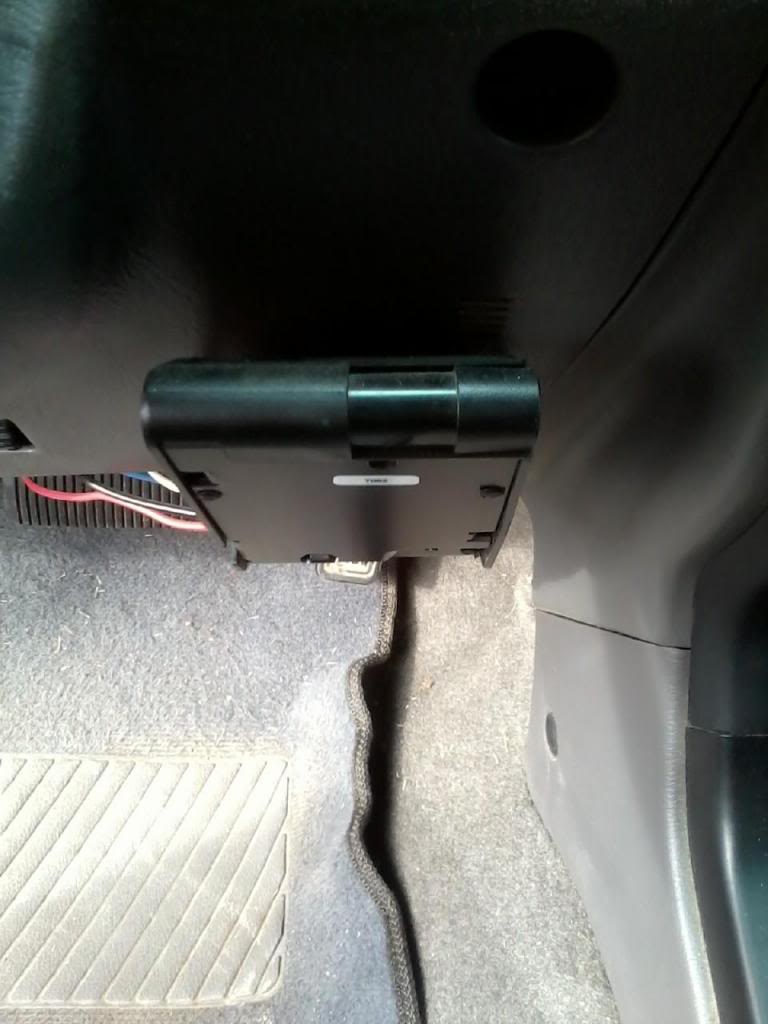

Would look similar to this.


Here is my connector on the 3rd Gen Runner. Seems I have seen round pins as well. My 3rd Gen is set to pull heavy trailers with electric brakes on them. I also have the 4 prong plug like pictured above tapped into the barrel plug.



No, the tires are in actually excellent shape... The rears are about 70 percent still in the front we're getting pretty low. I just wanted to start fresh and have good spares. To be honest, I want to save the KM 1's

Ahhhhhh! Great mind ya gotz! Never got of that. ... No, no trailer box on the desk... However, he may very well have removed it. There is a switch, a tiny toggle, and I've never figured out what it is. I'm going to trace it down soon.

New round are stainless....

Btw, pictures when I get home of the completely rusted bolt on the roof rack... Going to stop today and quickly swap those out for Stainless! I think Big Bear is what really did it because of the ice build up... The problem with allen bolt is they are the cavity on top... If you're going to use them you have to use stainless, I can't imagine what they would look like back east!



The 6 wire plug is usually used on larger trailers with electric brakes or on trailers with separate brake lights or on trailers where there is a need to charge a "house" battery in a camper or a trolling motor/live well Battery in a fishing boat.

European trailers are usually a 6 wire plug because they require separate turn signal/brake lights under their MOT rules.

Glad you found your problem Mark... it's nearly always something small and stupid like that when it comes to intermitant faults... hope you get your dad out for a boot to the beach...



cool video. Nice to see the 4runner out Mark.



Thanks Aaron! .... Yeah, been wheelin hard last couple years, as much as I could get away. That's increasing quite a bit as time goes on! Haha... Got a couple trips I'm hoping to hit coming up, soon. I'm definitely planning on going to Keough and Benton Hot springs this winter, asap.

Loving my rig big time! .... gave her a bath today after filthy'n her up in Big Bear....

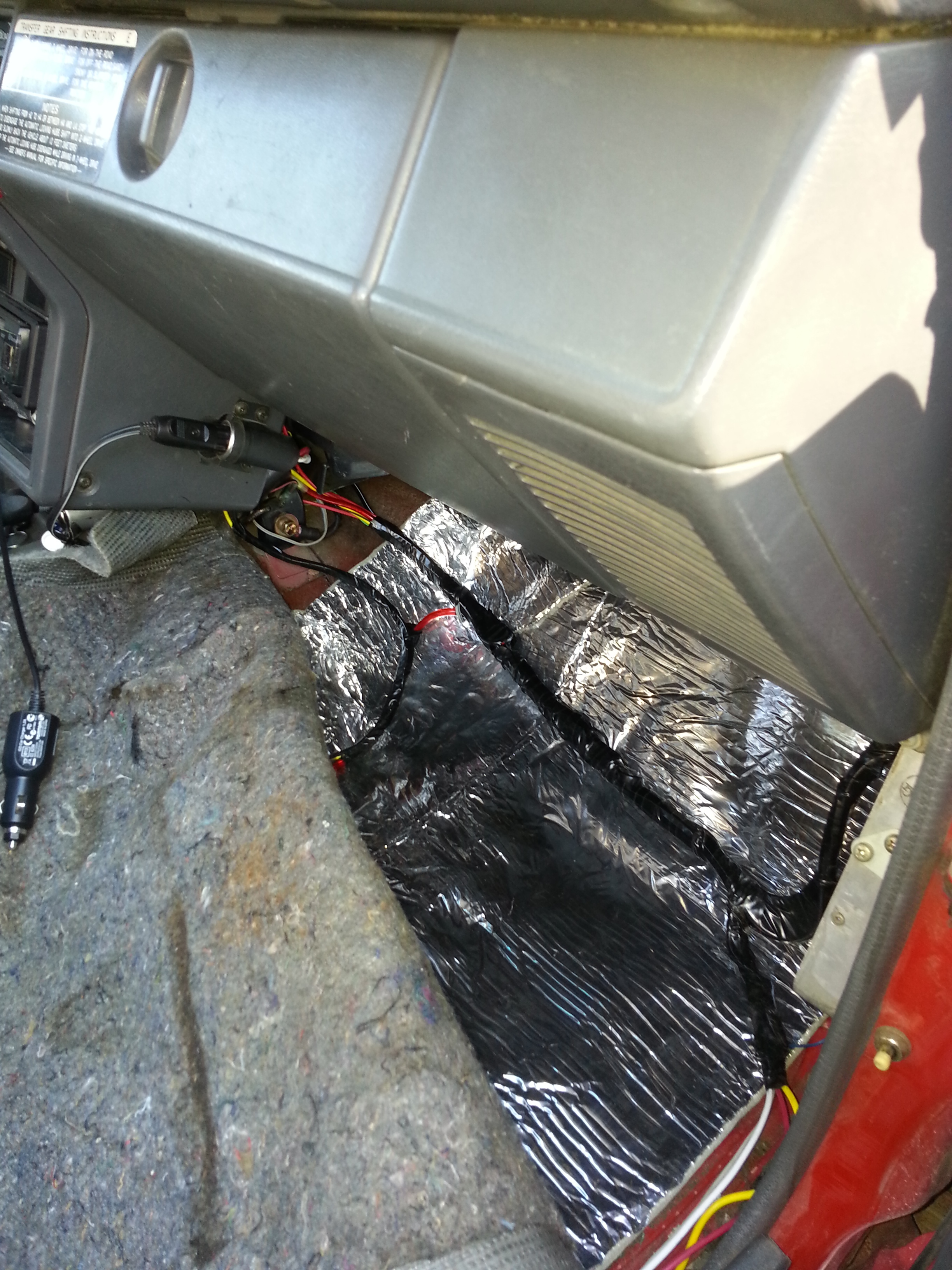

Earlier, I had 'frost king'd' & 'Thermoshield'ed' my floor and firewall...

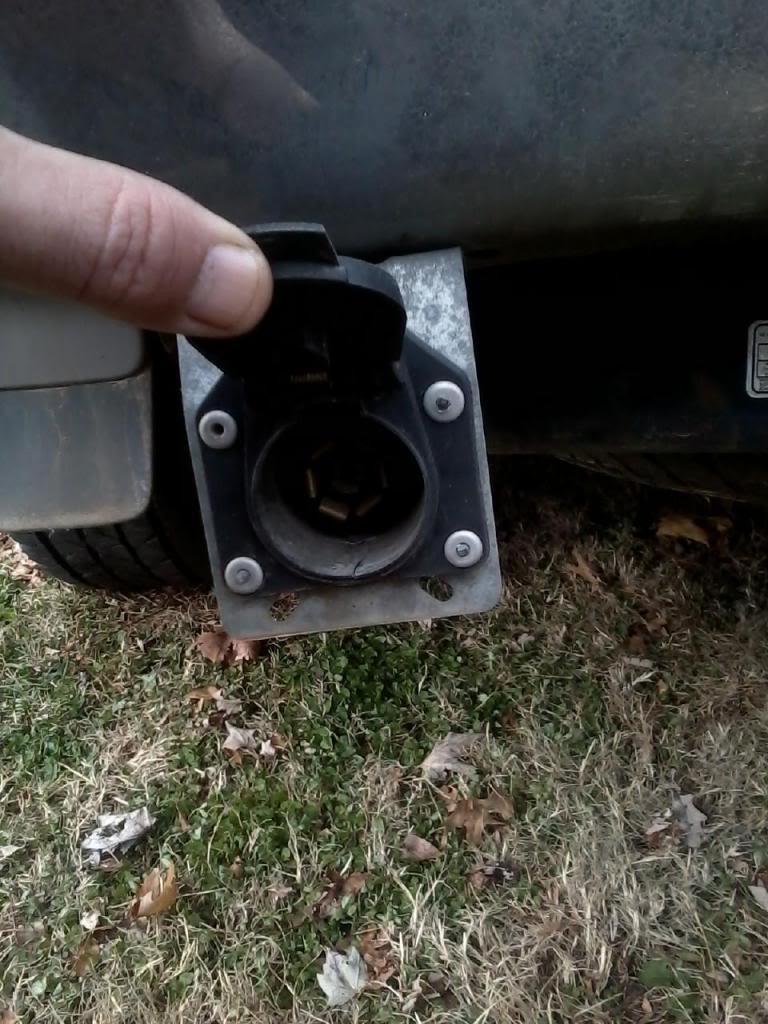

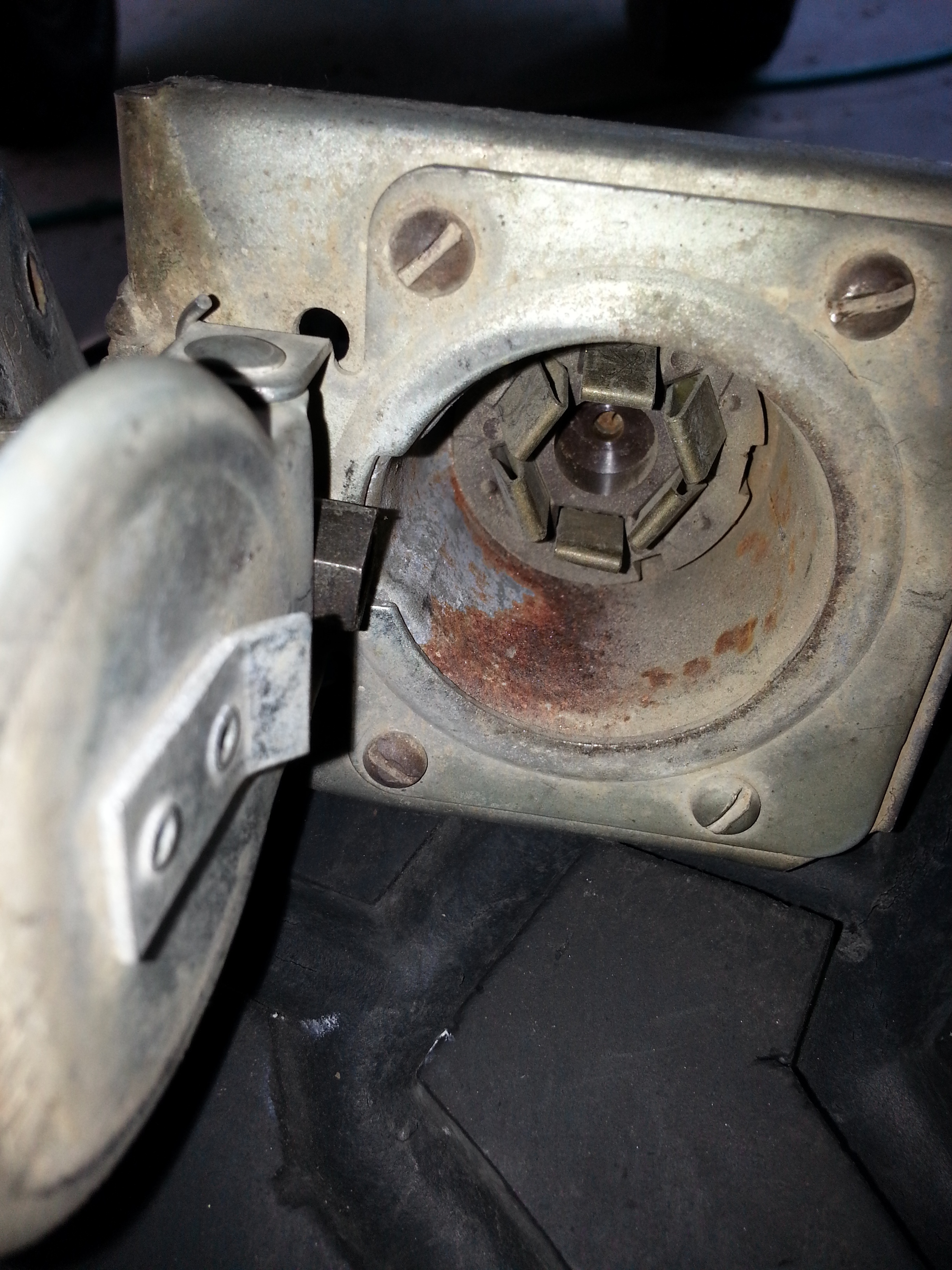

And I took a shot of the trailer connector I cut off.....



I'm hoping that cleaning up McCollum electronics and removing this and tying it up cleanly will be the solution to my problem for good...
