Hmm. Weird. Id say just Get it in there and see what'll work in your situation. Every swap is a little different.



Straightforward enough i suppose. I need the pump first. So I'm pretty sure I got my fuel lines figured out. I took off the big line with the screw in connection off the rail, flipped it 180* and got that buttoned down. Then flipped the smaller line over so it can run back down to return. Now tell me, is the hard line that's attached to the fender where the return hooks back into? It has a yellow stripe painted on it, as does the other line I flipped. I just need to be sure.



PICDUMP!!!! from earlier!!!!



https://www.yotatech.com/forums/f160...l#post50682888

Seriously, EVERYONE should read Elvota's swap 3-5 times, I'm pretty sure he covers just about everything in great detail:
https://www.yotatech.com/forums/f160...4-swap-128285/

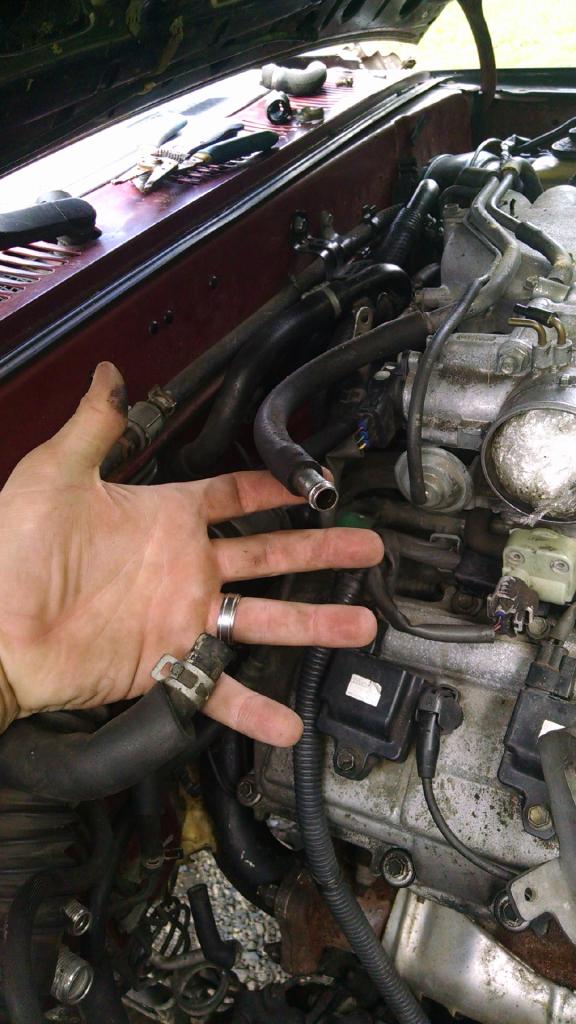

Connect that hose in your hand:
to the exposed fuel line:

You'll need to loosen the banjo bolt on the aluminum fuel rail and rotate that hose so that it "points" toward the passenger side (from the driver side) and that should give you enough slack to connect it to the hard line.


^ That port in the middle should be the vent line from the gas tank, or the fuel return; I don't remember off the top of my head.



Boom! Answers! Hahaha thanks Sac. I've been scratching my head on which is which. I suppose I flipped it right, guess well see. As for whether or not its the return I figure it oughta be, why would Toyota put a vent in that particular spot? But then again its just speculation, and I needed some clarity. I guess I'll read back through Elvotas swap AGAIN and see if I'm missing anything.



the vent line is isolated like that so it won't be confused for the return. Also the charcoal canister is located on the fire wall so why not have the vent right in front of it but not in the way of engine wire harness and not next the return so slightly less confusion.



Well crap. I suppose now I need to isolate the return. Any clues on which one that one is? And I'm using the evap box from the 3.4, do I still need the charcoal canister from the 3.0?

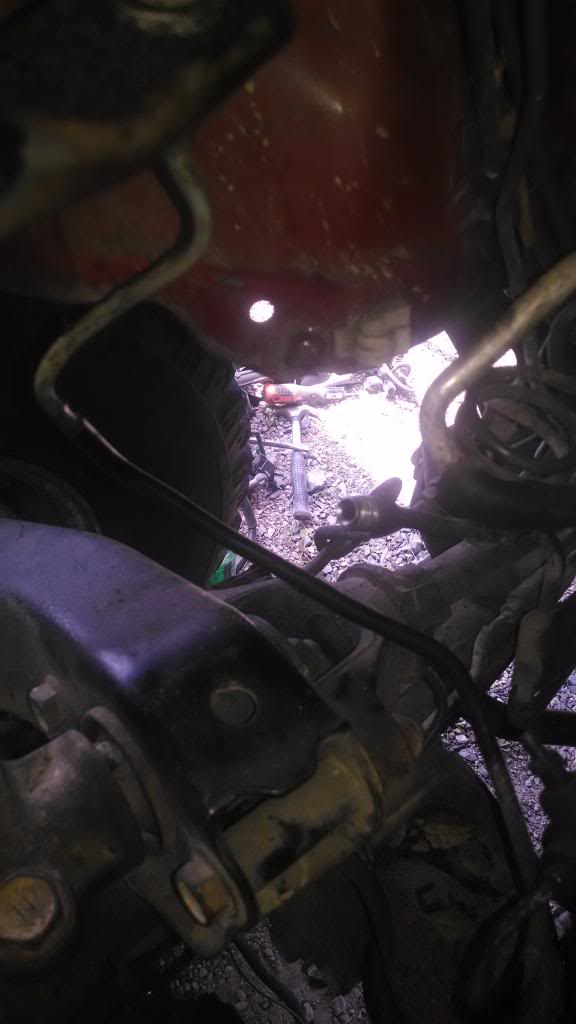

I looked at my truck, and that hard line in the middle IS the vent line (unless the soft lines at the tank got mixed up at some point), and the return line is the hard line that has the little 'S' bend in it near the disconnected A/C ports in the fire wall (just to the far right in your picture).



thanks for checking on that. Any chance you can find the return for sure?



See above.

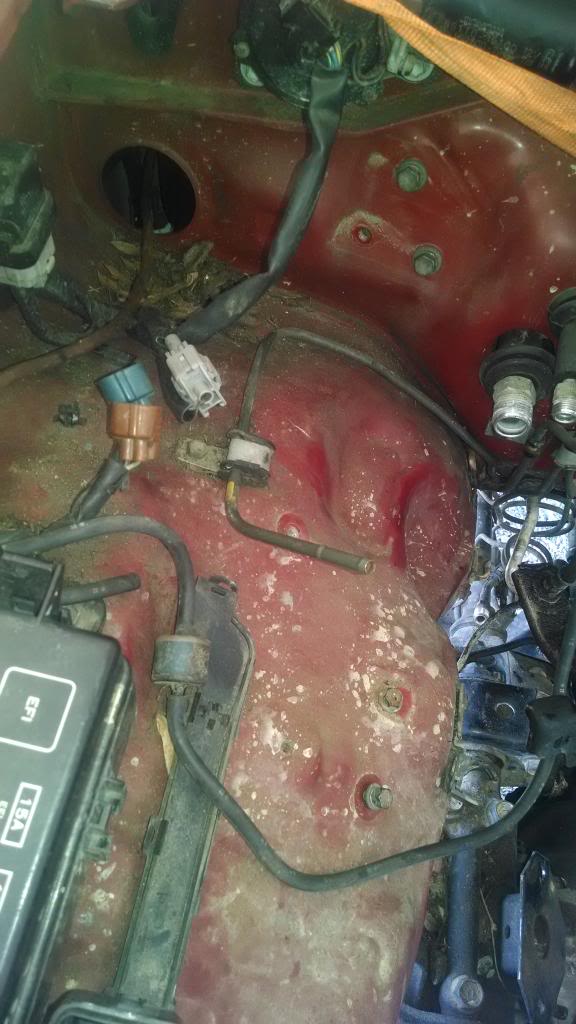

okay guys, done more work on it, and have a few more questions. firstly, what is this line that comes from the firewall?
Second, do these two lines connect?
one is from the booster, the other is the biggest line on the plenum. if not, where DO they connect? since im on my laptop for once im going to thumb through elvotas swap again. for the 20th time. thanks in advance.



In pic 2, the one on your pointing finger with the silver end plugs into the air intake tube.



ohh okay. and what about the line from the booster?



Pic one is the drain for your ac unit if I'm seeing it right.

Brake booster? Big line on drivers side right next to the diagnostic plug, above the header. Make sure you use the check valve.



that clears up that bit. ill look tomorrow. I worked on getting the trans in today. I have the crossmember bolted up and the trans hanging. trouble is it doesn't seem like it is wanting to line up correctly. it seems a bit off and once I finally got one of the bolts to thread it was really tight and hard to turn. I didn't proceed any further. im severely hoping that I got it lined up right and didn't ram the input shaft straight into one of the fingers on the pressure plate. god that would be so awful. any advice as far as installing a transmission anyone?



Can anybody offer help here?



Installing the transmission? How did you take it out?



neverming. I got some help with it and got it in. another question, I had thought about running my intake into the cabin plus a filter. if that's the case, do I even need to move the battery?



I wouldn't see a reason to move the battery if your rerouting the intake
