Im having the same problem on my 86 toyota pickup. I got no cluster lights and my dimmer is not working. Also when i hit a bump, my head lights fluctuates, like it blinks. I will check the dimmer for the cluster lights but need help on my head light.
Might try checking or replacing the dimmer switch. Reseating the connectors on the back of the cluster guage.
On the headlight issue, the head light harness is a poor design and you can buy an upgraded headlight harness off of 4crawler and ebay if I recall right. The standard harness works great for the regular headlight bulb, but I feel when people put in Halogen headlights, it is can put a strain on the harness.

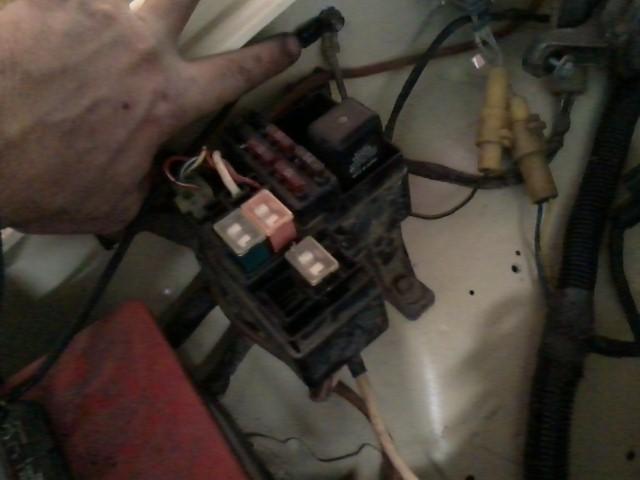

The headlight harness ground is on the passenger inner fender. I have to cut the wiring harness back an inch or two and and am able to attach it right to the battery ground so it is in direct contact to the battery. Might give it a try.
Great looking truck you have.
Copied...
I got the following ground wire upgrade off of RAD. I mounted the wire coming off of the battery ground to the headlight harness ground.
Last edited by Terrys87; Aug 20, 2015 at 04:24 AM.
Might try checking or replacing the dimmer switch. Reseating the connectors on the back of the cluster guage.
On the headlight issue, the head light harness is a poor design and you can buy an upgraded headlight harness off of 4crawler and ebay if I recall right. The standard harness works great for the regular headlight bulb, but I feel when people put in Halogen headlights, it is can put a strain on the harness.
The headlight harness ground is on the passenger inner fender. I have to cut the wiring harness back an inch or two and and am able to attach it right to the battery ground so it is in direct contact to the battery. Might give it a try.
Great looking truck you have.
Copied...
I got the following ground wire upgrade off of RAD. I mounted the wire coming off of the battery ground to the headlight harness ground.
Thank you so much Terrys87. I will give it a try this weekend. I very much appreciate your reply.
No problem. Here is some more info for your headlight switch that can also be a problem https://www.yotatech.com/forums/f199...l#post51724567 You will need to pull the steering wheel off to get access to the switch. Check the contacts while in there.
Yeah, Headlight circuit itself is poorly designed. Upgrade harness aka H4 conversion harness is a good fix. Also check to make sure that headlight connectors are secure and not corroded/dirty.
Only cluster has issue? Tails and
Markers work well?
Yeah, Headlight circuit itself is poorly designed. Upgrade harness aka H4 conversion harness is a good fix. Also check to make sure that headlight connectors are secure and not corroded/dirty.
Only cluster has issue? Tails and
Markers work well?
Tail lights and markers works fine, just no cluster light. Sorry for the late reply, been very busy at work. Thanks so much.
don't you just love it when it's something simple and stupid like that
I wish mine was as simple as your but i am having same issue i have no dash lights and i have tail light all fuses are good i did the dimmer bypass but still no lights on the dash is it possible for 2 out of the 3 to blow at the same time or is it the headlight switch itself
don't you just love it when it's something simple and stupid like that
I wish mine was as simple as your but i am having same issue i have no dash lights and i have tail light all fuses are good i did the dimmer bypass but still no lights on the dash is it possible for 2 out of the 3 to blow at the same time or is it the headlight switch itself my ac lights never worked and my coolant one been blown
Last edited by Yoda9916; Jan 18, 2020 at 04:00 PM.
The dash lights (the combination meter backlighting, as well as a number of switches) are on the same circuit as the taillights. The only difference is ...
Originally Posted by Yoda9916
... i did the dimmer bypass ...
... Well there's yer problem, lady! I have no idea what you did as "the dimmer bypass," but that is almost certainly where your problem lies. Why don't you take a picture, AND list which color wires were attached to which other color wires.
Originally Posted by Yoda9916
... my ac lights never worked and my coolant one been blown
Sorry, I can't decode this phrase.
If you need some more help, be sure to list what vehicle (Make/Model/Year/Engine/Transmission/Trim) you're talking about. Yes, it makes a difference even on something as simple as the rheostat. Just stick that information in your signature and you'll never have to repeat it.
The dash lights (the combination meter backlighting, as well as a number of switches) are on the same circuit as the taillights. The only difference is ...
... Well there's yer problem, lady! I have no idea what you did as "the dimmer bypass," but that is almost certainly where your problem lies. Why don't you take a picture, AND list which color wires were attached to which other color wires.
Sorry, I can't decode this phrase.
If you need some more help, be sure to list what vehicle (Make/Model/Year/Engine/Transmission/Trim) you're talking about. Yes, it makes a difference even on something as simple as the rheostat. Just stick that information in your signature and you'll never have to repeat it.
94 Toyota pickup dlx 2.4l 22re 5 speed manual transmission i had a black and white wire to a red an blue stripped one didnt see any other wires or connectors on it any way to by pass it
The dash lights (the combination meter backlighting, as well as a number of switches) are on the same circuit as the taillights. The only difference is ...
... Well there's yer problem, lady! I have no idea what you did as "the dimmer bypass," but that is almost certainly where your problem lies. Why don't you take a picture, AND list which color wires were attached to which other color wires.
Sorry, I can't decode this phrase.
If you need some more help, be sure to list what vehicle (Make/Model/Year/Engine/Transmission/Trim) you're talking about. Yes, it makes a difference even on something as simple as the rheostat. Just stick that information in your signature and you'll never have to repeat it.
my heater cluster has never lit up so most likely the bulb and my coolant guage light bulb is also burnt out
The dash lights (the combination meter backlighting, as well as a number of switches) are on the same circuit as the taillights. The only difference is ...
... Well there's yer problem, lady! I have no idea what you did as "the dimmer bypass," but that is almost certainly where your problem lies. Why don't you take a picture, AND list which color wires were attached to which other color wires.
Sorry, I can't decode this phrase.
If you need some more help, be sure to list what vehicle (Make/Model/Year/Engine/Transmission/Trim) you're talking about. Yes, it makes a difference even on something as simple as the rheostat. Just stick that information in your signature and you'll never have to repeat it.
94 Toyota pickup dlx 2.4l 22re 5 speed manual transmission i had a black and white wire to a red an blue stripped one didnt see any other wires or connectors on it any way to by pass it
Well, I'm not sure I can help. My 1994 EWD shows the rheostat fed by a white-Green and a White-Black (ground) wire. The connector to the rheostat looks like one of the following:
(the 3-pin connector is for vehicles with a tachometer). So I don't think you have the correct connector, or the correct wires.
You could try checking your R-L wire for 12v to ground with the taillight switch to "on." Your B-W wire could be ground, but it would be worth checking as well.
Well, I'm not sure I can help. My 1994 EWD shows the rheostat fed by a white-Green and a White-Black (ground) wire. The connector to the rheostat looks like one of the following:
(the 3-pin connector is for vehicles with a tachometer). So I don't think you have the correct connector, or the correct wires.
You could try checking your R-L wire for 12v to ground with the taillight switch to "on." Your B-W wire could be ground, but it would be worth checking as well.
Thats whats different about mine it has no tack so i inly require 2 wires
I think my issues lies in bulbs havent replaced yet cause broke but inspected them one loos good still. I think mines a mutt and have 88 year rehostat. But ima try bulb and a used one i ordered once here.
if anyone has any way to bypass a 2 wire setup please let me know.
Last edited by Yoda9916; Jan 19, 2020 at 03:40 PM.
I think my issues lies in bulbs havent replaced yet cause broke but inspected them one loos good still. I think mines a mutt and have 88 year rehostat. But ima try bulb and a used one i ordered once here.
if anyone has any way to bypass a 2 wire setup please let me know.
Im guessing that's a two prong spade connector you have jammed into the plug you pulled off the dimmer switch?
Try pulling that out and putting your multimeter on it instead. You should find 12v on one side? And zero ohm to ground on the other? If you don't go d one of those you know which side the fault lays on supply or drain.
I got them working now replaced bulb on top of the switch it was the switch the whole time thank you all for the help a friend found one thats the same modle for my truck that came out of it.
