Universal 4 Link Suspension Kits from Barnes 4wd!

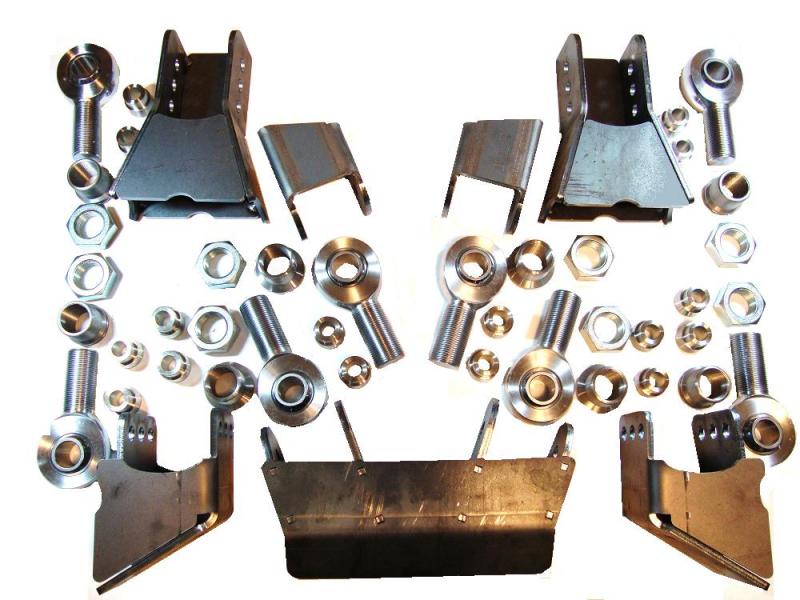

Universal 4 Link Kits from Barnes 4WD!
All kits ship with brackets drilled to the correct bolt hole size and no extra cost!
This is the kit that has all the parts that we are always using in the shop for customers single triangulated four links suspensions. It is made to stand up to all the abuse that rock crawlers and weekend warriors put their rigs through, and everything else in between. It includes:
1 x Axle Link Mount Pair 0 Deg
1 x Truss Link Mount Brackets
1 x Frame Link Mount
1 x Adjustable Inner Frame Link Mount Pair 20 Deg
4 x Chromoly 1 1/4"- 12 X 1" Heim RH
4 x Chromoly 1 1/4"- 12 X 1" Heim LH
16 x High Misalignment Spacer - 1" to 9/16"
4 x 1-1/4" - 12 Jam Nut RH
4 x 1-1/4" - 12 Jam Nut LH
4 x Tube Insert (1-1/4-12) 1 1/2" ID Tube RH
4 x Tube Insert (1-1/4-12) 1 1/2" ID Tube LH
Add Grade 8 zinc plated hardware
We Also have Triangulated Lowers or Double triangulated 4 link kits!
Double Triangulated Four Link Suspension Kit 1 1/4" Chromoly Heims
Lower Triangulated Four Link Suspension Kit 1 1/4" Chromoly Heims
Enduro Joint 4 link kit
