So I started tearing into the rear bumper. I knew that if I did not do something drastic, I would put it off forever.
So the one day at work, I had some time in between classes and decided to take the stock bumper off.
What a pain in the rear it was to get it off. Seemed like a 1000 unnecessary bolts and brackets.
Anyhow....Here it is sans bumper....
One of my Co-workers teaches digital media/Photography, and they also have a vinyl printer.....So I had him make me some of these.
I went off Assburns design and tweaked it some to my own liking. I am making the sides larger to incorporate a tire swingout.
Luckily, I also teach Fabrication and have access to a Plasma table. Makes cutting components out very easy.

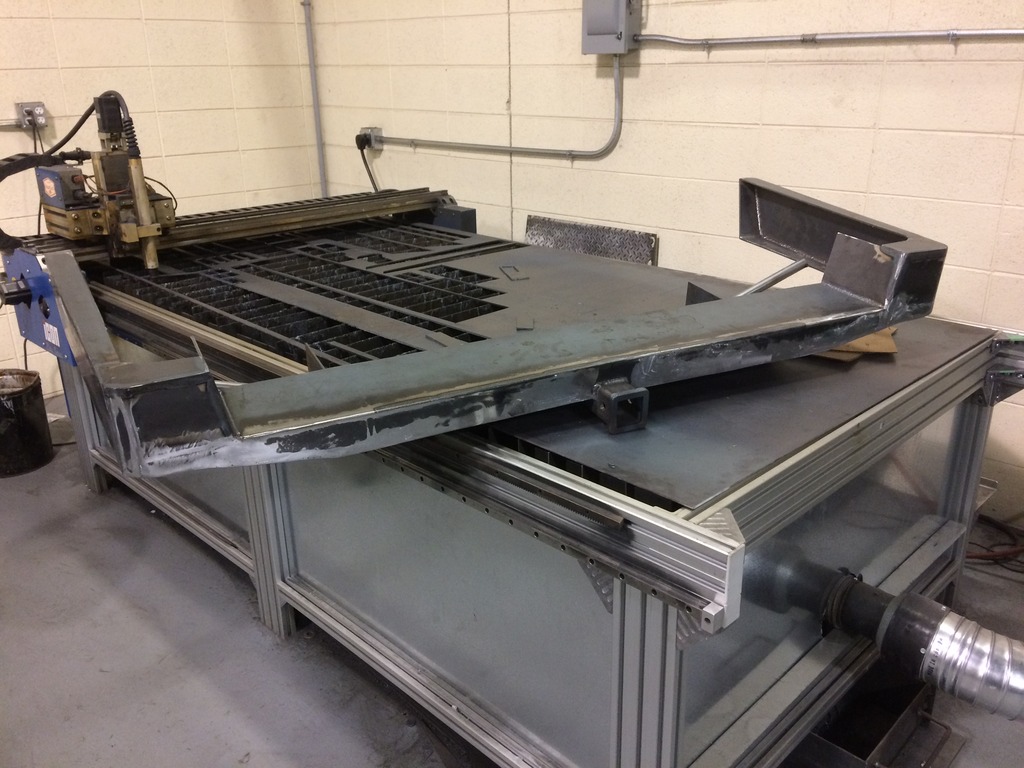

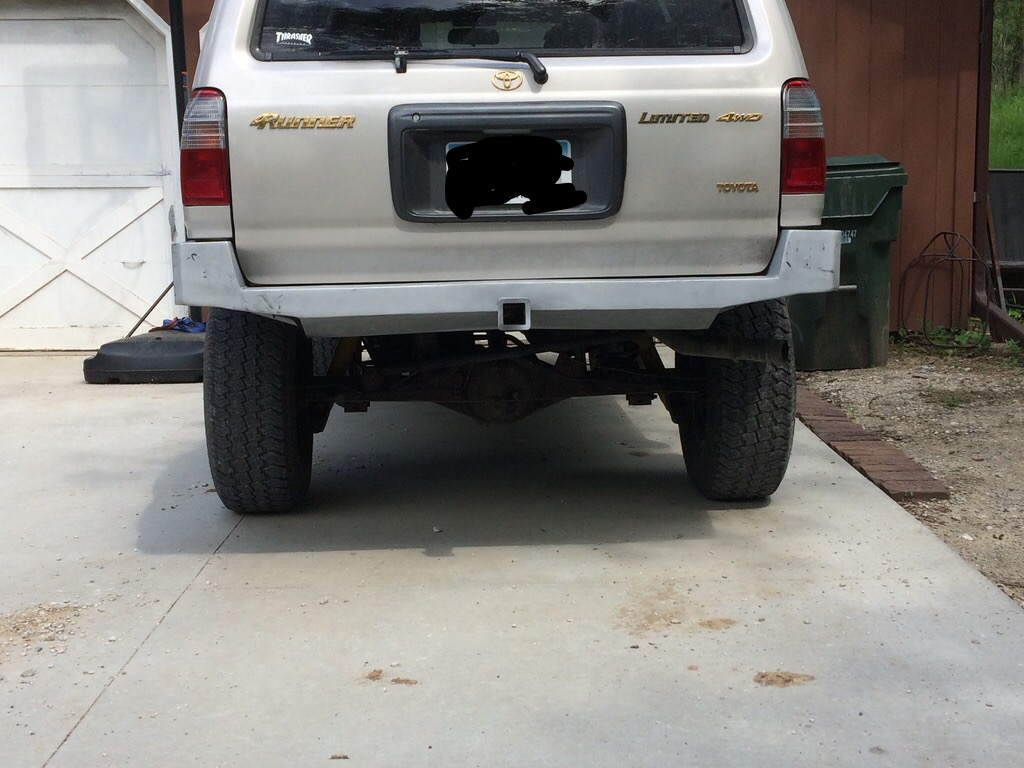

Here it is mocked up on the truck the first day we started putting ideas together. I have two students in my Welding/Fab class helping me. I have let them take the reigns and make decisions as we go.

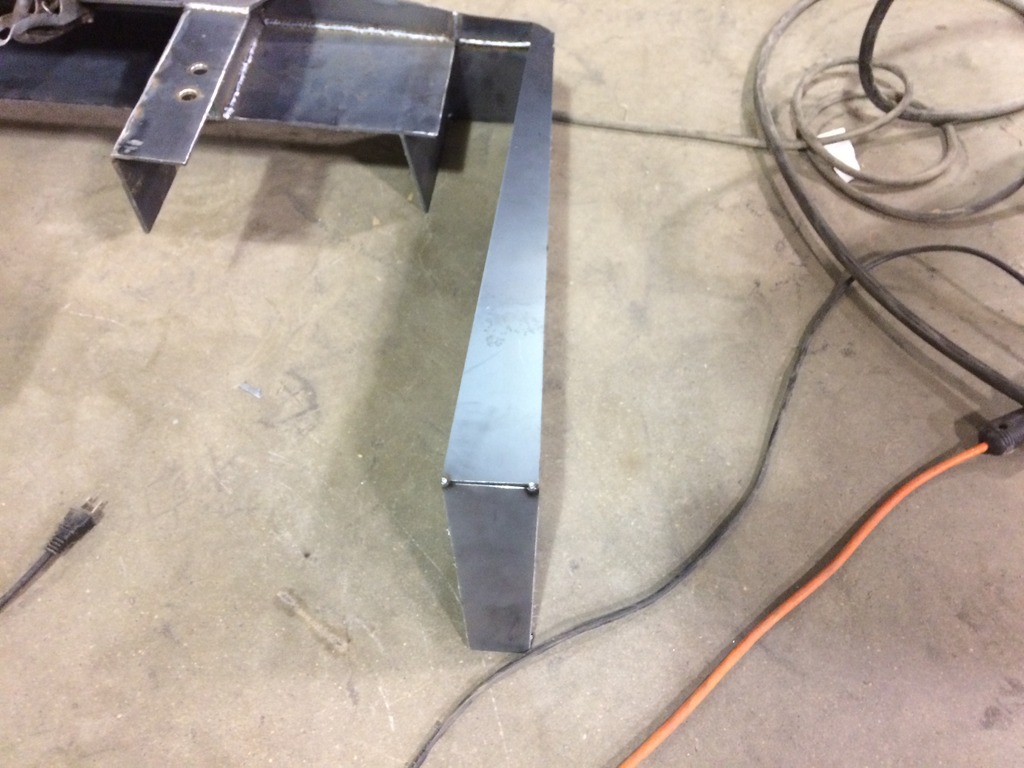

This is as of yesterday.. We started mocking up the sides. We have decided on a taper out from the tail light to the fender flare.
Hoping to get the sides completely mocked up, cut out, and tacked in place this afternoon when they come for class.
So the one day at work, I had some time in between classes and decided to take the stock bumper off.
What a pain in the rear it was to get it off. Seemed like a 1000 unnecessary bolts and brackets.
Anyhow....Here it is sans bumper....
One of my Co-workers teaches digital media/Photography, and they also have a vinyl printer.....So I had him make me some of these.
I went off Assburns design and tweaked it some to my own liking. I am making the sides larger to incorporate a tire swingout.
Luckily, I also teach Fabrication and have access to a Plasma table. Makes cutting components out very easy.
Here it is mocked up on the truck the first day we started putting ideas together. I have two students in my Welding/Fab class helping me. I have let them take the reigns and make decisions as we go.
This is as of yesterday.. We started mocking up the sides. We have decided on a taper out from the tail light to the fender flare.
Hoping to get the sides completely mocked up, cut out, and tacked in place this afternoon when they come for class.
05-11-2017, 08:38 AM
#42
Those vinyl TRD decals turned out sweet! Looks like you have a good start on the bumper, having the rear tire swing out is going to be awesome, I always wanted to build a back bumper for my 86' 4 runner, but never got around to it. Can't wait to see it all tacked together and mocked up! What thickness steel plate did you go with?
05-11-2017, 03:46 PM
#43
Contributing Member
Student input- that's so cool. Can't wait to see what they tweak it into.
05-11-2017, 04:00 PM
#44
Those vinyl TRD decals turned out sweet! Looks like you have a good start on the bumper, having the rear tire swing out is going to be awesome, I always wanted to build a back bumper for my 86' 4 runner, but never got around to it. Can't wait to see it all tacked together and mocked up! What thickness steel plate did you go with?
I decided to go with 3/16" steel. Hoping to get it mostly done tomorrow minus the swingout. Still waiting on parts for that end of it.
Thanks Hab! They are pretty excited and motivated.
05-11-2017, 04:04 PM
#45

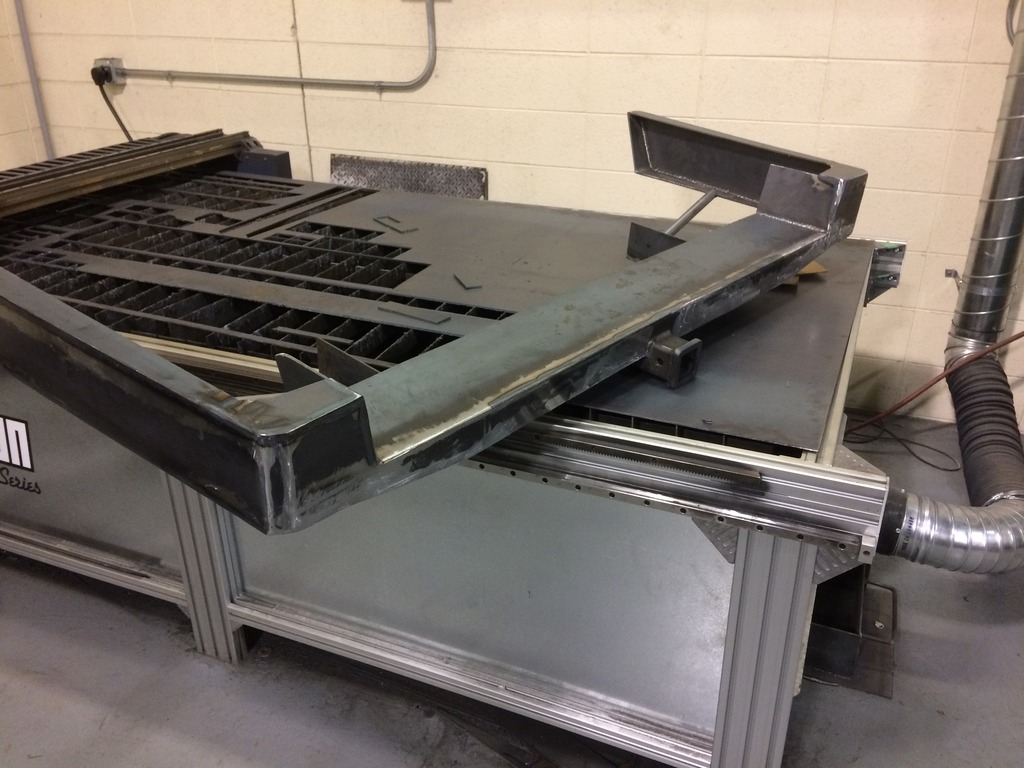

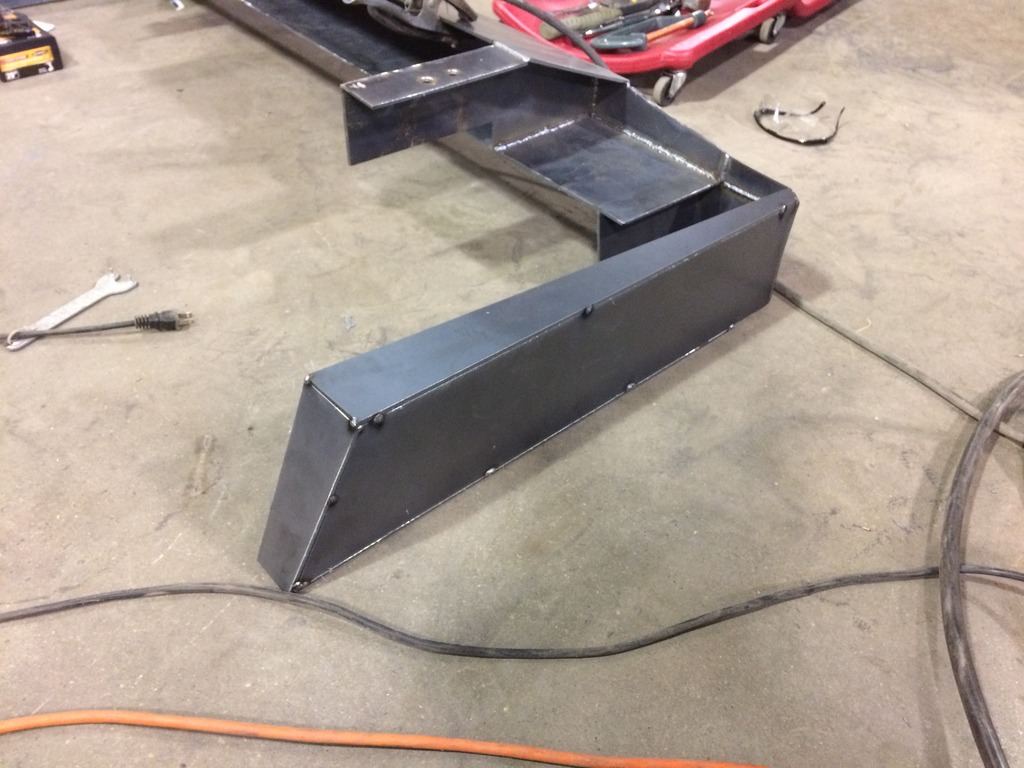

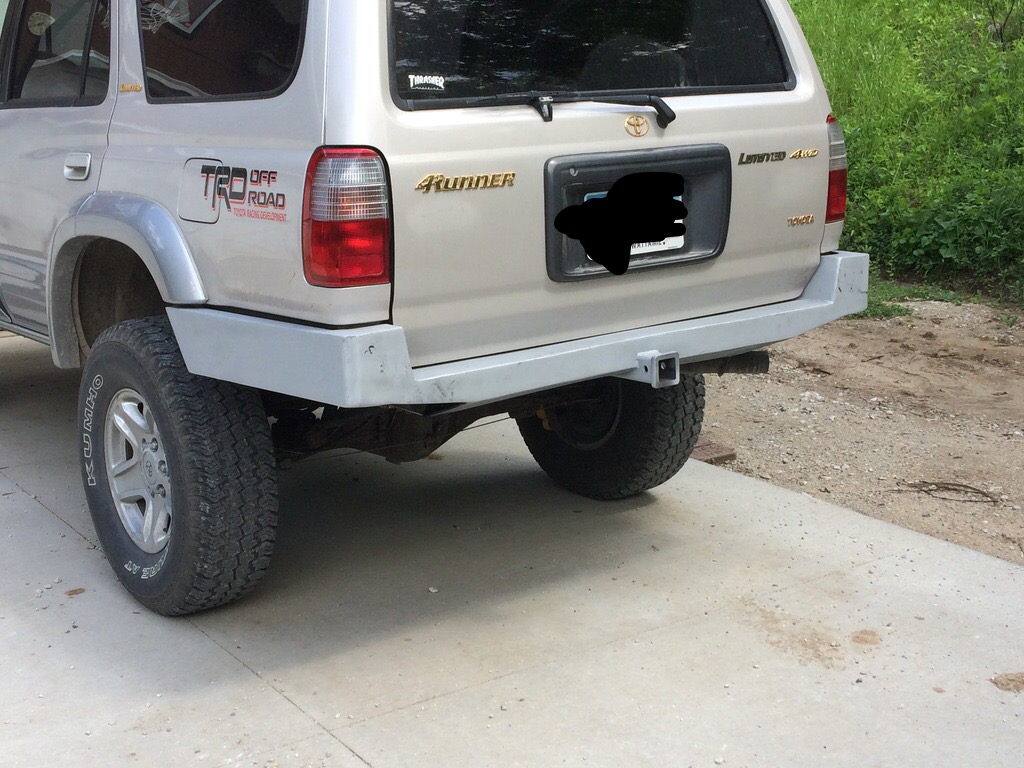

Got more done today. The sides are tacked in place and now making top and bottom filler pieces. Then going to make a side braces for the side panels.
