for the love of god!!! dont use orange wire

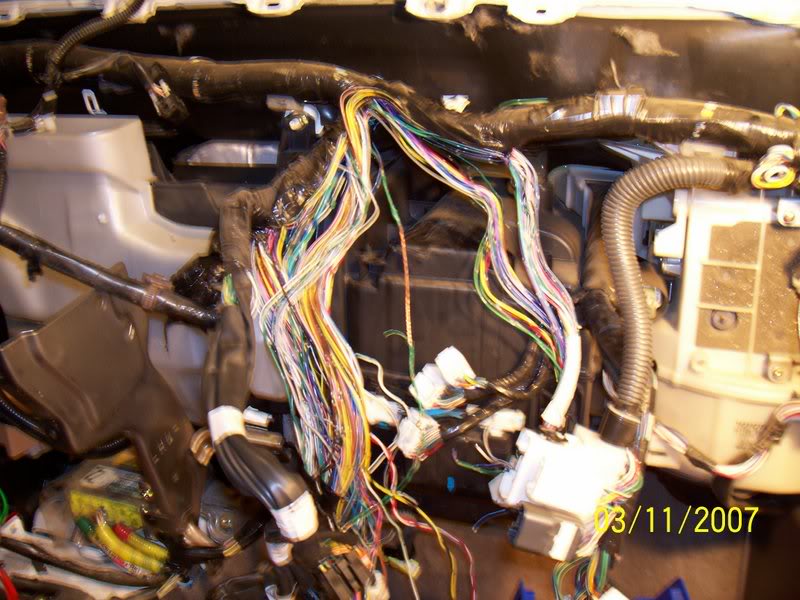

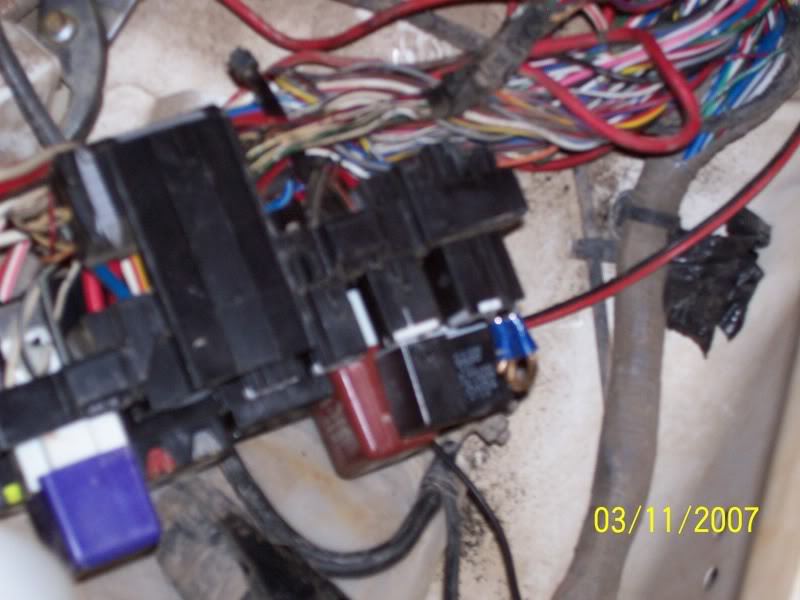

well i had my radio installed over a year ago and have had a humming.. i took it to a local stereo shop and the said i had an unwanted ground. That was only the beginning... it started by poping the 10amp tail fuse. it just happend to be where i tapped into for the foglight mod, i got rid of the mod and replaced the fuse. 2 days later SMOKE!! from under the dash a white cloud billows out. I blew the tail fuse again, i remove the faceplate and the radio to find the culprit, it was the dimmer wire. long story short heres the damage,

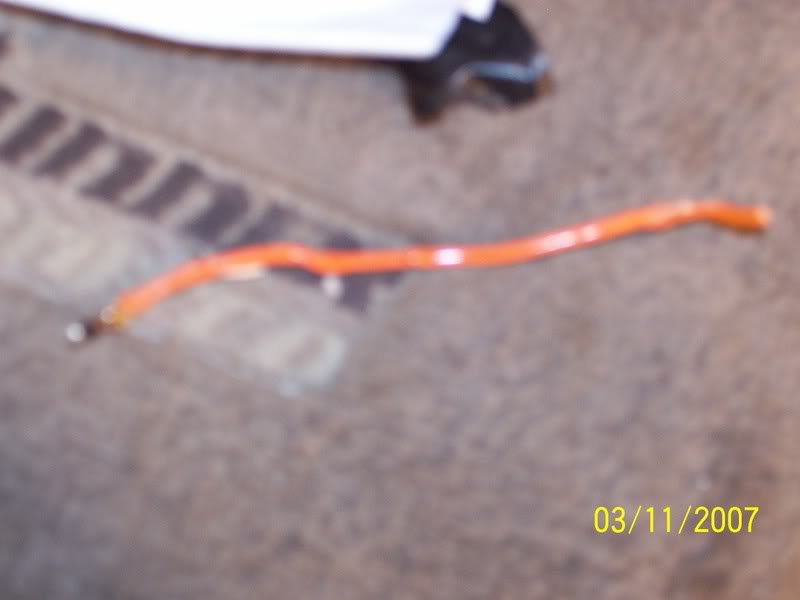

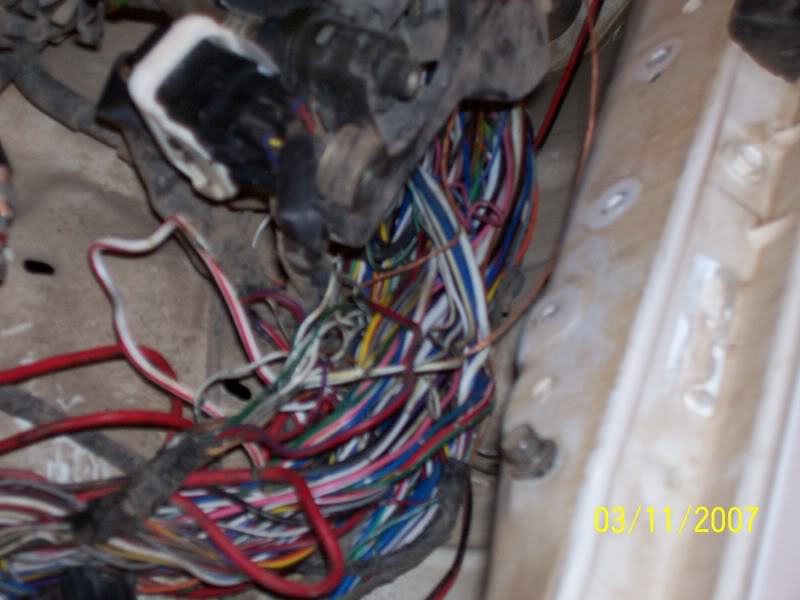

the dimmer wire has shorted out to the accesory wire and to the ground in multiple spots. all of this caused by one wire..
Ps if anyone feels my pain and is local and would like to help please let me know
the dimmer wire has shorted out to the accesory wire and to the ground in multiple spots. all of this caused by one wire..
Ps if anyone feels my pain and is local and would like to help please let me know
#3
so you used the dimmer wire to power some fog?
btw, ive seen worst, 10wires had to be traced back and rewired. youre lucky
btw, ive seen worst, 10wires had to be traced back and rewired. youre lucky
Last edited by profuse007; 03-11-2007 at 06:54 PM.
#4
Registered User
Thread Starter
#7
Contributing Member
Join Date: Mar 2004
Location: Twin Cities
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Sorry to hear that... I think your problem lies elsewhere though. The dimmer circuit has nothing to do with your tail light fuse blowing. I think your problen was with how you did your foglight mod.
One question. How do you have your stereo grounded? Toyota's are notorious for having dead ground wires on the factory stereo harness. If you had no ground, your radio would then pull from the path of least resistance which is usually your dimmer/illumination wire or antenna.
One question. How do you have your stereo grounded? Toyota's are notorious for having dead ground wires on the factory stereo harness. If you had no ground, your radio would then pull from the path of least resistance which is usually your dimmer/illumination wire or antenna.
Trending Topics
#8
Registered User
Thread Starter
Sorry to hear that... I think your problem lies elsewhere though. The dimmer circuit has nothing to do with your tail light fuse blowing. I think your problen was with how you did your foglight mod.
One question. How do you have your stereo grounded? Toyota's are notorious for having dead ground wires on the factory stereo harness. If you had no ground, your radio would then pull from the path of least resistance which is usually your dimmer/illumination wire or antenna.
One question. How do you have your stereo grounded? Toyota's are notorious for having dead ground wires on the factory stereo harness. If you had no ground, your radio would then pull from the path of least resistance which is usually your dimmer/illumination wire or antenna.
#9
Contributing Member
Join Date: Mar 2004
Location: Twin Cities
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
have you looked at a schematic?? the dimmer wire directly ties into the tail lights and from there goes to to the illumination circuit that is how your dash lights come on when you turn on your lights (not to mention i have physically traced the wire to said circuits)... as far as the ground i will ground to the frame..
#10
Contributing Member
Join Date: Oct 2002
Location: Tigard, Oregon
Posts: 2,097
Likes: 0
Received 0 Likes
on
0 Posts
I have the dash harness from a '96, it might be the same. It looks like you already have your dash completely apart, so if you want to replace the wohle thing I have you that should work. I can check at the dealer if you PM me with the options your rig has.
#11
Registered User
Join Date: Feb 2005
Location: Westminster, CO
Posts: 1,153
Likes: 0
Received 0 Likes
on
0 Posts
That sucks man. It's not to bad though. I have a 87 Dodge Daytona Shelby Z that the previous owners kids stuck a penny in the cigarette lighter hole and melted a bunch of wires. There is probably about 20-30 wires that need to have at least 6" replaced, probably more.
#12
Registered User
Thread Starter
***update** today my truck is still siting at the dealership. i took it on March 16th. Apparently there is not a single dash harness in the US, so i am waiting for the Japan Toyota to build a harness and ship it. If what Toyota (US) told me is true (the have already bumped the date by 2 weeks) the harness should ship from Japan on the 25th of this month and should be received by the dealership on the 7th of May. The sad part is that the tech said that if he can get the harness by 11am he can have my vehicle put back together with a guarantee by 5pm the same day.. on a good note to Toyotas quality, i was unable to find a 3rd gen 4runner in a junkyard in 14 states to include Utah, Texas, Colorado, and Louisiana..
#16
Registered User
iTrader: (1)
Join Date: Feb 2007
Location: Shelburne, VT previous: Everett, WA; Bellingham, WA
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
the orange wire is not friendly, that's for sure. i recently installed an aftermarket jvc cd player in the company work truck (ford), connected the orange wire to the dimmer wire and......
A friggin' MESS! tail light fuse blew, and, obviously, the radio fuse blew. happened at night to the OTHER delivery crew, so they were pulled over on the freeway at night, without tail lights in the biggest downpour in awhile. to make it even better, no fuses were marked (nothing on the fuse box cap-well, just numbers) to match to the diagram in the owner's manual...ha, you think a work truck has an owner's manual...NO!
long story short, the orange wire completely screwed over the other guys, and it was my inexperience that put them there concerning the orange wire. don't use it! cut it off the harness, burn it, and drink a beer for your good deed!
that was therapeutic, to say the least!
A friggin' MESS! tail light fuse blew, and, obviously, the radio fuse blew. happened at night to the OTHER delivery crew, so they were pulled over on the freeway at night, without tail lights in the biggest downpour in awhile. to make it even better, no fuses were marked (nothing on the fuse box cap-well, just numbers) to match to the diagram in the owner's manual...ha, you think a work truck has an owner's manual...NO!
long story short, the orange wire completely screwed over the other guys, and it was my inexperience that put them there concerning the orange wire. don't use it! cut it off the harness, burn it, and drink a beer for your good deed!
that was therapeutic, to say the least!
#17
Registered User
Your problem is due to you hooking up the dimmer for the radio to the dimmer switch. Unlike most cars, Toyota and other Japanese vehicles dim the opposite way. Most cars use the dimmer on the ground side, Toyota uses the positive side. What I mean is the dimmer is a rheostat or a variable resistor. Toyota varies the positive side and not the ground side like most cars. Your aftermarket stereo works the opposite way. You were appling voltage to a ground. I would be amazed if your stereo survives.
James
James
#18
Registered User
JamesD got it right!
Toyota swiches many devices on the GROUND side, not the POSITIVE side...
Actually - given how electricity works, the Toyota method is IMHO BETTER, BUT its awfully confusing to neophytes as its not the way things traditionally work.
Toyota swiches many devices on the GROUND side, not the POSITIVE side...
Actually - given how electricity works, the Toyota method is IMHO BETTER, BUT its awfully confusing to neophytes as its not the way things traditionally work.
#20
Contributing Member
iTrader: (3)
Your problem is due to you hooking up the dimmer for the radio to the dimmer switch. Unlike most cars, Toyota and other Japanese vehicles dim the opposite way. Most cars use the dimmer on the ground side, Toyota uses the positive side. What I mean is the dimmer is a rheostat or a variable resistor. Toyota varies the positive side and not the ground side like most cars. Your aftermarket stereo works the opposite way. You were appling voltage to a ground. I would be amazed if your stereo survives.
James
James
