Ground Issue? Gauge cluster and light problems
#22
#23
Registered User
Thread Starter

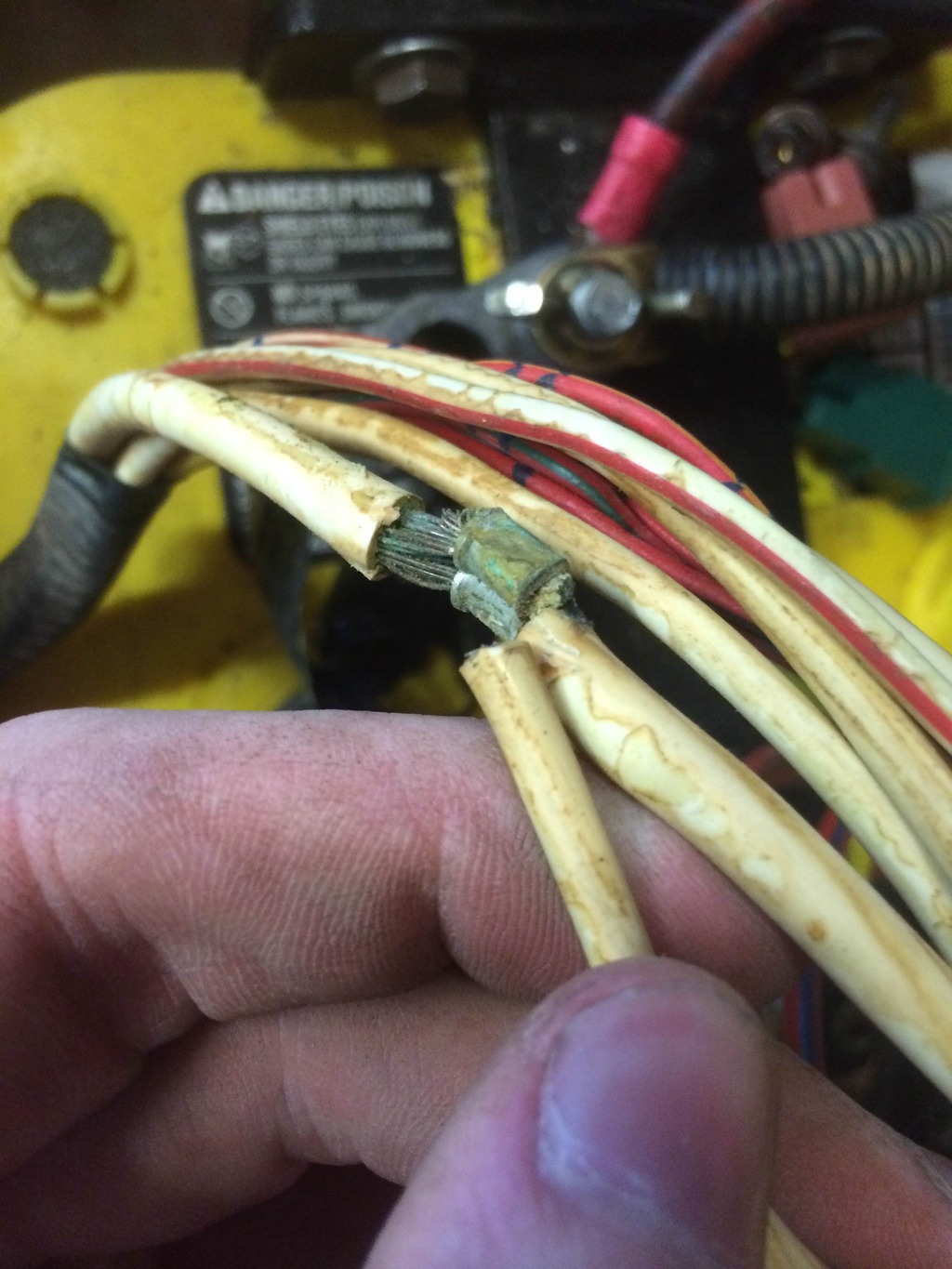

I believe I have tracked down my problem! Rang out the left contact for the 40 amp fuse to a round connector on the drivers side right in front of the air box. I couldn't figure out where the other contact was going to until I peeled back the electrical tape and found THAT^^^
It was spliced into the wire that runs into the 80 amp fuse on the driver side just like you said! My dad should be home soon and hes going to help me fix this correctly.
Ive seen this type of connection in one other place on my truck. It looks really crappy but so old, surely that's not factory?
#24
I believe I have tracked down my problem! Rang out the left contact for the 40 amp fuse to a round connector on the drivers side right in front of the air box. I couldn't figure out where the other contact was going to until I peeled back the electrical tape and found THAT^^^
It was spliced into the wire that runs into the 80 amp fuse on the driver side just like you said! My dad should be home soon and hes going to help me fix this correctly.
Ive seen this type of connection in one other place on my truck. It looks really crappy but so old, surely that's not factory?
1) Clean wire/strands to bare metal. Make sure you do not break any strand. If you break strands - and you have extra length, trim wire to where you have all strands.

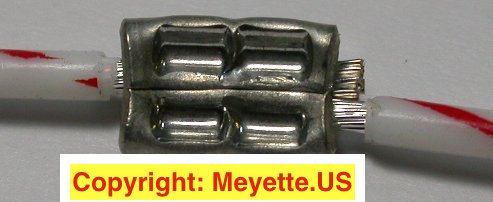

2a) Crimp wires using PARALLEL crimp connector. DO NOT EVER use BUTT connector. Parallel crimp is like this:
2b) If parallel crimp not available, twist wires together securely such that connection is mechanically secure.
3) Apply flux. Make sure it's not acidic that would also promote rust.
4) Solder
5) If near corrosive environment like battery, coat with liquid electrical tape.
6) Finally, insulate with electrical tape or heat-shrink
7) FORGET about that crimp for the next 500,000 miles
#25
Registered User
Thread Starter
Everything is fixed! Except my gauge lights still dont work? may be a fuse or something im not sure. Appreciate all the help RAD!!
#26
#27
Registered User
Thread Starter
Thanks! I'll hold onto that picture but I realized after driving in the dark for 2 hours that I had my dimmer switch turned all the way down hahaha. Glad it was a simple fix
#28
#29
I believe I have tracked down my problem! Rang out the left contact for the 40 amp fuse to a round connector on the drivers side right in front of the air box. I couldn't figure out where the other contact was going to until I peeled back the electrical tape and found THAT^^^
It was spliced into the wire that runs into the 80 amp fuse on the driver side just like you said! My dad should be home soon and hes going to help me fix this correctly.
Ive seen this type of connection in one other place on my truck. It looks really crappy but so old, surely that's not factory?
#30
#31
Hey RAD, here it is: https://www.yotatech.com/forums/f131.../#post52364214
Also, dude, thanks for the info on this thread, you're a lifesaver.
Also, dude, thanks for the info on this thread, you're a lifesaver.
