Hi guys I recently picked up a used but rebuilt A340H trans.

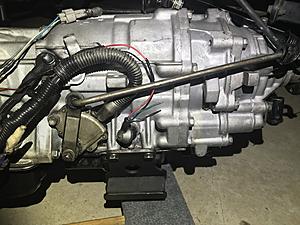

The photos are from the back driver side of the trans.

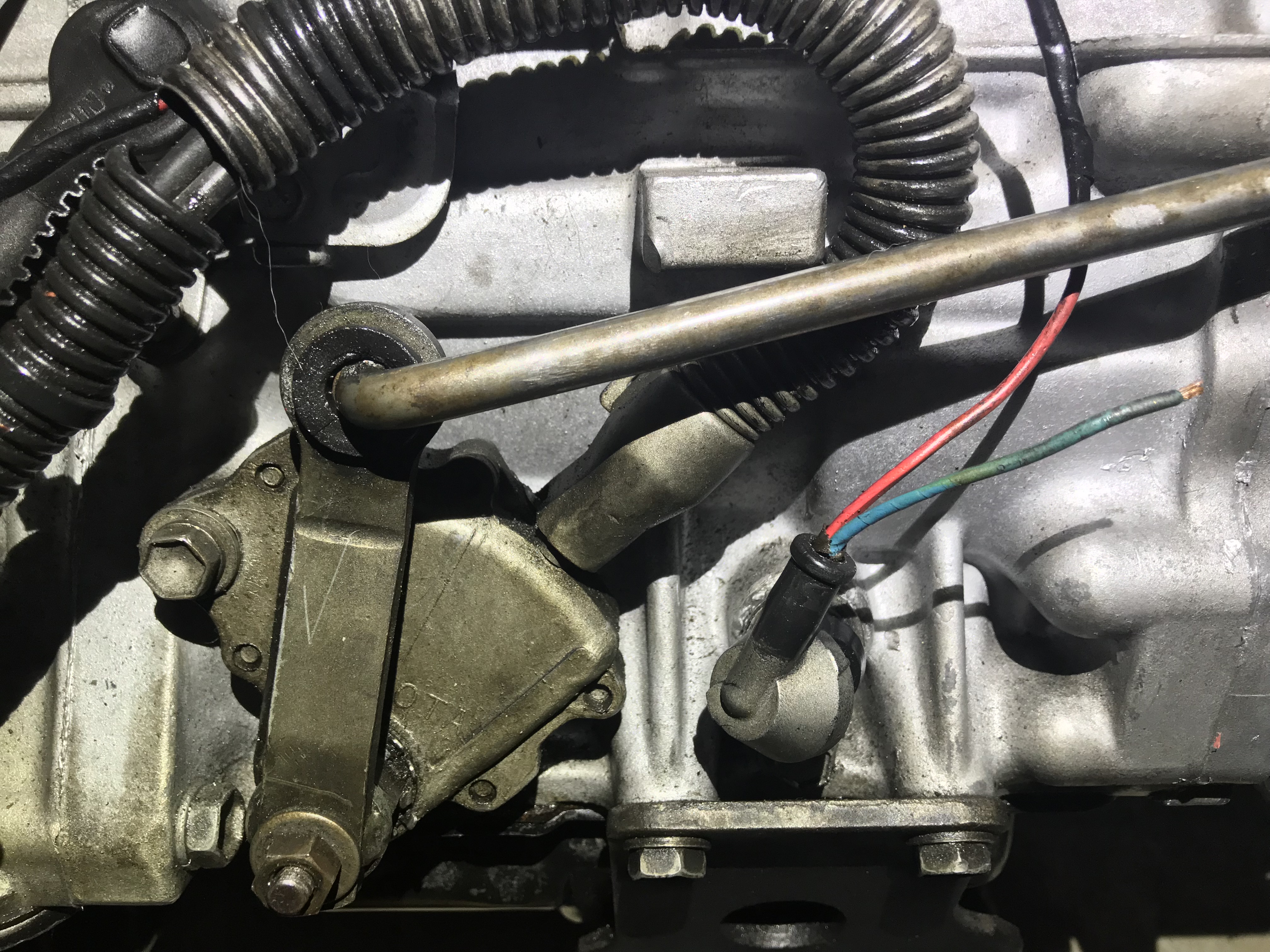

The wiring is a little shotty though, I'm trying to figure out why the main wiring loom lacks the turquoise wire for the loose wire to the Number 2 Speed Sensor.
Also is the connector with the retrofitted blue tape correct?
Thanks
The photos are from the back driver side of the trans.
The wiring is a little shotty though, I'm trying to figure out why the main wiring loom lacks the turquoise wire for the loose wire to the Number 2 Speed Sensor.
Also is the connector with the retrofitted blue tape correct?
Thanks
Last edited by 4x4-93; 12-24-2017 at 06:12 PM.
#7
Thankyou ATC
Trending Topics
#8
Registered User
iTrader: (1)
Here's the wire diagram for your machine so you atleast know what the wires on your truck are for. The diagrams are not the funnest to try to follow, but it's not too bad once you get used to them. The circled "A" next the 3VZ by the ECU for example is connector E3 and the little number by where the wire hits the box is what pin it's located in.
The A340 trans came in a lot of applications but if you could narrow it down to like a pickup/4runner vs anything I might be able to dig up some info. I'd need a clear photo of the wires connected and what the connector looks like to find a diagram that matches the pin out. Maybe it's as simple as the 4cyl vs v6 pin out.
Connectors:
The A340 trans came in a lot of applications but if you could narrow it down to like a pickup/4runner vs anything I might be able to dig up some info. I'd need a clear photo of the wires connected and what the connector looks like to find a diagram that matches the pin out. Maybe it's as simple as the 4cyl vs v6 pin out.
Connectors:
