A340h w/ADD swapped to A340h witout ADD....no 4wd!! What am I missing??
#1
A340h w/ADD swapped to A340h witout ADD....no 4wd!! What am I missing??
My tranny gave up the ghost on my 91 3.0 4wd runner with ADD, found a good used one out of a 93pickup 3.0 4wd with manual hub....long story short is my ADD relay in the dash is not clicking on like it did before the new tranny was installed. It worked fine before, is there something on the original tranny I can swap to the new tranny? I had them side by side before install to check for differences and all I found was the 91 had a cable speedo and the 93 was electronic. I switched those before install. My dummy light on the cluster does come on. Any help would be appreciated. Picking up a cabless and bedless 91 3.0 4wd manual this wknd to swap frontend, rearend and 5speed into my runner but it will be a few months to get everything together, really need my 4wd to work in the meantime!
Last edited by Powerstroke123; 02-11-2015 at 05:46 PM.
#3
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,250
Likes: 0
Received 820 Likes
on
648 Posts
Is the Transfer Position Switch a) connected and b) aligned correctly?
http://personal.utulsa.edu/~nathan-b...32prelimin.pdf
That's what triggers the ADD relay.
http://personal.utulsa.edu/~nathan-b...32prelimin.pdf
That's what triggers the ADD relay.
#4
Does the transfer position switch control the 4wd dummy light? Everything is hooked up, I've triple checked that. I've seen some Info on a transfer pressure switch but can't locate it...I'll check to see if it's lined up when I get home this afternoon. Thanks for the response!
#7
Trending Topics
#10
Registered User
iTrader: (3)
The transmission doesn't know if it's an ADD trans or not. The ADD is contained in the front axle. there are 2 vacuum lines that supply vacuum to the front diff that unlock and lock the ADD. The collar locks if the transfer case is in 4wd position, the vacuum solenoid on the passenger side engine bay is engergized and vacuum is applied to the locking side of the ADD. There's another VSV that "devacuumizes" the ADD to unlock it. For a test, you can find the "locking" side of the vacuum hose and hook it up the manifold vacuum. That was any time the truck is started, the ADD collar is locked. I ran my truck for a while like this during my 3.4 swap.
Last edited by vasinvictor; 02-12-2015 at 08:55 AM.
#11
If you have the manual hubs now, you could just do this. Permalock the ADD and lock the hubs in and out instead.
The transmission doesn't know if it's an ADD trans or not. The ADD is contained in the front axle. there are 2 vacuum lines that supply vacuum to the front diff that unlock and lock the ADD. The collar locks if the transfer case is in 4wd position, the vacuum solenoid on the passenger side engine bay is engergized and vacuum is applied to the locking side of the ADD. There's another VSV that "devacuumizes" the ADD to unlock it. For a test, you can find the "locking" side of the vacuum hose and hook it up the manifold vacuum. That was any time the truck is started, the ADD collar is locked. I ran my truck for a while like this during my 3.4 swap.
The transmission doesn't know if it's an ADD trans or not. The ADD is contained in the front axle. there are 2 vacuum lines that supply vacuum to the front diff that unlock and lock the ADD. The collar locks if the transfer case is in 4wd position, the vacuum solenoid on the passenger side engine bay is engergized and vacuum is applied to the locking side of the ADD. There's another VSV that "devacuumizes" the ADD to unlock it. For a test, you can find the "locking" side of the vacuum hose and hook it up the manifold vacuum. That was any time the truck is started, the ADD collar is locked. I ran my truck for a while like this during my 3.4 swap.

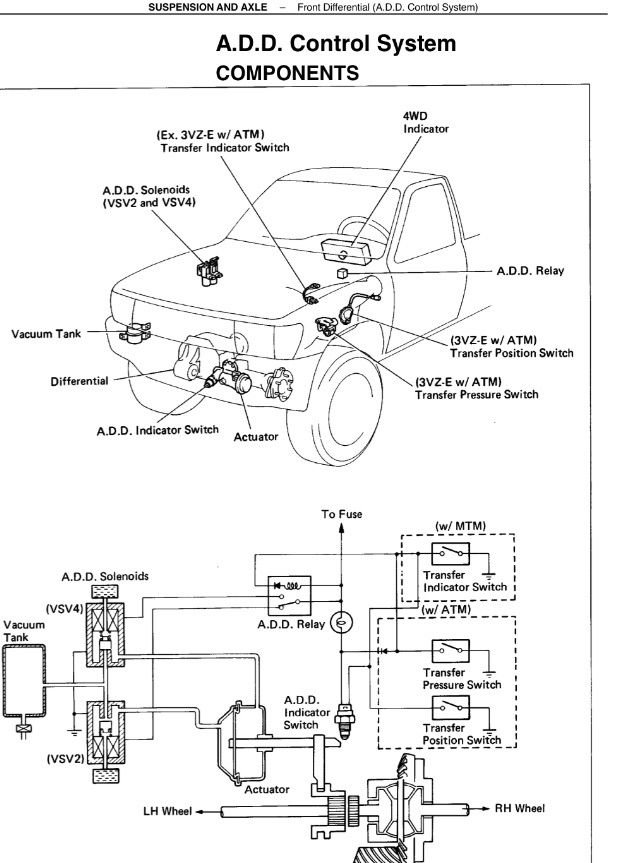

My hub are not manual, my 4wd light does come on but my relay in the dash does not click like previously. I was under the impression the light was engaged by the transfer position switch. What does the transfer pressure switch do in my pic above.
#12
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,250
Likes: 0
Received 820 Likes
on
648 Posts
The light is turned on by the ADD actuator; it confirms the end of a sequence of events that finishes with the ADD engaging.
The schematics I have for the 1994 and the A340H do NOT show a "transfer pressure switch." Instead, there is a "Detection Switch" in the transfer case, which grounds a Purple-Green wire, which closes the ADD control relay. (There is also an L4 detection switch, which grounds a red wire to the ECU.)
The wire FROM the ADD control relay is Green-red, and switches to Purple-Green in the ID1 connector.
I would check the Green-Red wire to the ADD relay, and see if it goes to ground when you switch to H4. If it does, the relay is bad. If it doesn't, find the wire coming from the transfer case that DOES go to ground in H4. That's the one you want.
The schematics I have for the 1994 and the A340H do NOT show a "transfer pressure switch." Instead, there is a "Detection Switch" in the transfer case, which grounds a Purple-Green wire, which closes the ADD control relay. (There is also an L4 detection switch, which grounds a red wire to the ECU.)
The wire FROM the ADD control relay is Green-red, and switches to Purple-Green in the ID1 connector.
I would check the Green-Red wire to the ADD relay, and see if it goes to ground when you switch to H4. If it does, the relay is bad. If it doesn't, find the wire coming from the transfer case that DOES go to ground in H4. That's the one you want.
#13
The light is turned on by the ADD actuator; it confirms the end of a sequence of events that finishes with the ADD engaging.
The schematics I have for the 1994 and the A340H do NOT show a "transfer pressure switch." Instead, there is a "Detection Switch" in the transfer case, which grounds a Purple-Green wire, which closes the ADD control relay. (There is also an L4 detection switch, which grounds a red wire to the ECU.)
The wire FROM the ADD control relay is Green-red, and switches to Purple-Green in the ID1 connector.
I would check the Green-Red wire to the ADD relay, and see if it goes to ground when you switch to H4. If it does, the relay is bad. If it doesn't, find the wire coming from the transfer case that DOES go to ground in H4. That's the one you want.
The schematics I have for the 1994 and the A340H do NOT show a "transfer pressure switch." Instead, there is a "Detection Switch" in the transfer case, which grounds a Purple-Green wire, which closes the ADD control relay. (There is also an L4 detection switch, which grounds a red wire to the ECU.)
The wire FROM the ADD control relay is Green-red, and switches to Purple-Green in the ID1 connector.
I would check the Green-Red wire to the ADD relay, and see if it goes to ground when you switch to H4. If it does, the relay is bad. If it doesn't, find the wire coming from the transfer case that DOES go to ground in H4. That's the one you want.
Just got home, gona look now and I will let you know what I find. Thanks for the input!
#15
Registered User
Join Date: Jul 2012
Location: Northern Colorado
Posts: 1,776
Likes: 0
Received 109 Likes
on
81 Posts
Are you sure the 4WD isn't working? As scope says, the 4WD light is controlled by the switch in the ADD mechanism, in series with the transfer position switch, and indicates that the ADD is locked and the transfer case is in 4WD. The light won't be on unless both of those conditions are true.
It's possible the reason the relay isn't clicking is that it is always "ON". If the control line to the ADD relay is permanently grounded, the light would still go on and off with the transfer case position, but the ADD would remain locked even in 2WD.
Have someone watch the front drive shaft while you drive it slowly in 2WD, to see if it turns. If it does, you've got the ADD relay permanently grounded and ADD always locked.
You could get the behavior I'm describing if your transfer pressure switch is always ON.
It's possible the reason the relay isn't clicking is that it is always "ON". If the control line to the ADD relay is permanently grounded, the light would still go on and off with the transfer case position, but the ADD would remain locked even in 2WD.
Have someone watch the front drive shaft while you drive it slowly in 2WD, to see if it turns. If it does, you've got the ADD relay permanently grounded and ADD always locked.
You could get the behavior I'm describing if your transfer pressure switch is always ON.
#16
Sorry I haven't replied, phone gave up the ghost. The 4wd is working but is not disengaging the sleeve. I've been switching the vaccum to the vsv's manually so it's not locked all the time. Just picked up a donor 91 pickup 3.0 4wd 5speed. Now to figure out what I need to install the 5speed, front and rear end into my runner! I appreciate all the feedback and help!!
#17
Registered User
iTrader: (1)
Sorry I haven't replied, phone gave up the ghost. The 4wd is working but is not disengaging the sleeve. I've been switching the vaccum to the vsv's manually so it's not locked all the time. Just picked up a donor 91 pickup 3.0 4wd 5speed. Now to figure out what I need to install the 5speed, front and rear end into my runner! I appreciate all the feedback and help!!
