4Runner Rollbar Mounting Holes - location & configuration
#1
4Runner Rollbar Mounting Holes - location & configuration
Hi all,
New member here from New Zealand. I have a 1988 Hilux Surf - the Japanese import equivalent of a gen 1 4Runner for all you North Americans out there. Mine has the 2.4 turbo diesel common in Japan and it has just 102,000kms on the clock.
The Japanese Hilux Surfs did NOT come with a rollbar behind the rear seat as standard - this appears to be a 4Runner thing, however I am keen to fit one if I can. I had a look today and note that I have factory rollbar mounting points welded to the rear wheel arches, and two bolt holes on each side of the truck further back in the cargo area, which I assume are for the rollbar support bars.
I am wondering if anyone on here can tell me how many bolts are used to secure a factory rollbar on a US 4Runner. I just want to check that I have the correct factory boltholes before I order a rollbar from the USA. When I work out how to do it, I'll post photos of what I have, but am keen to confirm with someone from the US whether what I have will be suitable to just bolt a rollbar onto with no modifications.
After initially treating my truck badly for the first few years (lots of hardcore offroading), I then neglected it and it has been sitting unused in my backyard for roughly the past 9 years. My goal now is to do a ground up restoration back to factory condition. It's a huge challenge given the age and condition, but despite years of neglect, I do really love my Hilux Surf and want to restore it so I can keep and enjoy it, rather than just let it decompose in the back yard. Adding a rollbar is just one small part - I have so many big jobs to do - rust removal, leak fixing, panel & paint, underbody work - the list goes on. Mechanical parts here in NZ are easy to source, but model specific body parts are going to be an issue. A lot of things I have seen online are fairly pricey, and some online stores have ridiculous international freight costs - often 4 or 5 times more than the cost of the part. I guess that's part and parcel of the challenge I have set myself...
New member here from New Zealand. I have a 1988 Hilux Surf - the Japanese import equivalent of a gen 1 4Runner for all you North Americans out there. Mine has the 2.4 turbo diesel common in Japan and it has just 102,000kms on the clock.
The Japanese Hilux Surfs did NOT come with a rollbar behind the rear seat as standard - this appears to be a 4Runner thing, however I am keen to fit one if I can. I had a look today and note that I have factory rollbar mounting points welded to the rear wheel arches, and two bolt holes on each side of the truck further back in the cargo area, which I assume are for the rollbar support bars.
I am wondering if anyone on here can tell me how many bolts are used to secure a factory rollbar on a US 4Runner. I just want to check that I have the correct factory boltholes before I order a rollbar from the USA. When I work out how to do it, I'll post photos of what I have, but am keen to confirm with someone from the US whether what I have will be suitable to just bolt a rollbar onto with no modifications.
After initially treating my truck badly for the first few years (lots of hardcore offroading), I then neglected it and it has been sitting unused in my backyard for roughly the past 9 years. My goal now is to do a ground up restoration back to factory condition. It's a huge challenge given the age and condition, but despite years of neglect, I do really love my Hilux Surf and want to restore it so I can keep and enjoy it, rather than just let it decompose in the back yard. Adding a rollbar is just one small part - I have so many big jobs to do - rust removal, leak fixing, panel & paint, underbody work - the list goes on. Mechanical parts here in NZ are easy to source, but model specific body parts are going to be an issue. A lot of things I have seen online are fairly pricey, and some online stores have ridiculous international freight costs - often 4 or 5 times more than the cost of the part. I guess that's part and parcel of the challenge I have set myself...
The following 2 users liked this post by wheelbarrow01:
old87yota (04-26-2020),
RAD4Runner (04-26-2020)
#2

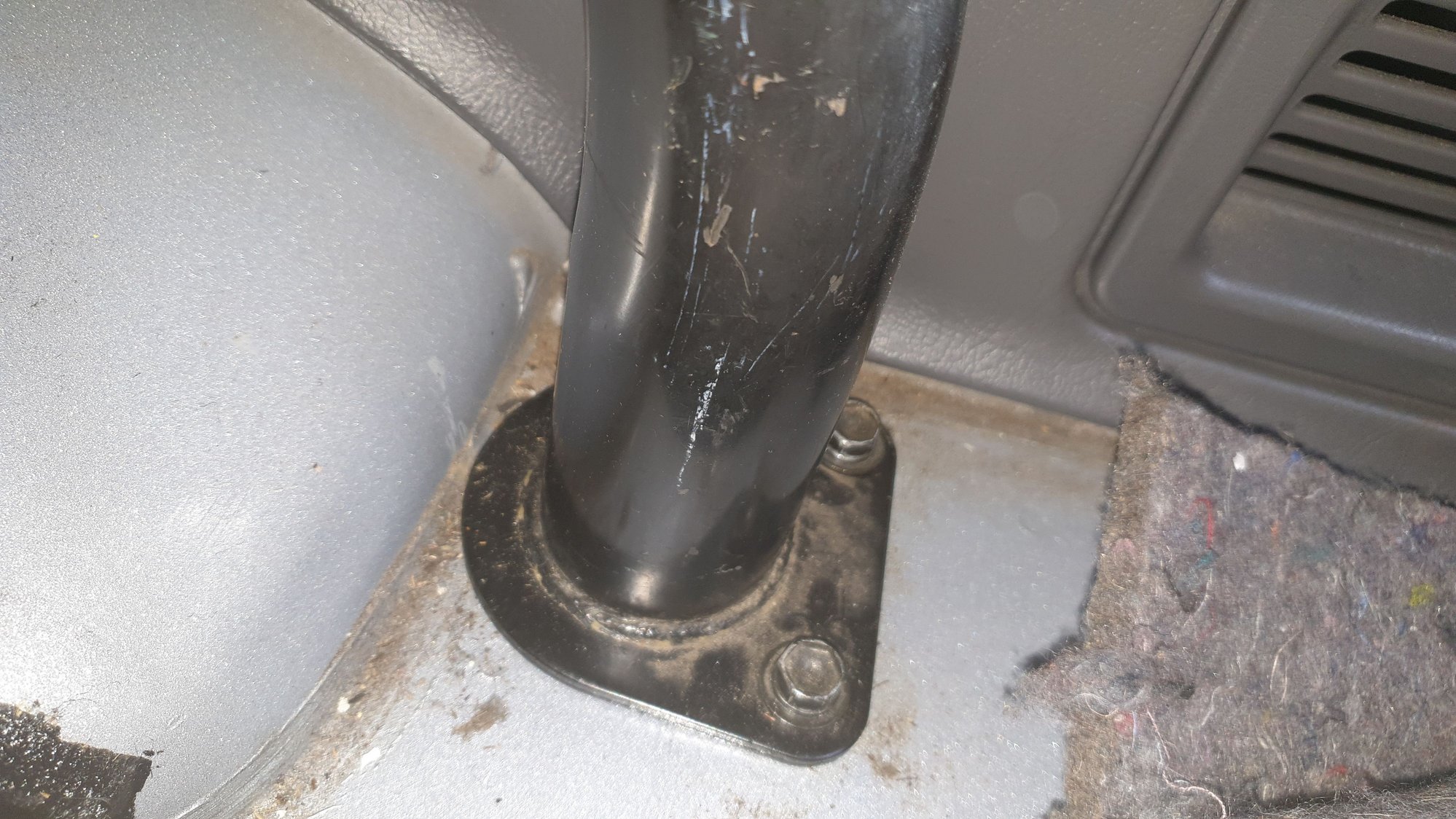

I have an EU 4Runner 88 SR5, every "foot" of the roll bar needs 2 bolts, 8 bolts total.
The following users liked this post:
RAD4Runner (04-26-2020)
#3
And welcome to YT!
I have to clean back there!
I have to clean back there!
Last edited by SomedayJ; 04-26-2020 at 01:17 AM. Reason: Added 2 pics.
The following 2 users liked this post by SomedayJ:
5 Fists (04-26-2020),
RAD4Runner (04-26-2020)
#4
Thanks for the replies gents, that's really helpful. It looks like I have the required factory mounting points on my Japanese Hilux Surf to mount a factory 4Runner US-spec rollbar with no modifications required.
Now to find one! I have a lead on a brand new factory rollbar from a USA Toyota dealer. Just waiting for them to confirm it's the right part. Price and freight to New Zealand seem reasonable - cheaper than having a bespoke one made locally anyway.
I've found heaps of other small parts I need from amayama.com - that website is a godsend!
Now to find one! I have a lead on a brand new factory rollbar from a USA Toyota dealer. Just waiting for them to confirm it's the right part. Price and freight to New Zealand seem reasonable - cheaper than having a bespoke one made locally anyway.
I've found heaps of other small parts I need from amayama.com - that website is a godsend!
#6
Last edited by SomedayJ; 04-28-2020 at 12:23 AM.
#7
Nothing to worry about, everything good!
