1987 4Runner - Restoration and Preservation

The Truck
In October, I purchased a 1987 4Runner off of eBay. According to the records that I have, the truck has spent its entire life in Southern AZ. It's 99% stock and almost entirely rust free - score!



This 4Runner came equipped with a 22R-E and 5 speed manual transmission. The truck currently has over 245,000 miles on the body and in 2007, the 22R-E was completely rebuilt. The shop that performed the work was Dan's Toy Shop in Tuscon. I have no personal experience with this business, but I was incredibly impressed by the cleanliness of the rebuild (compared to other "professional" jobs I've seen). I also liked that they provided detailed notes about all of the work they did and the parts that were replaced. Anything can happen, but I feel confident that this 22R-E is going to last for a while.



The interior is immaculate. Other than a cracked dash pad and torn front seats, it's all original and in excellent shape. There is very little to do on the inside except to replace the aforementioned items and clean/paint some of the faded trim pieces. There are a few mods that I want to do, which I'll discuss later.

NC87_Runner is offline   Reply With Quote
Old 12-04-2017, 03:22 PM   #2
Registered User
Thread Starter

NC87_Runner's Avatar

Join Date: Dec 2017
Location: Dismal, NC
Posts: 22
The Plan

This build thread will document my efforts to restore and preserve this truck.

I plan to change very little about my 4Runner. I'll be cleaning and painting old parts and whenever possible, replacing broken or worn pieces with OEM components. My goal is to maintain this vehicle as close as possible to original specs.

That being said, I do want to make a few changes - e.g. SR5 vs standard gauge cluster.

I'm looking forward to the process and hope to learn as much as I can about these trucks. I'm sure that the YotaTech forums will prove to be a valuable resource along the way.

Without further ado, lets begin!
NC87_Runner is offline   Reply With Quote
Old 12-04-2017, 03:31 PM   #3
Registered User

gsp4life's Avatar

Join Date: Feb 2015
Location: Mogadore, Ohio
Posts: 629
Welcome to Yotatech!

That's a really nice looking truck you got there, good score! It appears that you've successfully done what I was going for (but failed) when I bought my '85 back in 2012. The body looks nearly perfect, that's rare.

On the downside, you probably won't learn how to rebuild a 22re anytime soon, but keep it long enough and you'll be initiated into the club someday, lol.
gsp4life is offline   Reply With Quote
Old 12-04-2017, 04:05 PM   #4
Registered User
Thread Starter

NC87_Runner's Avatar

Join Date: Dec 2017
Location: Dismal, NC
Posts: 22
12/4/17 - Marlin Crawler HD Shifter Seat Install

Shifter Improvements

My 4Runner shifted well and the gears engaged with little issue. However, there was definitely some noticeable slop and I knew it could be better. I ordered the HD shifter seat (the red one), HD shifter socket and the small rubber boot that covers the bottom of the shifter from Marlin Crawler. The parts came in today, so I got to work!



Getting down to the base of the shifter is pretty straightforward. This website documents the process pretty well. Just keep up with all of the screws and be careful pulling on the 30 year old trim pieces! I've read that some people struggle to remove the shift lever due to a metal collar that has to be pushed down and turned counterclockwise - my setup was not like this! Once I had everything unbolted, the shifter simply lifted out.



I used a pair of needle nose forceps to remove the old seat and debris. The original seat was still intact, which was a bit of a surprise. It's made of soft rubber and was originally installed by squeezing it into place.

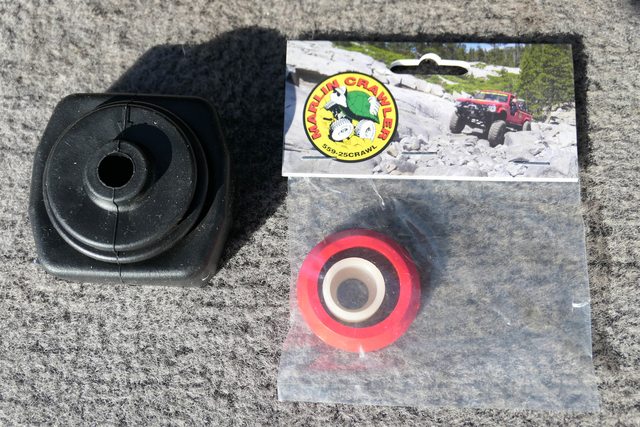

The HD Marlin seat is rotated into position like this. Afterwords, I cleaned up the shifter, installed the new socket on the end, applied a light coating of grease and reinstalled everything.



The original socket on the end of the shift lever (below) had noticeable wear. The old one was a bear to get off!



After everything was buttoned back up, I took the truck for a test drive - and WOW! It made a huge difference! The shifts are crisper and a lot of the slop is gone. It was definitely worth the time and cost to make this repair. Marlin Crawler appears to make a quality product!

In hindsight, I wish I would have cleaned the area on top of the transmission. It was gunked up pretty bad.
NC87_Runner is offline   Reply With Quote
Old 12-04-2017, 04:09 PM   #5
Registered User
Thread Starter

NC87_Runner's Avatar

Join Date: Dec 2017
Location: Dismal, NC
Posts: 22
Quote:
Originally Posted by gsp4life View Post
Welcome to Yotatech!

That's a really nice looking truck you got there, good score! It appears that you've successfully done what I was going for (but failed) when I bought my '85 back in 2012. The body looks nearly perfect, that's rare.

On the downside, you probably won't learn how to rebuild a 22re anytime soon, but keep it long enough and you'll be initiated into the club someday, lol.
Thanks! It has its fair share of dings and whatnot, but the frame is in great shape and surface rust is minor.

I've got my fingers crossed that this 22R-E runs trouble free for a long time. lol I can't afford to rebuild one anytime soon!
NC87_Runner is offline   Reply With Quote
Old 12-04-2017, 04:28 PM   #6
Registered User
Thread Starter

NC87_Runner's Avatar

Join Date: Dec 2017
Location: Dismal, NC
Posts: 22
12/4/17 - Rattling Tailgate Fix

Every old Toyota that I've owned has been plagued by the terrible, rattling tailgate. It's not so noticeable on a pickup, but it can be annoyingly obvious in a 4Runner.

The rattling is caused by the tailgate braces which are normally held in place by these broken clips (below).



There are four clips in total, two on each side. After 30 years, the plastic becomes brittle and the center piece breaks off. You can still get them from Toyota - part #: 65778-89104
I ordered four new ones and installed them today (below).



Getting the old clips off was a pain... I ended up breaking most of the old clips off - piece by piece (below).
Installing the new clips was easy and now my tailgate is quiet! Sometimes it's the little things that are the most rewarding.
