Removing Steering Box

Hi guys getting ready to send my manual steering box from 82 4wd pickup off to West Texas Off Road for a rebuild. Is there anything to know before going into this job? I suppose the crux is removing the pittman arm from the box, for which I will have to rent a puller from Napa or something? Is everything else just unbolt and remove? Does a writeup exist anywhere?
GodwinAustin is offline   Reply With Quote
Old 02-12-2018, 12:15 PM   #2
Contributing Member
Thread Starter

GodwinAustin's Avatar

Join Date: Oct 2004
Location: JACKSON
Posts: 1,259
Also wondering what type of Pitman puller I need as I may just buy one if its cheap enough
GodwinAustin is offline   Reply With Quote
Old 02-12-2018, 03:48 PM   #3
Fossilized
Staff
iTrader: (6)

dropzone's Avatar

Join Date: Oct 2005
Location: PNW
Posts: 18,739
-3 bolts on the frame
-2 bolts for the rag joint for the steering shaft
-pull the draglink off the pitman arm
-pull the box, take to the rental place of your choice and match the pitman arm puller needed (i bought one from harbor freight for about $15 and have used it a few times)
dropzone is offline   Reply With Quote
Old 02-12-2018, 05:14 PM   #4
Contributing Member
Thread Starter

GodwinAustin's Avatar

Join Date: Oct 2004
Location: JACKSON
Posts: 1,259
Quote:
Originally Posted by dropzone View Post
-3 bolts on the frame
-2 bolts for the rag joint for the steering shaft
-pull the draglink off the pitman arm
-pull the box, take to the rental place of your choice and match the pitman arm puller needed (i bought one from harbor freight for about $15 and have used it a few times)

thanks Dropzone...do I need to mark anything beforehand for alignment purposes when re-installing the steering box?
GodwinAustin is offline   Reply With Quote
Old 02-12-2018, 05:17 PM   #5
Fossilized
Staff
iTrader: (6)

dropzone's Avatar

Join Date: Oct 2005
Location: PNW
Posts: 18,739
it would be a good idea to mark the pitman arm across the shaft before you remove it from the steering box.
However more than likely you are going to need an alignment after having the box rebuilt
dropzone is offline   Reply With Quote
Old 02-17-2018, 06:55 AM   #6
Registered User

medicmoose's Avatar

Join Date: Apr 2014
Location: Kamloops, BC
Posts: 104
I removed my pitman arm with the steering box still in place. Used a torch to heat up the arm where it attaches to the box and with a puller it eventually gave e up the fight and popped off.
medicmoose is offline   Reply With Quote
Old 02-17-2018, 07:13 AM   #7
Registered User

Join Date: Apr 2016
Location: Alaska
Posts: 782
if yours has a drag link from the steering box to the left front knuckle (I'm pretty sure 1982s all do) you won't effect your alignment in any way except centering of the steering wheel.
akwheeler is offline   Reply With Quote
Old 04-29-2018, 08:36 AM   #8
Contributing Member
Thread Starter

GodwinAustin's Avatar

Join Date: Oct 2004
Location: JACKSON
Posts: 1,259
Hey guys, just about to do this and good news is the steering box I got has the Pitman arm already on it, so I guess that means I dont need to pull it!

One other question, I see on the new box where the pitman attaches to the drag link is a kind of steel ball, how do I separate the drag link from the pitman on the existing box? Do I just hammer it out from the inside or?
GodwinAustin is offline   Reply With Quote
Old 04-29-2018, 10:50 AM   #9
Contributing Member
Thread Starter

GodwinAustin's Avatar

Join Date: Oct 2004
Location: JACKSON
Posts: 1,259
Quote:
Originally Posted by GodwinAustin View Post
One other question, I see on the new box where the pitman attaches to the drag link is a kind of steel ball, how do I separate the drag link from the pitman on the existing box? Do I just hammer it out from the inside or?
This was what I was looking for...

https://forum.ih8mud.com/threads/fig...nk-end.929081/
GodwinAustin is offline   Reply With Quote
Old 04-29-2018, 02:25 PM   #10
Contributing Member
Thread Starter

GodwinAustin's Avatar

Join Date: Oct 2004
Location: JACKSON
Posts: 1,259

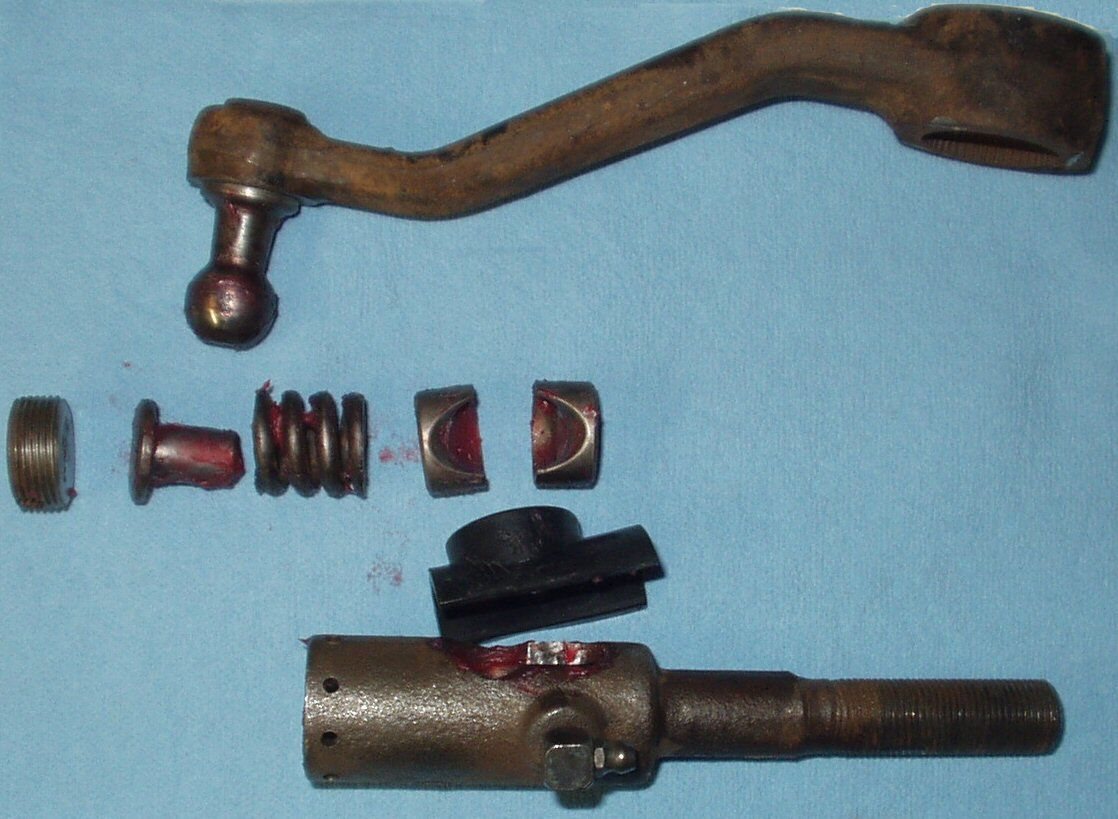

ok so i have the cap, spring, and ball stud retainer piece removed (the first 4 pieces in the photo below), but still cannot remove the Pitman arm from the drag link, where the pitman ball stud enters the link...do i need to do something like moving the steering or drag link itself to to release the ball stud from where it enters the link? (this is not my picture ) Maybe use a pry bar in between the link and the pitman arm?



Last edited by GodwinAustin; 04-29-2018 at 05:00 PM.
GodwinAustin is offline   Reply With Quote
Old 04-29-2018, 04:59 PM   #11
Registered User

Join Date: Apr 2016
Location: Alaska
Posts: 782
Quote:
Originally Posted by GodwinAustin View Post
ok so i have the cap, spring, and ball stud retainer piece removed (the first 4 pieces in the photo below), but still cannot remove the Pitman arm from the drag link, where the pitman ball stud enters the link...do i need to do something like move the steering or drag link arm to release the ball stud from where it enters the link? (this is not my picture )


If you look closely the picture shows there is a slot with a wider spot where the ball will fit through. if it is seized up you may have to tap on the end with a deadblow or a chunk of wood and a hammer in order to release the cups that hold the ball in place so it can slide along far enough to come out
akwheeler is offline   Reply With Quote
Old 04-29-2018, 06:37 PM   #12
Contributing Member
Thread Starter

GodwinAustin's Avatar

Join Date: Oct 2004
Location: JACKSON
Posts: 1,259
Quote:
Originally Posted by akwheeler View Post
If you look closely the picture shows there is a slot with a wider spot where the ball will fit through. if it is seized up you may have to tap on the end with a deadblow or a chunk of wood and a hammer in order to release the cups that hold the ball in place so it can slide along far enough to come out
Does it slide left toward the cap (also left in the picture) to release or to the right? Also whats the best way to slide the drag link either way to release the ball? The a hammer on the end as you mentioned or should I be able to move it with the steering wheel?
GodwinAustin is offline   Reply With Quote
Old 04-29-2018, 07:25 PM   #13
Registered User

Join Date: Apr 2016
Location: Alaska
Posts: 782
you move the ball toward the end you took the cap and spring out of, the cap and spring give the steering a little give the pin down the center keeps the ball from moving far enough to come out,
akwheeler is offline   Reply With Quote
Old 04-30-2018, 05:23 AM   #14
Contributing Member
Thread Starter

GodwinAustin's Avatar

Join Date: Oct 2004
Location: JACKSON
Posts: 1,259
Quote:
Originally Posted by akwheeler View Post
you move the ball toward the end you took the cap and spring out of, the cap and spring give the steering a little give the pin down the center keeps the ball from moving far enough to come out,
Do I need both wheels free to move the drag link? Right now I only have the drivers side wheel off the ground,,,
GodwinAustin is offline   Reply With Quote
Old 04-30-2018, 06:26 AM   #15
Registered User

Join Date: Apr 2016
Location: Alaska
Posts: 782
Quote:
Originally Posted by GodwinAustin View Post
Do I need both wheels free to move the drag link? Right now I only have the drivers side wheel off the ground,,,
it sure would help, or you can try turning the steering wheel while both tires are on the ground (left if I remember correctly)
akwheeler is offline   Reply With Quote
Old 04-30-2018, 08:15 AM   #16
Contributing Member
Thread Starter

GodwinAustin's Avatar

Join Date: Oct 2004
Location: JACKSON
Posts: 1,259
ok...got her off...turned the wheel left and the ball stud popped out! Thanks AK!

now how do i get the steering shaft off ? its that ridged spline on the box with a groove in the middle that connects to the rag joint on the steering shaft...should i just pry it off there or? also looks like only one bolt holding the collar on the spline...not two

Last edited by GodwinAustin; 04-30-2018 at 09:21 AM.
GodwinAustin is offline   Reply With Quote
Old 04-30-2018, 08:41 AM   #17
Registered User

Join Date: Apr 2016
Location: Alaska
Posts: 782
I give up, try a torch, maybe I'm wrong about the slot.
akwheeler is offline   Reply With Quote
Old 04-30-2018, 08:51 AM   #18
Registered User

Join Date: Apr 2016
Location: Alaska
Posts: 782
akwheeler is offline   Reply With Quote
Old 04-30-2018, 05:00 PM   #19
Contributing Member
Thread Starter

GodwinAustin's Avatar

Join Date: Oct 2004
Location: JACKSON
Posts: 1,259
Quote:
Originally Posted by akwheeler View Post
I give up, try a torch, maybe I'm wrong about the slot.
No you were spot on, got the drag link off, but now Im trying to figure out how to get the splined steering column shaft off the box, held on with a collar, with a bolt (removed) holding the collar to the spline

Last edited by GodwinAustin; 04-30-2018 at 05:11 PM.
GodwinAustin is offline   Reply With Quote
Old 04-30-2018, 05:26 PM   #20
Registered User

Join Date: Apr 2016
Location: Alaska
Posts: 782
Quote:
Originally Posted by GodwinAustin View Post
No you were spot on, got the drag link off, but now Im trying to figure out how to get the splined steering column shaft off the box, held on with a collar, with a bolt (removed) holding the collar to the spline
remove the bolt, not just loosen, remove. then work the collar off of the splined shaft, it may help to lightly tap a chisel into the slot to spread it slightly. don't get all King Kong with it or you will break it. It may also help to unbolt the steering box from the frame to get the last little bit.
akwheeler is offline   Reply With Quote
