1985 - 1989 Body Swap
#1
1985 - 1989 T4R Body Swap (COMPLETED)
In 2013, I crashed my 4Runner on an icy road. I was devastated because it was my first car and I really loved it. It is a 1985 SR5 with all the options. My great uncle was the second owner and had it since the early 90s until I got it from him.
I didn't have the resources to fix it properly then, and I couldn't let it go, so a we paid a back-country "mechanic" to fix it the best they could. A new windshield, and seemingly gallons of Bondo later, and I was able to roll down the road again.
Well, soon enough the Bondo fell off and I was left with a leaky, rusty roof. Soon after that the transmission went out. College kid that I was, I could only see dollar signs adding up, so I found a little corner of my dad's farm and hid it away under a tarp until I can do something.

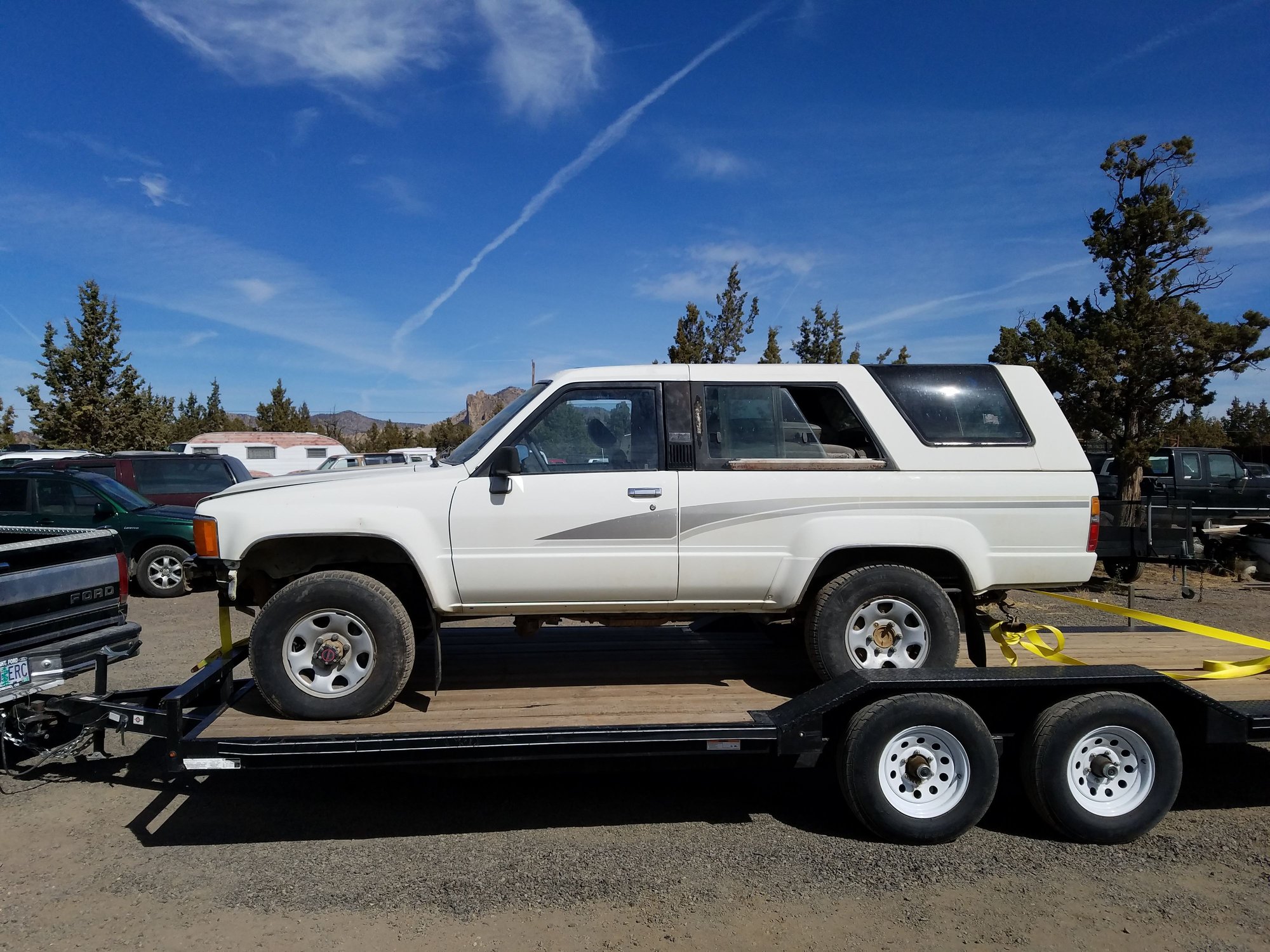

Fast forward to today.. College grad, home from the Air Force, got a couple weeks of casual status while I wait for school dates, and the local wrecking yard is closing down and the new owner wants everything gone.... Including a white 1989 SR5 with all the trimmings (and bad rods).
$1,000 got me the complete Runner, plus they through in a good 5-speed for my 22RE and a starter motor.
It even came with a Smittybilt tube rear bumper to match my front! I've been after one of those since high school! Just need the nerf bars now...
The stage is all set now. Going to do a basic body swap. Going all out and plan on using my 1985 doors, tailgate, steering column, canopy, and interior (including the dash, carpet, and wiring harness).
Wish me luck, and please feel free to send in as much advise as you'd like. These threads have been an excellent resource.
EDIT..... Here is the finished project for those who don't feel like scrolling....
I didn't have the resources to fix it properly then, and I couldn't let it go, so a we paid a back-country "mechanic" to fix it the best they could. A new windshield, and seemingly gallons of Bondo later, and I was able to roll down the road again.
Well, soon enough the Bondo fell off and I was left with a leaky, rusty roof. Soon after that the transmission went out. College kid that I was, I could only see dollar signs adding up, so I found a little corner of my dad's farm and hid it away under a tarp until I can do something.
Fast forward to today.. College grad, home from the Air Force, got a couple weeks of casual status while I wait for school dates, and the local wrecking yard is closing down and the new owner wants everything gone.... Including a white 1989 SR5 with all the trimmings (and bad rods).
$1,000 got me the complete Runner, plus they through in a good 5-speed for my 22RE and a starter motor.
It even came with a Smittybilt tube rear bumper to match my front! I've been after one of those since high school! Just need the nerf bars now...
The stage is all set now. Going to do a basic body swap. Going all out and plan on using my 1985 doors, tailgate, steering column, canopy, and interior (including the dash, carpet, and wiring harness).
Wish me luck, and please feel free to send in as much advise as you'd like. These threads have been an excellent resource.
EDIT..... Here is the finished project for those who don't feel like scrolling....
Last edited by Snoop_Todd; 10-17-2018 at 09:36 PM.
The following users liked this post:
Snoop_Todd (09-26-2018)
#3
Registered User
Welcome!
I will definitely be following this thread!
Along with labeling everything as you remove them, take lots of pictures of how things were put together.
That will make reassembly easier.
Good luck. I hope all goes well!
The following users liked this post:
Snoop_Todd (09-26-2018)
#4
Interesting.
Good luck with the swap, and don't forget to post pics!
Good luck with the swap, and don't forget to post pics!
The following users liked this post:
Snoop_Todd (09-26-2018)
The following users liked this post:
Snoop_Todd (09-26-2018)
#6
Spent yesterday and today getting the trucks prepped. Everything is unplugged save for the mounting bolts, which will come out when I'm ready to start lifting stuff.
The 22RE is sure a sweetheart to work with. Everything was nice and easy to access and moved right out ot the way. I unbolted the A/C compressor and simply placed it in the battery tray out of the way.
The 3.0, on the other hand, was a headache and a half trying to get sorted out. Everything is way crammed in with wiring harnesses running every which way but straight. Nothing a little (or a lot) of WD-40 couldn't handle though.
Next step will be to strip these bad boys down as much as possible. Getting the canopy and doors off will require a second set of hands. Hopefully this weekend I'll have a buddy come out and help.
And oh by the way, I found my old box of trim that I had stashed in my old farm truck some time ago. I even have the original radio and equalizer. SCORE!
Here's a question... On the 22RE wiring harness, there is a green female plug down near the starter with nothing plugged into it. Now, seeing as the only thing that doesn't work on the dash is the temp gauge, am I correct to assume that that's were a sender from the coolant sensor would plug in? (The temp gauge never worked, so I've always had an aftermarket gauge. You can see its green wire in the upper right corner of the 22RE pic)
The 22RE is sure a sweetheart to work with. Everything was nice and easy to access and moved right out ot the way. I unbolted the A/C compressor and simply placed it in the battery tray out of the way.
The 3.0, on the other hand, was a headache and a half trying to get sorted out. Everything is way crammed in with wiring harnesses running every which way but straight. Nothing a little (or a lot) of WD-40 couldn't handle though.
Next step will be to strip these bad boys down as much as possible. Getting the canopy and doors off will require a second set of hands. Hopefully this weekend I'll have a buddy come out and help.
And oh by the way, I found my old box of trim that I had stashed in my old farm truck some time ago. I even have the original radio and equalizer. SCORE!
Here's a question... On the 22RE wiring harness, there is a green female plug down near the starter with nothing plugged into it. Now, seeing as the only thing that doesn't work on the dash is the temp gauge, am I correct to assume that that's were a sender from the coolant sensor would plug in? (The temp gauge never worked, so I've always had an aftermarket gauge. You can see its green wire in the upper right corner of the 22RE pic)
Last edited by Snoop_Todd; 09-26-2018 at 06:50 PM.
#7
Here's a question... On the 22RE wiring harness, there is a green female plug down near the starter with nothing plugged into it. Now, seeing as the only thing that doesn't work on the dash is the temp gauge, am I correct to assume that that's were a sender from the coolant sensor would plug in? (The temp gauge never worked, so I've always had an aftermarket gauge. You can see its green wire in the upper right corner of the 22RE pic)
https://www.yotatech.com/forums/f116.../#post52392113
The following users liked this post:
Snoop_Todd (09-27-2018)
