Very cool to do that with your son! It is times like those that really create a great bond. The lesson most of all for him are persistence, critical thinking, like you said, patience. He will be more proud of that car than you believe. Good on you.
Yeah, I didn't think going with an auto ECU would have been something I would do. I fought like hell getting all those plugs wired anyway, and to do it over again.......no thanks for me.

I'll know more on Mon. as I'm headed out of town. I have eliminated everything I can think of that is keeping this rig from starting. At least when I turned the key the first time it didn't blow up!!

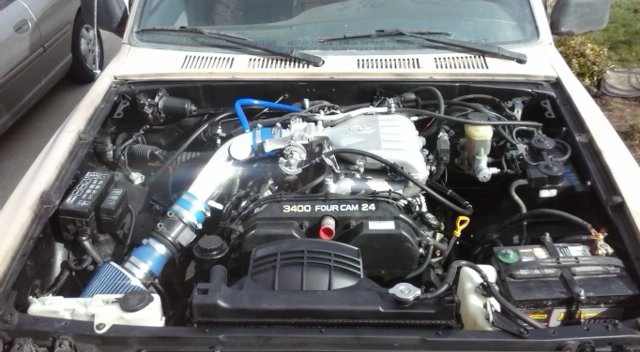

Well, I spend a couple hours getting most everything put back together. I tore into the valve covers to check the cam timing at Compression TDC. I did it right the first time.................just like the clutch. Figured I would hold off on the radiator fluid just in case. Yeah, just another engine to most of you...........but to me it is freaking WOW.

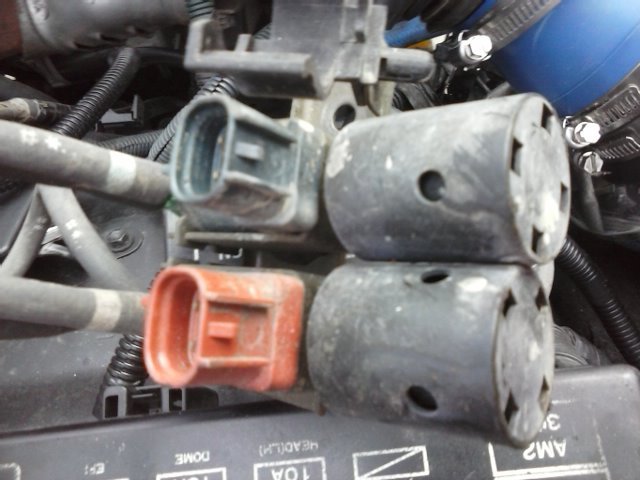

I have a question about the vacuum hoses that hook up to the transfer case in front. The hoses are marked with a light blue and white mark. Here is the part that it went to on the 3.0. Just where do these vacuum lines go? Just to any vacuum line? Can they be jointed together on a t with one line going to vacuum port?

Since I am running manual hubs do I need these as I think they go for an actuator switch of for the 4x4. ??


The other question is I am having a hard time figuring out how the engine harness runs on the drivers side. I see where it clips in, and the other part that screws to the engine mount location, but the curve would be facing front when I would think that it goes back to hook up with the 02 sensors. And, anybody know with a MT which plugs I can cut off that would be going to the auto transmission? This is an Auto Harness.

Thanks guys...........I'll get back to it on Monday.....going out for some fun doing this without



Those vacuum hoses normally go to the ADD actuator on the front differential (the transfer case is bolted to the back of the transmission) and are responsible for engaging and disengaging the sleeve to connect the driver side axle to the differential. If you still have the original ADD diff you will need to do something to keep your 4x4 working: swap in a non-ADD diff (or just replace the ADD tube with a non-ADD tube without the actuator attached), do something to "lock" the sleeve in the engaged position in the actuator, or wire up those VSVs to engage when the transfer case is shifted to 4Hi/4Lo and disengage when shifted to 2Hi. I chose to modify the wiring to keep the ADD fully functional (even though I have had manual hubs for close to 10 years and a non-ADD diff in the shed); all the wiring is documented at the end of my swap thread.

All (or just about all) of the plugs that are on the 3.4 A/T harness will need to be cut off, as they won't plug into your 3.0 M/T and transfer case. You'll need identify the wires needed for reverse (so your backup lights turn on when shifted to reverse), as well as any 4x4 wires from the transfer case; basically you're looking for all the wires that plug into your 3.0's M/T and transfer case. Then, go and cut those connectors (with at least 6" of wire) off your 3.0 engine harness and solder them to the appropriate wires on the 3.4 A/T harness you're using, and plug them into your 3.0 M/T and transfer case.

The rest of the 3.4 A/T wires are unused with a M/T and you can do whatever with them, I disassembled my 3.4 A/T harness to remove them all together (which I DO NOT recommend, total pain) or you can just leave them cutoff and wrap with electrical tape.



Thanks Wallace. I had been searching for info on it and for some reason, I never have read your thread. When I get to that point I will def take note and follow your help. Thanks again.



New computer came and still only get .703 volts at the IGN wire. Both BATT and B+ have 12 volts.......Two computers can't be bad! I am at a complete loss with exception of the possibility that the one IGN wire is just not getting a good enough connection. Must be a wiring problem with that damn E5 plug after all.

I don't want to admit failure just yet. Perhaps the E5 plug just got damaged somehow during the wiring process of that plug. I just don't know. (

Edit.............It turned out that was the problem all along. I ignored it an over thought the entire thing............but learned a lot!!)



I was affraid that wouldn't make a difference. What is the "ign" wire?

edit: From previous posts I think you mean IGF wire which is supposed to be 4.5-5.5 volts. You have a wiring problem on your hands. You need to make a cheat sheet of what you've pinned. You're going to have to comb through your wiring anyway. This will be a good way to double/triple/quadruple check your wiring and be able to give us something we can help you with. Are all the parts from the same doner, or have you mismatched?



Yes you are correct, it is the IGF wire. My mistake. And yup, should be 4.5- 5.5. I tore into the E5 plug and looked at all of the connections and pinout locations. All the wire colors for the IGF and IGT wires match up as well as others. I checked all others and they are correct as well. All of my grounds are OK.
As far as from the same donor, unfortunately no. But, it is a 97 Auto harness and 97 MT ECU, so therefore yes, mismatched in a way. I had spoken to a few people with the same year and with the auto harness and they suggested I try the cheat sheet on the 3.4 swap 101 that they had success with. I had no wire color confusion. https://www.yotatech.com/forums/f160...-101-a-239002/

I do have a note in my records about a possible loose connection to a ground wire with an E03 function. It appears according to the EWD that this is a ground to the ECU. I pulled that wire and noticed it had a bad connecter pin so i soldered a new one on, still only .703 at pin 17 on both computers.
I'm going to check the FSM as maybe, just maybe it could be something else, maybe in the fuse box with the EFI or something.? Not sure if that would be it as my B+ is getting 12 volts. hmmm



So first off I must admit I didnt read your whole thread because wow thats a lot of posting and I have been working on my swap. However I caught your section on the maf and thought I would give my 2 cents.

The engine will not (from my experience) start without the maf. If you are having continuous cranking or it starts and dies check your maf wiring. Does your harness match your ECM? I see they are the same year but same car as well? The reason I ask is different models used different mafs and blah blah blah.. I found my issue was my harness needed the older style maf. If you compare the mafs on TIS you will see that plugs 4 and 5 are switched. Also make sure you have power in BOTH places indicated on TIS at your maf. I was missing one. Took me 3 days to find it.

As for all your other wiring stuff be patient use a multimeter to verify things. Be sure you are looking at the right EWDs for the harness and ECM RESPECTIVELY... toyota changed wires around on different models /years etc on the 3.4.

Feel free to pm me if you need help (im one step ahead of you on my swap and am happy to help if I can)

Good Luck!



Also, I am in redmond WA and have extra swap parts lying around if you want to borrow/steal them to get your stuff working.



Thanks man, I really appreciate the offer. I'm in your sister city in OR. You wouldn't happen to have a working MT ECU for a Runner sitting around would you? The odds of two being bad are pretty out there and all of my tests point right back to the ECU. Other than that, I have everything......thanks again.



I guess I will take a look at my MAF again, this one came from a 97 as did my harness (AT though) and ECU. I have the proper conversion pin outs for the AT to MT. I'm not sure how the MAF would effect the voltage at pin 17 as I"m only getting .703 on both ECUs when I should have 4.5-5.5. Your comment of plug 4 and 5 confuse me as I think you meant the inside pin 4 and 5 of that one maf plug. I'll have to look at the EWDs Somebody else mentioned the same thing so I will have to look into this to be sure. I no longer get a MAF code or any code for that matter. When you said plug 4 and 5 did up mean the pin inside the female section of the MAF housing? I show pin 12 of E6. y-g THA function, Pin 2 on E6 R-W VG function, pin 8 E6 b-w E3 function, and the B+ and BR-R E2 wire. I guess the BR-R is a power wire along with the B+. You had mentioned older MAF. Were there two that were used in 97? Can you please send a pic of it to my PM?

Good to know it is needed as from what mechanics say, that isn't needed for it to start. Must be just the Toyota.



Man it's not gonna be two bad ECUs. It's unlikely to be even one bad ECU. Toyota ECUs are just damn rock solid.

Do you have 12v at the B+ B-R wire on your Ignitor? Use the BR wire on the ignitor for your ground. You should have 12v when the key is in IG2 (not cranking) Just making sure, but you have you "ground pack" hooked up on the driver side of the intake manifold? It's below the Dignostic pin box. All the ignitor, and ECU grounds there.

Can you send me your 97 EWD so I can give you proper plugs pins and color?



Yes, 12 V at B+ on the ignitor using the brown wire as ground. Also checked the B+ wire at the MAF and it's ground B-W, 12v. Yes, The ground pack is to the intake manifold.

But wait, the diagnotic pin box has a purple and white wire that was tucked to where I didn't notice Looks like it goes to the pin 7 of the E6 plug just sitting there unattached. Probably not sending back a timing signal if I understand it correctly.



I left my V-W wire going to the diagnostic unhooked, I just use the OBD 2 for diagnostics. But my truck still starts fine. All the wire does is send data to from the ecu to a code reader.



Well cool, now I can test my timing etc I guess. I am wired for ODBII as well though. I didn't think this would keep it from starting.



Finally I found the problem. A ground pin connector had just a slight break in the edge of the pin. Yup, I must have damaged it getting the pins out. Heck, I have been saying all along it was a problem with that damn E5 plug.

Starts stumbles then dies. Checked the coils two aren't getting spark still. The igniter isn't throwing a code. Continuity checked all wire out from ECU to igniter, igniter to coils. Conclusion..........my E5 plug is damaged.



SHHHHH............can you hear it? IT RUNS!! I finally decided that the E5 plug I had mentioned might have been the problem all along was the cause of the IGT3 to not get the signal........replaced the plug. Gets spark.
Thanks to Cr@ves4wheelin for pointing out the obvious to me as the reason why it was not remaining started was due to a vacuum leak. My vacuum line which would have gone to the EGR, which it doesn't have, was not plugged.

Here is the first start up when it actually ran. [YOUTUBE][/YOUTUBE] https://www.youtube.com/watch?v=2Byj...ature=youtu.be

My thermostat was installed upside down with the hole facing down and my heater hoses were switched. It should be drivers side engine to left heater hose out on the firewall and Pass side engine to heater intake. One previous post was wrong. Only throws one code for the 02 sensors but duh, my exhaust isn't hooked up. Thanks to those that helped me along the way.

Still some minor bugs, but nothing I can't figure out..........I think.


https://www.youtube.com/watch?v=2Byj...ature=youtu.be



Glad you got it going!



Thanks, Yup.....So am I.



Hey bud, good to hear. Saw your video, sounds great. Don't forget there's a vacuum hook up under the black foam thing on the side of the intake, right next to the throttle body. It's for your PCV valve.
