Adding Late Model Cruise Control

At the behest of another member I have decided to post a quick "explanario" about how I added a late-model servo actuated cruise to my 1990 VZN110 with a new 3.4 mill.

The donor was a 2000 4Runner. Yanked the cruise control servo/ECU combo (they are inclusive of one another) unit with cable attached and the bracket. Cut the wiring harness from it and left a 6" pigtail to work with. Grabbed about 12' of 15 conductor, 22AWG wire. Spliced the cable to the pigtail and ran it through the cowl inside the pass. side fender where I put the factory air inlet snorkel. Ran the cable along and behind the dash and down into the LH kick panel where the wiring from the trucks cruise comes into and where the cruise control main relay resides. Yank the relay and the existing cruise control ECU and pitch them in the nearest waste receptacle. Get under the hood and yank the vacuum servo actuator and the aux. vacuum pump and all the bracketry and have them join their recently displaced brethren in said waste receptacle.
At this point you can either cut all of those wires and seal them up nice and neat or just leave them be. I chose the former.
Mount the new servo in a convenient place within actuator cable's reach on the RH fender...the same general locale as would be on the donor vehicle.

Just cut and splice the wiring as shown in the schematic drawings I have supplied from the old existing wiring harness to the newly placed wiring cable. Don't forget to bring up the three wires from the engine ECU that need to be wired into the cruise control. In the case of my 1998 4Runner ECU those were: E12-7 "O/D", E9-17 sol. "S2" and E12-11 "IDLO".

Attach the cable to the TB and make sure there is no slack.

Enjoy your new cruise control!

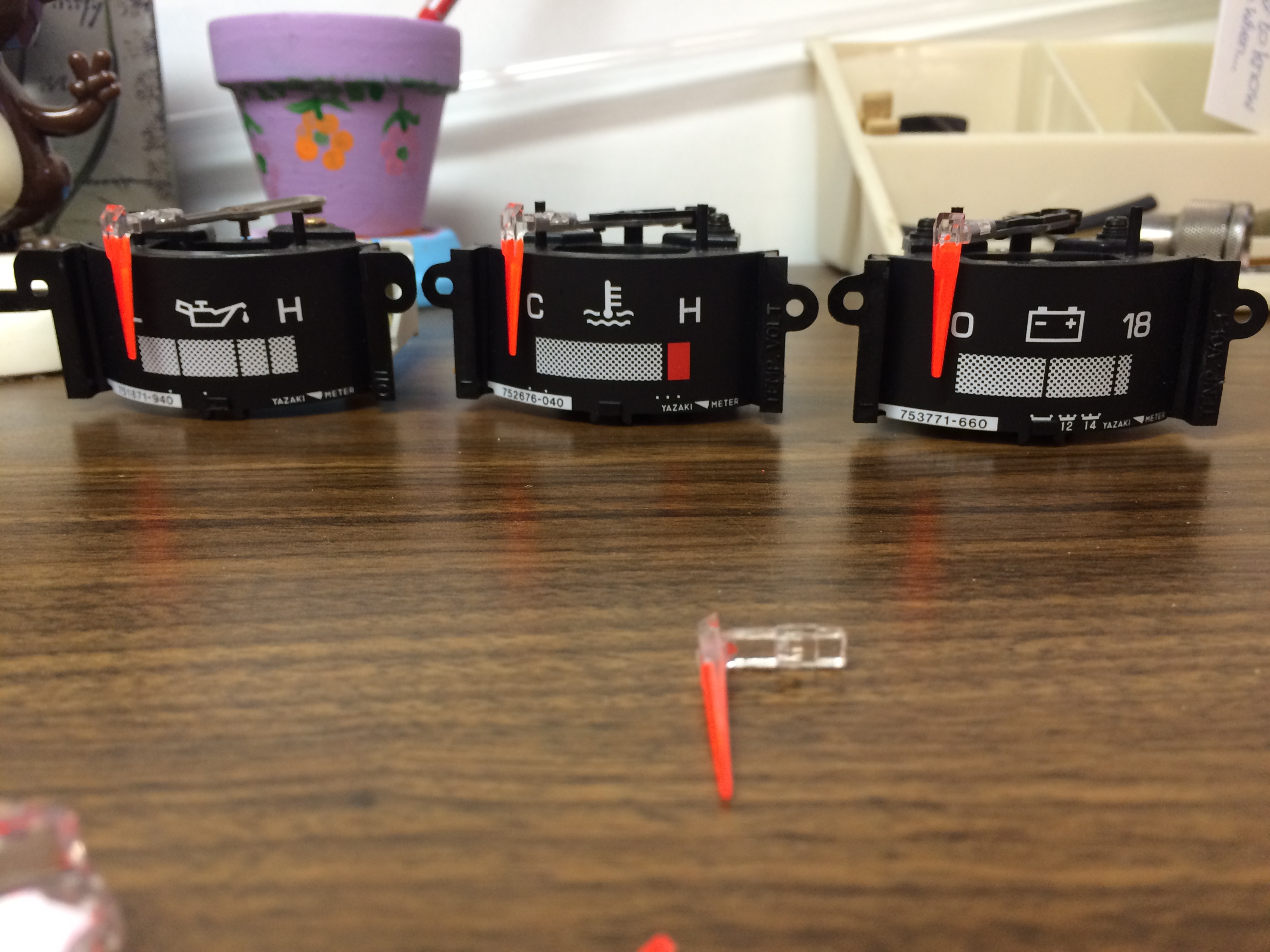

It works with my MECHANICAL speedo (up to '93) with the SP1 (speed sensor #1) reed switch. Should work with the electronic speedo head as they incorporate a D to A circuit for the cruise control. Actually, I am using a combo meter pulled from a 1997 T-100 that I modified with LED gear position indicators with repainted needles and I swapped out the function indicator overlays from my original speedo. A little bit of rewiring on the printed circuit to match the added functions and all is well. Those of you who just do a direct swap of the cruise controls will not need to do any rewiring to the combo meter.
The cruise control relies on just the signal from the speedo. (and for the ABS on some models) The #2 sensor on the trans has no bearing on theoperation of the speed control.
The Jap made as well as the Ford made Servo/ECU controls work the same.

Let me explain that this is what I did to MY truck which now has the 5VZ-FE. If you wanted to attach this to an existing 3.0 then you will have to get creative with the placement of the servo. I am not certain if the cable is long enough to reach from the area in which the existing cruise control resides. Here again, the later model Runners and trucks up to '95 that have a early version servo operated cruise on the LH fender already might not need this upgrade but it was a slam dunk for upgrading the old vacuum operated POS!

Enjo!
