I have almost completed my swap but sense I bought the engine out of the yard I wasnt able to see how the vacum hoses go or where the pressure sensors are hooked up etc. Is there anyone out there that could post a detailed pics of this? My other option is to go to the Toyota dealer and pretend I am going to test driving one. And by the way if anyone needs any pics of my swap let me know exhaust, wiring, etc.



some exhaust pics would be cool



ya have CA spec engine, or does it make a difference? i could take a pic of the label under my hood if that would help



I have a '98 T-100 with a 5VZ-FE. What year is your motor? I believe that they changed the setup as far as emissions and vacuum lines go at some point.

Anyway, if my year is a match to what you are working with, I wouldn't mind taking a few shots and posting them for you. I am working on a swap right now myself, so I know how you feel (well, somewhat).



The engine is out of a 99 4runner. It doesnt have CA emitions but I dont belive it matters. As far as the exhaust goes I can get a pic tomorrow. Any info will be helpful. Thanks.



k, i too have a (stock) 994runner engine, still in the original frame so i will try to get a few pics tomorrow, pm or email me if you want any specific shots, otherwise, all will be from top of engine

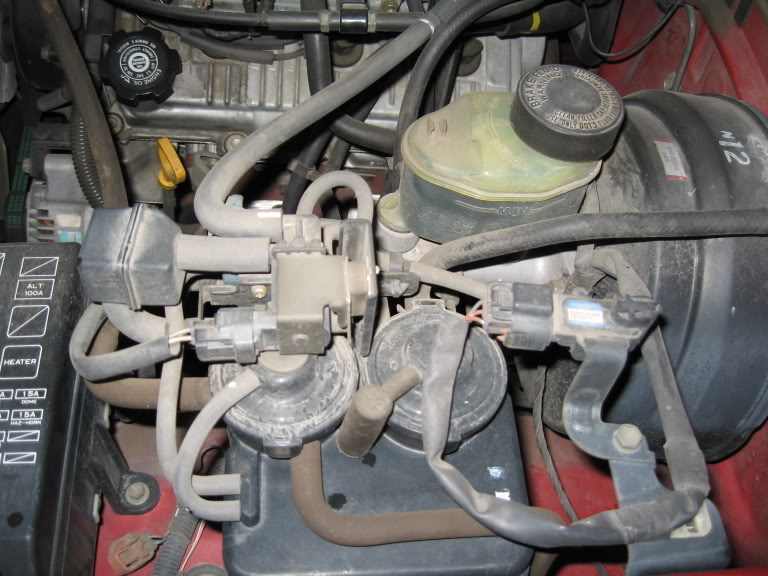

I guess you have a stock 5VZFE (no supercharger)? Here are a few pics of my donor truck before I removed the engine. It has damage to the left front though where the evap can is but all the hoses were still connected.
http://community.webshots.com/photo/...42310107xZeKZz
http://community.webshots.com/photo/...42310107OWPArU
http://community.webshots.com/photo/...42310107kmvcTw

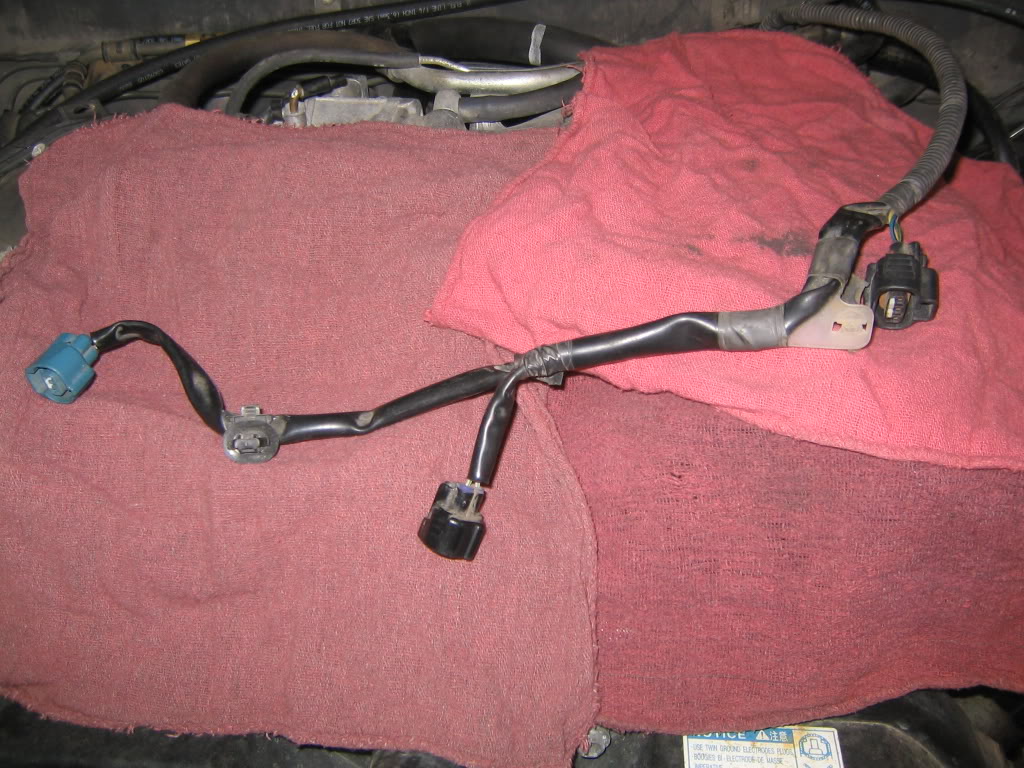

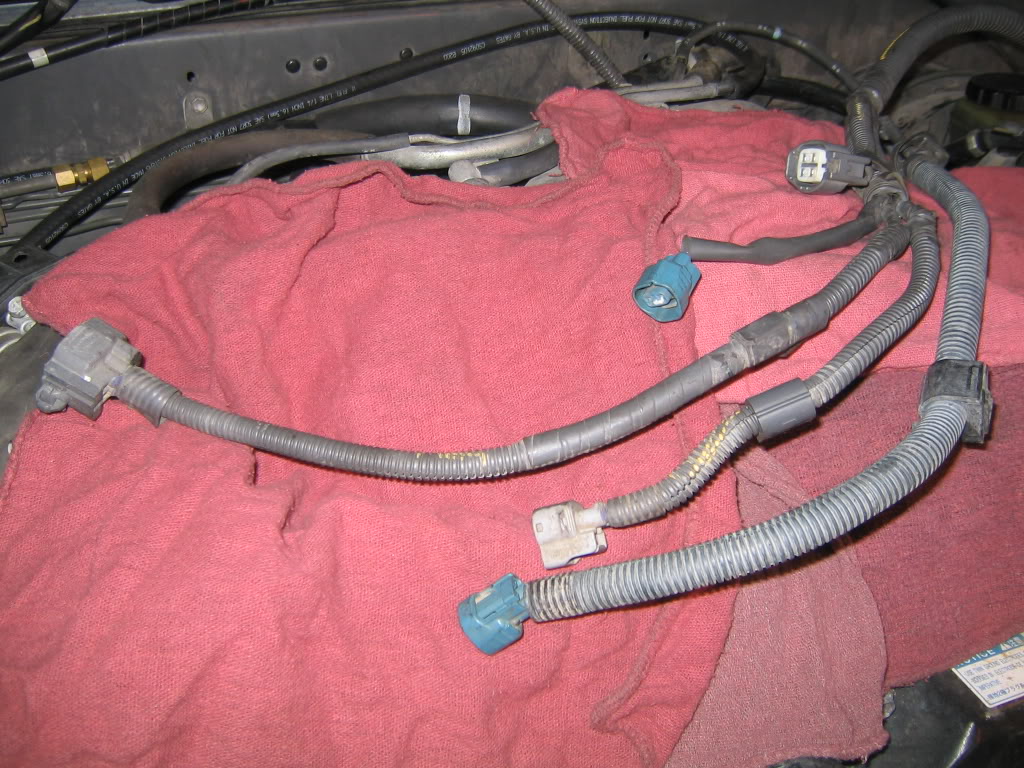

this is the last of the wiring i cant figure out

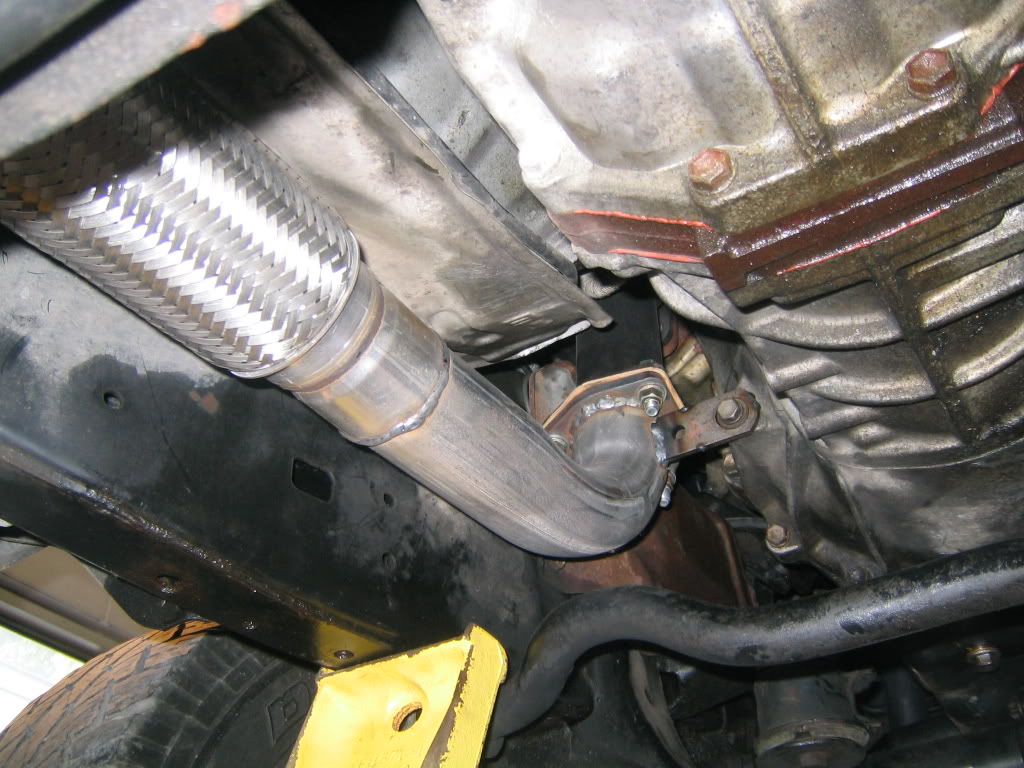

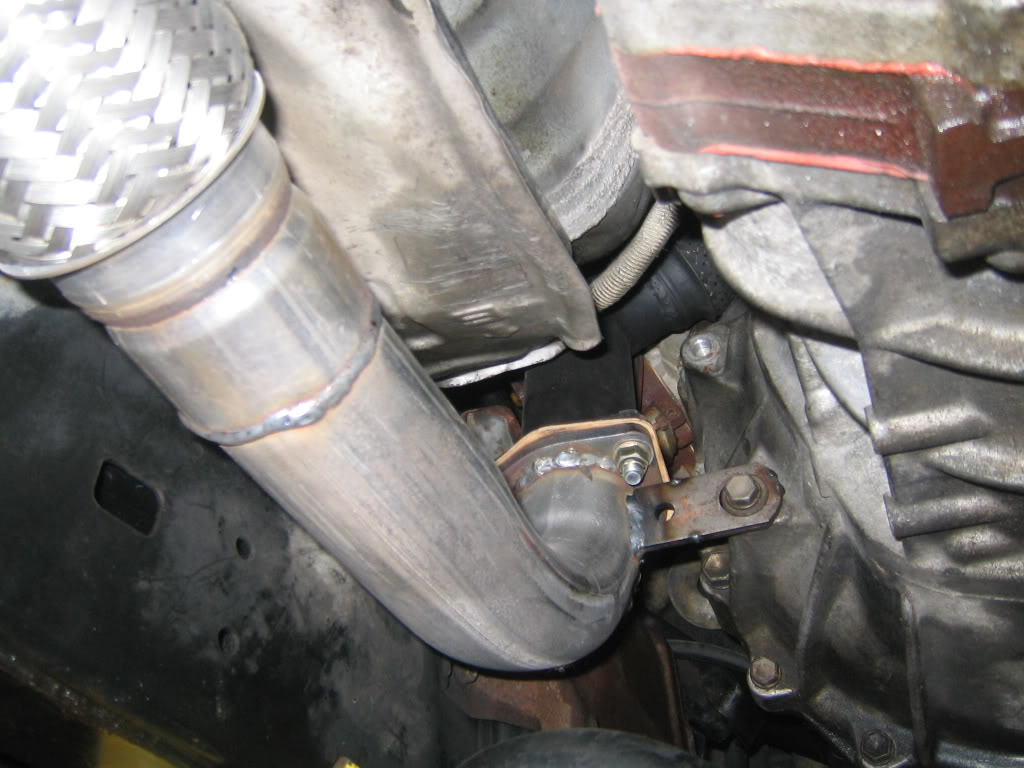

exhaust pics, I have more if you are interested

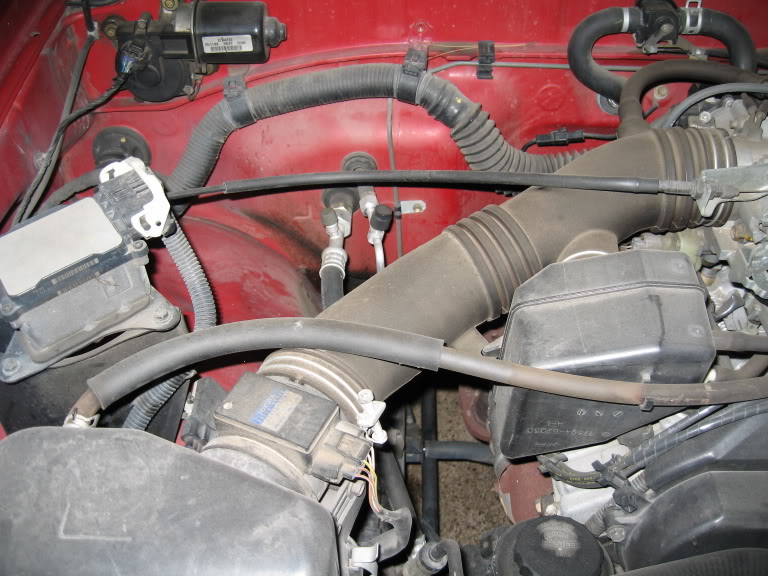

This is the stock 99 4runner air box installed on the 94 4runner





The wiring in that top pic looks a lot like the wiring in this pic http://community.webshots.com/photo/...42310107kmvcTw



Are you using the 3.4 evap can or the 3.0 evap can?



3.0 evap can

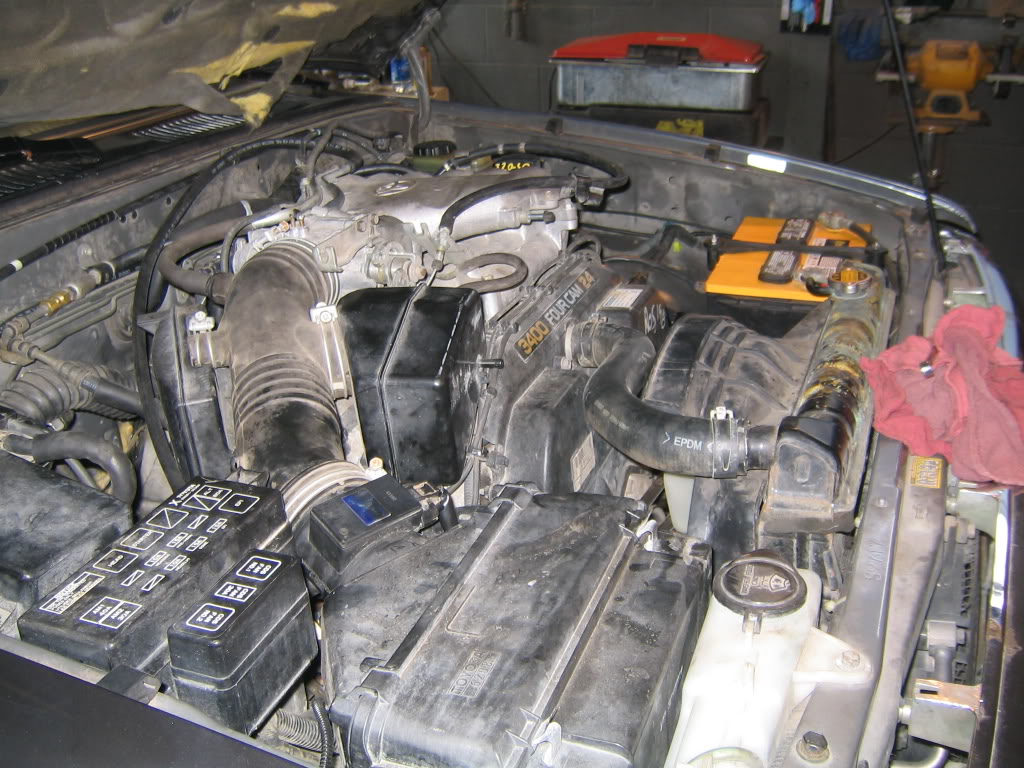

Chopps, sorry for the delay, it's been rough on this end for the last few days. Anyways, I was able to get a few shots of the engine in my '98 T-100 before it started raining. (I was like What Tha ... !! where'd this come from?!?! It was NOT supposed to rain here, lol. And now it's gone - torrential downpour for about five minutes and then nothing. That's Houston for ya.)

Ok, so please excuse the dirty engine, and if you need closeups or shots from a different angle, post up specifics of what you need and I will attempt to get the shots.

Cheers!



choops the bottom wiring pic looks like tranny connectors and O2 connectors

it looks the same as the O2 connectors and Tranfer case Connectors on my harness.



thanks for all the good pics. They will help me out alot. sorry its taken me so long to reply



Not sure if these will help but heres a few more from Norcalvp....click on each pic for high resolution.
1. http://norcalttora.com/~steve/4Runne...e/IMG_2353.JPG
2. http://norcalttora.com/~steve/4Runne...e/IMG_2354.JPG
3. http://norcalttora.com/~steve/4Runne...e/IMG_2355.JPG
4. http://norcalttora.com/~steve/4Runne...e/IMG_2356.JPG
5. http://norcalttora.com/~steve/4Runne...e/IMG_2358.JPG
6. http://norcalttora.com/~steve/4Runne...e/IMG_2359.JPG



please tell me how to post. all i have figured out is to reply to other posts. thank you
