Tach Install (1989 Pickup 4x4, 22R/e)
#23
Ok re the clock wires. An old post (https://www.yotatech.com/forums/f116...pickup-118009/) has the full clock wire listings. The only remaining issue I got is that on my truck (92 Xcab 3.0) it doesn't seem very obvious at all where on the coil the negative actually is (its all these plug in modules)?
#25
Tach hook up pics
Finally...

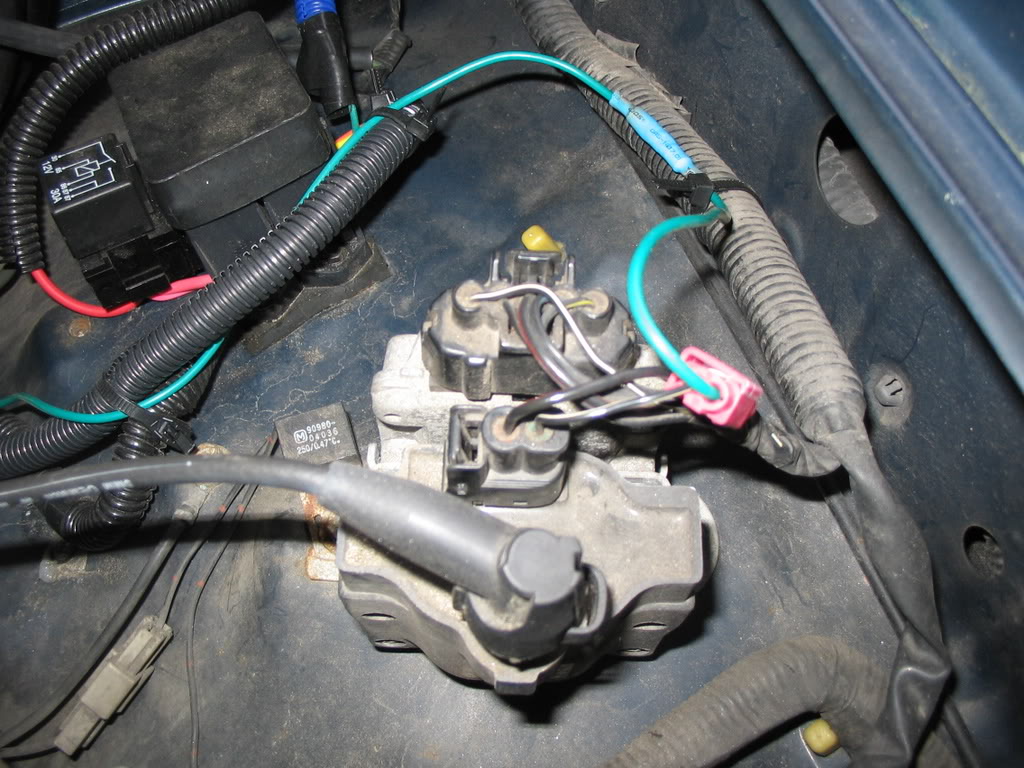

...below is pic of hook up to coil. Very simple -- just 2 wires, pos and neg; clip into the negative. Ignore the ignitor attached to coil. Otherwise I did as described in thread -- wires hooked up to clock lines, except for power. There was not enough in clock line, and I have a Painless Wiring fuse block which I tapped into:
...below is pic of hook up to coil. Very simple -- just 2 wires, pos and neg; clip into the negative. Ignore the ignitor attached to coil. Otherwise I did as described in thread -- wires hooked up to clock lines, except for power. There was not enough in clock line, and I have a Painless Wiring fuse block which I tapped into:
#26
Contributing Member
I use to have the same tach, just mounted on the pillar... now I think I've gone a bit overboard
no the shift light isn't set at 9 1/4 grand, I was just playing with the tach, lol
no the shift light isn't set at 9 1/4 grand, I was just playing with the tach, lol
Last edited by iamsuperbleeder; 05-12-2008 at 07:47 AM.
#28
Registered User
#30
Registered User
anyway, its a direct swap, nothing fancy about it. Just take out the old cluster, swap in the SR5, run a wire from the tach to the test plug. You're set.
#31
im new and saw this post ...(bring it back up again, i have a '93 shrt bed 2WD). on the clock wire, there are 4 wires. which wires go to which? except the green tach wire line which goes to the - terminal on the ignition... any suggestion or help?
#34
Registered User
Join Date: Dec 2004
Location: Central Minnesota
Posts: 469
Likes: 0
Received 0 Likes
on
0 Posts
I bought the sending unit at the local parts house. You have a choice of buying for a gauge or a light. Just tell them you want the gauge.
I didn't have to do anything to hook up the FACTORY SR5 instrument cluster. It was literally plug it in to the same connector as the non-SR5 cluster and it worked. Factory wiring was already there to do what it needed to do.
I didn't have to do anything to hook up the FACTORY SR5 instrument cluster. It was literally plug it in to the same connector as the non-SR5 cluster and it worked. Factory wiring was already there to do what it needed to do.
#35
Registered User
Join Date: Feb 2007
Location: Lafayette , Louisiana
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts
My tach sr5 swap is not going so well. Can I run a wire from the coil as pictured to the back of the cluster to verify the tach is good? Please advise.
Forgot - I have a 92 22RE.
Forgot - I have a 92 22RE.
Last edited by nickxrunner; 07-21-2012 at 10:02 PM.
#37
Registered User
Join Date: Feb 2007
Location: Lafayette , Louisiana
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for all the quick responses...
Looks like I found the answer in the this post - for future newbs use...
https://www.yotatech.com/forums/f116...06/index7.html
Looks like I found the answer in the this post - for future newbs use...
https://www.yotatech.com/forums/f116...06/index7.html
