86 22re-c temp gauge goes up and down ??
hi everybody,
i am from Türkiye. I bought a truck last week. he has some problems.
1986 sr5 efi 22rec,
-first i tried to check and find correct vacuum pipes. may be i did it
-i couldn t clear engine check light, code is 4
-temp gauge always goes up and down

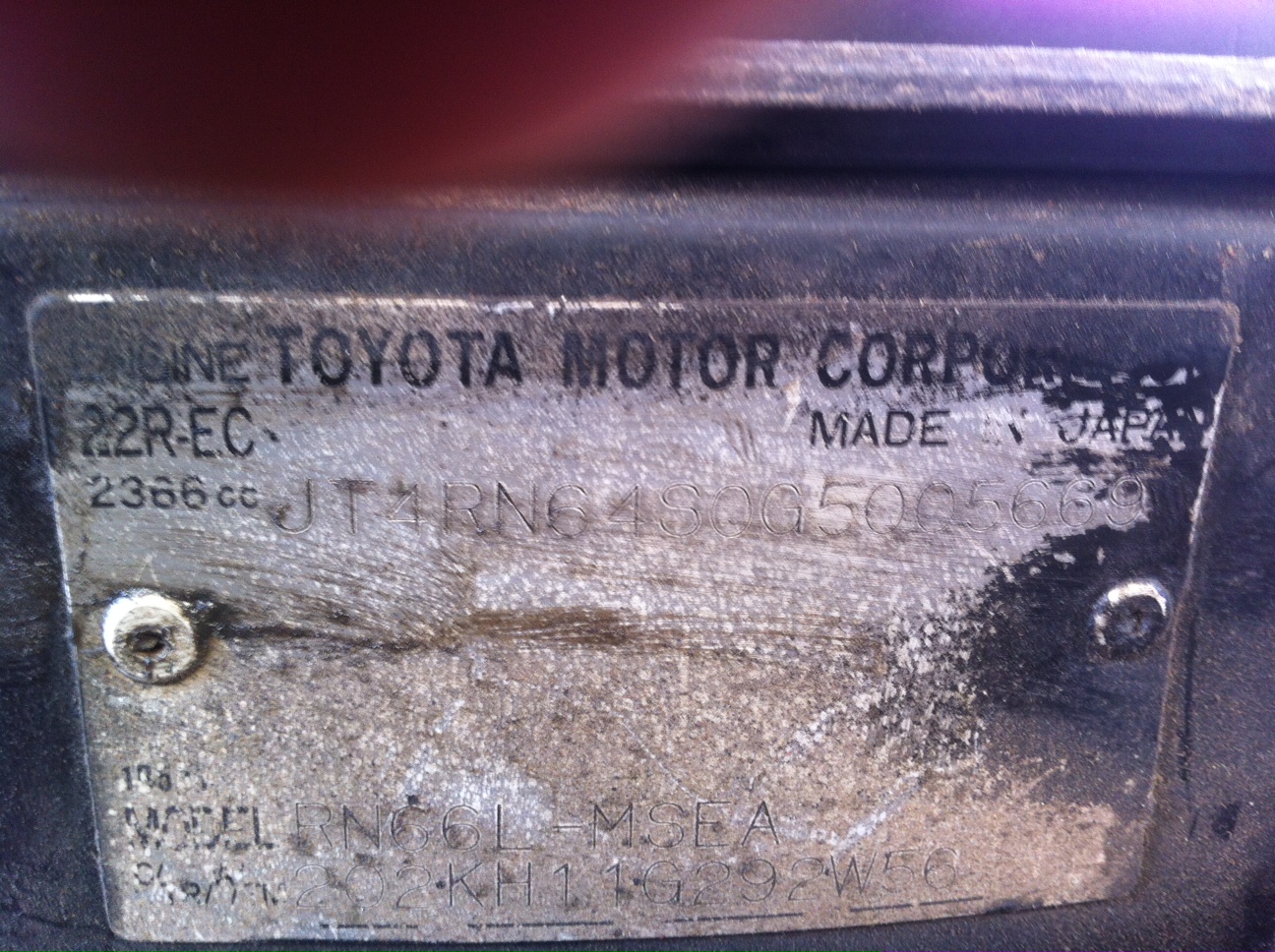

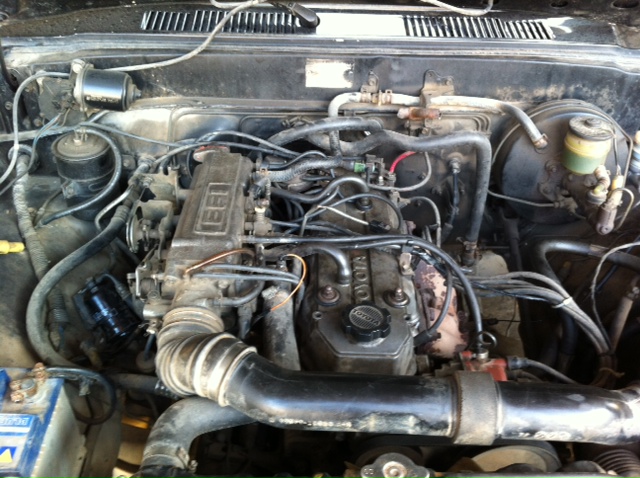

here is some photos and videos.... how i fix it?
[YOUTUBE]
[/YOUTUBE]
[YOUTUBE]
[/YOUTUBE]
i am from Türkiye. I bought a truck last week. he has some problems.
1986 sr5 efi 22rec,
-first i tried to check and find correct vacuum pipes. may be i did it
-i couldn t clear engine check light, code is 4
-temp gauge always goes up and down
here is some photos and videos.... how i fix it?
[YOUTUBE]
[YOUTUBE]
06-07-2013, 03:05 PM
#2
Registered User
The coolant gauge problem looks like it may be a failing Zener Diode in the gauge.
Edit: i just looked into the code 4; which is an open or shorted water temperature sensor. I would assume that your truck is like the later models, and has one sensor for the ECU, and one for the coolant gauge. If this is the case, your gauge problem has nothing to do with the code 4 caused by the ECU coolant sensor or its wiring.
Edit: i just looked into the code 4; which is an open or shorted water temperature sensor. I would assume that your truck is like the later models, and has one sensor for the ECU, and one for the coolant gauge. If this is the case, your gauge problem has nothing to do with the code 4 caused by the ECU coolant sensor or its wiring.
Last edited by rustypigeon; 06-07-2013 at 03:41 PM.
06-07-2013, 11:23 PM
#3
Registered User
I would first check the resistance of the sending unit. Either check it when your gauge reads normal and again when it drops, or leave the ohmmeter attached to the sending unit and watch it as the truck warms up. If you see any sudden changes in resistance, then it is your sending unit shorting out. Also check that all of the wiring connections are good with no corrosion, including on the gauge cluster circuit board. If these things are good, then it is most likely the gauge itself.
Last edited by the_supernerd; 06-07-2013 at 11:25 PM.
06-08-2013, 05:24 AM
#4
Registered User
Join Date: Oct 2012
Location: Salt Lake City, Utah
Posts: 342
Likes: 0
Received 0 Likes
on
0 Posts
I have seen toyota gauge sensors do this before. Typically I find the sensor will pass all resistance checks in a bath of water, but you run a stream of water across it and the resistance changes or jumps all over the place. If you ground the wire from the sensor to the gauge should go to full heat and stay there, if it does that I would suspect the sensor. rustypigeon is correct though this is not the cause of your check engine light.
06-08-2013, 11:49 AM
#5
Registered User
Thread Starter
Join Date: Jun 2013
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
Thank you for your replies. Yes, Vehicle has 2 sensors, once is coolant sensor and the other for temp gauge. I can find the sensor for coolant gauge, but i couldn t find temp sensor for ECU in Türkiye and its part number. If i drive to go with this problems, engine will be damage or not? Do you know the parts number of these sensors? My vehicle is 85-86 sr5 one cab 2.4L 22RE-C and has 5 manuel trans.
06-08-2013, 01:21 PM
#6
Registered User
The sensor for the ECU is on the front of the intake manifold. Here isa link with a picture...
http://personal.utulsa.edu/~nathan-b...36electron.pdf
Later model trucks used a green electrical connector for the ECU coolant sensor, not sure if yours uses the same.
http://personal.utulsa.edu/~nathan-b...36electron.pdf
Later model trucks used a green electrical connector for the ECU coolant sensor, not sure if yours uses the same.
