Wiring for the backup lights and the 4wd Light
01-03-2018, 04:55 PM
#1
Wiring for the backup lights and the 4wd Light
Hi everyone, new guy here
just picked up a 84 4wd pickup with a 20r engine in it. Yes i know it should have a 22r
My question is, I have the sending units for the backup light coming out of the trans and the switch coing out of the transfer case but no wires! I guess I'm missing a harness and I don't know where it is suppose to go.
Any help out ther, pics?
Thanks, I look forward to being a member
NYHumpinUtah
just picked up a 84 4wd pickup with a 20r engine in it. Yes i know it should have a 22r
My question is, I have the sending units for the backup light coming out of the trans and the switch coing out of the transfer case but no wires! I guess I'm missing a harness and I don't know where it is suppose to go.
Any help out ther, pics?
Thanks, I look forward to being a member
NYHumpinUtah
The following users liked this post:
Omak90truck (02-10-2023)
01-03-2018, 05:01 PM
#2
No wires and no connectors, either?
PIcs would help.
I would start by tracing existing wires from the backup lights to see where's the closest point they get to the backup switch.
PIcs would help.
I would start by tracing existing wires from the backup lights to see where's the closest point they get to the backup switch.
01-03-2018, 05:36 PM
#4
Also, I checked the light harness in the rear for tail, brake light ect. and seems there in no other connection for a backup light to harness to plug into
Someone told me that the harness (missing) goes to the front engine compartment, again I see no place to plug any harness into
Someone told me that the harness (missing) goes to the front engine compartment, again I see no place to plug any harness into
01-03-2018, 07:05 PM
#5
Registered User
On my '85 4Runner, a 'Y' shaped harness plugs into the backup light sensor and 4wd light sensor, and runs up to the main harness in the engine bay. The connection location is inside the curve of the intake manifold and plenum. Same harness junction where a large group of engine sensors connect to. I can take a photo tomorrow if you need it.
01-03-2018, 07:20 PM
#6
GSP4Life
Yes, that would help. Don't know how different yours is from mine.Like I said I can't see anything that looks like a plug in in the engine bay.
I'm doing a "complete restore of my truck, I guess when I start taking it apart I might find something.
This truck has been teenagered! A guy had it a gave it to his teenage son who then totally ruined it.
It's a good base though, going to have some fun doing it
TIA
Yes, that would help. Don't know how different yours is from mine.Like I said I can't see anything that looks like a plug in in the engine bay.
I'm doing a "complete restore of my truck, I guess when I start taking it apart I might find something.
This truck has been teenagered! A guy had it a gave it to his teenage son who then totally ruined it.
It's a good base though, going to have some fun doing it
TIA
Trending Topics
01-04-2018, 12:00 PM
#9
OK, on my 86 MoreFunner.... backup and 4WD switches join into a Y in harness roughly above where clutch fork (?) enters the tranny. That harness runs to point between the starter and the intake manifold and there are 2 connectors again there. Like GPS says, that harness runs up beneath the Intake manifold close to the engine.
It eventually runs along the right hand inner fender, thru a grommet in the firewall just outboard of the wiper motor.
Between the intake manifold and the engine is an inhospitable place for wires; hot and difficult to run/work on. The only valid reason backup and 4WD wires were ran there is for efficiency in manufacturing and routing the harness during assembly. If I were to rewire, I would take it from above starter, run it along the thick positive battery-starter cable to rejoin harness along inner fender.
It eventually runs along the right hand inner fender, thru a grommet in the firewall just outboard of the wiper motor.
Between the intake manifold and the engine is an inhospitable place for wires; hot and difficult to run/work on. The only valid reason backup and 4WD wires were ran there is for efficiency in manufacturing and routing the harness during assembly. If I were to rewire, I would take it from above starter, run it along the thick positive battery-starter cable to rejoin harness along inner fender.
Last edited by RAD4Runner; 01-04-2018 at 12:02 PM.
01-04-2018, 12:25 PM
#10
Rad4Runner

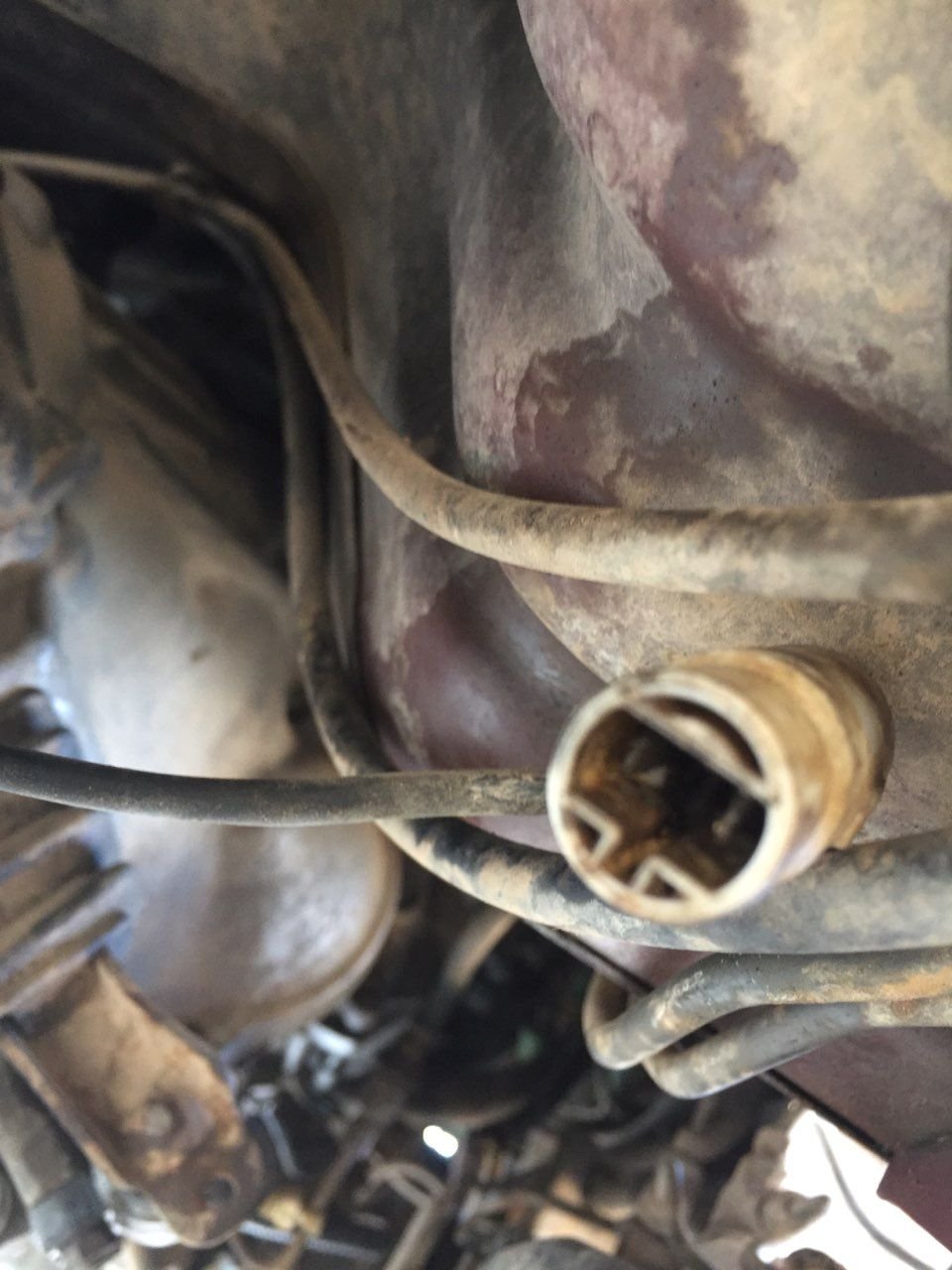

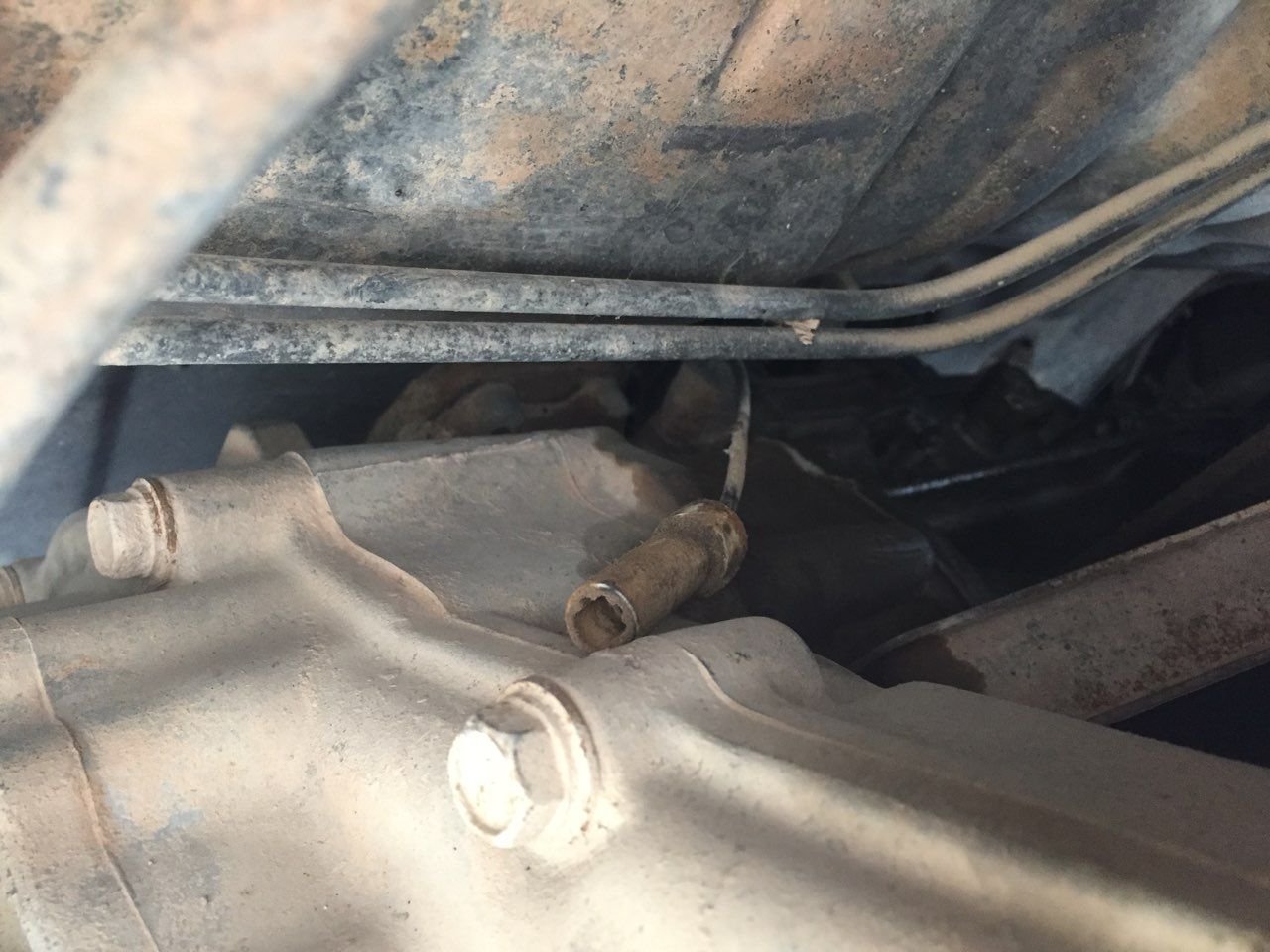

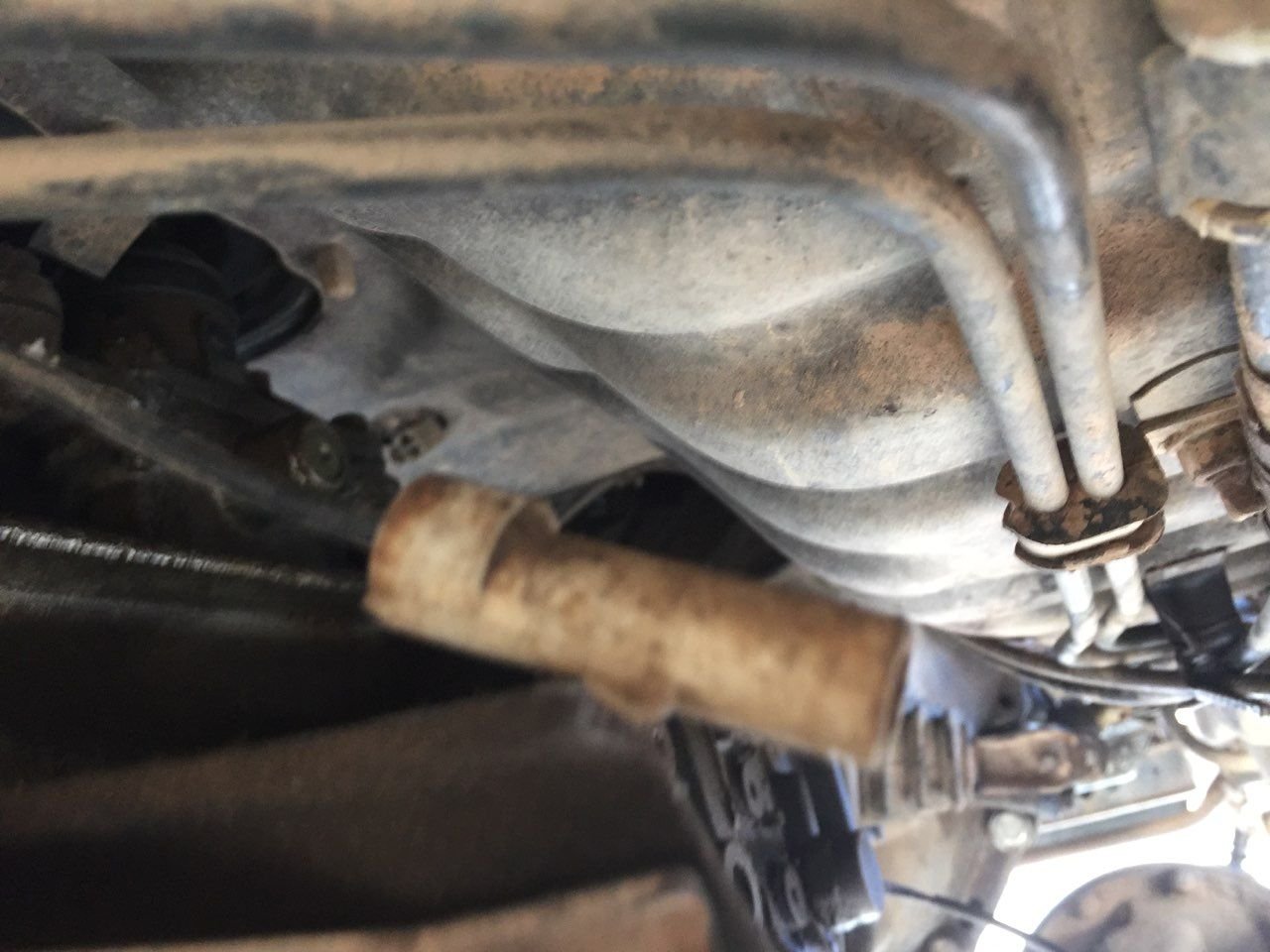

Thanks, that the info I needed. This truck has been "mickey moused" guess when they pulled out the 22r (don't know the history) they must have removed the harness and never put it back on. The plugs (see pics) all are corroded so in my rebuild I will look for new ones. I'm going to wait till i change out my carb and intake manifold to look for the wire connection. But now at least I know what i'm looking for.
Thanks
NYHumpinUtah
Thanks, that the info I needed. This truck has been "mickey moused" guess when they pulled out the 22r (don't know the history) they must have removed the harness and never put it back on. The plugs (see pics) all are corroded so in my rebuild I will look for new ones. I'm going to wait till i change out my carb and intake manifold to look for the wire connection. But now at least I know what i'm looking for.
Thanks
NYHumpinUtah
Last edited by NYHumpinUtah; 01-04-2018 at 12:29 PM.
01-04-2018, 09:29 PM
#11
Subbed to follow this.
Is the "Y" harness the same for 84-88 pickups? Sounds like it's something prone to having issues after 30+ years of heat cycles and such.

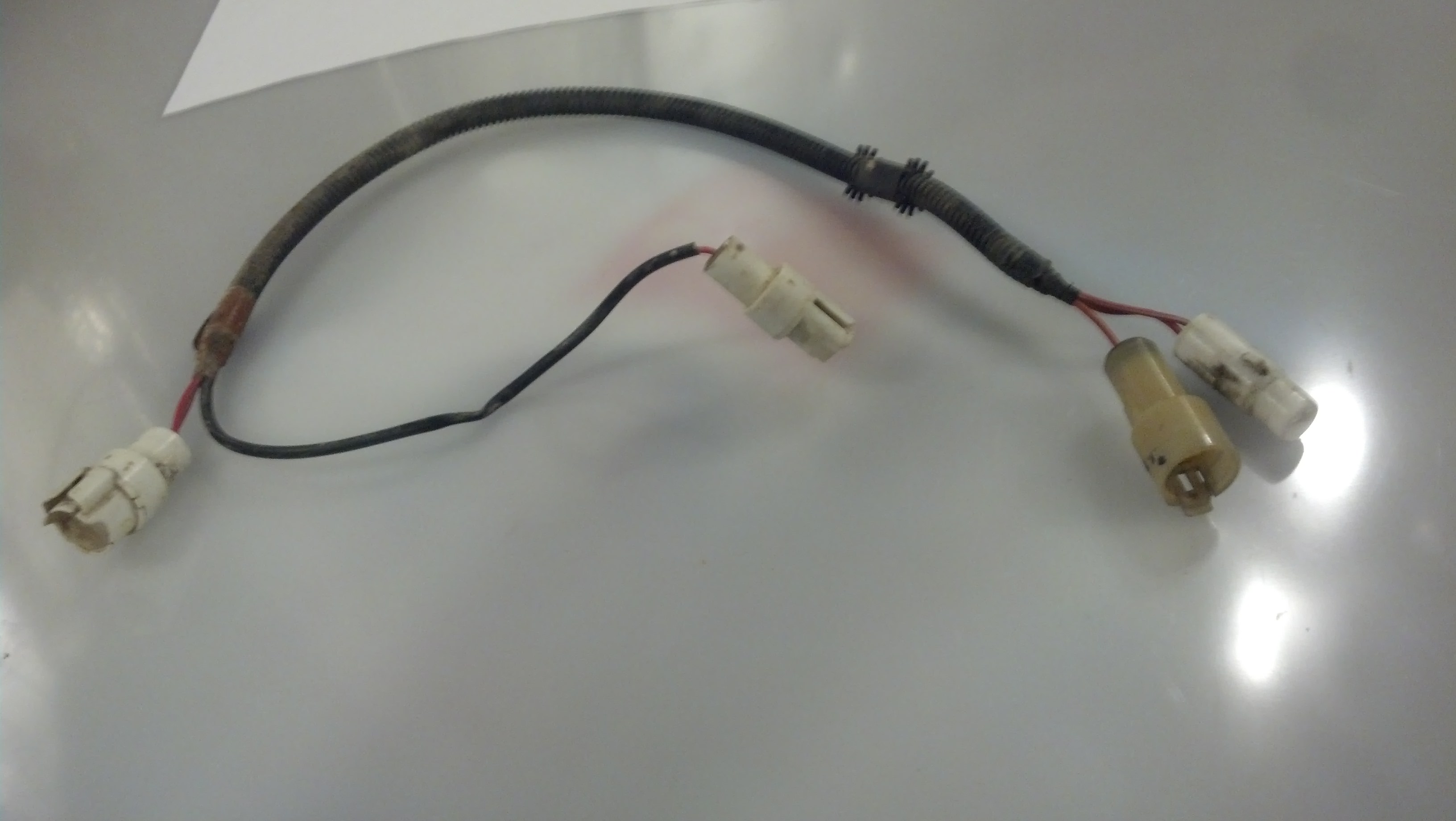

I dug this sub harness up in my lil collection, is this the one OP is missing? I labeled it G52 and it would have came from a 86 4x4 pickup.
Is the "Y" harness the same for 84-88 pickups? Sounds like it's something prone to having issues after 30+ years of heat cycles and such.
I dug this sub harness up in my lil collection, is this the one OP is missing? I labeled it G52 and it would have came from a 86 4x4 pickup.
Last edited by atcfixer; 01-04-2018 at 09:37 PM.
01-05-2018, 04:36 AM
#12
Registered User
Subbed to follow this.
Is the "Y" harness the same for 84-88 pickups? Sounds like it's something prone to having issues after 30+ years of heat cycles and such.
I dug this sub harness up in my lil collection, is this the one OP is missing? I labeled it G52 and it would have came from a 86 4x4 pickup.
Is the "Y" harness the same for 84-88 pickups? Sounds like it's something prone to having issues after 30+ years of heat cycles and such.
I dug this sub harness up in my lil collection, is this the one OP is missing? I labeled it G52 and it would have came from a 86 4x4 pickup.
01-05-2018, 07:24 AM
#13
I see, I'll try to find a source for those white connectors and see about reproducing this sub harness. Seems they are fairly hard to find, couldn't find any on ebay with just simple term search like toyota pickup harness.
EDIT: I've spent an hour or so digging around with no luck. I contacted my connector housing supplier to see if he can dig anything up in an old catalog. He's been in this stuff way longer than me so hopefully he has some luck.
EDIT: I've spent an hour or so digging around with no luck. I contacted my connector housing supplier to see if he can dig anything up in an old catalog. He's been in this stuff way longer than me so hopefully he has some luck.
Last edited by atcfixer; 01-05-2018 at 08:15 AM.
01-05-2018, 08:21 AM
#14
Registered User
NYHumpinUtah, (that's one hell of a username!)
I was thinking of reasonably-priced parts sources I know of, and Toyota Foolish on eBay popped into my head. Their yard's located in NC, but they process and ship orders quickly.
Send them a quick message about what you need, with the year of your truck and transmission model, I bet they have what you need.
I was thinking of reasonably-priced parts sources I know of, and Toyota Foolish on eBay popped into my head. Their yard's located in NC, but they process and ship orders quickly.
Send them a quick message about what you need, with the year of your truck and transmission model, I bet they have what you need.
01-05-2018, 04:39 PM
#15
Atcfixer
Duno if that's what I missing cause I dono what it should look like...........As far as the connector plug, couldn't you look at the end of the wires on the sender/switches for both the backup and 4wd units and match the plug?
gsp4life
so you like my username....... long story..............don't ask
I don't think I need a pic, i get the idea of where it goes, must be frezzzzing over your neck of the woods.
Duno if that's what I missing cause I dono what it should look like...........As far as the connector plug, couldn't you look at the end of the wires on the sender/switches for both the backup and 4wd units and match the plug?
gsp4life
so you like my username....... long story..............don't ask
I don't think I need a pic, i get the idea of where it goes, must be frezzzzing over your neck of the woods.
Last edited by NYHumpinUtah; 01-05-2018 at 04:50 PM.
01-05-2018, 04:49 PM
#16
Just another question, "if" that is the harness that attaches to the backup light switch and the 4wd sender, does that harness then go to engine bay, under intake manifold and then plugs into another plug? and then where does it go from there.
01-05-2018, 08:23 PM
#17
Registered User
That harness piece shown above is truly identical to the one in my 85, which shares many parts with your truck, despite being an EFI 4runner. I'm pretty sure we both have the w56-a transmission.
01-05-2018, 08:30 PM
#18
Registered User
And yes, it's truly freezing here as if it were the Antarctic tundra. My outdoor thermometer read 5 or 10° all day and it's been that way for a couple weeks now. I'm actually looking forward to next week where the daytime temps are supposed to soar way up to the low 30's.
01-05-2018, 08:44 PM
#19
And yes, it's truly freezing here as if it were the Antarctic tundra. My outdoor thermometer read 5 or 10° all day and it's been that way for a couple weeks now. I'm actually looking forward to next week where the daytime temps are supposed to soar way up to the low 30's.
It's been crazy warm here, in the 50s, very uncommon for here
Mine has a g52 trans
It goes where? ecu? is that the emissions box?
01-05-2018, 08:52 PM
#20
Registered User
Hmm, that changes things around then. I'm not familiar with the g52 or it's harness, might be different. Do you still have the Aisin carb and emissions stuff hooked up? If not, then your ecu might not be doing much or could even have been removed. Ecu = engine control unit. It's as you thought, mainly for emissions stuff. An early computer. It's located behind the passenger kick panel under the glovebox.
