Fuel Injector Removal Pictures (How To)

1997 V6 4Runner - Engine 5VZFE

Well, I figured I might as well post my pictures for anyone who might search for this later on. I also want to type it all out so I don't forget so that I know how to put it back together later on
I got the info I needed mostly from this thread.

Ignore the dirt please I haven't bothered cleaning the engine bay in a couple years, and snowboarding trips really do a number on it. Also, consider this a rough guide, as there were a lot of hoses, so I probably missed something!

Here's before pics to use as reference later when I put it all back together.

Click the image to open in full size.

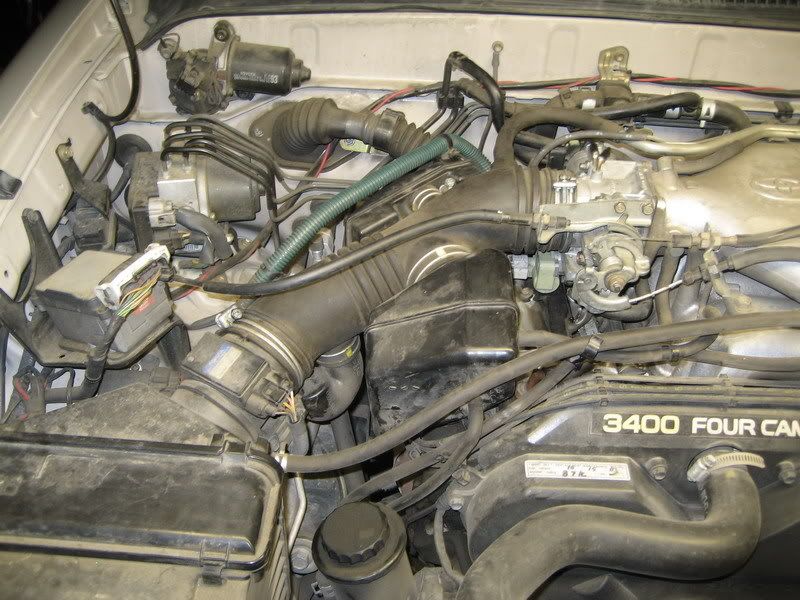

Left side

Click the image to open in full size.
Right side

Click the image to open in full size.
From the left fender

Click the image to open in full size.
From the right fender
This ad is not displayed to registered members.
Register your free account today and become a member on Yotatech!

Last edited by DuB; 03-06-2007 at 11:41 PM.
DuB is offline   Reply With Quote
Old 03-06-2007, 11:25 PM   #2
DuB
Registered User
Personal Sales Rating: (0)
Threadstarter [OP]

DuB's Avatar

Join Date: May 2002
Location: LA, CA
Posts: 402
Click the image to open in full size.
First, I removed the intake tube. I left the back intake silencer on because it was zip tied to a harness. To take it out, just loosen the two clamps on the MAF and the throttle body, slip them off, and disconnect any tubes that will prevent you from removing the intake.

Click the image to open in full size.
Use a wrench (14mm I think) to loosen the nuts holding these cables onto their brackets, then slide the round thingys out from the side.

Click the image to open in full size.
Two nuts on top, and two bolts on the bottom hold the throttle body in. Take those off. There's also the two electrical connectors on the left (black) and bottom (grey), the skinny hose (middle left), and three more hoses in the next pic.

Click the image to open in full size.
I've disconnected two of the hoses here, one middle left, and middle right (has a screw sticking out of it). The third is still clamped in place, which I removed later. I didn't see it until I started moving the throttle body around. The two hoses with clamps might not need to be disconnected. You might be able to set it aside to the passenger side.

Click the image to open in full size.
I disconnected both of them though. Here are the three hoses which were underneath the throttle body. I stuck screws in the hoses to plug them because they were leaking coolant.

Click the image to open in full size.
After the throttle body is removed, there's a gasket that you should probably take off and put somewhere safe where it won't get damaged.

Last edited by DuB; 03-06-2007 at 11:31 PM.
DuB is offline   Reply With Quote
Old 03-06-2007, 11:28 PM   #3
Contributing Member
Personal Sales Rating: (0)

Elton's Avatar

Join Date: Jul 2005
Location: Siletz,Oregon
Posts: 12,278
elton hostler
Send a message via AIM to Elton Send a message via MSN to Elton
looks like a fair bit of work also what year is your 4runner
__________________
07 Tundra d-cab limited 5.7L 4x4 was my moms r.i.p 3/19/11
98 4runner SR5 3.4L 5spd 4x4 E-Locker sold 10-2-11
91 4runner SR5 4x4 3.0L 5spd Totaled 5/13/06
97 honda civic lx 4dr ls vtec
Elton is offline   Reply With Quote
Old 03-06-2007, 11:37 PM   #4
DuB
Registered User
Personal Sales Rating: (0)
Threadstarter [OP]

DuB's Avatar

Join Date: May 2002
Location: LA, CA
Posts: 402
Click the image to open in full size.

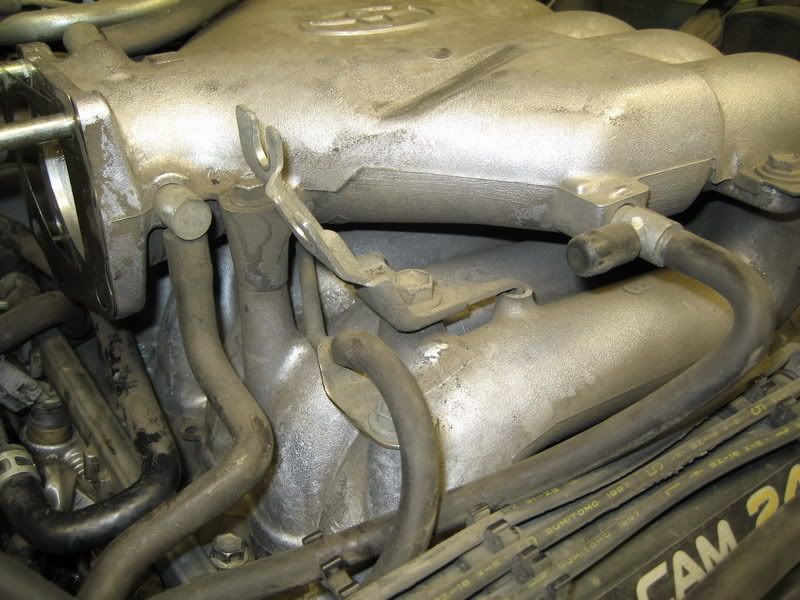

These three hoses need to come off.

Click the image to open in full size.
These two hoses on the back driver's side need to come off, too.

Click the image to open in full size.
This wide shot shows where they are located. The DIAGNOSIS box needs to be unhooked.

Click the image to open in full size.
There are 6 bolts holding the top half on. This pic shows their approximate location. They're pretty easy to find. There's actually another bolt that should be at the top of this pic that's the opposite of the bottom bolt.

Click the image to open in full size.
Then the top half should now lift off.

Last edited by DuB; 03-06-2007 at 11:38 PM.
DuB is offline   Reply With Quote
Old 03-06-2007, 11:40 PM   #5
Registered User
Personal Sales Rating: (0)

kmchby76's Avatar

Join Date: Apr 2006
Location: Elk Grove, CA
Posts: 226
Send a message via AIM to kmchby76 Send a message via Yahoo to kmchby76
Quote:
Originally Posted by Elton View Post
looks like a fair bit of work also what year is your 4runner

As for taking the upper plenum off, I just left the throttle body attached. It is much easy imo.
__________________
김치

'96 4runner limited, 265/75/16 yokohama geolander at, duplicolor painted factory wheels, and hopefully more to come. I will add pictures soon.켄니
kmchby76 is offline   Reply With Quote
Old 03-06-2007, 11:53 PM   #6
DuB
Registered User
Personal Sales Rating: (0)
Threadstarter [OP]

DuB's Avatar

Join Date: May 2002
Location: LA, CA
Posts: 402
Oops! I forgot, I have a 1997 V6 4Runner. I added the info to the top post!

Click the image to open in full size.
This end of the lower plenum has two bolts and two nuts in the same position as the upper plenum. You can see two of those bolts, and one of the nuts in this pic. You also have to remove the bolt in the middle left of the picture. I forgot that one and was tugging at the top for a minute or two. haha

Click the image to open in full size.
This bolt on the back, close to the firewall, also has to be removed. It's a little tricky to squeeze a 3/8" socket wrench in there but it's not too tough.

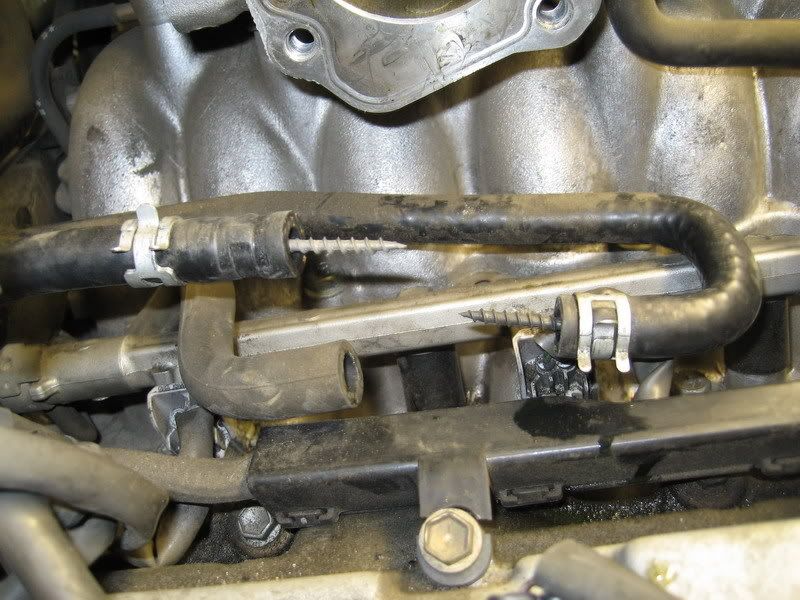

The skinny hose in this pic needs to be removed.

Click the image to open in full size.
A wide shot to show you where it's located. It's in the middle of this picture.

Click the image to open in full size.
There are 3 bolts visible in this picture that need to be removed.
-Left most bolt grounding the wire. (10mm?)
-Middle right bolt holding a metal bracket which I believe holds the fuel line but I might be wrong. (10mm?)
-Right most visible bolt inside the black bracket (12mm?)
-There is a fourth bolt that is blocked by the black bracket in this picture that needs to be removed. This bolt is holding another fuel line bracket.
The hose in the middle of this pic w/ the clamp needs to be removed, too.

Click the image to open in full size.
The lower plenum should now lift off.
DuB is offline   Reply With Quote
Old 03-06-2007, 11:54 PM   #7
DuB
Registered User
Personal Sales Rating: (0)
Threadstarter [OP]

DuB's Avatar

Join Date: May 2002
Location: LA, CA
Posts: 402
Quote:
Originally Posted by kmchby76 View Post
As for taking the upper plenum off, I just left the throttle body attached. It is much easy imo.
Yeah, I didn't notice that until I had already taken it off. haha
DuB is offline   Reply With Quote
Old 03-07-2007, 12:03 AM   #8
DuB
Registered User
Personal Sales Rating: (0)
Threadstarter [OP]

DuB's Avatar

Join Date: May 2002
Location: LA, CA
Posts: 402
This would be a good time to loosen your gas cap to relieve pressure.

Click the image to open in full size.
There's 4 bolts, 2 on each fuel rail, holding the rails in.
I've unplugged the injectors in this pic.

Click the image to open in full size.
As Mark (midiwall) described, the fuel rails pivot from the back (firewall side), and lift up off the injectors. Just tug a bit, and as each one pops off, it'll leak a little gas.

Click the image to open in full size.
Side shot to show the pivot.
You can see there isn't much clearance for the injectors towards the back, which makes them a little more difficult to get out. Cylinder 6's injector was really tough to get out for me. Some of them took quite a bit of tugging to get out for me.
Don't push too hard on the plastic covers that cover the injector wires as they're really brittle from the heat. They're cosmetic, so you don't have to be that careful if you don't care. I shattered my driver's side one You can see it in the pic below.

Click the image to open in full size.
And the injectors are out!

Last edited by DuB; 03-07-2007 at 12:04 AM.
DuB is offline   Reply With Quote
Old 03-07-2007, 05:57 AM   #9
Registered User
Personal Sales Rating: (0)

Join Date: Nov 2003
Location: Phoenix, AZ
Posts: 676
Nice step-by-step Dub!!!!
NX Tacoma is offline   Reply With Quote
Old 03-07-2007, 06:33 AM   #10
Contributing Member
Personal Sales Rating: (0)

mastacox's Avatar

Join Date: Dec 2003
Location: Fort Worth, TX
Posts: 2,874
Pretty useful guide for anyone installing the URD kit, except you'll remove the S/C instead of the intake plenum. Sweet!
__________________
Brian

1998 4Runner SR5
Supercharged, URD'd, Lifted, etc. etc.

2006 VW Jetta TDI- 50mpg highway cruiser
mastacox is offline   Reply With Quote
Old 03-07-2007, 06:36 AM   #11
Contributing Member
Personal Sales Rating: (0)

mastacox's Avatar

Join Date: Dec 2003
Location: Fort Worth, TX
Posts: 2,874
Oh, but you forgot something that is VERY important:

Put tape over the intake ports as soon as they are exposed!!! If you leave them open like that, it's very likely something very bad will fall in there!!!

Like so:
Click the image to open in full size.

If a bolt, or even some dirt got in there you'll do irrepairable damage to your intake valves, unless you take off the head and clean it out...
__________________
Brian

1998 4Runner SR5
Supercharged, URD'd, Lifted, etc. etc.

2006 VW Jetta TDI- 50mpg highway cruiser
mastacox is offline   Reply With Quote
Old 03-07-2007, 07:20 AM   #12
Contributing Member
Personal Sales Rating: (0)

Elton's Avatar

Join Date: Jul 2005
Location: Siletz,Oregon
Posts: 12,278
elton hostler
Send a message via AIM to Elton Send a message via MSN to Elton
great info looks like the 97 has more vacuum lines etc than my 98
__________________
07 Tundra d-cab limited 5.7L 4x4 was my moms r.i.p 3/19/11
98 4runner SR5 3.4L 5spd 4x4 E-Locker sold 10-2-11
91 4runner SR5 4x4 3.0L 5spd Totaled 5/13/06
97 honda civic lx 4dr ls vtec
Elton is offline   Reply With Quote
Old 03-07-2007, 09:28 AM   #13
Contributing Member
Personal Sales Rating: (0)

Bennito's Avatar

Join Date: Aug 2003
Location: Tempe, AZ
Posts: 849
Very wise to document your work. I was working by myself and had nightmares of my car never running again. Ultimately I only missed reconnecting a temp sensor. Found that the next day.

Interestingly enough - it appears the SC is easier to remove than the normally aspirated version.

And yes - the early engines (96 and 97) have extra vacuum hoses. Quite the hassle. By 2002 (my only other comparison was a friend's taco) about half of the vacuum hoses are gone.
__________________
Ben - 97 sr5 - full of win.
Bennito is offline   Reply With Quote
Old 03-07-2007, 10:03 AM   #14
Contributing Member
Personal Sales Rating: (0)

MTL_4runner's Avatar

Join Date: Jul 2003
Location: Montreal, QC Canada
Posts: 8,807
Send a message via AIM to MTL_4runner
Good writeup and pics!
__________________
- Jamie

1996 4Runner SR5 4X4 Auto

Deckplate Mod, Hayden Tranny Cooler, Amsoil Air Filter, OME 881/906 N86C/N91SC Lift

Best OBD II scan tool I have used!.

.....and I am AMERICAN!
MTL_4runner is offline   Reply With Quote
Old 03-07-2007, 05:12 PM   #15
Registered User
Personal Sales Rating: (0)

Mason Dixon's Avatar

Join Date: Jul 2005
Location: Huntsville, Alabama
Posts: 917
Send a message via AIM to Mason Dixon
awesome
__________________
http://www.sectalk.com/images/graphi...ds/alabama.gif

2000 4Runner SR5 4x4 Sport
Mason Dixon is offline   Reply With Quote
Old 03-08-2007, 01:12 PM   #16
DuB
Registered User
Personal Sales Rating: (0)
Threadstarter [OP]

DuB's Avatar

Join Date: May 2002
Location: LA, CA
Posts: 402
I hope this helps someone out there! Or at least convinces them to try doing it themselves so they don't get ripped off by the stealer like I did!

Yeah, it's probably a good idea to put tape over the opening as soon as you have it open. I took my work gloves off, and was just really careful not to drop anything in there, but I'd recommend using the tape.
DuB is offline   Reply With Quote
Old 04-04-2008, 02:52 PM   #17
Contributing Member
Personal Sales Rating: (0)

mt_goat's Avatar

Join Date: Nov 2002
Location: Oklahoma State
Posts: 10,666
Quote:
Originally Posted by mastacox View Post
Oh, but you forgot something that is VERY important:

Put tape over the intake ports as soon as they are exposed!!! If you leave them open like that, it's very likely something very bad will fall in there!!!

Like so:


If a bolt, or even some dirt got in there you'll do irrepairable damage to your intake valves, unless you take off the head and clean it out...
X2, that's like working 20 floors up without a safety rope.

Here's my tape job, never mind the finger pointing:


BTW nice writeup Dub.
__________________
93 4X4 ext-cab, auto, SR5, 3.4 V6, supercharged, 2.1" pulley, URD fuel mods, Aquamist WI, IPT valve body mod, dual cases, 4" superlift front, Alcan springs rear, 33 BFG KM2, ARB locked front & rear, 5.29 US Gears, RB 1" Body Lift, TJM T-17, Warn m8000.

Last edited by mt_goat; 04-04-2008 at 02:58 PM.
mt_goat is offline   Reply With Quote
Old 04-04-2008, 02:59 PM   #18
Registered User
Personal Sales Rating: (0)

2000t4rAKS's Avatar

Join Date: Aug 2007
Location: Sacramento, CA
Posts: 302
Send a message via AIM to 2000t4rAKS
Awesome write-up DuB and lots of pics!!!! Thanks!!!
__________________
2000 4Runner Limited 4x4
Kenwood DNX7100 HU
Alpine SPR-17S Component Speakers
2000t4rAKS is offline   Reply With Quote
Old 04-04-2008, 03:06 PM   #19
Registered User
Personal Sales Rating: (2)

pattycakes77's Avatar

Join Date: Mar 2006
Location: Iowa
Posts: 1,323
this is also a nice step by step for the valve cover seals if some one is planning on doing that. this is exactly what you need to do to get down enough to take the valve covers off, except for the fuel rail stuff. i took pics of how i did my valve cover seals, but with this out there it would be pointless to post up the same pics and same information now. great job Dub!
pattycakes77 is offline   Reply With Quote
Old 04-04-2008, 03:18 PM   #20
Registered User
Personal Sales Rating: (0)

iwilli1169's Avatar

Join Date: Aug 2005
Posts: 47
That was awesome. I wonder how bad his injectors were. I need to take mine out and send them to get cleaned. I also need to do valve cover gaskets and they'll be 100X easier with the plenum off.
iwilli1169 is offline   Reply With Quote
Old 04-04-2008, 03:18 PM
Yotatech
4WD Truck




Paid Advertisement
Reply

Tags
1998, 34l, 4runner, 5vzfe, engine, fuel, injector, leaking, pics, picture, pictures, rail, removal, v6, yotatech

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Fuel Injector removal acid_burn 95.5-2004 Tacomas & 96-2002 4Runners 38 03-16-2007 06:29 PM
95 Taco fuel injector, fuel trim questions OtherHand 95.5-2004 Tacomas & 96-2002 4Runners 11 01-04-2007 08:49 AM
Fuel line? Fuel pump? Fuel injector? MikeKaduce 86-95 Trucks & 4Runners 3 11-06-2006 06:21 PM
Need injector help or something with the fuel. JrodNikls 95.5-2004 Tacomas & 96-2002 4Runners 4 06-15-2005 11:19 AM
Fuel Injector jethro 95.5-2004 Tacomas & 96-2002 4Runners 3 06-10-2004 08:29 PM


All times are GMT -8. The time now is 09:53 PM.


2010 InternetBrands, Inc.
