hidden snorkel PICTURES?

Hey everyone.

I have been reading lots about hidden snorkels on 2nd gen 4runners. There was several threads that covered this topic, some of which dated back to 2004. One thing each thread had in common was almost all of the pictures are no longer working.

I would really like to see how some of you did your hidden snorkels!!

Help a brotha out!

ohoktimmyg is offline
Reply With Quote
Old 04-15-2012, 08:02 PM
  #2
Registered User

rattlewagon's Avatar

Join Date: Oct 2009
Location: Berlin, Vermont
Posts: 4,125
Thanked 2 Times in 2 Posts
You cant see mine because its hidden!
Name:  Photo563-1.jpg
Views: 578
Size:  55.2 KB

Its just a 2" shop vac hose, goes from the air box, out under the fender then back in the engine bay in the red circle. Theres a screen over that end to keep larger stuff out. No noticeable power loss, but a 3" hose would probably be better.
rattlewagon is offline
Reply With Quote
Old 04-15-2012, 08:08 PM
  #3
Fossilized
Staff
iTrader: (6)

dropzone's Avatar

Join Date: Oct 2005
Location: PNW
Posts: 18,980
Thanked 18 Times in 16 Posts
Check to see if you can find 4crawlers hidden snorkel on his 85 4runner. The same concept would apply to your truck
Hint: 4crawleroffroad.com
dropzone is offline
Reply With Quote
Old 04-15-2012, 09:58 PM
  #4
Contributing Member
iTrader: (3)

BigBluePile's Avatar

Join Date: Dec 2006
Location: Mount Vernon, WA
Posts: 14,881
Thanked 102 Times in 55 Posts
Mine is kinda hidden.
BigBluePile is offline
Reply With Quote
Old 04-15-2012, 10:07 PM
  #5
Contributing Member

bob200587's Avatar

Join Date: Feb 2005
Location: Nashville, TN
Posts: 3,546
Thanks: 0
Thanked 0 Times in 0 Posts
Wut???
bob200587 is offline
Reply With Quote
Old 04-16-2012, 02:51 AM
  #6
Registered User
Thread Starter

Join Date: Apr 2010
Location: Philadelphia
Posts: 90
Thanks: 0
Thanked 0 Times in 0 Posts
@ rattle wagon, I like the idea. Do you ever have problems with taking water in?
@ drop zone, I will check this out as soon as I can. Thanks!
@ big blue, take a picture!
ohoktimmyg is offline
Reply With Quote
Old 04-16-2012, 07:42 PM
  #7
Contributing Member
iTrader: (3)

BigBluePile's Avatar

Join Date: Dec 2006
Location: Mount Vernon, WA
Posts: 14,881
Thanked 102 Times in 55 Posts
I did a write up
BigBluePile is offline
Reply With Quote
Old 04-16-2012, 07:50 PM
  #8
Registered User

rattlewagon's Avatar

Join Date: Oct 2009
Location: Berlin, Vermont
Posts: 4,125
Thanked 2 Times in 2 Posts
Originally Posted by ohoktimmyg View Post
@ rattle wagon, I like the idea. Do you ever have problems with taking water in?
Not yet, But I dont really go looking for deep water. It only picks the intake up about 4", but I dont have to worry about water splashing up in the front.

Heres one with PVC, Sort of like mine but not sucking from the engine bay

rattlewagon is offline
Reply With Quote
Old 04-18-2012, 02:34 PM
  #9
Registered User
iTrader: (1)

Jkelley429's Avatar

Join Date: Apr 2011
Location: Kingston Springs, TN
Posts: 398
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by rattlewagon View Post
You cant see mine because its hidden!


Its just a 2" shop vac hose, goes from the air box, out under the fender then back in the engine bay in the red circle. Theres a screen over that end to keep larger stuff out. No noticeable power loss, but a 3" hose would probably be better.
could you show some pics of how you attached the snorkel to the airbox? Would a pvc male connector work? Maybe just drill a hole the right size, put the connector on with a lockring and glue/ silicone the shop vac hose in? Also, i was wondering if there might be a way to have an alternative way to draw air out from the stock location, and when you go wheeling block that off and draw directly from the snorkel? Only reason im asking is cause i was looking at some property the other day and the only way to get in was to go through a mudhole where the water came up to the middle of the tailgate (i have a 3'' BL). It made it through, but i dont want to take any chances of hydrolocking it in the future. Thanks
Jkelley429 is offline
Reply With Quote
Old 04-22-2012, 06:28 PM
  #10
Registered User

rattlewagon's Avatar

Join Date: Oct 2009
Location: Berlin, Vermont
Posts: 4,125
Thanked 2 Times in 2 Posts
Sure, ill get some pics next weekend. I just siliconed the hose into the inlet tube of the airbox. When Im not using it (most time) I just unplug it.
rattlewagon is offline
Reply With Quote
Old 05-02-2012, 04:23 AM
  #11
Registered User

reddahaydn's Avatar

Join Date: Dec 2011
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
why do you guys all talk about unplugging your snorkel?
surely a smooth snorkel would still allow the same airflow as the restricted intake behind the headlight?
reddahaydn is offline
Reply With Quote
Old 05-02-2012, 05:51 AM
  #12
Registered User
Thread Starter

Join Date: Apr 2010
Location: Philadelphia
Posts: 90
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Jkelley429 View Post
could you show some pics of how you attached the snorkel to the airbox? Would a pvc male connector work? Maybe just drill a hole the right size, put the connector on with a lockring and glue/ silicone the shop vac hose in? Also, i was wondering if there might be a way to have an alternative way to draw air out from the stock location, and when you go wheeling block that off and draw directly from the snorkel? Only reason im asking is cause i was looking at some property the other day and the only way to get in was to go through a mudhole where the water came up to the middle of the tailgate (i have a 3'' BL). It made it through, but i dont want to take any chances of hydrolocking it in the future. Thanks
You might want to consider filling the mudhole in lol
ohoktimmyg is offline
Reply With Quote
Old 05-02-2012, 09:00 AM
  #13
Registered User

rattlewagon's Avatar

Join Date: Oct 2009
Location: Berlin, Vermont
Posts: 4,125
Thanked 2 Times in 2 Posts
Originally Posted by reddahaydn View Post
why do you guys all talk about unplugging your snorkel?
surely a smooth snorkel would still allow the same airflow as the restricted intake behind the headlight?
Sure would, but mines just a shopvac hose, its not smooth at all. But back when the truck was a DD, I had done several highway trips with it plugged in and didnt notice any difference.

Last edited by rattlewagon; 05-02-2012 at 12:52 PM.
rattlewagon is offline
Reply With Quote
Old 05-02-2012, 12:22 PM
  #14
Registered User

cheapneasycrndog's Avatar

Join Date: Sep 2010
Location: Milwaukee, WI
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
great idea!
cheapneasycrndog is offline
Reply With Quote
Old 05-04-2012, 09:56 AM
  #15
Registered User

Bandit Runner's Avatar

Join Date: Feb 2007
Location: Stevensville, MI
Posts: 347
Thanks: 0
Thanked 0 Times in 0 Posts
Guys, Don't hide your snorkels in shame. Show them off and be proud of them! jk

Name:  PICT1362.jpg
Views: 477
Size:  48.4 KB

Name:  PICT1372.jpg
Views: 1190
Size:  101.0 KB

Name:  PICT1371.jpg
Views: 1125
Size:  108.3 KB
Bandit Runner is offline
Reply With Quote
Old 05-04-2012, 10:38 AM
  #16
Registered User

rattlewagon's Avatar

Join Date: Oct 2009
Location: Berlin, Vermont
Posts: 4,125
Thanked 2 Times in 2 Posts
My snorkel is hidden because if I had one like that ^ a tree would rip it off first day out.

Plus, when are you ever REALLY in water that deep.
rattlewagon is offline
Reply With Quote
Old 05-04-2012, 02:37 PM
  #17
Registered User

punkelberg's Avatar

Join Date: Jun 2009
Location: Peoria, AZ
Posts: 284
Thanks: 0
Thanked 0 Times in 0 Posts
My snorkel is mostly to feed good air to the SC. But somehow I manage to find some body of water to cross every Sunday.

Name:  574971_3802479025545_1384425050_33464734_946242572_n.jpg
Views: 2318
Size:  101.5 KB
punkelberg is offline
Reply With Quote
Old 05-04-2012, 03:45 PM
  #18
Contributing Member
iTrader: (3)

BigBluePile's Avatar

Join Date: Dec 2006
Location: Mount Vernon, WA
Posts: 14,881
Thanked 102 Times in 55 Posts

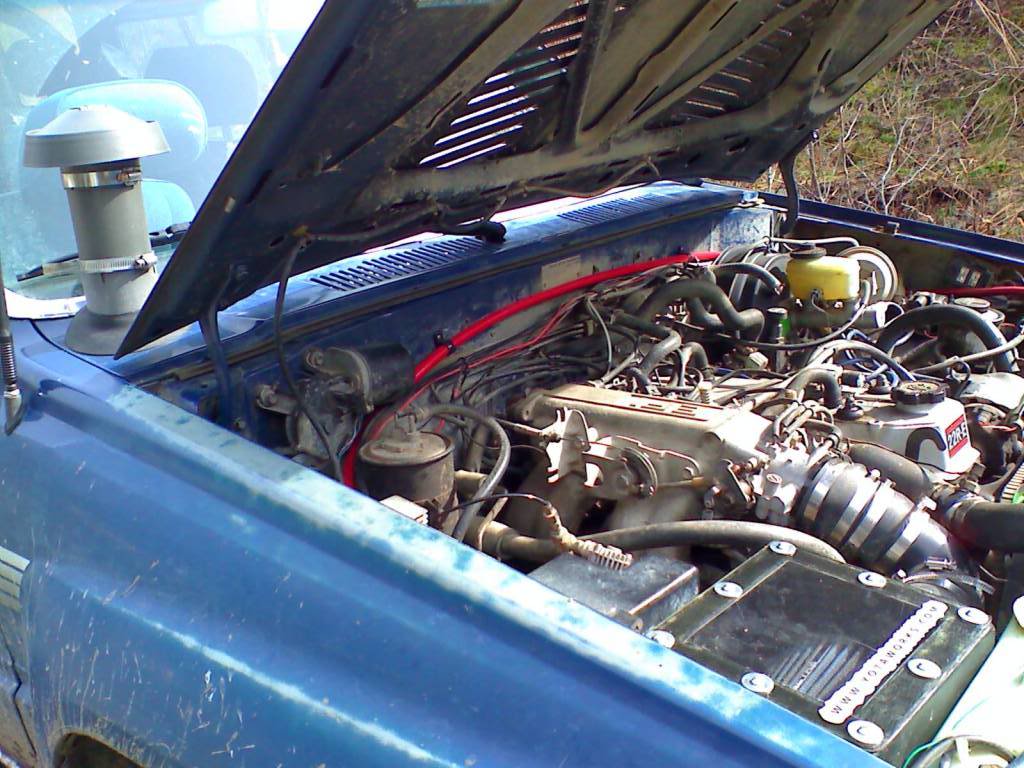

That's why my snorkle is low.
Name:  100327_120454.jpg
Views: 447
Size:  124.8 KB
BigBluePile is offline
Reply With Quote
Old 05-04-2012, 04:23 PM
  #19
Registered User

wii_tarded's Avatar

Join Date: May 2008
Location: Knoxville, TN
Posts: 1,051
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Bandit Runner View Post
Guys, Don't hide your snorkels in shame. Show them off and be proud of them! jk





^^^^That is a sexy beast!:jessica:
wii_tarded is offline
Reply With Quote
Old 05-04-2012, 04:53 PM
  #20
Registered User

Zpd426's Avatar

Join Date: Mar 2011
Location: Socal
Posts: 504
Thanks: 0
Thanked 0 Times in 0 Posts
I Need to find a way to relocate my intake also, got fiberglass. Has anyone made a snorkel that comes out of the hood? I was thinking of turning my air box so the intake faces backwards and then have a tube that connects to a snorkel just barely peeking out of the hood. I like your setup big blue!

Last edited by Zpd426; 05-04-2012 at 05:14 PM.
Zpd426 is offline
Reply With Quote
