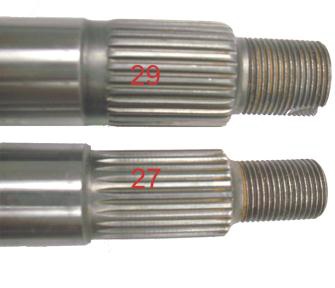

Nitro Gear & Axle strives to develop new applications, and improve existing applications. Nitro now offers the industry's first aftermarket Ring & Pinions to suit the latest greatest 01+ Toyota 8” differentials featuring a 29 spline pinion. Until now, only 27 spline were offered, which meant a changing the pinion flange to the older smaller design. The new Nitro 29 spline pinion is a direct fit on the 01+ Toyota 8” and 8” e-locker. Older models can still take advantage of the upgrade by purchasing the upgrade kit that includes a new matching pinion flange, nut, & seal. At Nitro we understand that you depend on your Toyota, and due to our stringent testing and state of the art manufacturing process, you can depend on our latest application. Computer controlled machining, heat treating and lapping processes ensure a strong, quiet running and installer-friendly Ring & Pinion.


P/N’S: TV6-373-29-NG, TV6-430-29-NG, TV6-456-29-NG, TV6-488-29-NG, TV6-529-29-NG (R&P ONLY)

TOYOTA 8” RING & PINION, FITS ALL TOYOTA 8” “4CYL”, “V6” & 8” ELECTRIC LOCKER DIFFERENTIALS. USES LATER STRONGER PINION DESIGN & HD 29 SPLINE PINION. DIRECT FIT FOR 03+ MODELS

Fits:

01-present Tacoma with e-locker only

01-09 4runner, FJ Cruiser, Fortuner, Hilux, Prado 90 & 120, with or w/o E-locker

01-09 4runner, FJ Cruiser, Fortuner, Hilux, Prado 90 & 120, with or w/o E-locker

YOKTOYFITKIT-29

79-02 TOYOTA 8” UPGRADE KIT, NEEDED FOR INSTALLATION OF ABOVE R&P’S INTO 2002 & OLDER MODELS. THIS INCLUDES ALL TOYOTA 8” “4CYL”, “V6” & 8” ELECTRIC LOCKER DIFFERENTIALS. USES LATER STRONGER PINION DESIGN & HD 29 SPLINE PINION. INCLUDES DOUBLE DRILLED 29 SPLINE MATCHING FLANGE, NUT, SEAL

Fits TV6-XXX-29-NG R&P INTO 79-02 MODELS:

Rear: 79-02 Toyota 4x4 Hilux, pickup, 4runner, Prado 90, Etc w/ 8” rear diff

Front: 79-85 Toyota 4x4 Hilux, pickup and 4runner solid front axle, also later models overseas

Rear: 79-85 Landcruiser II, Prado 70, Bundera, LJ70, RJ70, etc

4cyl non-turbo models Must use 86+ inner pinion bearing.


*01-02 models check pinion spline count or order YOKTOYFITKIT-29 if unsure

For a quote, EMAIL us, or call us at 509 888 2953

justdifferentials

Bringing this one back up to the top!

justdifferentials

Bumping this one back up to the top!

justdifferentials

Bringing this one back up to the top!

justdifferentials

Bumping this one back up!

justdifferentials

Bumping this one back up to the top, if you have any questions let us know!

justdifferentials

Bringing this back up! We develop all our ring and pinions to fit similarly to the factory sets. This means you can setup our gears quicker and easier then some other manufacturers!
