justdifferentials

CKMTA12

This compact vehicle mounted compressor has been designed to do everything! Activate your ARB Air Locking Differentials, air up a 35" tire in less than a minute and run air tools. This 100% duty cycle, 6.16 cfm compressor is built to support all of your compressed air needs.

Voltage: 12 Volts

Current Draw No Load: 28 Amps

Current Draw Under Load: 50 Amps

Air Flow No Load: 6.16 CFM

Air Flow Under Load: 4.65 CFM

Weight: 20 Lbs

Duty Cycle: 100%

Size: 4.0" Height, 7.5" Length, 10.8" Width

Features:

Available in 12V (CKMTA12) or 24V (CKMTA24) models.

Constructed primarily of light weight, high strength, engineering grade materials, including military and aerospace standard components.

Pressure switch controlled air manifold system regulates pressure between 9.3Bar [135PSI] and 10.3Bar [150PSI] suited to air tools and all ARB Air Locker equipped vehicles.

Highest air flow rate of any 12V compressor of its size on the market at 174LPM [6.16CFM].

High efficiency design consumes only 56 Amps at maximum air flow.

justdifferentials

Bringing this one back up, these compressors are perfect to air your tires back up for the snow wheeling season!

justdifferentials

In addition to the compressors we also carry the ARB accessories including the hoses and attachments to fill tires:

Find them here.

As well as the rapid deflator style gauge that removes valve cores:

Find them here.

If you are looking for any other ARB product that you don't see on our website give us a call at 866 349 6801, or email us at info@justdifferentials.com.

justdifferentials

We have all the ARB gear in stock to repair and inflate flat tires! Don't get stuck stranded out on the trail or the road.

justdifferentials

Bringing this one back up!

justdifferentials

Bringing this one back up.

justdifferentials

All quotes sent back out!

justdifferentials

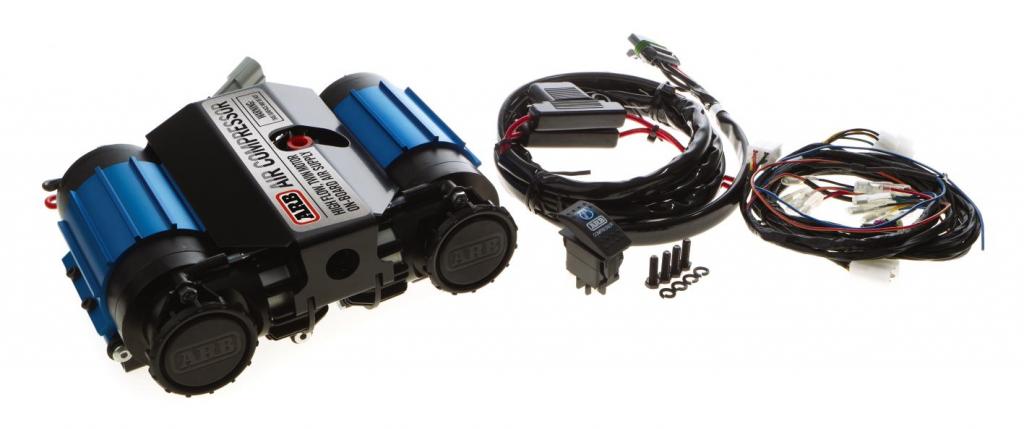

Bringing this one back up, here is a picture of the compressor for reference

justdifferentials

Bumping this one back up!

justdifferentials

Bringing this back up!

justdifferentials

Bumping this thread back up to the top!

justdifferentials

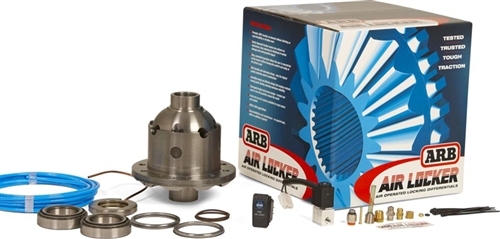

We have a huge inventory of ARB Air Lockers to go along with these compressors!
Give us a call to find the locker for your application!
