Power steering assist hoses
#1
Power steering assist hoses
Hello.
I am new to the forum and an owner of a 1992 4x4 4Runner with the v6 and automatic at 209,500 miles.
Using advanced search I found some interesting articles, but no pictures that would help me with my problem. I also have the maintenance book from Autozone but it doesn't show me what I need to know either.

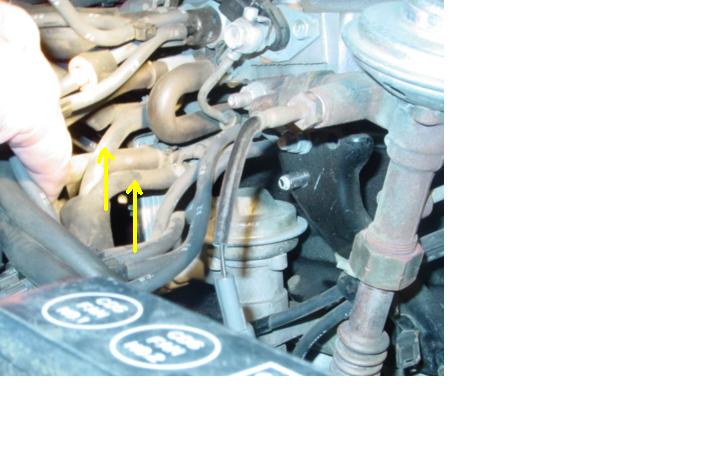

My steering pump has two additional hoses on the bottom, that are wrapped together and go *no-where*. My understanding is that these are power assist hoses for low RPM steering boost. I have no clue where they go. I am attaching a picture with the hoses circled. Can someone please attach a picture of where these hoses connect to and give me some guidance to find it? Thank you so much.
Bill
I am new to the forum and an owner of a 1992 4x4 4Runner with the v6 and automatic at 209,500 miles.
Using advanced search I found some interesting articles, but no pictures that would help me with my problem. I also have the maintenance book from Autozone but it doesn't show me what I need to know either.
My steering pump has two additional hoses on the bottom, that are wrapped together and go *no-where*. My understanding is that these are power assist hoses for low RPM steering boost. I have no clue where they go. I am attaching a picture with the hoses circled. Can someone please attach a picture of where these hoses connect to and give me some guidance to find it? Thank you so much.
Bill
Last edited by billz924R; 11-30-2005 at 12:28 PM.
#2
Contributing Member
Join Date: Feb 2005
Location: Vancouver BC
Posts: 783
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by billz924R
Hello.
I am new to the forum and an owner of a 1992 4x4 4Runner with the v6 and automatic at 209,500 miles.
Using advanced search I found some interesting articles, but no pictures that would help me with my problem. I also have the maintenance book from Autozone but it doesn't show me what I need to know either.
My steering pump has two additional hoses on the bottom, that are wrapped together and go *no-where*. My understanding is that these are power assist hoses for low RPM steering boost. I have no clue where they go. I am attaching a picture with the hoses circled. Can someone please attach a picture of where these hoses connect to and give me some guidance to find it? Thank you so much.
Bill
I am new to the forum and an owner of a 1992 4x4 4Runner with the v6 and automatic at 209,500 miles.
Using advanced search I found some interesting articles, but no pictures that would help me with my problem. I also have the maintenance book from Autozone but it doesn't show me what I need to know either.
My steering pump has two additional hoses on the bottom, that are wrapped together and go *no-where*. My understanding is that these are power assist hoses for low RPM steering boost. I have no clue where they go. I am attaching a picture with the hoses circled. Can someone please attach a picture of where these hoses connect to and give me some guidance to find it? Thank you so much.
Bill
Those definitely go somewhere. Check out the pics:
https://www.yotatech.com/forums/show...e+cover+gasket
Troy
#4
Awesome! Thanks. Just the pic I was looking for. However there is one thing more; since one is most likely an 'output' line and the other an 'input' line, it is important that I put them in the right port. In your picture which is the input port (takes p/s fluid into the manifold)? Hmmm, possibly a more important question is, do I want p/s fluid in my manifold??
#5
Contributing Member
Join Date: Feb 2005
Location: Vancouver BC
Posts: 783
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by billz924R
Awesome! Thanks. Just the pic I was looking for. However there is one thing more; since one is most likely an 'output' line and the other an 'input' line, it is important that I put them in the right port. In your picture which is the input port (takes p/s fluid into the manifold)? Hmmm, possibly a more important question is, do I want p/s fluid in my manifold??
Troy
#6
Contributing Member
iTrader: (3)
Originally Posted by billz924R
Awesome! Thanks. Just the pic I was looking for. However there is one thing more; since one is most likely an 'output' line and the other an 'input' line, it is important that I put them in the right port. In your picture which is the input port (takes p/s fluid into the manifold)? Hmmm, possibly a more important question is, do I want p/s fluid in my manifold??
#7
Originally Posted by 4Crawler
No inlet or outlet. The lines connect to a Vacuum Switching Valve on the pump. When there is high enough pressure inside the pump, the VSV opens and passes intake vacuum to the idle-up valve. The idle-up valve bumps up the idle speed to keep the power steering pump load from bogging down the engine at idle.
I bought some new vacuum hose today and replaced the lines and so far so good. Low RPM steering is much easier and there is no p/s fluid leaking now.
Hope all remains well. I did find out that my vehicle has not been in for the 50N, V06, and P01 campaigns and it is still eligible for them. Verified with the dealer/sevice center where I live but for some strange reason they haven't called me back with a date for bringing it in. May have to just drop it off with them tomorrow.
Thanks to everyone for the help!
Trending Topics
#8
Contributing Member
iTrader: (3)
That is not a "power assist" valve, it is the idle up valve as I noted. Check a Factory Service Manual if you want more information. Likely your idle up VSV is busted, broken, leaking power steering fluid. There should not be fluid in the lines. It is just a pressure operated vacuum switching valve. With no pressure to the back side it is closed, no vacuum passes. Apply some pressure to the back side and the valve opens, passing vacuum from one port to the other.
