Hey all im really in need of a couple pics of the 5vzfe with good detail mostly around the throttle body but the whole engine too. if someone could post one up or show me where i could find some it would be great



Give me a few minutes and i'll dig mine up...





Here ya go...
https://www.yotatech.com/forums/f2/i-need-some-engine-bay-pics-please-90966/

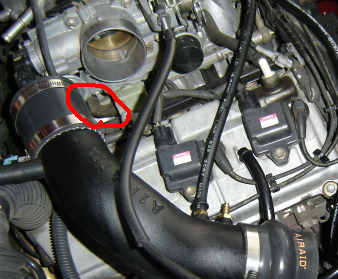

where does this hose go?



Also the hose that comes off the Idle air control valve goes to where?



The hose you pictured connects right under the power steering reservoir.



the fitting on the actual resivoir?

what about the IAC fitting



this one



yes, it's an aluminum looking fitting thats connected to the bottom of the reservoir.
But looking at other 5vzfe pics, that hose seems to be capped off from the factory....Including another hose that goes to the same fitting (side by side) but comes from the air intake.

What year 4runner do you have?



lol 1990

Idk what the motor is from I got it and it was sezied and the guy i bought it from thought it was from a 98 taco.

im just finishing up my rebuild and idk where these hoses go as i didnt take them off in the first place



that one is hard to explain...you'd have to see it in person.

Are you swaping a 3.4 in your '90?
Check out this information... http://www.offroadsolutions.com/technicalarticles.htm



yeah I love my 90 too much to lay it to rest so it gets a 2nd chance at life
great site ive seen it a couple times and alot of great info on here and on pirate4x4

as for that iac fitting my buddy said its probably an air assist hose for the brake booster but i dont think it is

Also the fitting for the hoses on the ps resivior where does the other fitting go to?



I'm not sure what you mean but i'll try to answer. I have one "fitting" thats attached below the PS reservoir. One hose connects to it from the first pic you posted. The other connects right beside it from the air intake.

I believe the air intake hose to PS reservoir only exists on earlier 3rd gens...like '96-'98.



yeah i think its a 98
where on the intake does that other hose connect?



See in the 2nd pic you posted...theres a brass colored barb without a hose on it. Thats where the hose attaches.
