So i have piaa 525 lights that i have yet to wire..sigh...anyways i need a 12v that turns on when the key goes to ACC for the wedge lights and for the switch power...i tried using the line from my stereo head unit and from my cigarette lighter outlet and its still not working...maybe my wiring harness is defective?..or maybe im an idiot

all these wire and colors confuse me



run a dedicated circuit for the lights... ise a switched ign power as a signal line only if you are going to even do it that way... i have my aux lights wired on their own and have them setup to run with the car off or on, on a dedicated circuit with an in cab switch... they also automatically come on when i flip on my highbeams



how about a schematic or a detalied write up...im no electrician...nor do i want to fry my truck...thanks jim

i know im going to need a relay a fuse panel and a few other misc things.



You need a relay with the +12v acc line source.



Check out Corey's write ups.
I used those extensively when I was trying to figure out my aux. rear lights and that gave me a pretty good idea how to wire it to my liking.

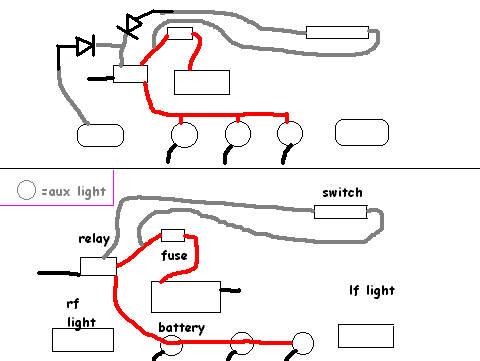

https://www.yotatech.com/attachment....achmentid=4844 is ultimately how i wired it.. the top pic wiith the diodes... it allows me to run it switched inside the cab or automatically with the highbeams.... read the thread https://www.yotatech.com/forums/f2/aux-lights-wiring-help-needed-50001/ for the explaination i received from other members



thats a good thread jim, ..but the thing is i dont want them wired with my high beams because they lights have a high and a low beam themselves i want them to operate independently...they also have a DRL which i would like to have hooked up....hmm i might use that wiring diagram on my dads runner tho



my original idea did not have them wired up with the highbeams... the bottom half of the diagram is how they were wired up without the highbeams..... https://www.yotatech.com/attachment....achmentid=4844



hmm that works...will i be able to run the drls off that line as well?


thanks a lot
