emissions diagrams
I got bored and figured id post up these diagrams i had on my phone i figured yall could use them
They are for 79-95 pickups and 4runners with the 20r 22r 22re 22rte and 3vz cali Canada and federal
Note most that say federal and canada 2wd include the usa 2wd & 4wd
1979

Name: 1979cali_zps92cc8dde.jpg Views: 564 Size: 332.9 KB
Last edited by Stetson_md; 02-26-2013 at 04:40 PM.
Stetson_md is offline
Reply Like
Old 02-26-2013, 01:19 PM
  #2
Registered User
Thread Starter

Stetson_md's Avatar

Join Date: Nov 2012
Location: florida
Posts: 698
Likes: 0
Received 0 Likes on 0 Posts

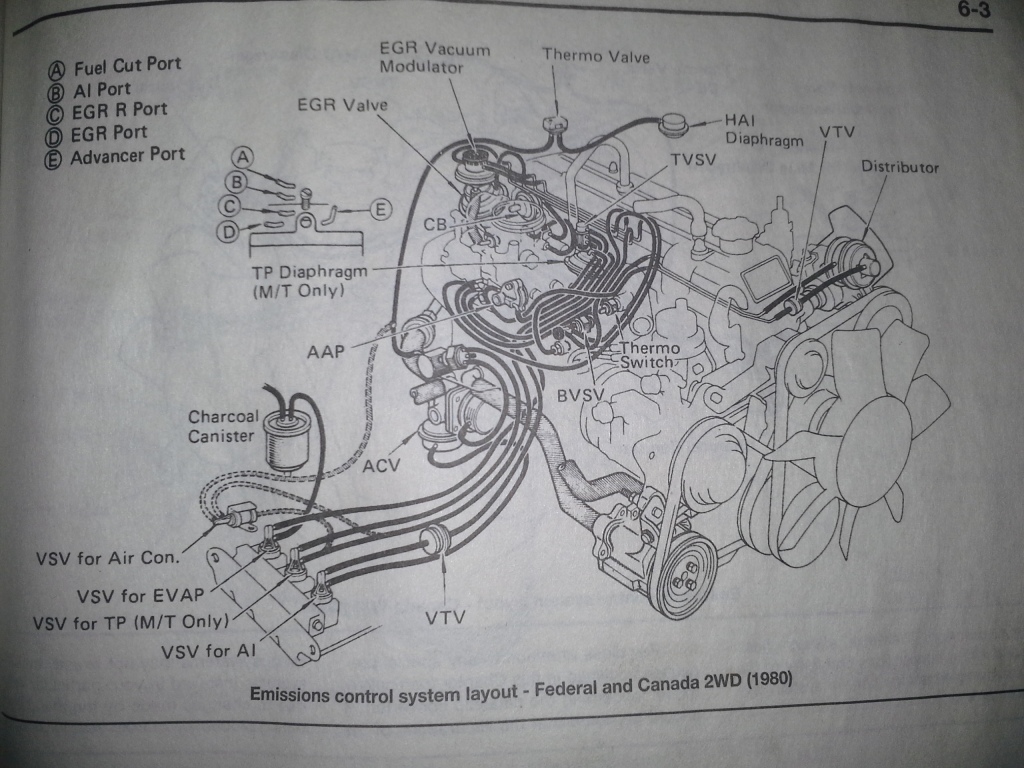

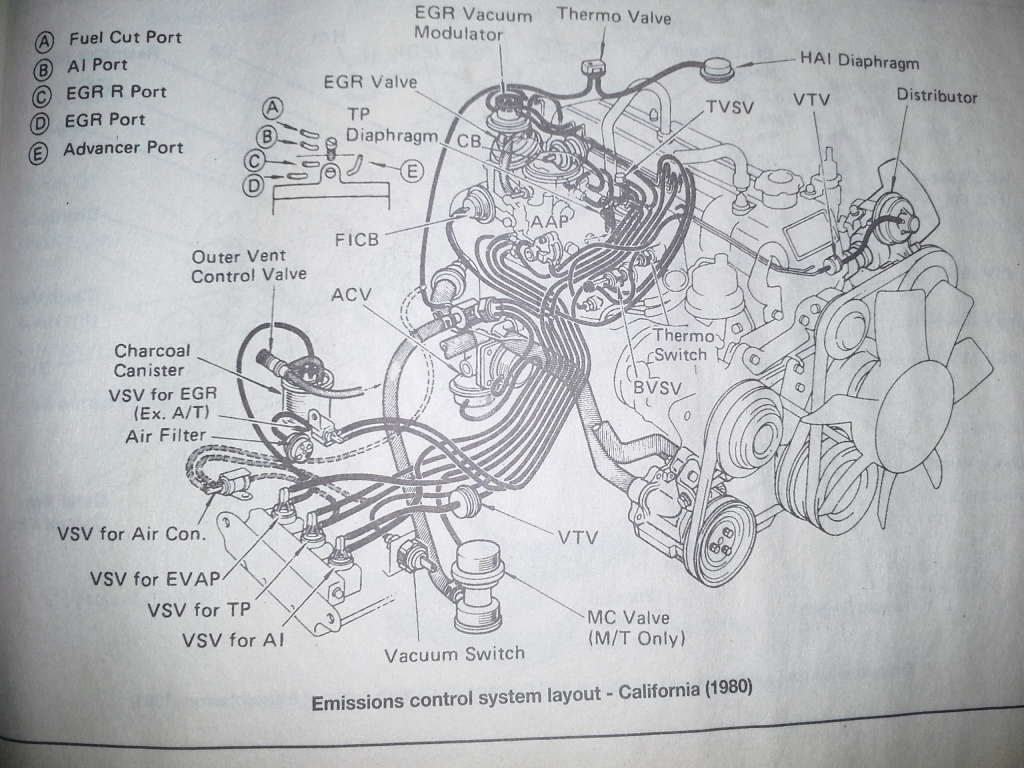

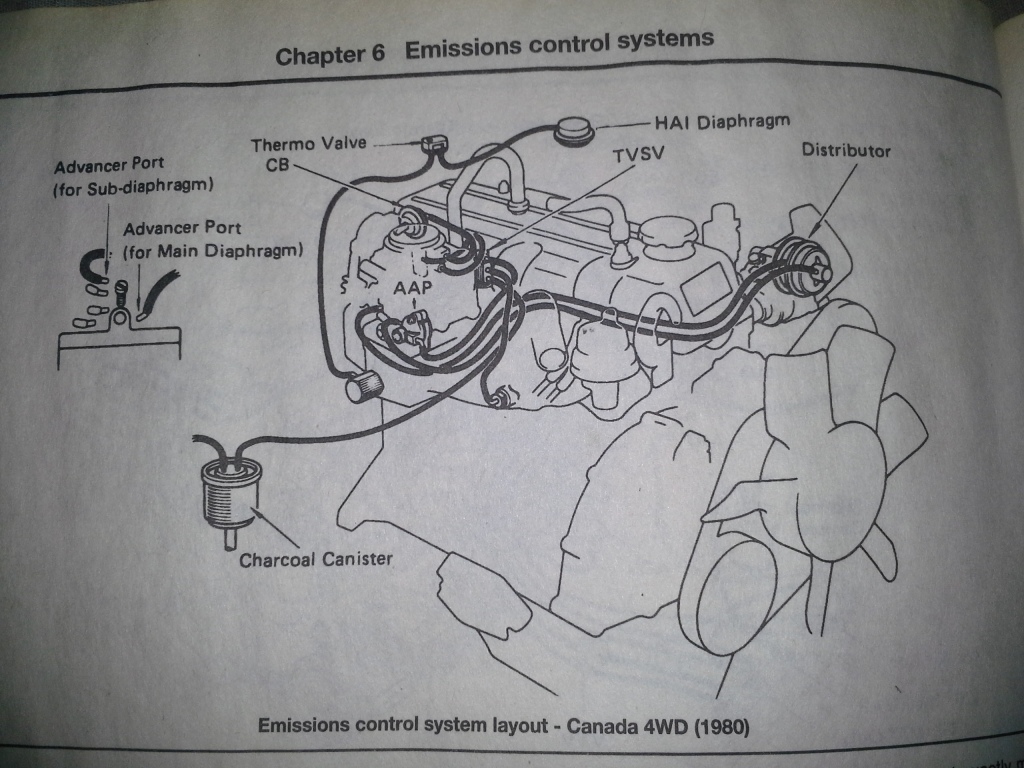

1980
Name: Fed2wd1980_zps2a69e711.jpg Views: 436 Size: 309.0 KB
Name: Cali1980_zps89dea052.jpg Views: 473 Size: 365.1 KB
Name: Can4wd1980_zps1ac51014.jpg Views: 400 Size: 300.5 KB
Stetson_md is offline
Reply Like
Old 02-26-2013, 02:33 PM
  #3
Registered User
Thread Starter

Stetson_md's Avatar

Join Date: Nov 2012
Location: florida
Posts: 698
Likes: 0
Received 0 Likes on 0 Posts

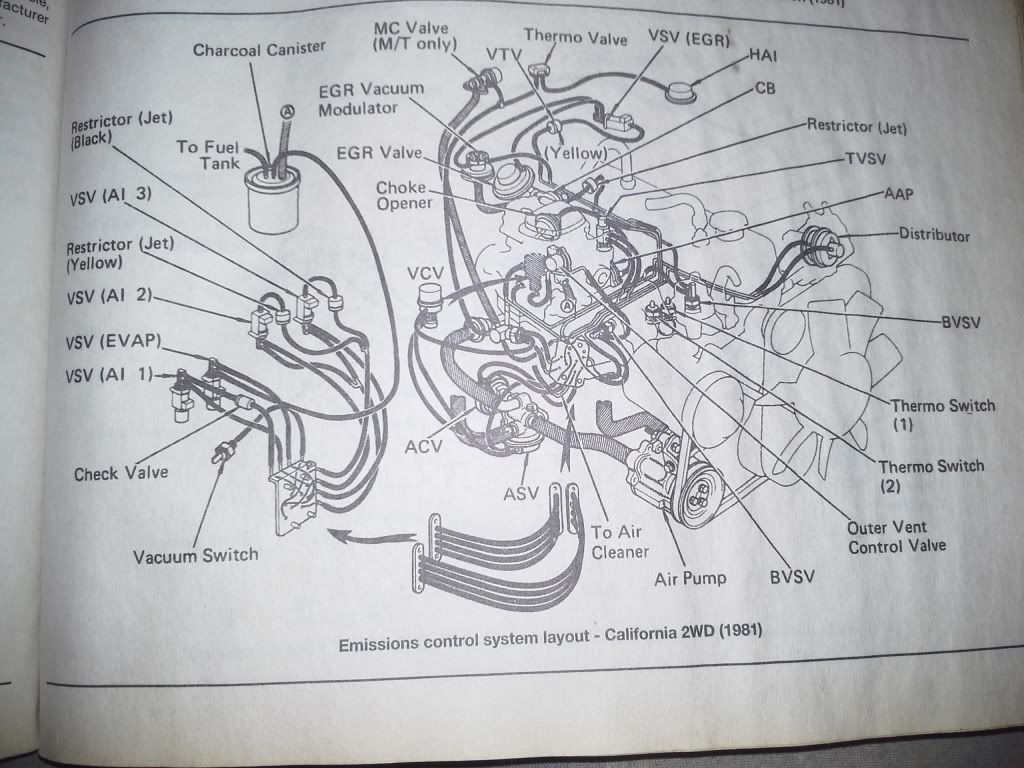

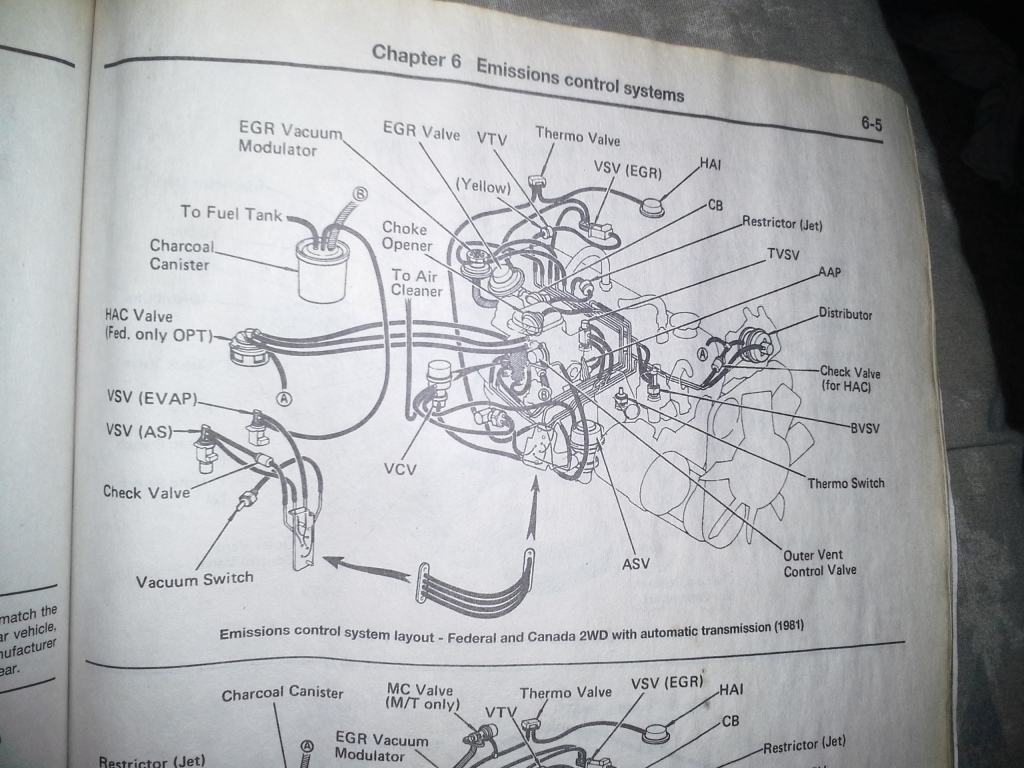

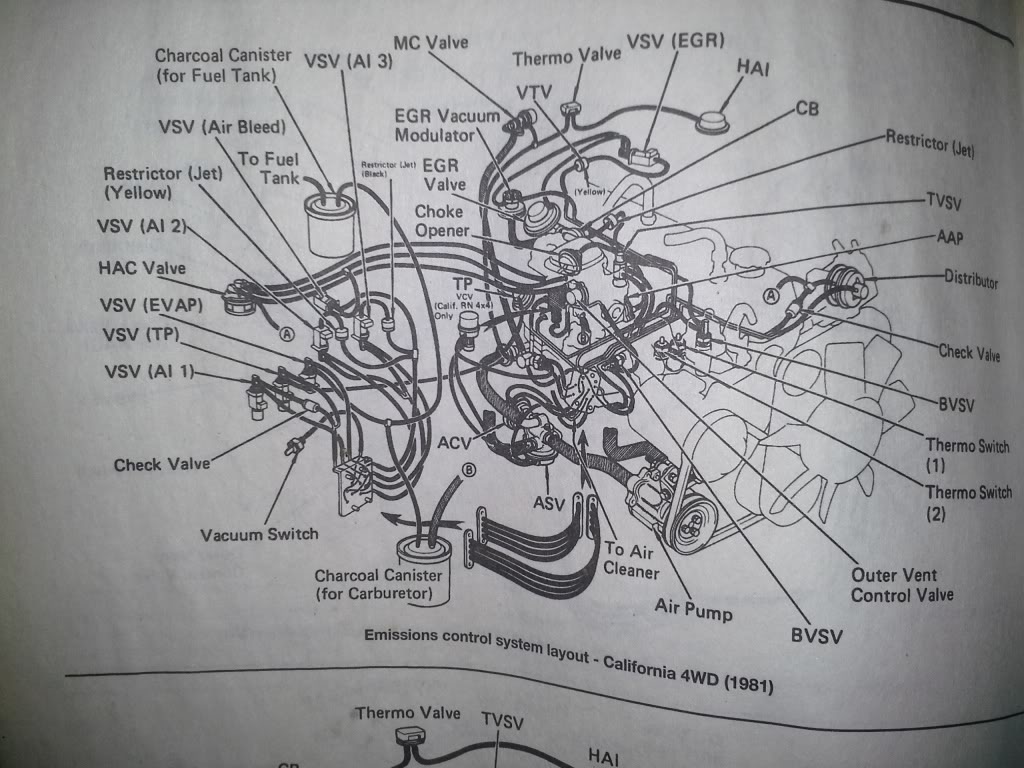

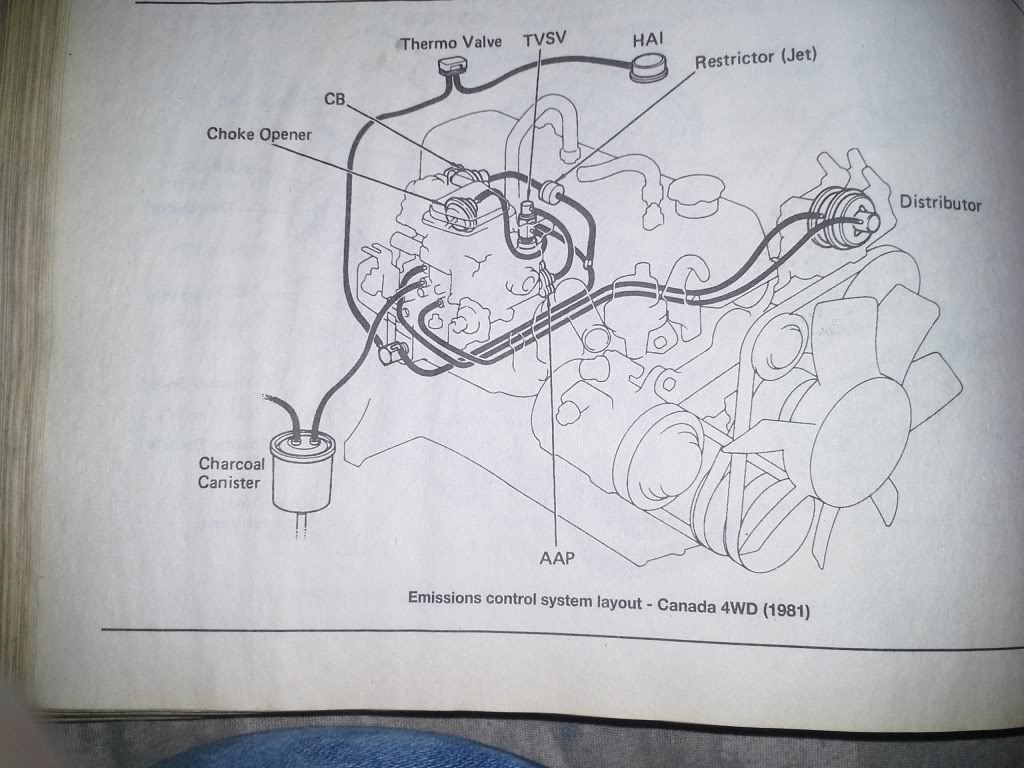

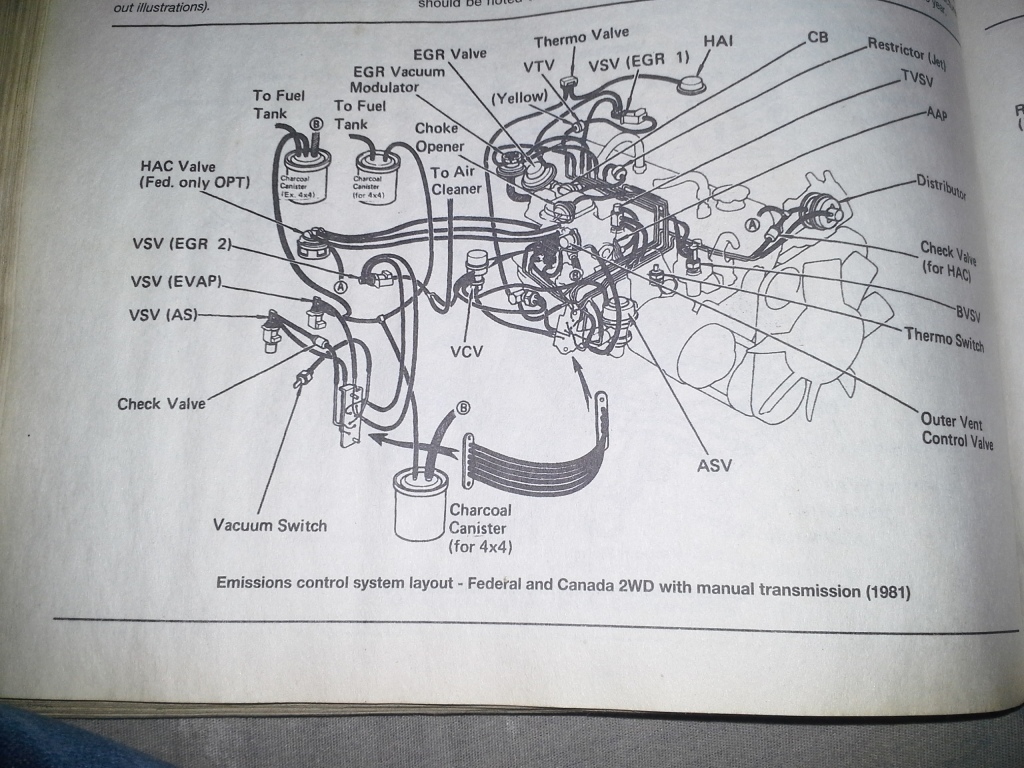

1981
Name: 1981-5_zps752c4932.jpg Views: 378 Size: 116.7 KB
Name: 1981-4_zpsbe4d5786.jpg Views: 410 Size: 148.0 KB
Name: 1981-3_zps9d7c0158.jpg Views: 387 Size: 145.5 KB
Name: Fed2wd1981_zps257f3f14.jpg Views: 410 Size: 339.3 KBName: 1981-2_zps7b56e900.jpg Views: 383 Size: 307.7 KB
Last edited by Stetson_md; 02-26-2013 at 03:23 PM.
Stetson_md is offline
Reply Like
Old 02-26-2013, 03:36 PM
  #4
Registered User
Thread Starter

Stetson_md's Avatar

Join Date: Nov 2012
Location: florida
Posts: 698
Likes: 0
Received 0 Likes on 0 Posts

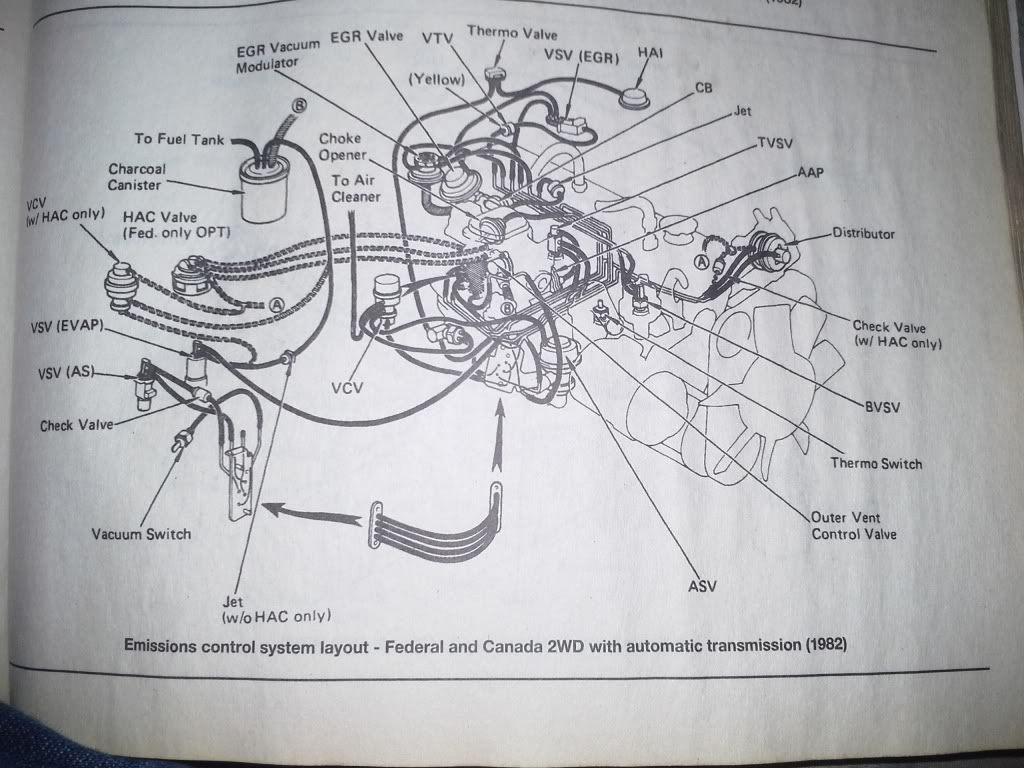

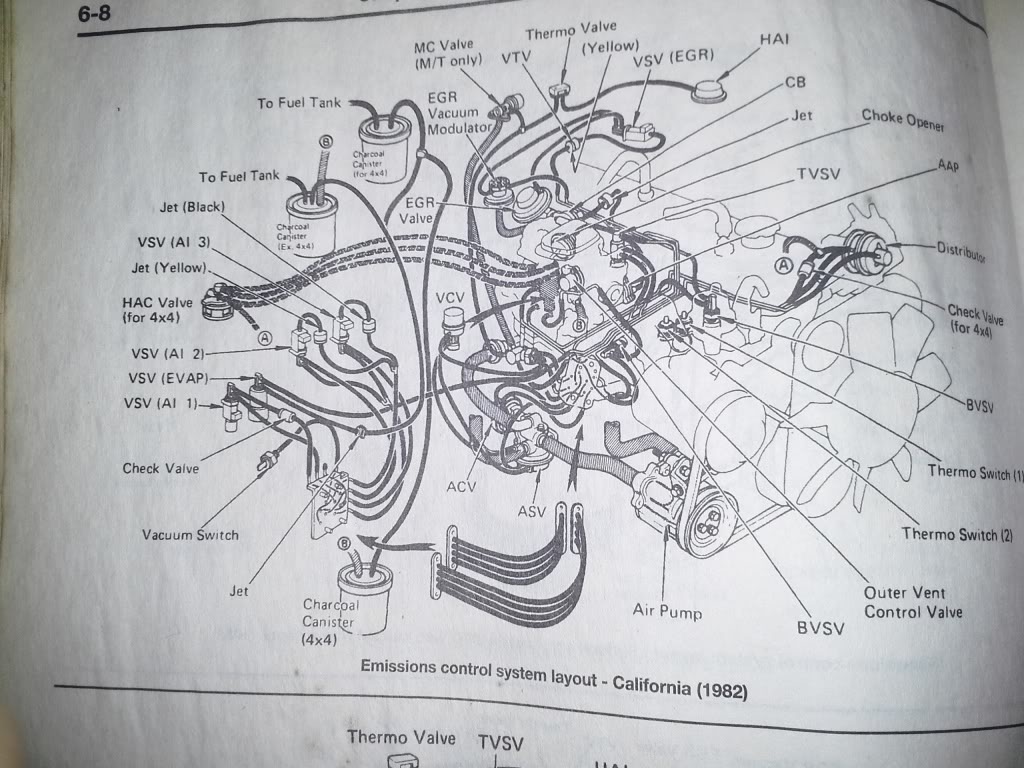

1982
Name: 1982-3_zps615996d7.jpg Views: 383 Size: 162.8 KB
Name: 1982-4_zps0f4413fe.jpg Views: 380 Size: 121.3 KB
Name: 1982-2_zps910e2b8e.jpg Views: 379 Size: 135.0 KB
Name: 1982-1_zpsd45477ab.jpg Views: 437 Size: 143.6 KB
Stetson_md is offline
Reply Like
Old 02-26-2013, 03:42 PM
  #5
Registered User
Thread Starter

Stetson_md's Avatar

Join Date: Nov 2012
Location: florida
Posts: 698
Likes: 0
Received 0 Likes on 0 Posts

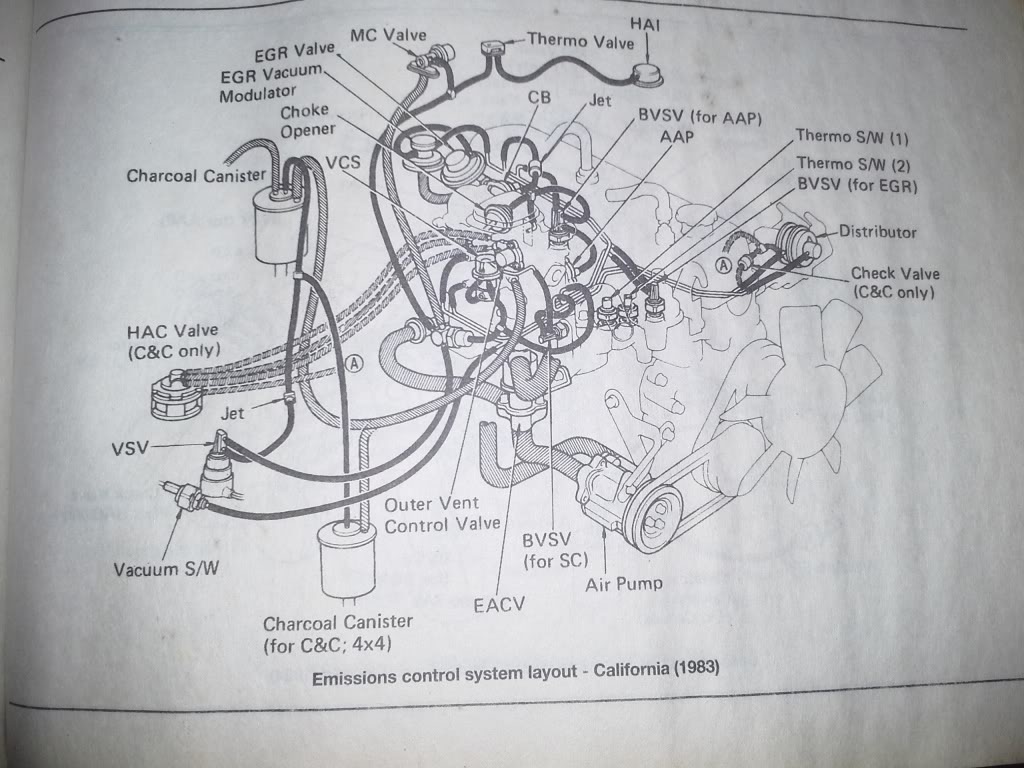

1983

Name: 1983-1_zpsf779c9f3.jpg Views: 397 Size: 129.1 KB
Name: 1983-2_zps7b94b7eb.jpg Views: 393 Size: 136.0 KB
Stetson_md is offline
Reply Like
Old 02-26-2013, 03:46 PM
  #6
Registered User
Thread Starter

Stetson_md's Avatar

Join Date: Nov 2012
Location: florida
Posts: 698
Likes: 0
Received 0 Likes on 0 Posts

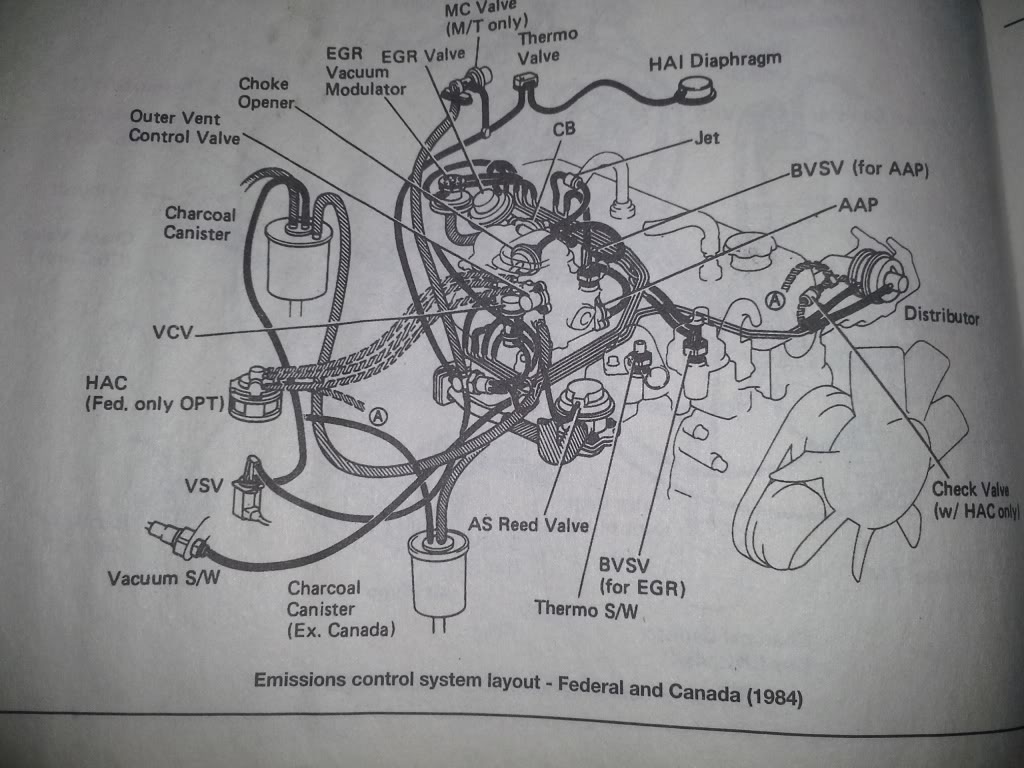

1984

Name: 1984-1_zps31a8644e.jpg Views: 752 Size: 130.7 KB
Stetson_md is offline
Reply Like
Old 02-26-2013, 04:15 PM
  #7
Registered User
Thread Starter

Stetson_md's Avatar

Join Date: Nov 2012
Location: florida
Posts: 698
Likes: 0
Received 0 Likes on 0 Posts

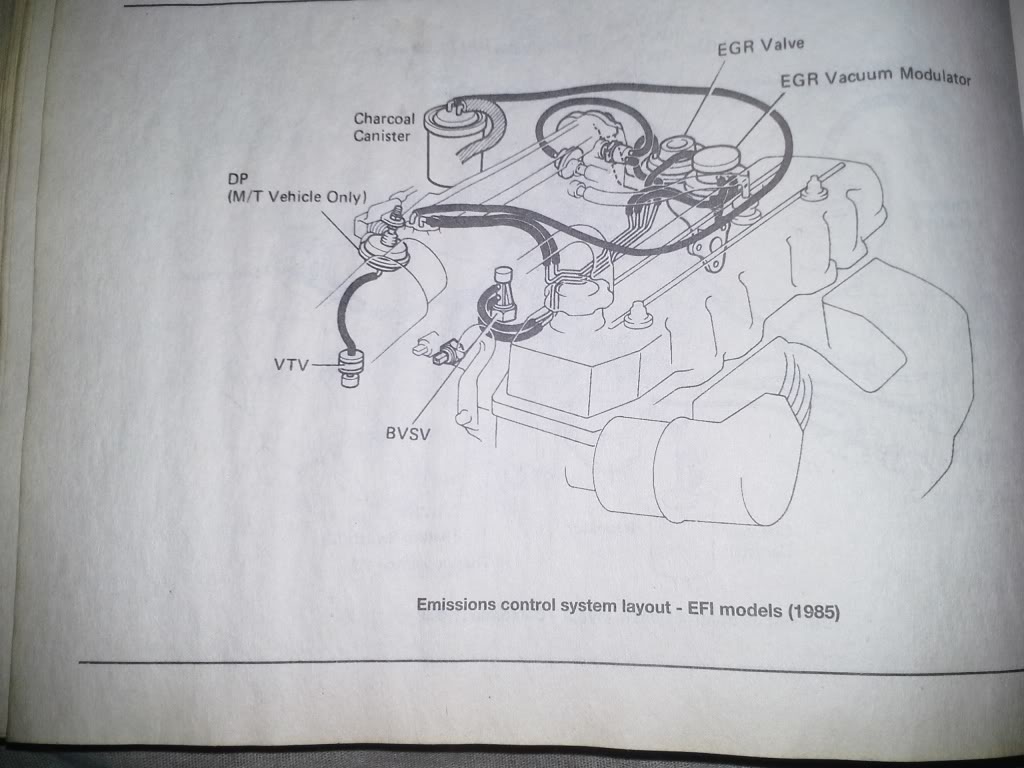

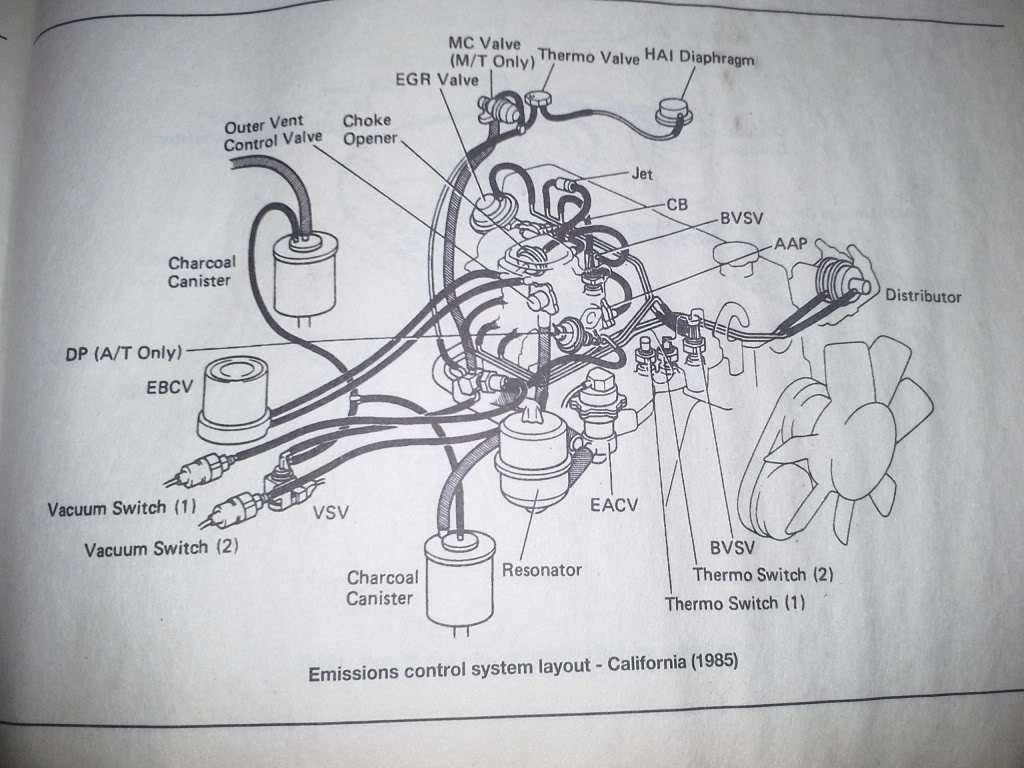

1985
Name: 1985-3_zpse722e4fd.jpg Views: 380 Size: 91.8 KB
Name: 1985-2_zps291ad18d.jpg Views: 426 Size: 120.5 KB
Name: 1985-1_zps6d28b00d.jpg Views: 390 Size: 141.3 KB
Stetson_md is offline
Reply Like

Trending Topics

Old 02-26-2013, 04:22 PM
  #8
Registered User
Thread Starter

Stetson_md's Avatar

Join Date: Nov 2012
Location: florida
Posts: 698
Likes: 0
Received 0 Likes on 0 Posts
1986 & 1987
Name: 1986-1_zps5b7a51dc.jpg Views: 392 Size: 160.5 KB
Name: 1986-2_zps7ecddb56.jpg Views: 385 Size: 123.3 KB
Name: 1987-2_zps010ad9b5.jpg Views: 378 Size: 117.2 KB
Name: 1986-3_zpsf25237f2.jpg Views: 389 Size: 103.8 KB
Stetson_md is offline
Reply Like
Old 02-26-2013, 04:34 PM
  #9
Registered User
Thread Starter

Stetson_md's Avatar

Join Date: Nov 2012
Location: florida
Posts: 698
Likes: 0
Received 0 Likes on 0 Posts

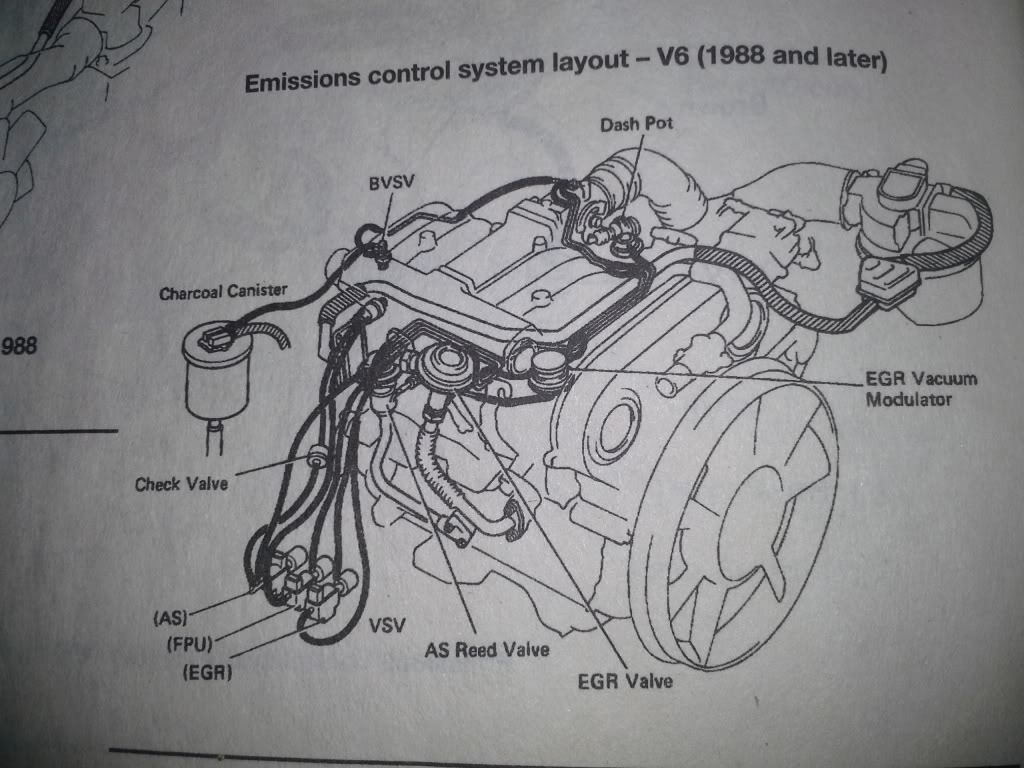

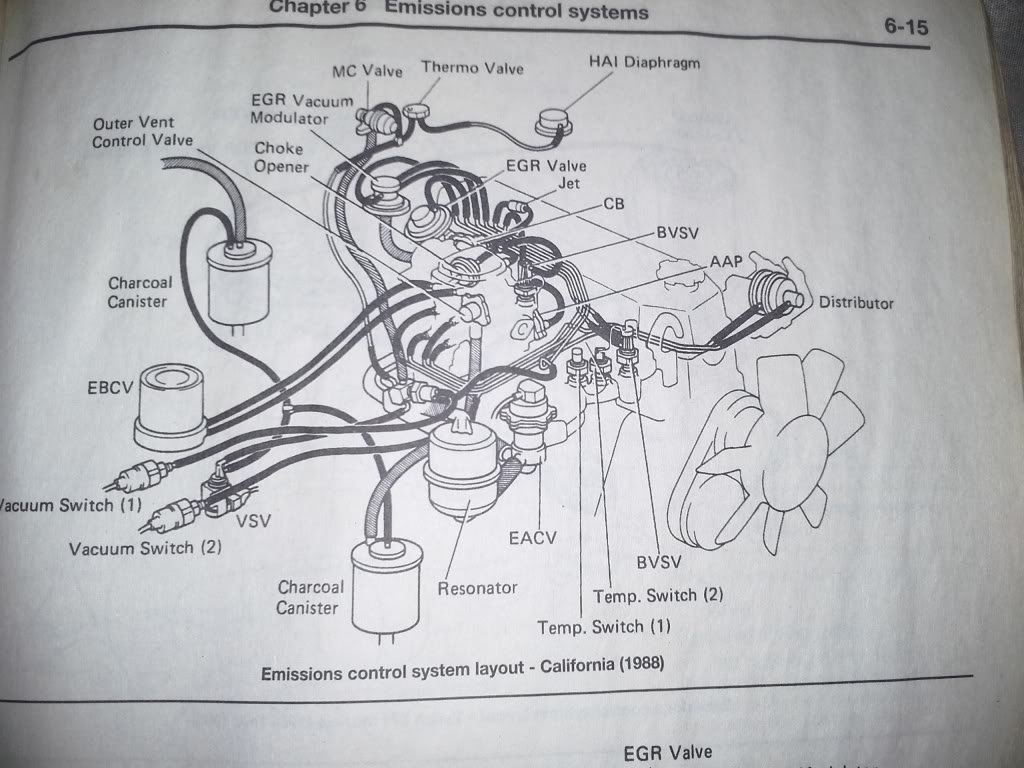

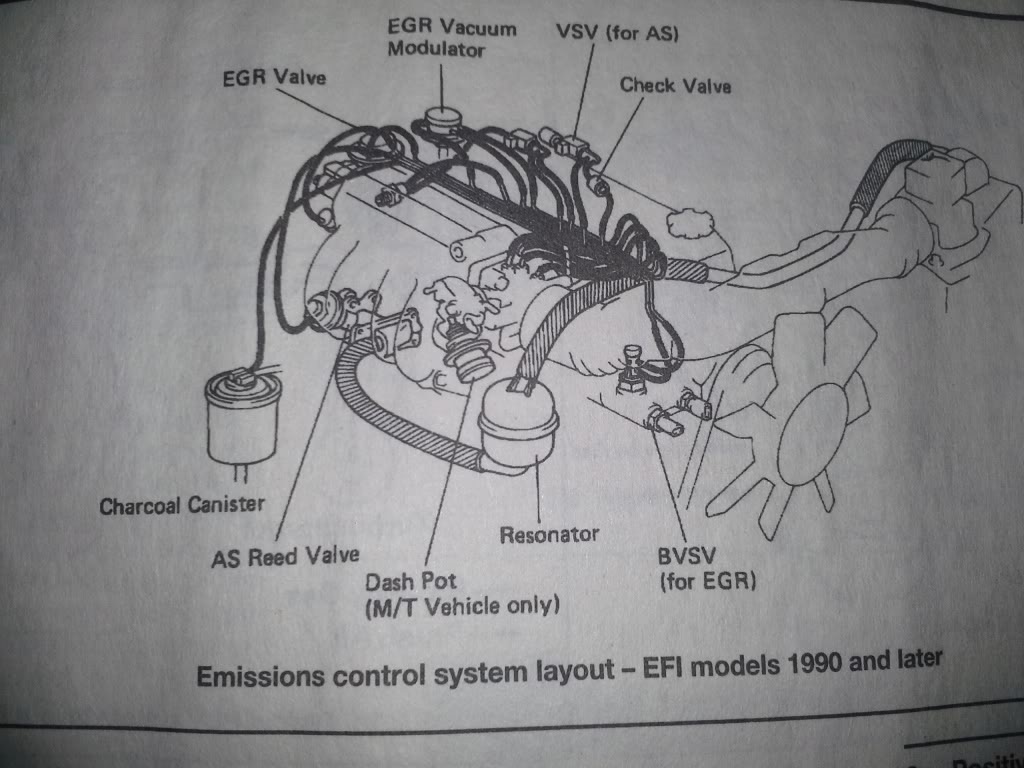

1988+
Name: 1988-1_zpscfbc68eb.jpg Views: 450 Size: 133.3 KB
Name: 1988-2_zps34a0d38c.jpg Views: 366 Size: 125.8 KB
Name: 88-89_zpsd900f6be.jpg Views: 469 Size: 107.3 KB
Name: V6_zps9adaec6e.jpg Views: 408 Size: 129.2 KB
Name: 1990_zps410b4356.jpg Views: 393 Size: 109.2 KB

1986-1988 22rte
Name: 86-88turbo_zpsf44763dc.jpg Views: 397 Size: 112.0 KB
Stetson_md is offline
