2TR-FE ECU Pinout diagram

Guys,

I'm in search for ECU Pinout diagram for 2008 2TR-FE.
I've searched the forums but couldn't find it.
Can you give me some directions ..

Thanks,
xtremez is offline
Old 08-03-2009, 08:01 PM
  #2
RMA
Contributing Member

RMA's Avatar

Join Date: Dec 2008
Location: San Jose ,Ca
Posts: 2,505
Received 2 Likes on 2 Posts
I dont think you will find it here .
but try this

https://techinfo.toyota.com

its all I got for you man!!
RMA is offline
Old 08-04-2009, 02:59 AM
  #3
Registered User
Thread Starter

Join Date: Aug 2009
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Thanks RMA...

but need to subscribe to get access
xtremez is offline
Old 01-23-2019, 04:04 PM
  #4
Registered User

Join Date: Mar 2016
Posts: 23
Received 0 Likes on 0 Posts
Originally Posted by xtremez View Post
Thanks RMA...

but need to subscribe to get access
Don't know if you have found a free one or not but here is where I found mine.

http://ncttora.com/fsm/05+/index.html
fj40pinobilt is offline
Old 01-23-2019, 04:04 PM
  #5
Registered User

Join Date: Mar 2016
Posts: 23
Received 0 Likes on 0 Posts
fj40pinobilt is offline
Old 01-23-2019, 04:06 PM
  #6
Registered User

Join Date: Mar 2016
Posts: 23
Received 0 Likes on 0 Posts
...and if that don't work goto https://www.toyota-4runner.org/redir...a.com%2FFSM%2F

and search around. The other two links are from the site but for whatever reason when I text click on them they don't work.
fj40pinobilt is offline
Old 05-18-2019, 08:05 AM
  #7
Registered User

Join Date: Mar 2016
Posts: 23
Received 0 Likes on 0 Posts

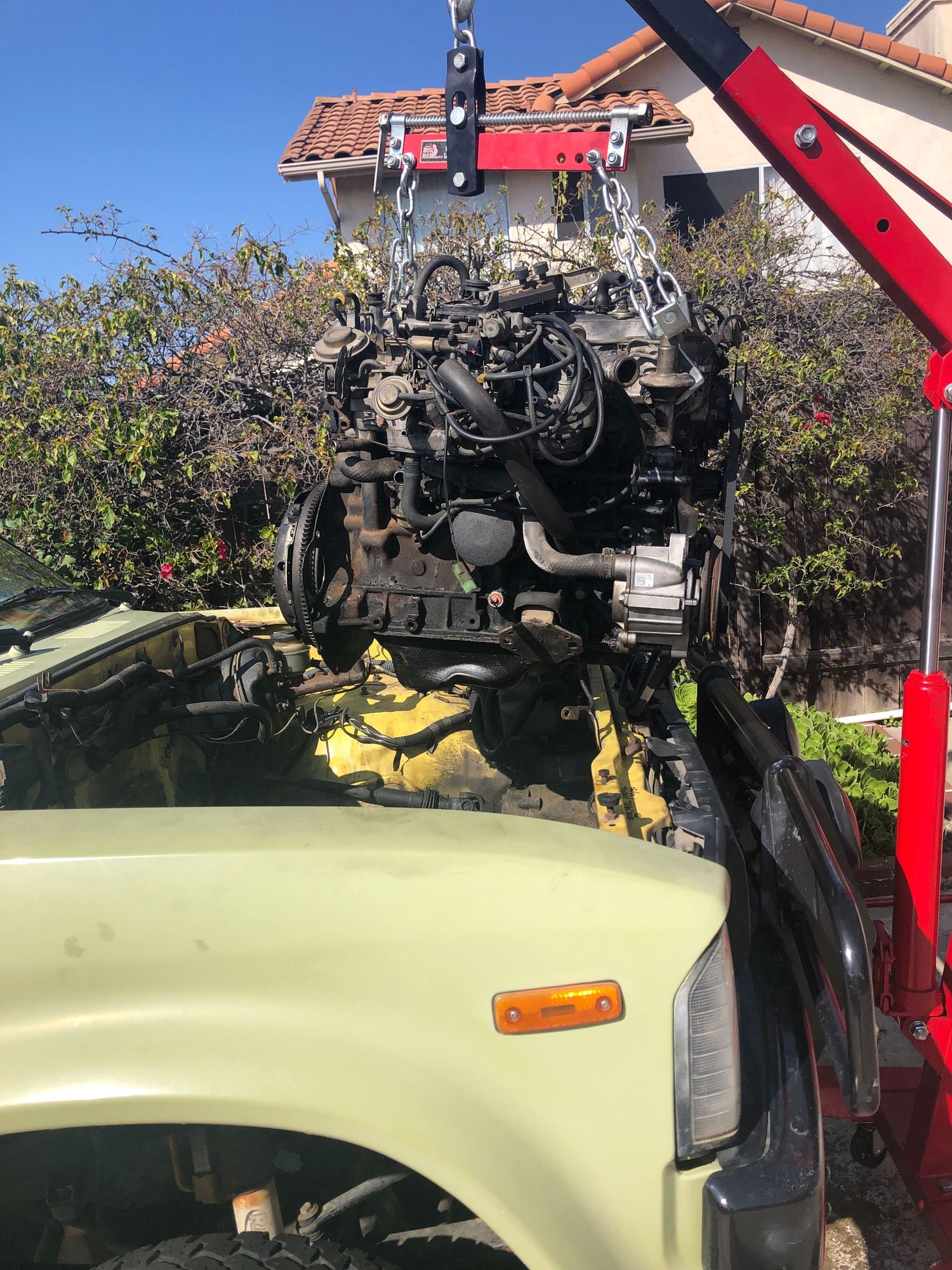

Next step: Finally got around to pulling the motor and transmission from the Hilux. It wasn't bad and I ended up getting it done by myself. I unbolted the motor from the transmission and cherry picking the motor from the front and then dropping the transmission from the bottom.

Had to remove the hood in order to pull out the 22r

Time to say good bye to the tried and true 22R

Hardest thing about this was removing the two bolts all the way in the back, sandwiched between the firewall and the tranny, holding the tranny to motor. Took me a good 40 mins to get the bolts out 1/2 turn at a time!!!

Last edited by fj40pinobilt; 05-18-2019 at 08:11 AM.
fj40pinobilt is offline
Old 05-20-2019, 09:07 PM
  #8
Registered User
iTrader: (1)

Join Date: Dec 2011
Location: sammamish, wa.
Posts: 2,038
Likes: 0
Received 27 Likes on 26 Posts
Try an many extensions as you have, i had about 36" of extensions. Its worked for me one time.
thefishguy77 is offline
Old 05-21-2019, 06:49 AM
  #9
Registered User

jakey poo's Avatar

Join Date: Jan 2015
Location: Cornelius, OR
Posts: 754
Received 30 Likes on 26 Posts
Originally Posted by thefishguy77 View Post
Try an many extensions as you have, i had about 36" of extensions. Its worked for me one time.
This is what has worked for me in the past
jakey poo is online now
Old 05-21-2019, 10:56 AM
  #10
Registered User

Join Date: Jan 2018
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Wireing

Got any info on how much wiring was involved. Like how did you trick the ECU to thinking the auto tranny is still there. Im about to do a reverse swap. Im putting a 90s 22r 5 speed tranny into a 09 automatic 2tr tacoma. I miss the feel of a 5 speed tranny plus the 4 speed auto is gutless in this thing.
Steven Reid is offline
