Vacuum Line Question
#1
Vacuum Line Question

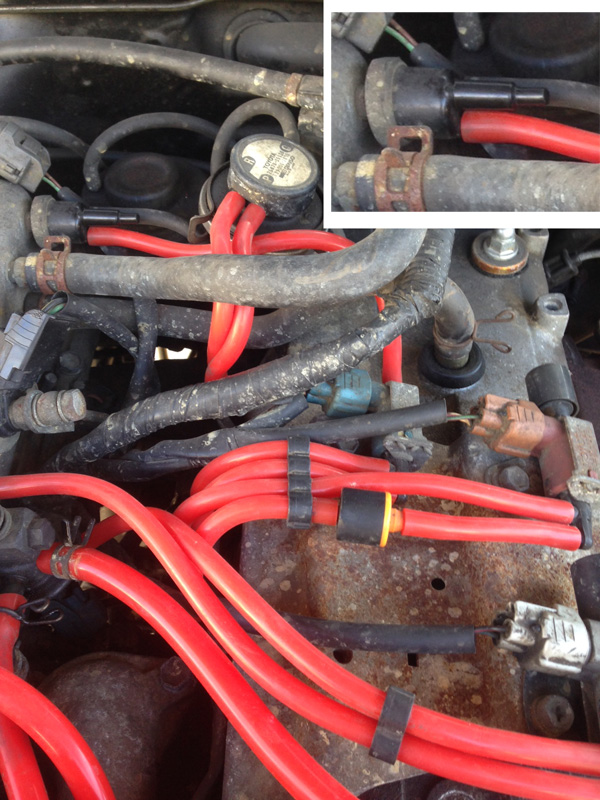

I'm not sure what this vacuum attachment is (see pic and insert in pic) but it has 3 connections. The top middle connection has a plug in it and when I first looked at it the far hose was attached to the end of the plug on the middle connector and the far connector had no hose on it. I guessed that the hose needed to come off the end of the plug and go on the connector as that seemed to make sense but I'm trying to make sure and the connector with no hose definitely didn't seem right. It's a 94 22re w auto, air and cruise. Thanks!
#2
Registered User
Join Date: May 2014
Location: Southern Oregon
Posts: 259
Likes: 0
Received 0 Likes
on
0 Posts
I have a 1987 with a 22RE and mine has two caps and the hose goes to the VSV.
Sorry, it doesn't show the VSV.
This old photo shows it. Its the greenish VSV, towards the rear of the engine.
Sorry, it doesn't show the VSV.
This old photo shows it. Its the greenish VSV, towards the rear of the engine.
#4
Registered User
Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 8,254
Likes: 0
Received 822 Likes
on
649 Posts
The short device with 3 ports is the "gas filter." It supplies manifold vacuum to components that need it, like the PAIR valve (through the VSV), cruise control, ADD, A/C Idle-up, and Fuel pressure idle-up. http://personal.utulsa.edu/~nathan-b...14layoutan.pdf All three ports are the same.
The "gas filter" does NOT connect to the EGR. http://personal.utulsa.edu/~nathan-b...18egrsyste.pdf
The "gas filter" does NOT connect to the EGR. http://personal.utulsa.edu/~nathan-b...18egrsyste.pdf
