MAXIMUS1968

I have a small canister next to the charcoal filter that has 2 vacuum lines coming from it. Cant seem to figure out where they go. 1 of them is hooked up, the other one i had to disconnect doing the head gasket job. I have a 94 22re auto, any help is appreciated

Elvota

Generally... one of the lines comes from the intake manifold for vacuum. The other heads off to control what it controls.

Where is the lined that is connected... connected?

A pic might help others determines exactley which VSV you are referring to.

MAXIMUS1968

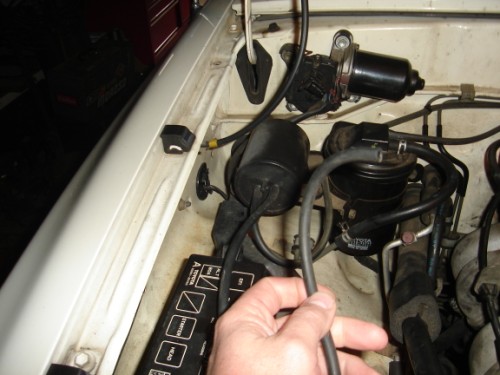

It lloks like one side goes to the cruise control and the other i have removed and cant recall where it goes. Here is a few pics

Elvota

Others may chime in, but most of those VSV just need a vacuum source.... any source. So, if you multiple open ports on your intake, pick any one that will fit.

Of course, make sure any open ports that are left open when you are done doing what you are doing are all plugged or you'll have a vacuum leak causing problems.

MAXIMUS1968

I got one more question, The small opening on the bottom side of the intake that bolts up to lines that go around back side of head,( has 2 small bolts thats a PITA to get too) does this have a gasket/o-ring of any kind? I didnt see one in my kit, I have just bolted it up and it went together fine

Elvota

Sorry... I don't have an answer for that one.

MAXIMUS1968

Here is a pic i found of what im talking about

Elvota

I don't know the 4CYL motor as well, but it looks like a coolant passage to me... which would most likely require a gasket or gasket material (RTV).

What year engine?

Try this link...
http://personal.utulsa.edu/~nathan-buchanan/93fsm/

There are a lots of exploded engine diagrams there that will show gaskets and O-rings.

MAXIMUS1968

Its the 22re, i am looking at the fsm now and i cant see that it shows one, i dont recall one there either when i took it loose. Some people are saying it needs one, I have already got the upper intake on, what a PITA if i have to take it all back off...bummer!
