Old 02-29-2016, 07:27 PM
  #21
Registered User
Thread Starter

Join Date: Nov 2009
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
"Don't they make a manifold gasket for your turbo? I know you fabricated the stuff yourself but the turbo side should still match."
Well, it is an odd turbo flange, I already checked it is very close to one of the standard T-x turbo flanges but the bolt holes are off. I think I may have found one but it was about $80

I surfaced my manifold flange which was badly warped from welding, and cut out a thin copper gasket. I coated both sides with copper anti-seize so the copper will help fill in voids, and the grease in it will coke and seal farther. The downpipe currently had no gasket, just using the flare to seal.


It sounds really nice with the turbo, I can really feel the boost, it spools in at 2k rpm, maxing out at 4 psi. The wastegate is really loose, I need to tighten it up. It should reduce creep, and I'll set it up to 5 psi.


When going up the hills on the main road i take at 45-50 mph I no longer have to downshift to 3rd gear to prevent lugging. I can stay in 5th and without moving the pedal, I can hear the turbo spool up on the hill and it goes right up the hill with no lugging. It does not even register on my gauge, just enough to overcome the terrible VE.



"As far as pcv, honda guys use a catch can for the increased blow by"
Catch can for blowby? Could you elaborate please?



"What was your afr while driving?" From the smell of the exhaust it's about rich and a half, stock o2 sensor is narrow band and is probably clogged with burnt coolant from the previous warped head and blown HG.




I felt the intake pipes after a drive and it was about 160*F probably mostly heat absorbed by the toast engine bay. I will probably get an air to water intercooler to cool the air as space is very limited in the engine bay.
If I had not paid $120 for a new IACV I would delete it, as it is pumping 180* water right into the intake for the air to absorb. Just use an arduino to monitor temps and turn on a idle up solenoid when temps are low.

Last edited by RatOmeter; 05-23-2016 at 10:24 AM.
RatOmeter is offline
Old 02-29-2016, 07:31 PM
  #22
Registered User
Thread Starter

Join Date: Nov 2009
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
I set the timing back to about 2* BTDC and with the stock ECU and fuel I have had no problems at all. No detonation at all. Eventually I plan to also add methanol/water injection that will spray at 5 psi and over.
RatOmeter is offline
Old 03-01-2016, 02:58 AM
  #23
Registered User

Join Date: Jan 2015
Location: Hendersonville NC
Posts: 652
Likes: 0
Received 0 Likes on 0 Posts
http://oilcatchcan.com

This is the general purpose of having one.

It touches on having a check valve for turbo charged vehicles.
92ehatch is offline
Old 03-08-2016, 05:38 PM
  #24
Registered User
Thread Starter

Join Date: Nov 2009
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
I'll also add an engine oil cooler, the radiator I have has a built in cooler in the bottom, so I'll use an oil filter sandwich plate to run oil over to it. The hose barbs for the cooler have an ID of maybe 3/16 or 1/4 inch, is that too small to carry the oil capacity the motor needs?

Last edited by RatOmeter; 05-23-2016 at 10:27 AM.
RatOmeter is offline
Old 03-09-2016, 10:32 AM
  #25
Registered User

Join Date: Sep 2007
Location: Edson, AB, Canada
Posts: 206
Likes: 0
Received 0 Likes on 0 Posts
This in mine, not running yet, have a Emtron ecu to wire in.

42pph bosch 4's
GM LS cnp
possible meth injection
crank trigger to go on, low voltage to dizzy for cam signal
oil catch can with sealed blow off
7.5:1 block
KKK audi turbo

You can get a plug in MS2, forget struggling with the AFM.

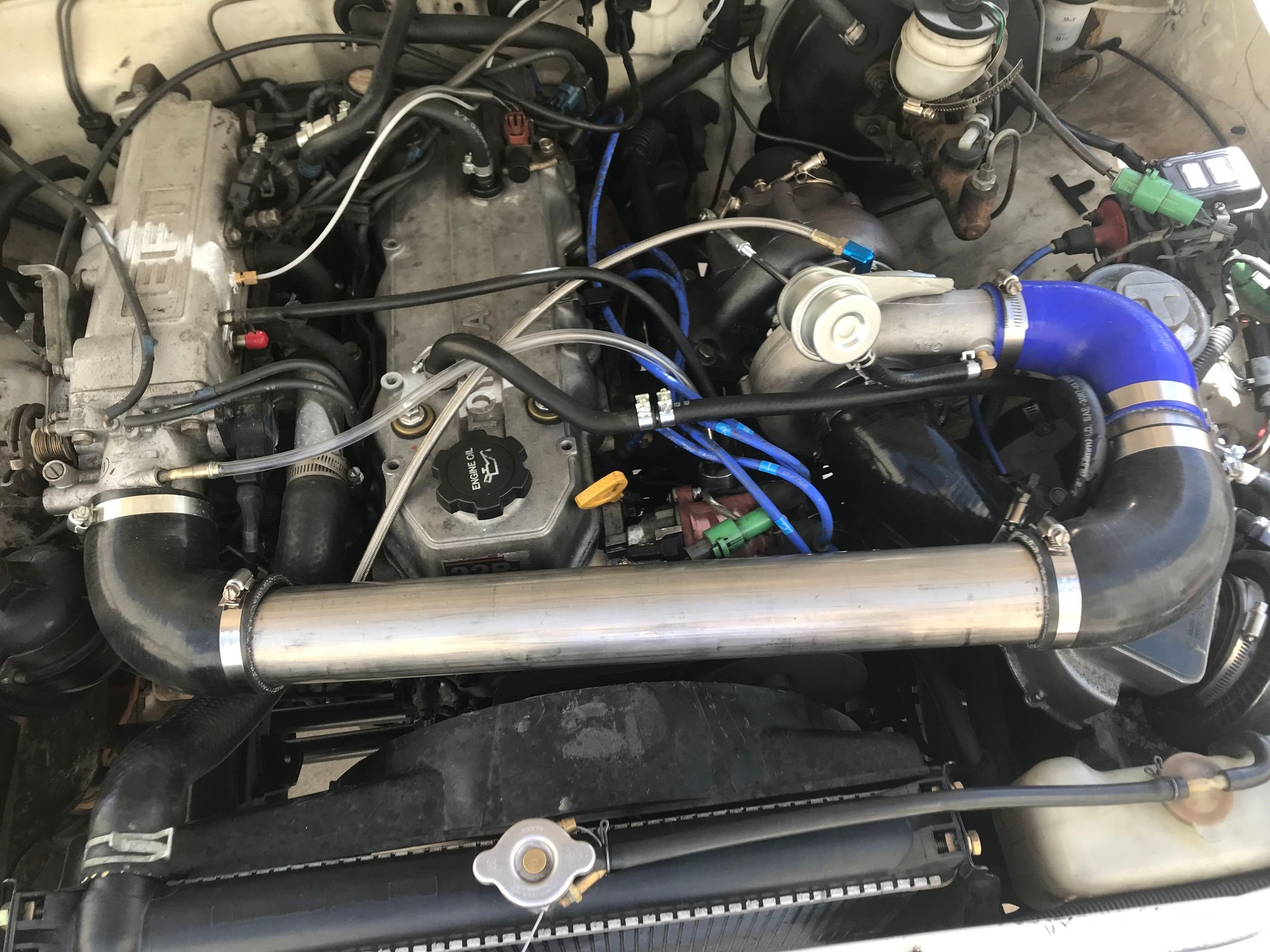

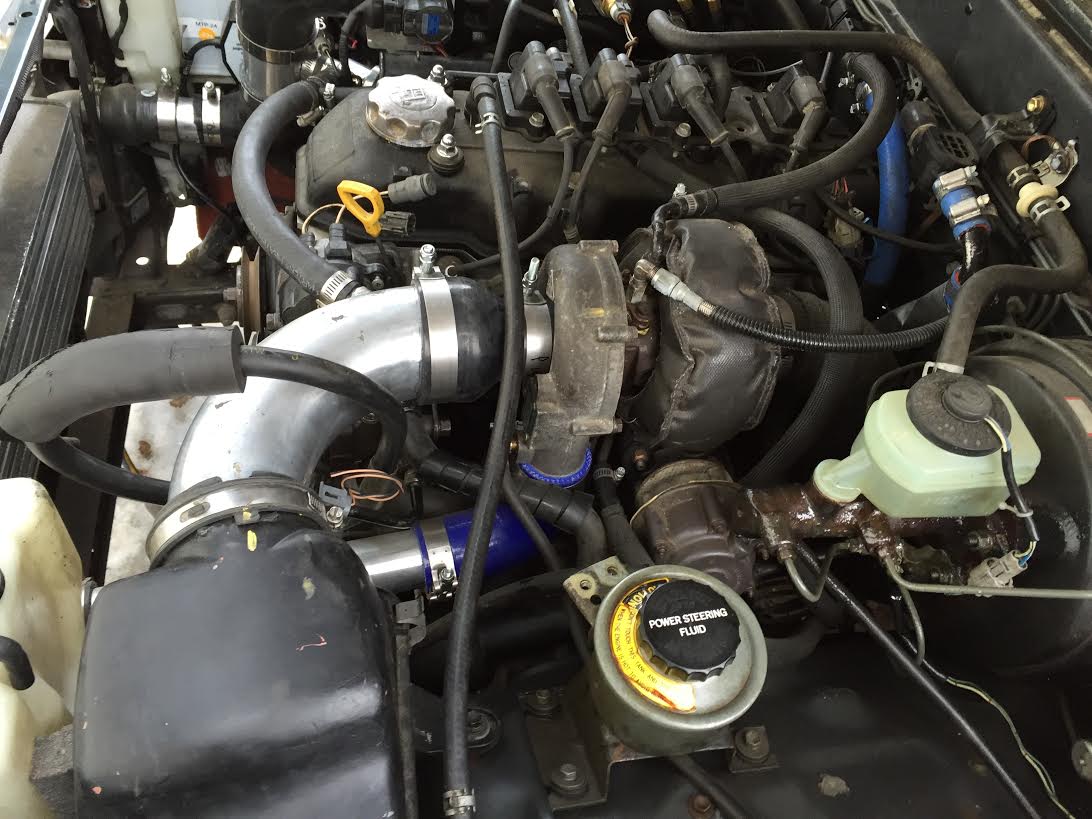

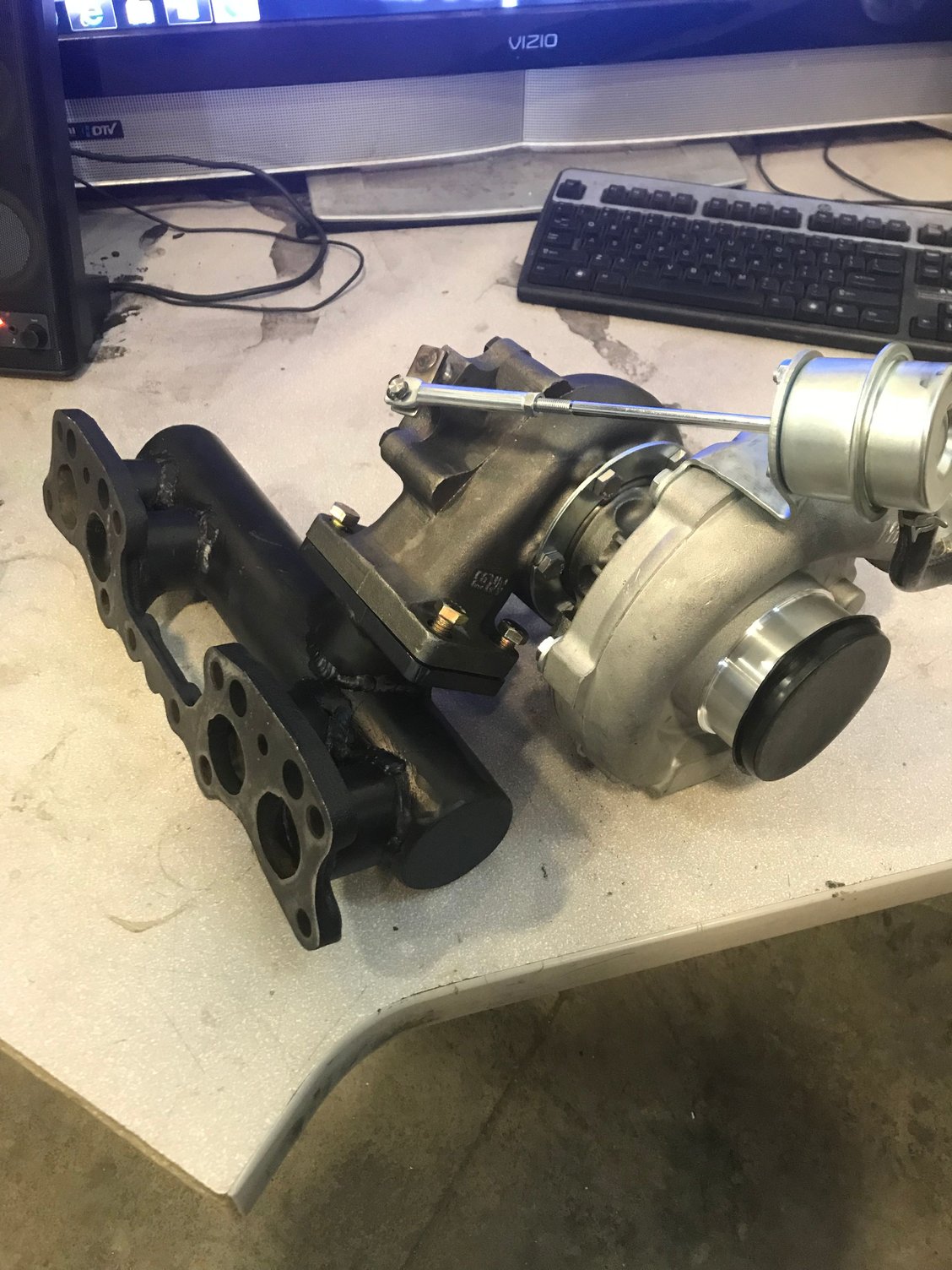

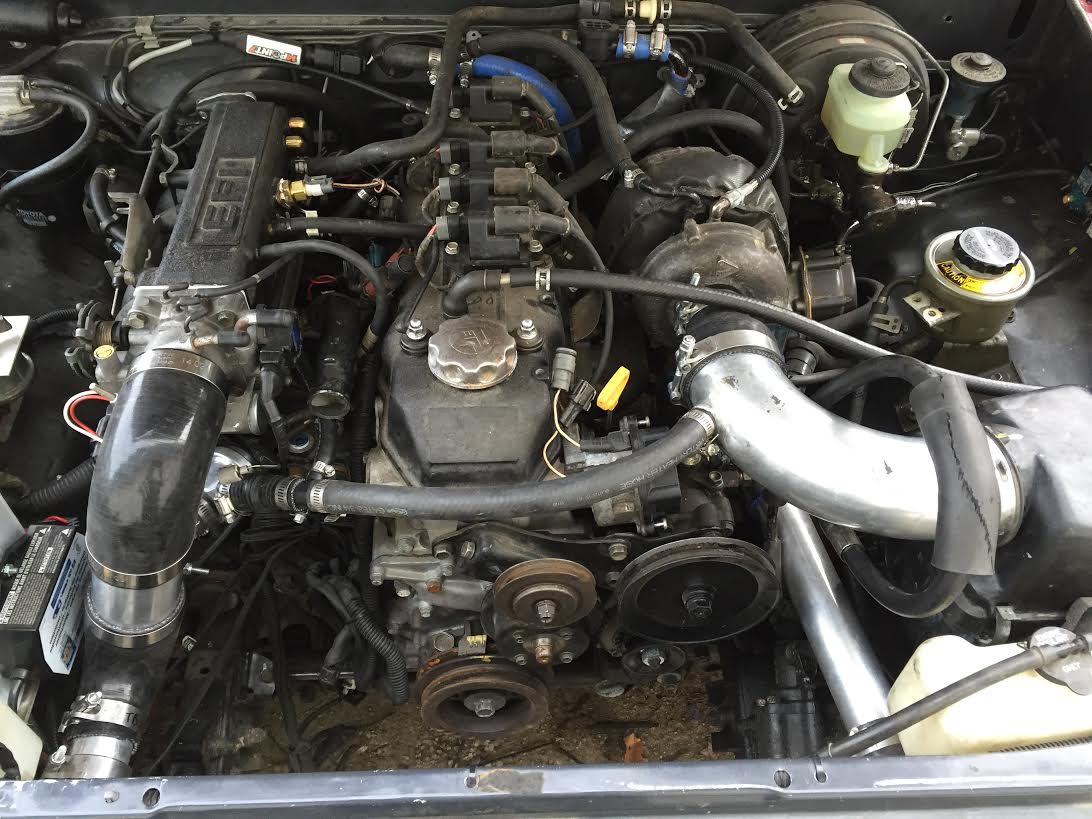

Attached Thumbnails Turbocharging A Stock 22re (BUILD)-3c69b6ad-be6b-4929-b167-d0f3ba05fd80.jpg   Turbocharging A Stock 22re (BUILD)-6dff99ec-b4d3-43f7-a601-2a995ef3d2aa.jpg

Last edited by dfarr67; 03-09-2016 at 10:35 AM.
dfarr67 is offline
Old 03-14-2016, 09:27 PM
  #26
Registered User
Thread Starter

Join Date: Nov 2009
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
Is your down pipe also really close to one of the brake lines? Mine's within 3/4 inch from the brake line, I wrapped the pipe extra to shield the brake line from the heat.


I ordered a new Denso o2 sensor to combat the rich running.
This week I will tackle the timing cover leak, it'll be a load of fun.

Last edited by RatOmeter; 03-14-2016 at 09:34 PM.
RatOmeter is offline
Old 04-26-2019, 05:23 PM
  #27
Registered User

Join Date: Apr 2019
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
Turbo 22re cheap easy fuel fix

Originally Posted by RatOmeter View Post
pain to add an intercooler, and I don't think much would be gained either with less than 6 psi of boost.

I have been thinking about adding methanol injection using a hobbs switch at 5 psi and up, where does one get methanol for cheap? Are you just using plain methanol/water washer fluid?

Also after driving there is a lot of vapor/smoke coming out of the crank breather, I did disconnect the PCV since I don't trust the checkvalve to keep my boost in. Is that normal?

I'll be sure to post a youtube video once I get the blown exhaust gasket fixed.

Attached are pics of the blown gasket, the boost gauge, and my temporary exhaust coupling fix 0_o

i am interested in seeing what you did with fuel? I have the same setup as you are using pretty much. Homemade manifold, t3/t4 60mm, arp studs, king mains, rods, thrust washers, catch can for my pcv vacuum, boost gauge, aem af gauge with wideband. I donít want to spend money on ecu so bigger injectors? Ideas





Xcrawlertrash303x is offline
Old 04-26-2019, 08:17 PM
  #28
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 4,327
Likes: 0
Received 100 Likes on 94 Posts
Pretty sure I see a plastic PCV valve in that last picture.. Go to the Toyota dealer and get a good one that actually seals properly.
Co_94_PU is offline
Old 04-27-2019, 06:43 AM
  #29
Registered User

Join Date: Apr 2019
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Co_94_PU View Post
Pretty sure I see a plastic PCV valve in that last picture.. Go to the Toyota dealer and get a good one that actually seals properly.
this obviously wasnít for me
Xcrawlertrash303x is offline
Old 04-27-2019, 12:18 PM
  #30
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 4,327
Likes: 0
Received 100 Likes on 94 Posts
Originally Posted by Xcrawlertrash303x View Post





No it was for you, just not an answer to your question..

If you go to a "part store" and ask for a PCV valve for a 22ret, then ask them for the one to a 22re they will give you the exact same part.

If you do this at a Toyota dealership parts counter you will receive two different parts. Both of which are manufactured to much better quality standards. (IE, they actually close off the air flow from the intake)..

To answer your question.. To get more fuel (assuming your guage is telling you you are running out of fuel, lean AFR) your options are.. Bigger injectors, more fuel pressure, a tunable computer, or some combination of those.
Co_94_PU is offline
Old 04-27-2019, 12:23 PM
  #31
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 4,327
Likes: 0
Received 100 Likes on 94 Posts

Toyota on top.
Generic "part store" on bottom.
Co_94_PU is offline
