Just did the swap, but it seems none of the gauges work. All the lights seem to be working fine, but no gauges. I swapped the oil sender before I did the swap.
AveCat is offline
Old 10-04-2016, 09:06 AM
  #342
Registered User

Join Date: Oct 2016
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
Looks like there was a short in the cluster, got it fixed and working.
AveCat is offline
Old 11-21-2016, 05:42 AM
  #343
Registered User

Join Date: Nov 2016
Location: Guatemala City
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Hello! this is a A+ "how to", does anyone know if this cluster gauge could be use in a Toyota Pickup 1988 22r 2wd, base model with 2.4L?
Carlos Medrano is offline
Old 11-21-2016, 05:33 PM
  #344
Registered User

Birdman1890's Avatar

Join Date: Mar 2016
Location: Mechanicsburg,PA
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Yes, it will>
Birdman1890 is offline
Old 04-04-2018, 04:12 PM
  #345
Registered User

Wavy stick's Avatar

Join Date: Jan 2018
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 86toyota View Post
Thanks for the great writeup. I'd thought I would add some photos of a electronic odometer swap. I changed my miles this way without removing the speedometer needle.

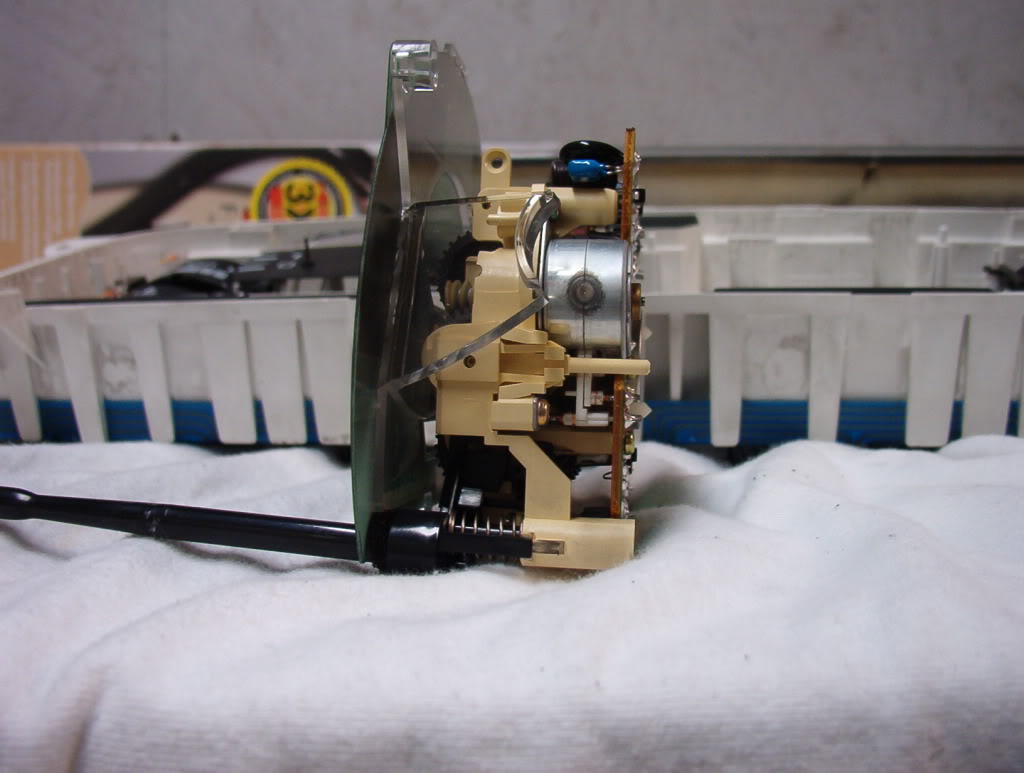

Picture of a electronic piece:

Attachment 183215

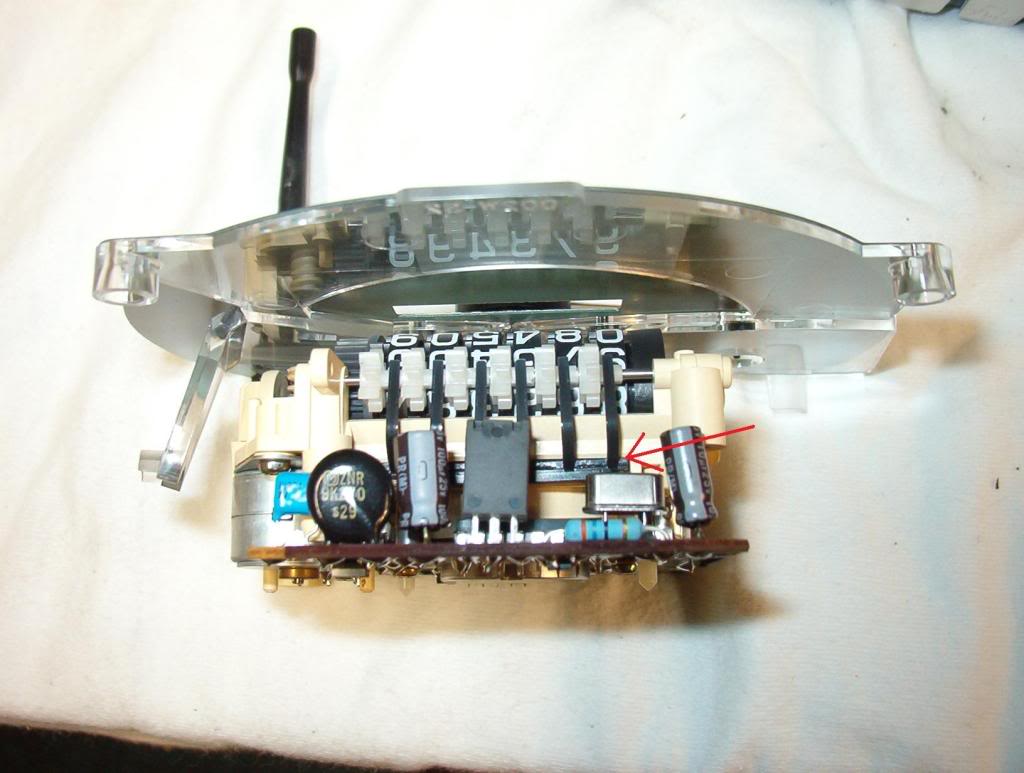

Remove this black finger looking piece first. Just pops right out.

Attachment 183216

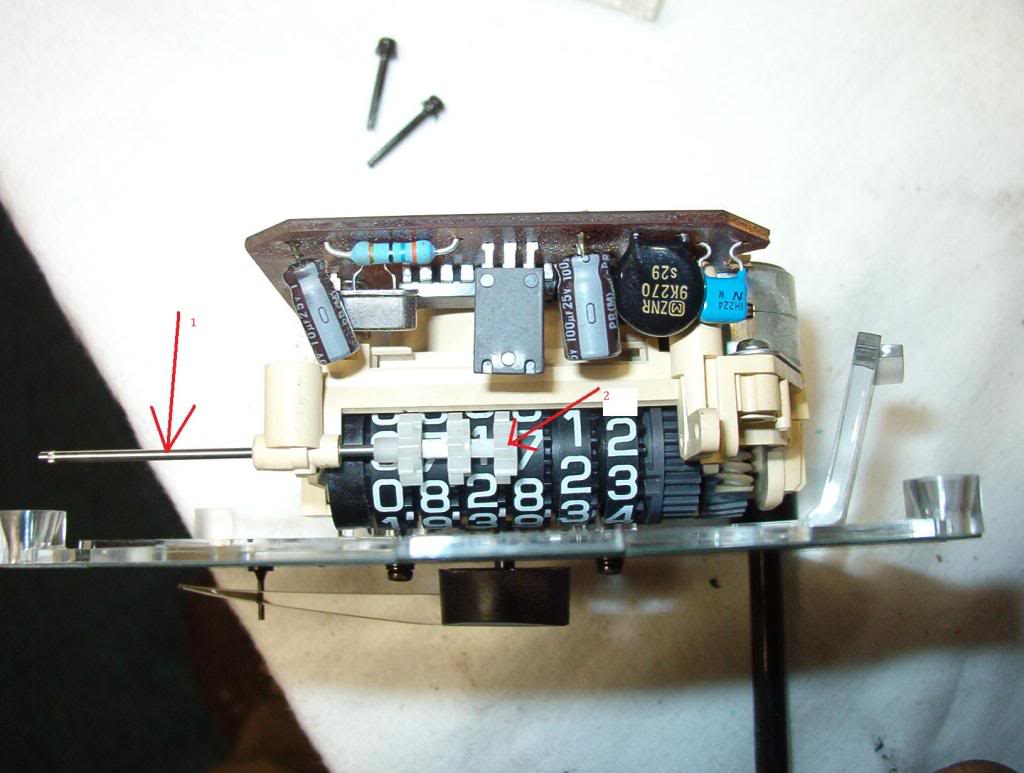

I used a ice pick to push out the rod(no. 1)
Remove the white gears(No. 2)
You should be able to set the miles to the correct reading by just turning them freely. You'll need some patient putting it back together. Slide the rod back in while placing the white gears on one at a time. Keep checking to make sure the miles are still reading correctly. Put the black finger thing in.

Attachment 183217

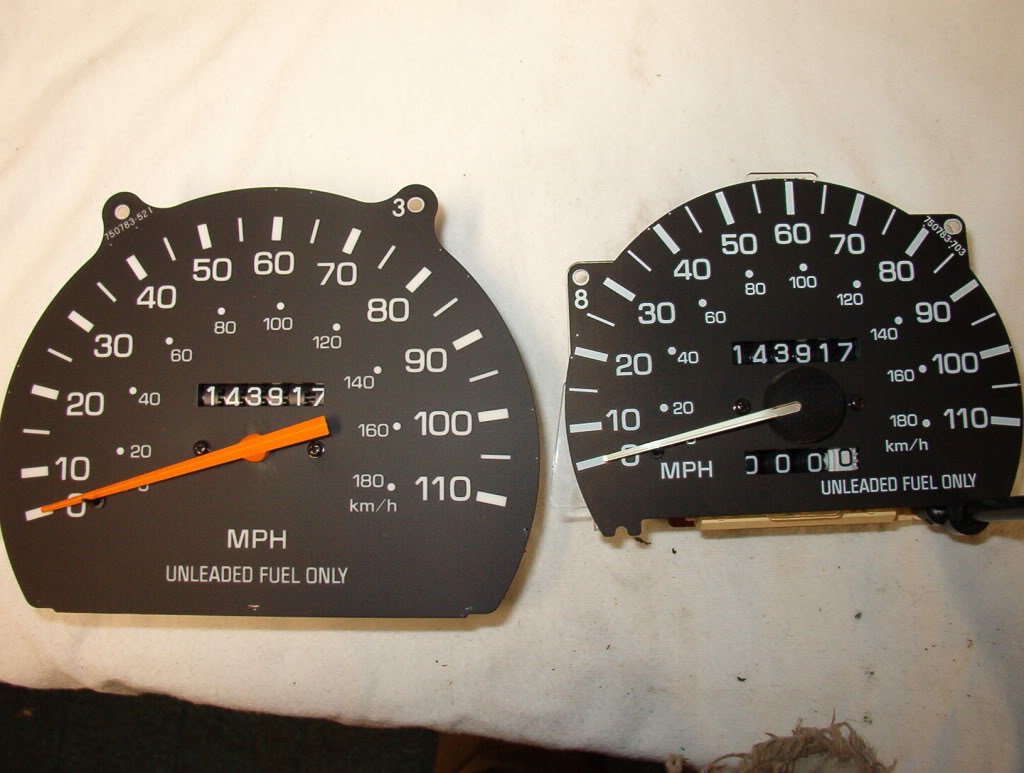

Attachment 183218

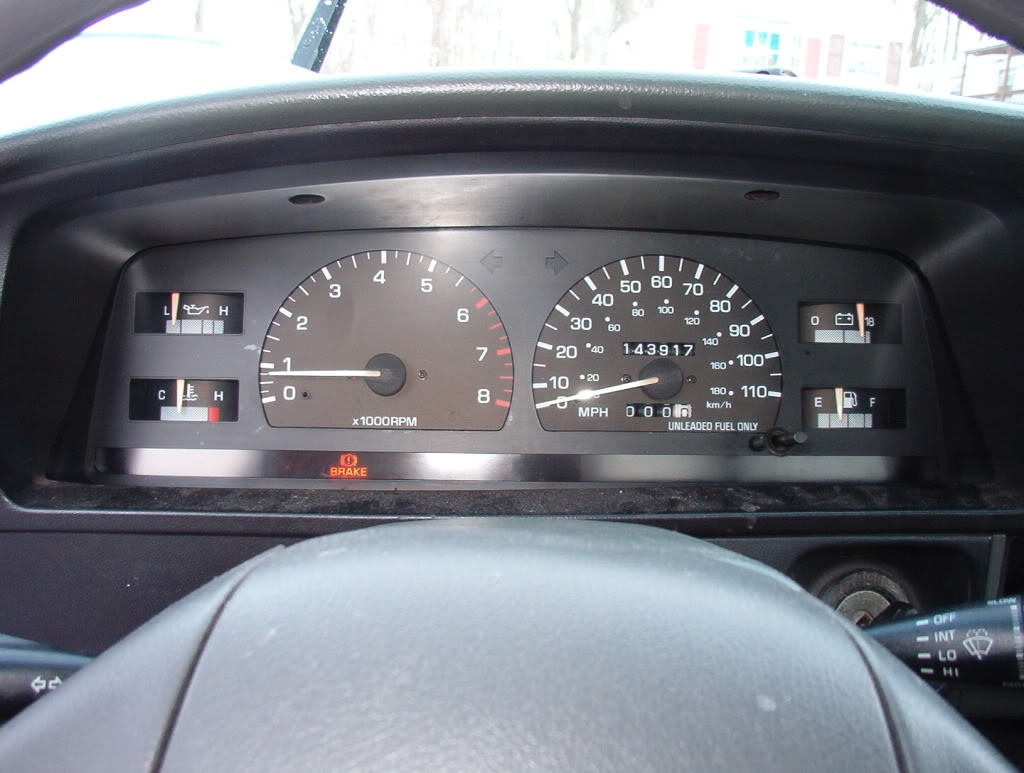

Attachment 183219

I know this is an old post but I'm doing this swap and can't get the rod out to correct the new odometer. Was there any trick to it? No matter how hard I push on it, it won't give, so much so that I'm afraid that I might break the plastic haha. Any tips?
Wavy stick is offline
Old 04-15-2018, 07:53 PM
  #346
Registered User

defrag4's Avatar

Join Date: Oct 2010
Location: Orinda, CA
Posts: 210
Likes: 0
Received 0 Likes on 0 Posts
great writeup, how in the sam hell do u get a screwdriver onto that pot???
defrag4 is offline
Old 05-21-2018, 09:43 AM
  #347
Registered User

Join Date: Apr 2018
Posts: 3
Received 1 Like on 1 Post
Thanks for the write-up. Do you have a Part Number for the correct "SR5 Oil Pressure Sending Unit" to fit to the 22RE to make the new gauge cluster work? For an electronic cluster, does the tachometer need to be calibrated or does the cluster automatically recognize either a V6 or 4 cylinder applications? My switch is for an electric cluster, so I'm having the speedometer shop correct the odometer and need to tell him if her needs to calibrate the tachometer to 68.3 ohms or not.
DMilla is offline
Old 05-21-2018, 11:42 AM
  #348
Registered User
iTrader: (2)

se7enine's Avatar

Join Date: Nov 2006
Location: Reno , Nevada
Posts: 529
Likes: 0
Received 10 Likes on 10 Posts
Originally Posted by DMilla View Post
Thanks for the write-up. Do you have a Part Number for the correct "SR5 Oil Pressure Sending Unit" to fit to the 22RE to make the new gauge cluster work? For an electronic cluster, does the tachometer need to be calibrated or does the cluster automatically recognize either a V6 or 4 cylinder applications? My switch is for an electric cluster, so I'm having the speedometer shop correct the odometer and need to tell him if her needs to calibrate the tachometer to 68.3 ohms or not.
The tach will need adjustment if it is from a V6 going into a 4cyl or vise versa.
se7enine is offline
Old 08-08-2018, 05:52 PM
  #349
Registered User

Join Date: Aug 2018
Location: Central Coast, CA
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Great write up, my install went pretty smooth. I have a problem with my speedometer though, it seems to be registering about 10-15 mph faster than I'm actually going while at highway speeds. I almost crapped myself this morning when I looked down to see the gauge reading 90, so I checked GPS which said 75. Any Idea how to fix this? '91 4x4 4Runner V6 cable cluster -> '91 2-wheel PU x-cab.
darth_bronchioles is offline
Old 08-10-2018, 04:28 PM
  #350
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 4,275
Likes: 0
Received 82 Likes on 80 Posts
Originally Posted by darth_bronchioles View Post
Great write up, my install went pretty smooth. I have a problem with my speedometer though, it seems to be registering about 10-15 mph faster than I'm actually going while at highway speeds. I almost crapped myself this morning when I looked down to see the gauge reading 90, so I checked GPS which said 75. Any Idea how to fix this? '91 4x4 4Runner V6 cable cluster -> '91 2-wheel PU x-cab.
Taller tires, or change the gear the speedometer runs on. There is a gearset on the transmission side of the cable, iirc there are two or three ratios
Co_94_PU is offline
Old 08-10-2018, 05:40 PM
  #351
Registered User

Join Date: Sep 2007
Location: San Francisco East Bay
Posts: 6,608
Likes: 0
Received 107 Likes on 95 Posts
Depends on the transmission. What I don't know is if you can replace just the driven gear, of if the driving gear has to be replaced as well.
https://parts.lakelandtoyota.com/sho...3911544#33403G
scope103 is offline
Old 01-05-2019, 05:48 PM
  #352
Registered User

Join Date: Apr 2011
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
Don't recall seeing this stated....Is a SR5 cluster out of a 2wd compatible with 4wd's as well due to the obvious reasons?

Last edited by mrgtstr; 01-05-2019 at 05:50 PM.
mrgtstr is offline
Old 05-07-2019, 07:54 PM
  #353
Registered User

Amethyst_Spark's Avatar

Join Date: May 2019
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
So I followed the instructions and got my new sr5 cluster in my 91 bad model. But I have no tach at all anyone have any suggestions as to what I can do to get that part working
Amethyst_Spark is offline
Old 05-07-2019, 08:13 PM
  #354
Registered User

Amethyst_Spark's Avatar

Join Date: May 2019
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by HeroEnVec View Post
Hey guys, I just swapped my cluster out. If anyone with a stock 22re and W55 (stock rear end) could give some speeds and RPM ranges at those speeds that would be awesome. Say, 5th gear at 60mph =?rpm? This would help people make sure their set up is working properly.

Also, I changed out the oil pressure sending unit, and the gauge is not reading. I think I have a bad gauge in the cluster. Because the sending unit cost me $50, I took it back and got my money. I am just going to install a autometer electronic gauge, which should be better anyway, and only about $60-70. Right now I have a check engine light, likely because I do not have the idiot light sensor plugged in. I'm just going to leave it plugged in so the light goes off... anyone see a problem with that if the cluster is already screwed up?

Jon

EDIT: my truck is a 95 base pickup. My tach was not working so I had to run the wire from the P marked screw on the cluster to the yellow wire on the ignition near the coil. I just opened up the connector, put a skinny wire in, and plugged it back up. No splice needed.

Can you by chance show me how you did this. I want my tach to work
Amethyst_Spark is offline
Old 05-08-2019, 02:48 PM
  #355
Registered User

Amethyst_Spark's Avatar

Join Date: May 2019
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ebye90 View Post
I just did this swap today, thanks to superbleeder and twistedsymphony! I dont know if this question has been answered or not yet, but i figured it out, and borrowed one of 'bleeders pics to illustrate the how to for anyone who is having this problem. I already had a sunpro tach in my truck before i started, so i had already run a wire from my ignition coil into the cab. If you havent gotten that far, you need to splice a wire into the ground side of the ignition coil. (on my '93 there is a tan and a black wire, the ground is the black wire). then run the other end of the wire either into the 6th position from the left on the blue connector, or attach the wire directly to the screw labeled "P" on the back of the cluster. I had problems with the wire trying to short across other pins so I attached it directly to the screw. Here is the pic I borrowed and circled the pin/screw:
Is there anyway you can show me what you did because obviously I canít see the pictures. Iím trying to wire my tach into the harness but I donít want to mess anything up
Amethyst_Spark is offline
Old 05-08-2019, 03:13 PM
  #356
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 4,275
Likes: 0
Received 82 Likes on 80 Posts
Originally Posted by Amethyst_Spark View Post
So I followed the instructions and got my new sr5 cluster in my 91 bad model. But I have no tach at all anyone have any suggestions as to what I can do to get that part working
Gwt out your service manual (FSM) flip thru to the cluster pages and locate the tach/RPM pin (from what I remember it's some where on the C connector), you need to connect this to the RPM on the diagnostics port under the hood.. I don't think I took any pictures, but I spend "all day" at the junkyard getting the factory wire out of a dash harness..

Last edited by Co_94_PU; 05-08-2019 at 03:18 PM.
Co_94_PU is offline
Old 05-08-2019, 06:50 PM
  #357
Registered User

Amethyst_Spark's Avatar

Join Date: May 2019
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Co_94_PU View Post
Gwt out your service manual (FSM) flip thru to the cluster pages and locate the tach/RPM pin (from what I remember it's some where on the C connector), you need to connect this to the RPM on the diagnostics port under the hood.. I don't think I took any pictures, but I spend "all day" at the junkyard getting the factory wire out of a dash harness..
all I have is my chiltons book I donít have the original owner manual. I guess I can do some more digging around. I just remember someone saying the connected a wire to the ignition coil and the P screw.
Amethyst_Spark is offline
