Hey all,
i am about to replace my heater core soon.
i got this truck with the coolant system somewhat jimmy rigged as the heater core was leaking.
I have wrapped my head around the routing for the fire wall heater hoses.
But i am a bit confused how to incorporate the rear heater core lines into the mix.
Truck is a 1990 2nd gen 4runner.

Any help or diagrams would be greatly appreciated. Ive been having a hard time finding anything useful online.

Thanks.



First question to be answered is>>> Does your truck have a rear heater in the center console??



Yes. Small blower/heater core in console.



Anyone?



Been busy.
I'll try to post some pics tomorrow.



Thanks! Appreciate it.

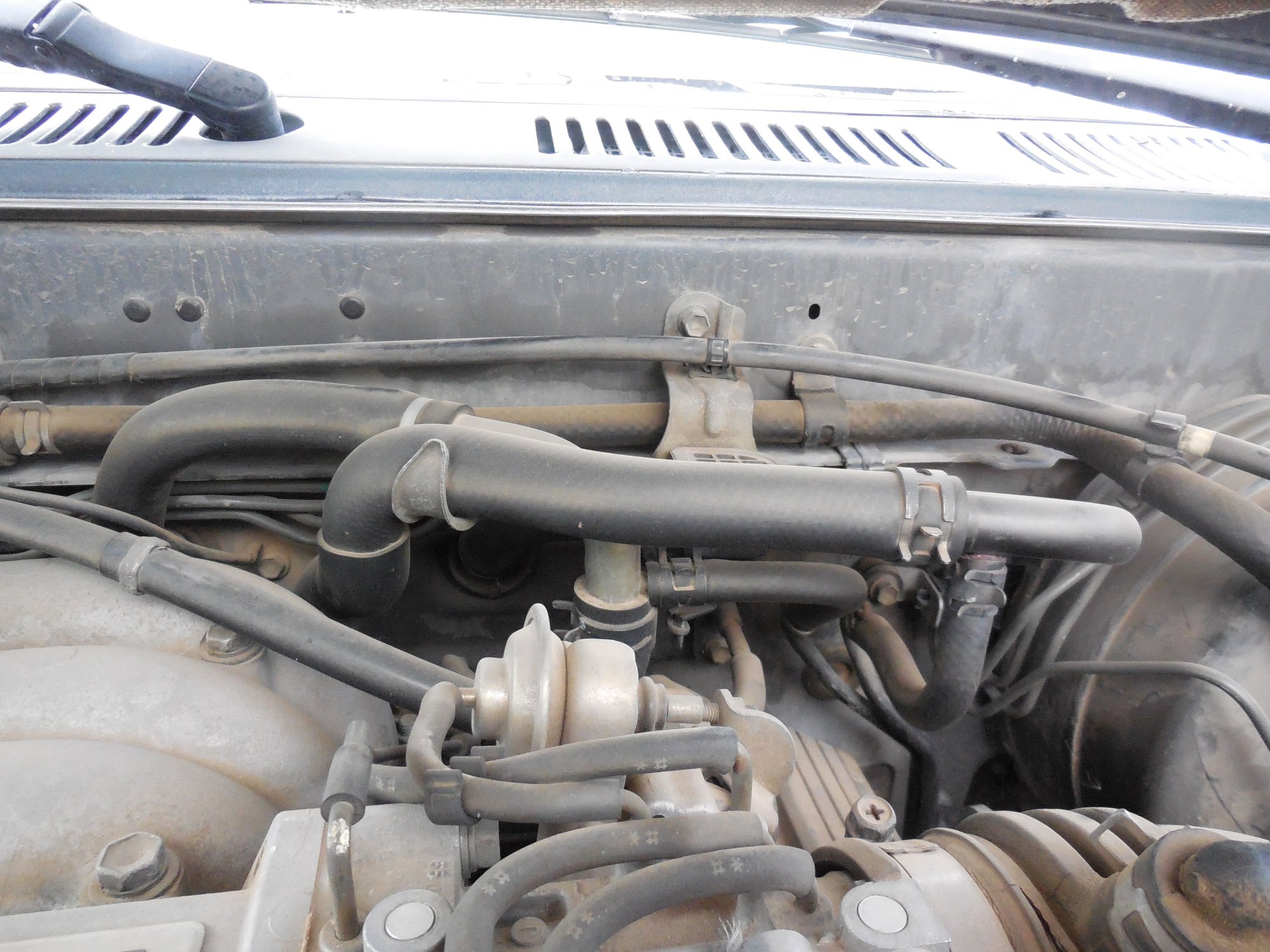

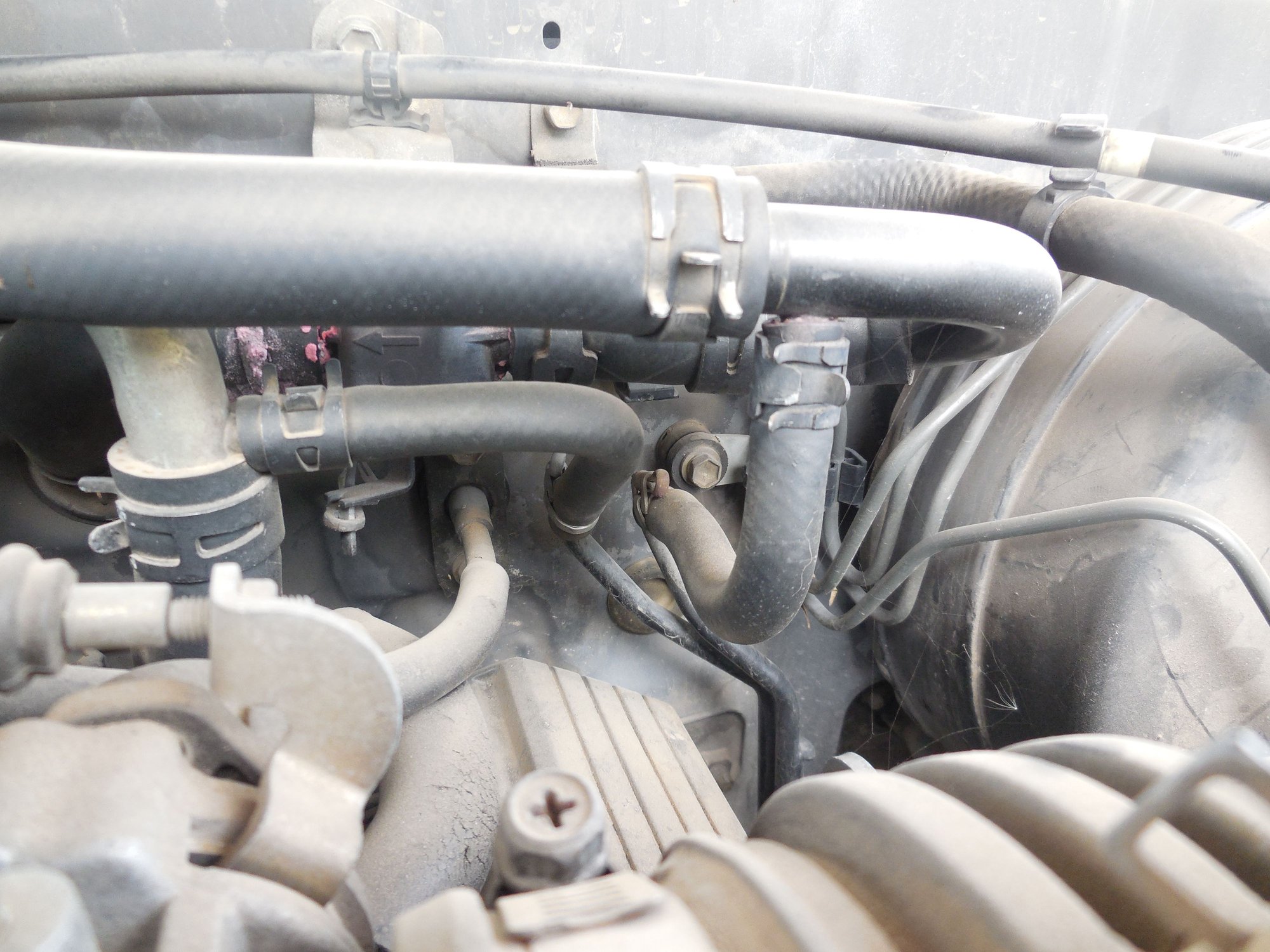

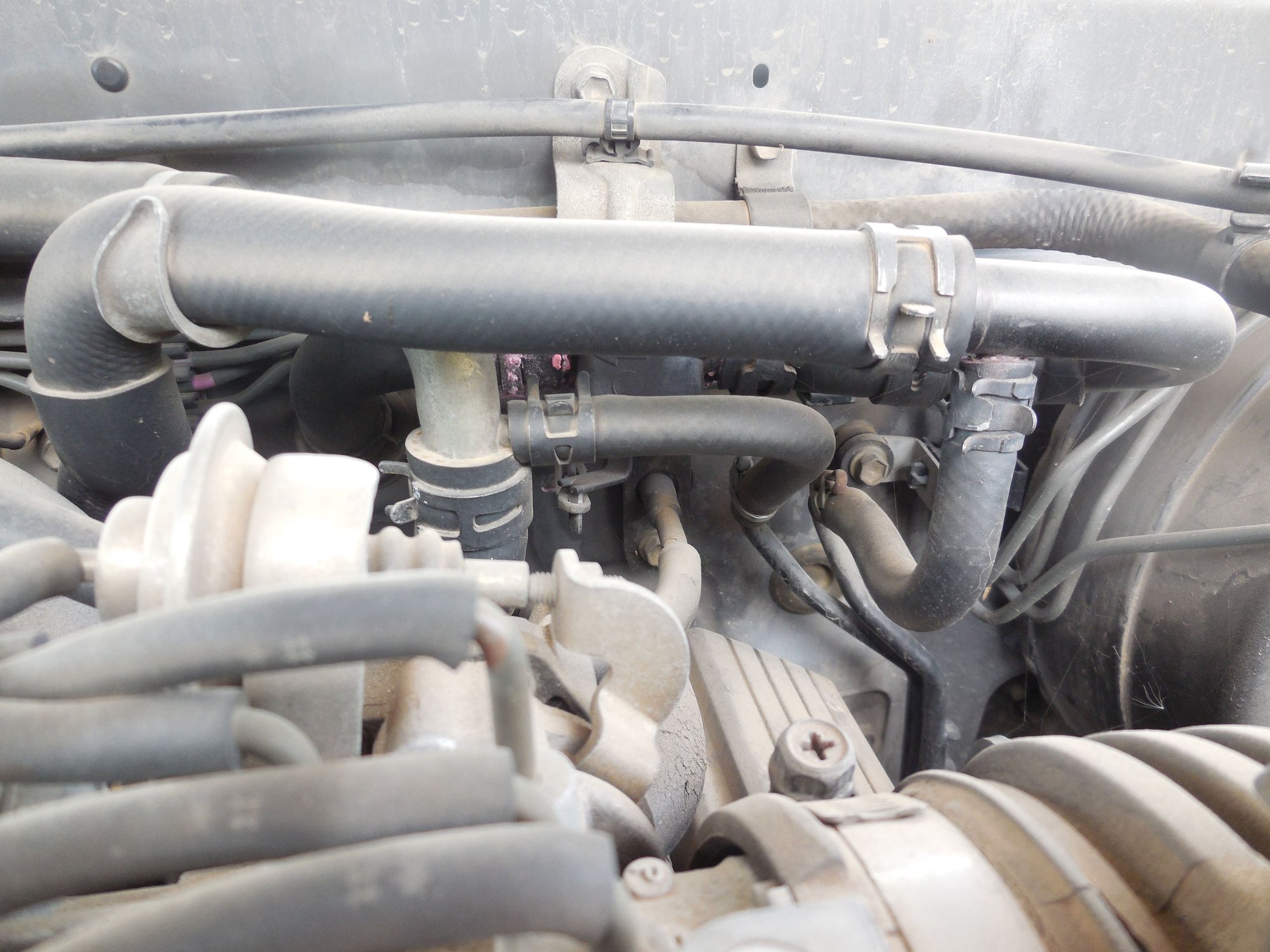

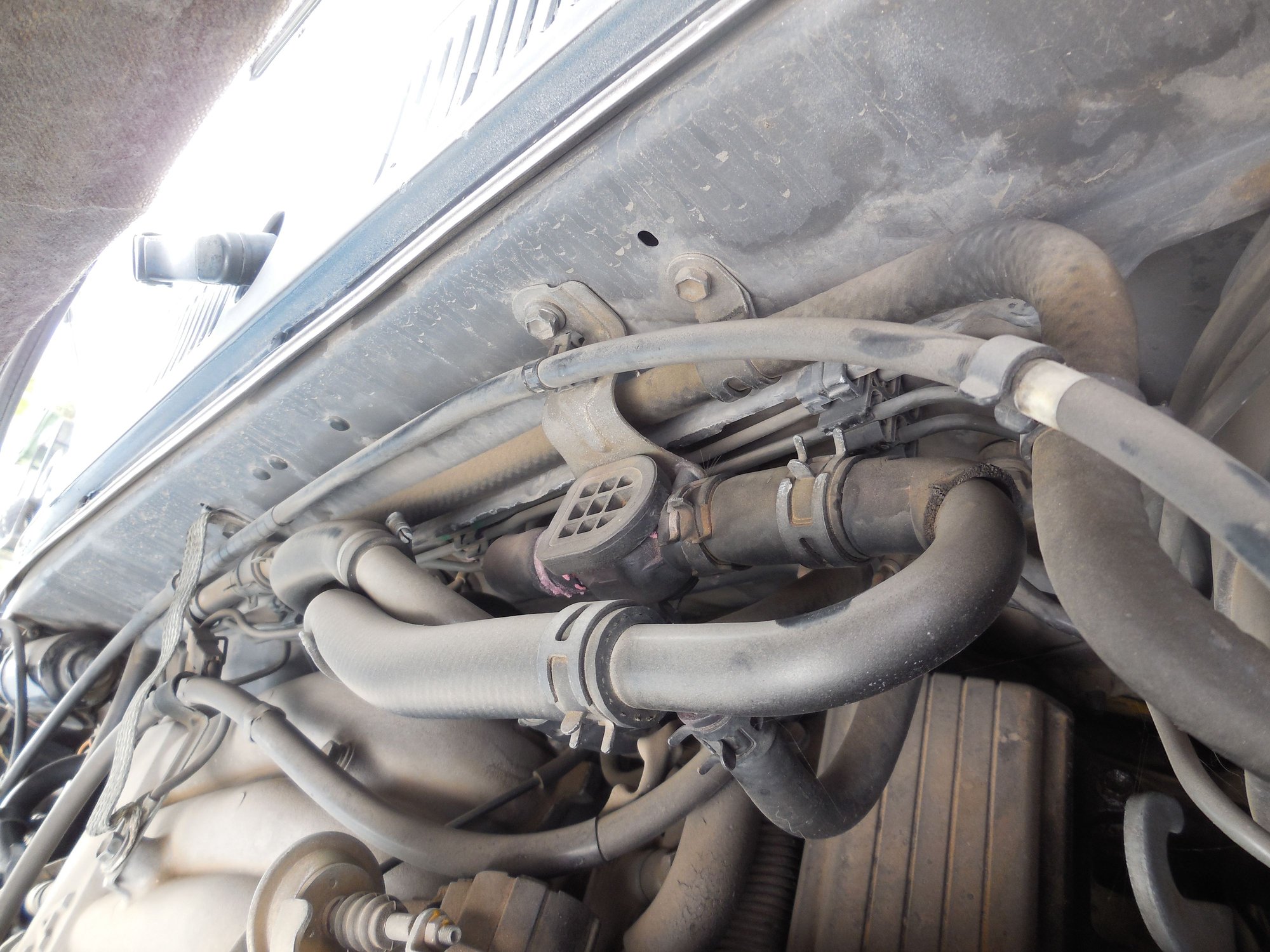

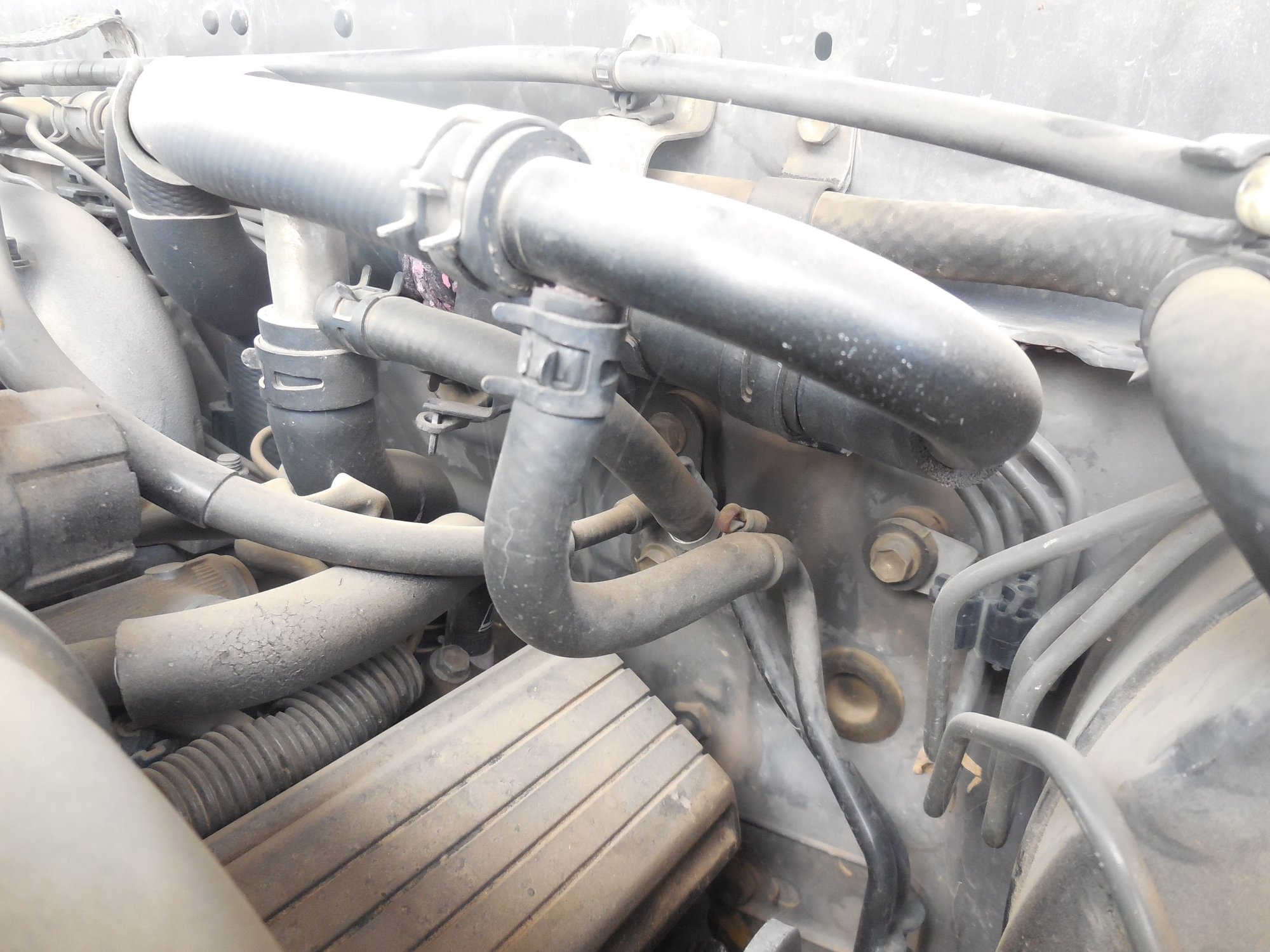

Here's some pics of the hoses on my 1995 'Runner



Thats great, thank you.
My 22re should be essentially the same layout i would think.
Looks like ill have to get some T fittings to splice in.

Thanks again!
