Need Pin Outs - Front Power Window/Lock Cross Reference

My front door power window/lock control module on my 86 4Runner is on it's way out. Finding a replacement module is next to impossible. I found an 89-90 module on ebay for cheap and noticed that the wire harness plug is the same.

I know better than to assume that all of the pins are arranged the same. I am hoping someone has the pin out & schematics for both the 84-88 window control module box as well as the 89-90 module box so that I can compare and move pins, if necessary.

Thanks in advance!
stanz is offline   Reply With Quote
Old 04-16-2018, 10:56 AM   #2
Registered User
iTrader: (1)

wyoming9's Avatar

Join Date: Apr 2009
Location: I live in New Tripoli Pa out in the woods
Posts: 12,625
Red face

Do you know where the Relay is located ?

I have no idea if it works but could test it it is out of the 86 pick up.
wyoming9 is offline   Reply With Quote
Old 04-16-2018, 11:00 AM   #3
Registered User
Thread Starter
iTrader: (1)

stanz's Avatar

Join Date: Nov 2011
Location: Portland, OR
Posts: 644
Itís located above the steering column under the dash. It has a slot that allows it to slide and lock onto a bracket.

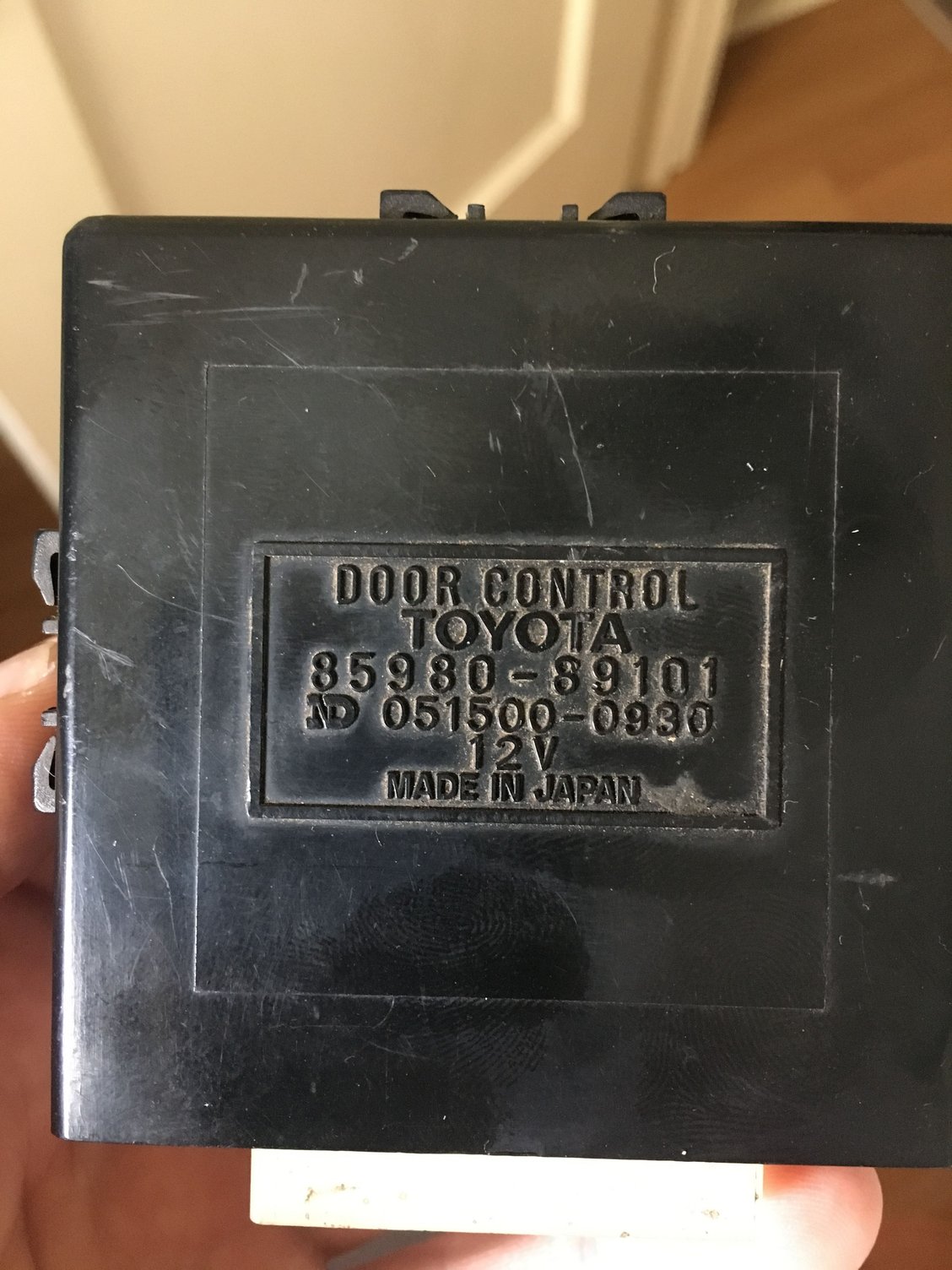

it looks like this:

stanz is offline   Reply With Quote
Old 04-16-2018, 05:23 PM   #4
Registered User

RAD4Runner's Avatar

Join Date: Mar 2012
Posts: 4,990
IIRC, I got this from PDF version of 1988 FSM. (Ignore troubleshooting notes).



I like your TNW logo
Seen The West Coast one?
RAD4Runner is offline   Reply With Quote
Old 04-17-2018, 12:43 AM   #5
Registered User
iTrader: (1)

wyoming9's Avatar

Join Date: Apr 2009
Location: I live in New Tripoli Pa out in the woods
Posts: 12,625
Red face

As soon as The monsoons quit I will check things out
wyoming9 is offline   Reply With Quote
Old 04-17-2018, 10:38 AM   #6
Registered User

Join Date: Apr 2018
Posts: 3
You can still find them at the dealers at a gold mine price of 250 bucks. I burned mine out after replacing the door panel switches. The wires were run wrong & since i've been search junk yards but SR5 4runners can be well picked over or they are burned out already. Happened to me twice - found the control unit and it locked the doors and the other one worked with the power windows but none of them did both. Thinking about selling my 4runner to but the control unit.... (kidding)
Hiddenforest is offline   Reply With Quote
