I was wondering if anybody had a copy of emission diagram for 87 toyota 4runner I have looked at the Hayes manual but the view for the emissions is not very handy I have pulled a motor and put a new head on, got it all together then ran into the emmision and the efi hoses I have no clue where some of them go please help.
#2
Contributing Member
Fig. 11: Emission system component layout and vacuum diagram-1987 22R-E engine
Fig. 12: Emission system component layout and vacuum diagram-1987 22R-TE engine
Fig. 13: Emission system component layout and vacuum diagram-1987 22R engine (Federal and Canada)
Fig. 14: Emission system component layout and vacuum diagram-1987 22R engine (California)
Fig. 12: Emission system component layout and vacuum diagram-1987 22R-TE engine
Fig. 13: Emission system component layout and vacuum diagram-1987 22R engine (Federal and Canada)
Fig. 14: Emission system component layout and vacuum diagram-1987 22R engine (California)
#3
Thanks man looks like the same one I got from toyota but they dont seem to be the correct one's I seem to be missing some stuff I will take a picture and post it maybe that will help.Humm interesting I just looked at a differen't valve cover and it has none of the same holes that I have on my runner atm.
Last edited by erock; 10-03-2006 at 01:13 AM.
#4

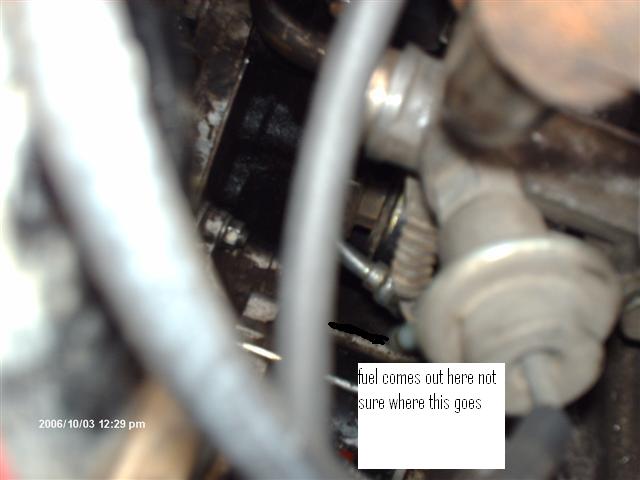

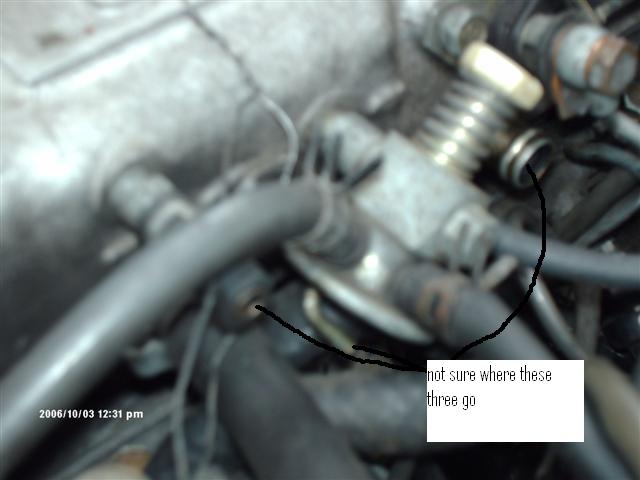

Here are the pictures of what I am missing,there is one more picture but couldn't get resized small enough but it's 2 hoses coming off the power stearing pump and I'm missing an electrical connection from a brown plug from the left middles side if the EFI
Last edited by erock; 10-03-2006 at 12:12 PM.
#5
Registered User
Join Date: Jan 2006
Location: Massachusetts
Posts: 392
Likes: 0
Received 0 Likes
on
0 Posts
Is this a 22 RE? I don't recognize the electrical one but I can't see it that well either. The two hoses on the power steering pump would have to go to the fluid resevoir and the sterring box I would think. I can't really see that one that well either. If you have them on photobucket, you could post a link to the original picture to see if it is clearer.
#7
Registered User
Join Date: Nov 2004
Location: Grapevine TX
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Since we are the topic of emissions, does anyone have any advice to re-raping the screw hole for the EGR vavle? How easy is it to get back there? I cant remember, and I dont have the engine here to play with. I think I will have to put the EGR back in place cause DFW has emissions testings, where the truck is now doesnt have it.
