Electric Speedo Odometer change- SR5 Swap
This is how I changed the Odometer for my SR5 gauge swap with an electric Speedo (non-cable).
**** Disclaimer!!! Check with your state DMV before attempting this as alterations to Odometer readings may be illegal. This write-up is not designed for you to reduce the miles on your truck, but rather for those who are changing their gauge cluster and need to correct the odo.****
So first, you must remove the speedometer assembly. Remove the needle by prying gently from both sides. Some have damaged their speedo by doing this incorrectly. I didn't have any problems, but it was difficult. Then unscrew the 4 screws on the back of the cluster to remove it from the housing.
This is what you're left with. Then remove the three screws on the back holding the circuit board on and the two screws attached to the cork-screw thingy(yeah, don't know the tech term). Note- the circuit board will not come off, but will be loose.
Now, by gently holding the circuit board in a manner that moves the cork-screw thingy away from the gray gear, the odo can move freely.
By hand, I could only go about 4,800 miles per hour, and that was non-stop finger pain. I started at 133K and needed to end up at 201K... That would have taken me approximately 14+ hours of non-stop turning. So I found a faster way:
I wrapped strips of duct tape around a star drill bit. Then, going in reverse on the drill at about half-speed, I was able to go much faster. By rough estimate, I was going around 18 miles per second or 65,000mph. So it took me a little more than an hour.

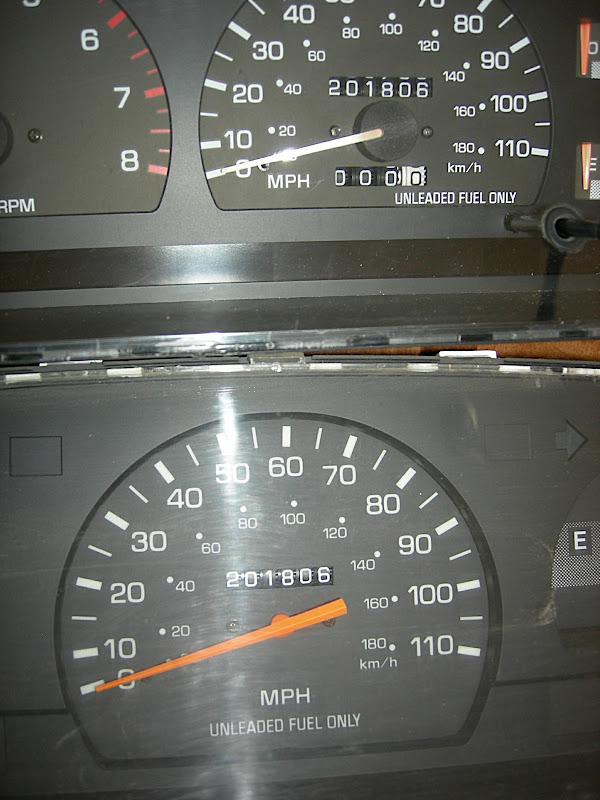

And finally installed:
Good luck with yours!
**** Disclaimer!!! Check with your state DMV before attempting this as alterations to Odometer readings may be illegal. This write-up is not designed for you to reduce the miles on your truck, but rather for those who are changing their gauge cluster and need to correct the odo.****
So first, you must remove the speedometer assembly. Remove the needle by prying gently from both sides. Some have damaged their speedo by doing this incorrectly. I didn't have any problems, but it was difficult. Then unscrew the 4 screws on the back of the cluster to remove it from the housing.
This is what you're left with. Then remove the three screws on the back holding the circuit board on and the two screws attached to the cork-screw thingy(yeah, don't know the tech term). Note- the circuit board will not come off, but will be loose.
Now, by gently holding the circuit board in a manner that moves the cork-screw thingy away from the gray gear, the odo can move freely.
By hand, I could only go about 4,800 miles per hour, and that was non-stop finger pain. I started at 133K and needed to end up at 201K... That would have taken me approximately 14+ hours of non-stop turning. So I found a faster way:
I wrapped strips of duct tape around a star drill bit. Then, going in reverse on the drill at about half-speed, I was able to go much faster. By rough estimate, I was going around 18 miles per second or 65,000mph. So it took me a little more than an hour.
And finally installed:
Good luck with yours!
