Dome Light not on when Drivers Door Open

Reply

LinkBack Thread Tools Search this Thread
Old 11-04-2017, 06:03 PM   #1
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197
Dome Light not on when Drivers Door Open

As the title says, the dome light doesn’t come on with the Drivers door open. Works fine with the Passenger door open.

I read it it may have to do with a buzzer being unplugged? But the old threads I found didn’t have any pictures. Something about a plug possibly behind the fuse box behind the drivers kick plate?

The truck does buzz when lights are left on after turning truck off to remind you to turn them off. Not sure if this is the same buzzer or not.

Any ideas? ‘87 SR5 Turbo.
Charles4x4 is offline   Reply With Quote
Old 11-04-2017, 06:13 PM   #2
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197

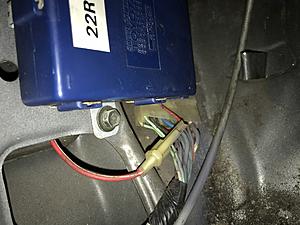

Pic of wiring at drivers door plug in kick plate
Attached Thumbnails
Dome Light not on when Drivers Door Open-ce53eb6e-17cd-458d-9824-21b29fa16751.jpeg

Last edited by Charles4x4; 11-04-2017 at 06:18 PM.
Charles4x4 is offline   Reply With Quote
Old 11-04-2017, 08:12 PM   #3
Registered User

Melrose 4r's Avatar

Join Date: Jun 2017
Location: Melrose MA
Posts: 379
It could be the pin switch in the door sill. In my case i had unplugged the key buzzer completely and that killled it.
Melrose 4r is offline   Reply With Quote
Old 11-04-2017, 08:19 PM   #4
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 3,203
Door switch. Provides ground to the cabin light circuit, via its mount to the body.
test the switch for continuity to the body/ground while in both positions. Also try running a ground to the other side of the circuit.
Co_94_PU is offline   Reply With Quote
Old 11-05-2017, 03:47 AM   #5
Registered User

wallytoo's Avatar

Join Date: May 2013
Location: nh
Posts: 594
Quote:
Originally Posted by Charles4x4 View Post
As the title says, the dome light doesnít come on with the Drivers door open. Works fine with the Passenger door open.

I read it it may have to do with a buzzer being unplugged? But the old threads I found didnít have any pictures. Something about a plug possibly behind the fuse box behind the drivers kick plate?

The truck does buzz when lights are left on after turning truck off to remind you to turn them off. Not sure if this is the same buzzer or not.

Any ideas? Ď87 SR5 Turbo.
the light buzzer is different. it is the key buzzer that is associated with the dome light. if your key buzzer isn't working (and you haven't modified the buzzer), your dome light won't function. the buzzer is up under the dash, right side of the steering column.

as noted, if the door switch isn't working, you'll also get an inoperable dome. multimeter will help, or a test light.
wallytoo is offline   Reply With Quote
Old 11-05-2017, 04:46 AM   #6
Registered User

RAD4Runner's Avatar

Join Date: Mar 2012
Posts: 4,730
Quote:
Originally Posted by Co_94_PU View Post
Door switch. Provides ground to the cabin light circuit, via its mount to the body.
test the switch for continuity to the body/ground while in both positions. Also try running a ground to the other side of the circuit.
This^^^
RAD4Runner is online now   Reply With Quote
Old 11-05-2017, 05:35 AM   #7
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197
Quote:
Originally Posted by Co_94_PU View Post
Door switch. Provides ground to the cabin light circuit, via its mount to the body.
test the switch for continuity to the body/ground while in both positions. Also try running a ground to the other side of the circuit.
Thanks. Mine is definitely plugged. I have MM and Test Light - will check it out later today and report back.
Charles4x4 is offline   Reply With Quote
Old 11-05-2017, 05:37 AM   #8
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197
Quote:
Originally Posted by wallytoo View Post
the light buzzer is different. it is the key buzzer that is associated with the dome light. if your key buzzer isn't working (and you haven't modified the buzzer), your dome light won't function. the buzzer is up under the dash, right side of the steering column.

as noted, if the door switch isn't working, you'll also get an inoperable dome. multimeter will help, or a test light.
I donít think the key buzzer works and I havenít intentionally modified it. Iíll look under the dash today. I saw a female plug under there without a male one. Anyone got a pic of what the buzzer looks like under the dash in case this is it?
Charles4x4 is offline   Reply With Quote
Old 11-05-2017, 06:07 AM   #9
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197
Quote:
Originally Posted by Co_94_PU View Post
Door switch. Provides ground to the cabin light circuit, via its mount to the body.
test the switch for continuity to the body/ground while in both positions. Also try running a ground to the other side of the circuit.
Just tested - it has 11.5V at the female end when grounded. What does this mean?

Also ran a wire from female end with V to ground and nothing happened. Does this mean it isnít the switch and instead between the female connector and the dome light?

obviously pressing the switch while unplugged does nothing.

Last edited by Charles4x4; 11-05-2017 at 06:11 AM.
Charles4x4 is offline   Reply With Quote
Old 11-05-2017, 10:49 AM   #10
Registered User

RAD4Runner's Avatar

Join Date: Mar 2012
Posts: 4,730
Hmmm....
Pls find out which side, male or female is connected to ground.
The side NOT connected to ground should have 12V when the connectors are separated.
Pls remove the bulb. Does that side still have 12V or no?
Do you have door courtesy lights? Do they work normally?
Take THAT SAME side NOT connected to ground AND has 12V. Connect it directly to bare, shiny metal metal body ground should make dome light turn on. (This is equivalent to grounding the green with red stripe wire on your horn.)



IF above does not work, either:
1) There is excessively high resistance between that connector and the negative side of your dome light. (Yes, you can still read 12V though the bulb filament when the connector is NOT grounded), OR
2) Your Turbo has fancy circuitry unlike the simpler 22R-E.

Last edited by RAD4Runner; 11-05-2017 at 12:01 PM.
RAD4Runner is online now   Reply With Quote
Old 11-05-2017, 11:27 AM   #11
Registered User

wallytoo's Avatar

Join Date: May 2013
Location: nh
Posts: 594
Quote:
Originally Posted by Charles4x4 View Post
I donít think the key buzzer works and I havenít intentionally modified it. Iíll look under the dash today. I saw a female plug under there without a male one. Anyone got a pic of what the buzzer looks like under the dash in case this is it?
the key buzzer won't work if it is missing, nor will your dome light via the driver side door switch. it is a square black box, attached to a sheetmetal bracket.
wallytoo is offline   Reply With Quote
Old 11-05-2017, 12:00 PM   #12
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197
Quote:
Originally Posted by wallytoo View Post
the key buzzer won't work if it is missing, nor will your dome light via the driver side door switch. it is a square black box, attached to a sheetmetal bracket.

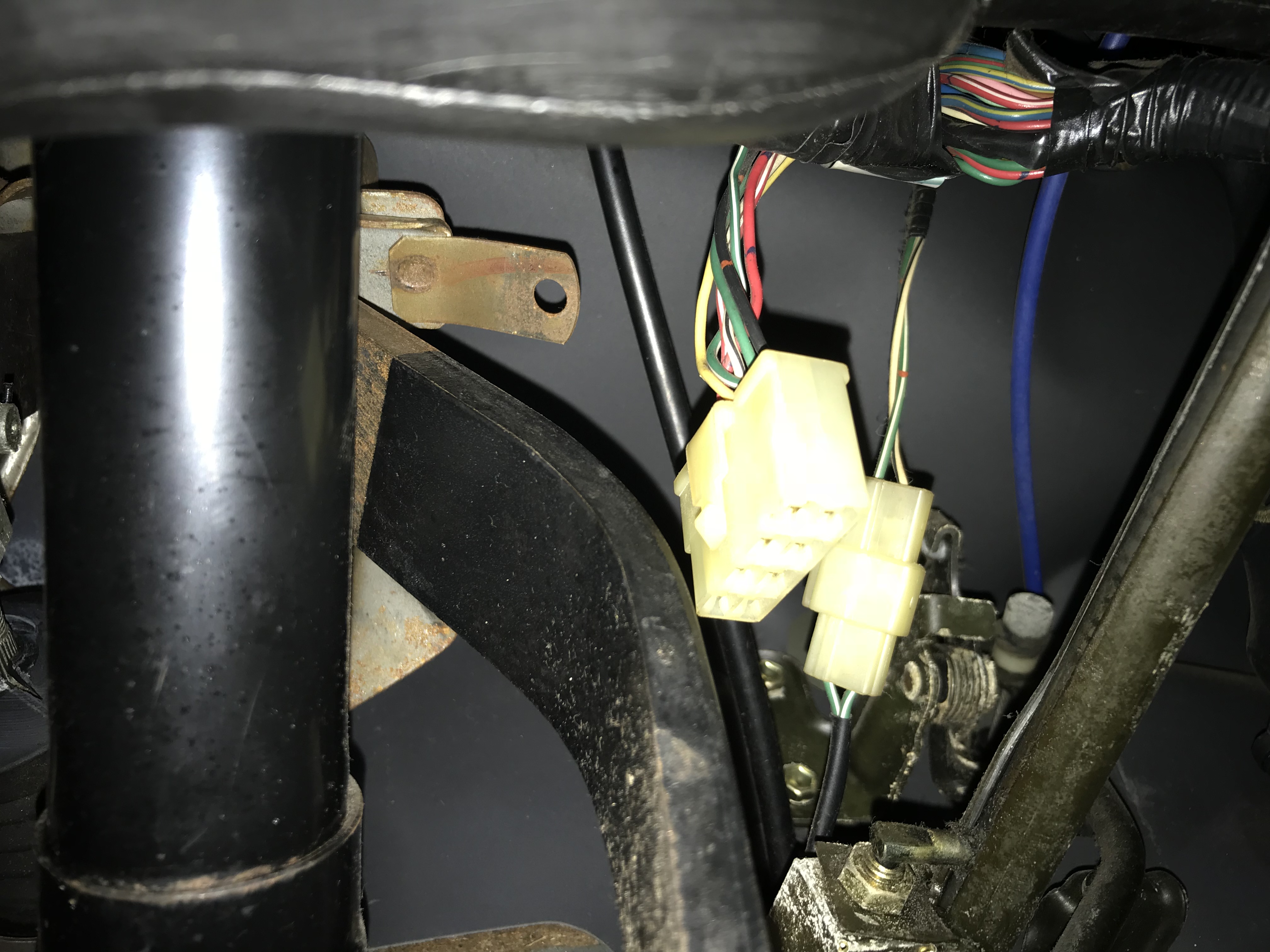

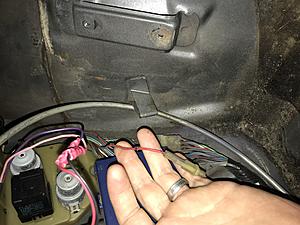

I see a square black box that says O/D connected to a sheet metal bracket. Assume this isn’t it?

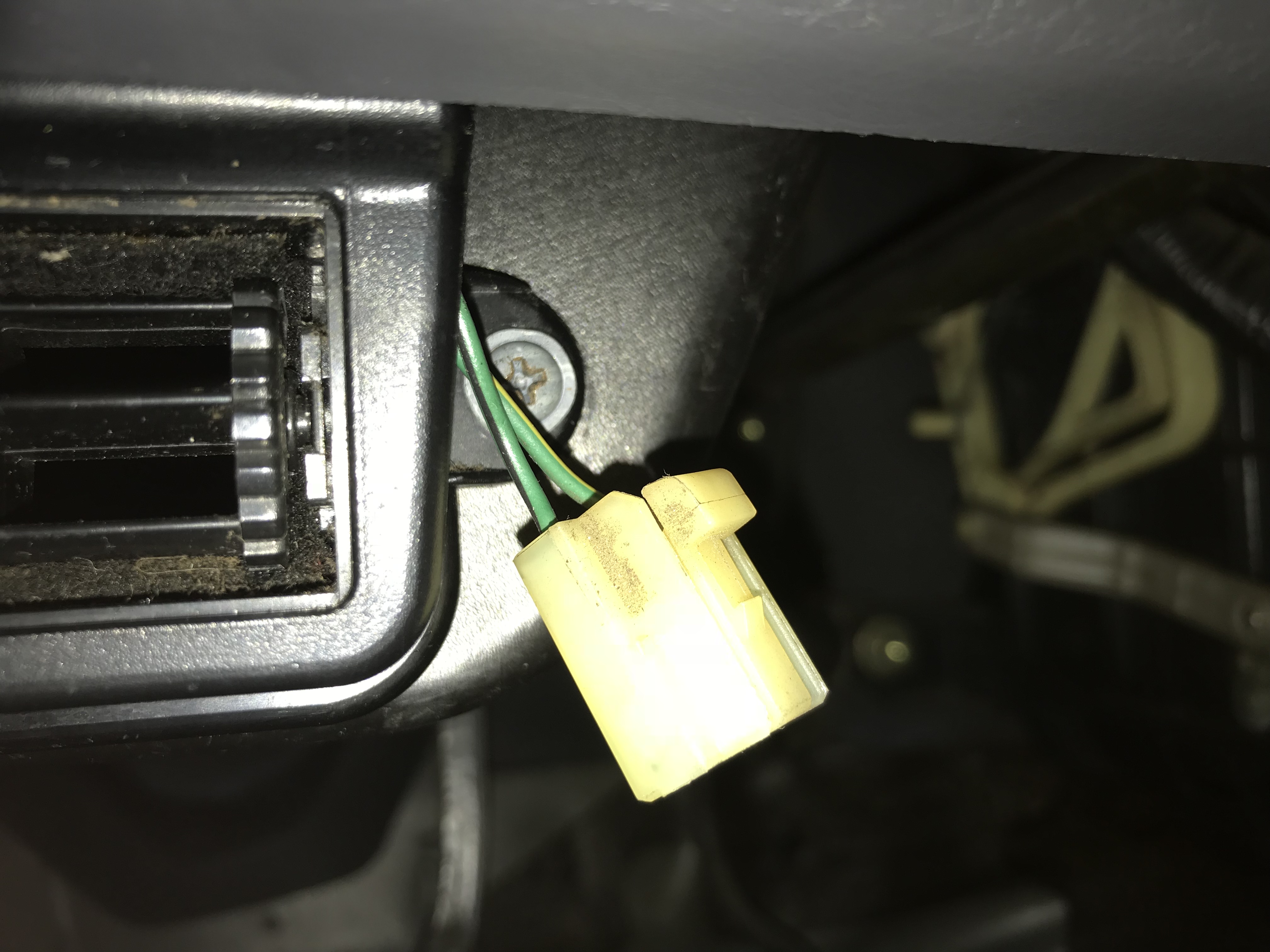

Also took pics of the the two plugs that aren’t plugged into anything.

Anyone have a pic of where the square black buzzer box should be? I’m looking under steering column. Could it be behind fuse box in Drivers kick panel? I haven’t removed fuse box to look and see (like where door lock module is on passenger kick panel)?
Attached Thumbnails
Dome Light not on when Drivers Door Open-e7014f37-bf23-4918-b953-cf8af2593d26.jpeg   Dome Light not on when Drivers Door Open-ff39afe6-7dcd-4bc2-8843-4f4413a35e0e.jpeg   Dome Light not on when Drivers Door Open-a443c5d5-2df6-4b6c-9651-c1efb188374b.jpeg   Dome Light not on when Drivers Door Open-95cea05b-ddfc-4075-aa74-4efc7a572770.jpeg

Last edited by Charles4x4; 11-05-2017 at 12:10 PM.
Charles4x4 is offline   Reply With Quote
Old 11-05-2017, 12:07 PM   #13
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197
Quote:
Originally Posted by RAD4Runner View Post
Hmmm....
Pls find out which side, male or female is connected to ground.
The side NOT connected to ground should have 12V when the connectors are separated.
Pls remove the bulb. Does that side still have 12V or no?
Do you have door courtesy lights? Do they work normally?
Take THAT SAME side NOT connected to ground AND has 12V. Connect it directly to bare, shiny metal metal body ground should make dome light turn on. (This is equivalent to grounding the green with red stripe wire on your horn.)



IF above does not work, either:
1) There is excessively high resistance between that connector and the negative side of your dome light. (Yes, you can still read 12V though the bulb filament when the connector is NOT grounded), OR
2) Your Turbo has fancy circuitry unlike the simpler 22R-E.
With the bulb removed, the red wire with white Stripe measures 12v.

The female side has 12v when removed (Male connects to the switch and is dead when removed)

Courtesy lights work fine.

If I connect female Slide with 12v direct to Ground (like horn) nothing happens. Wonder if I am missing the buzzer box completely (See post above)?
Charles4x4 is offline   Reply With Quote
Old 11-05-2017, 12:50 PM   #14
Registered User

wallytoo's Avatar

Join Date: May 2013
Location: nh
Posts: 594

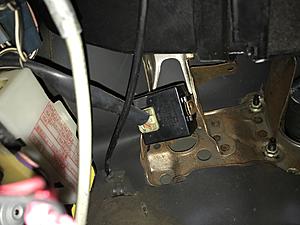

the buzzer is missing. it goes on that sheetmetal with the hole in it in your fourth picture in the previous post. it is not in the kick panel.

right where i stated it would be, to the RIGHT of the column.



Last edited by wallytoo; 11-05-2017 at 01:01 PM.
wallytoo is offline   Reply With Quote
Old 11-05-2017, 03:41 PM   #15
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197
Quote:
Originally Posted by wallytoo View Post
the buzzer is missing. it goes on that sheetmetal with the hole in it in your fourth picture in the previous post. it is not in the kick panel.

right where i stated it would be, to the RIGHT of the column.

Great... Iím guessing this is a discontinued part - and a salvage yard search is in order? Any one have one of these laying around?
Charles4x4 is offline   Reply With Quote
Old 11-05-2017, 04:02 PM   #16
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197

Last edited by Charles4x4; 11-05-2017 at 04:08 PM.
Charles4x4 is offline   Reply With Quote
Old 11-05-2017, 05:18 PM   #17
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197
Just purchased the 2nd one for $9.50. Fingers crossed this fixes everything!
Charles4x4 is offline   Reply With Quote
Old 11-05-2017, 06:09 PM   #18
Fossilized
Staff
iTrader: (6)

dropzone's Avatar

Join Date: Oct 2005
Location: PNW
Posts: 18,491
Quote:
Originally Posted by Charles4x4 View Post
I hope you have better luck than I did with that seller. I ordered a set of seat belts from them. They sent me a set of torn belts that barely retracted
dropzone is offline   Reply With Quote
Old 11-05-2017, 06:22 PM   #19
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 197
Quote:
Originally Posted by dropzone View Post
I hope you have better luck than I did with that seller. I ordered a set of seat belts from them. They sent me a set of torn belts that barely retracted
If it isnít as described, it will be returned!
Charles4x4 is offline   Reply With Quote
Old 11-05-2017, 11:10 PM   #20
Registered User

RAD4Runner's Avatar

Join Date: Mar 2012
Posts: 4,730
See how properly-functioning dome light circuit works here.

Quote:
Originally Posted by Charles4x4 View Post
With the bulb removed, the red wire with white Stripe measures 12v.
The female side has 12v when removed... Courtesy lights work fine....
Makes sense. The 12V is coming from power feeding through the door courtesy lights.
If you remove the courtesy light bulbs you lose the 12V at that female connector, YES?

Quote:
If I connect female Slide with 12v direct to Ground (like horn) nothing happens.
By "nothing happens" you mean nothing happens TO THE DOME LIGHT, but something happens to the courtesy light, YES?

If I get both YES' above^^^, I'm pretty sure the diode shown below OR the wires connecting it is bad.





Wonder if I am missing the buzzer box completely (See post above)?[/QUOTE]
Door switch will affect buzzer but I do not think buzzer will affect dome light function. See how properly-functioning dome light circuit works here.

Last edited by RAD4Runner; 11-05-2017 at 11:14 PM.
RAD4Runner is online now   Reply With Quote
