Correction Piston Intallation??
Oct 14, 2012 | 10:21 AM
#1
Thread Starter
Registered User
Joined: Apr 2012
Posts: 61
Likes: 0
Correction Piston Intallation??

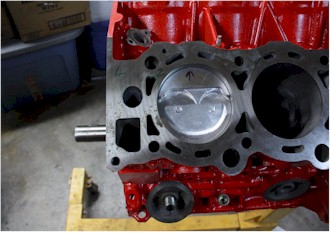

Hey guys, can you look at this pic and tell me if I got the pistons in right. Net images and the FSM are not clear.
L mark is for driver's side.
L mark goes to the tranny side of the motor
Thicker flat section of the piston faces upward, thinner flat strip faces down.
Thanks,
Badbob
L mark is for driver's side.
L mark goes to the tranny side of the motor
Thicker flat section of the piston faces upward, thinner flat strip faces down.
Thanks,
Badbob
Oct 14, 2012 | 11:56 AM
#2
Registered User
Joined: Jan 2007
Posts: 6,106
Likes: 27
Correct. As page EG2-110 of the 93 FSM shows quite clearly.
Oct 14, 2012 | 12:33 PM
#3
Thread Starter
Registered User
Joined: Apr 2012
Posts: 61
Likes: 0
Correct. As page EG2-110 of the 93 FSM shows quite clearly.
Ya I got the FSM and was looking at the same pages. However, the FSM never defines the Right or Left side of the block. I just looked at the valves and realized on the Left side the Exhaust sits in front and the Right side the intake values sits in front. Still I was not sure about the actual top/bottom of each piston.
