91 4runner water pump pulley misalignment

Notices
86-95 Trucks & 4Runners 2nd/3rd gen pickups, and 1st/2nd gen 4Runners with IFS

91 4runner water pump pulley misalignment

Old 12-31-2018, 06:25 AM
  #1
Registered User
Thread Starter

Join Date: Dec 2018
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
91 4runner water pump pulley misalignment

I bought this 4runner about a month ago, belts started squealing. When I got to looking at it I realized that the outside cog on the water pump pulley is about a 1/2" farther to the front of truck. The ps pulley and crank pulleys are in line. It looks like it's a 2 piece cog on the water pump. Are there different lengths of these? I've done some searching and come up with nothing. You will also notice the alt and compressor are power bands, only the ps is a vbelt

.. was this standard? Any help would be greatly appreciated!

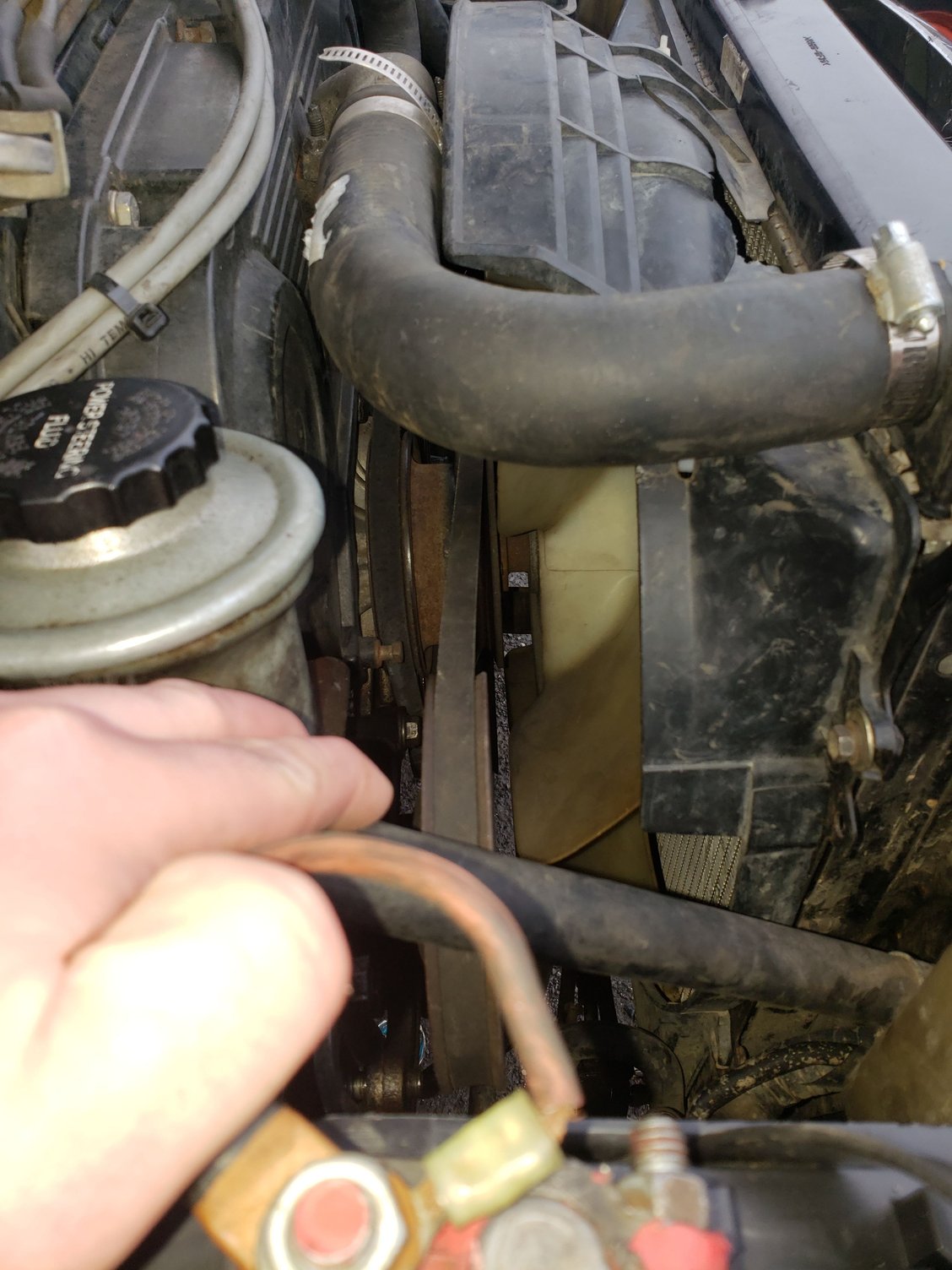

Not sure if you can see the misalignment, but this is looking from the ps pump(passenger side) towards the ds.
Coltsmith is offline
Old 12-31-2018, 06:27 AM
  #2
Registered User
Thread Starter

Join Date: Dec 2018
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Picture of the powerband cogs wouldn't load

Last edited by Coltsmith; 12-31-2018 at 06:30 AM.
Coltsmith is offline
Old 12-31-2018, 11:20 AM
  #3
Registered User

Andy A's Avatar

Join Date: Jan 2010
Location: Southern Pines, NC
Posts: 355
Thanked 4 Times in 4 Posts
From your pic it looks like the pulley was installed backwards. Just needs to be flipped.Those are 2 seperate pullies.
That is actually not the water pump but the fan clutch bearing bracket the water pump is behind the timing belt cover.

cheers
Andy A is offline
Old 12-31-2018, 11:41 AM
  #4
Registered User
Thread Starter

Join Date: Dec 2018
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
You talking about the outside pulley closest to the clutch?
Coltsmith is offline
Old 12-31-2018, 11:43 AM
  #5
Registered User

Andy A's Avatar

Join Date: Jan 2010
Location: Southern Pines, NC
Posts: 355
Thanked 4 Times in 4 Posts
Correct
Andy A is offline
Old 12-31-2018, 05:54 PM
  #6
Registered User

Join Date: Feb 2011
Location: Fallston Md
Posts: 273
Thanks: 0
Thanked 1 Time in 1 Post
I agree with Andy A. It was put on backwards.
superex87 is offline
Old 01-01-2019, 02:01 PM
  #7
Registered User
Thread Starter

Join Date: Dec 2018
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
You guys are amazing, less than an hour and I've got it fixed! The ps pump is hitting the timing cover, but it's tight enough with a new belt. I appreciate your help!
Coltsmith is offline
