86-95 Trucks & 4Runners 2nd/3rd gen pickups, and 1st/2nd gen 4Runners with IFS

'87 Digital Dash Fuel Gauge Not Working

Old 04-17-2017, 09:50 AM
  #1
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 466
Likes: 0
Received 2 Likes on 2 Posts
'87 Digital Dash Fuel Gauge Not Working

Hi, I'm new to the forum. Just picked up a '87 4Runner SR5 Turbo with 111K miles, 11K since 22R-E rebuild, and 1K on a Marlin W56-B and drove it 13-hrs from TX to AL. Most everything on the truck is factory original, but the PO had put an aftermarket Fuel Gauge (see pic) below the dash which seemed odd. Everything else on the SR5 digital dash works fine, but the Fuel portion just flashes (ALL Lights / NO Lights)

Any ideas on what might have gone wrong and how I can get it back to the original dash and remove the aftermarket gauge - it's in the way of the marine cup holder I want to install .
Attached Thumbnails '87 Digital Dash Fuel Gauge Not Working-digital-dash.jpg   '87 Digital Dash Fuel Gauge Not Working-fuel-gauge.jpg   '87 Digital Dash Fuel Gauge Not Working-4runner-pic.jpg
Charles4x4 is offline
Old 04-18-2017, 07:22 PM
  #2
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 466
Likes: 0
Received 2 Likes on 2 Posts
Any ideas? What do I need to check? I'm not an expert on fuel pumps and gauges.
Charles4x4 is offline
Old 04-18-2017, 08:06 PM
  #3
Registered User

old87yota's Avatar

Join Date: Jun 2013
Location: Portland, Oregon, USA
Posts: 2,002
Received 122 Likes on 113 Posts
The digital gauge cluster is pretty rare so most people here have never messed with them, including me.

My 1987 Factory Service Manual has all of the testing procedures for this cluster.

Digital copies are floating around the internet.

I will have to go look and see what a flashing gauge means. Maybe just no signal?

Obviously the previous owner decided to bypass the problem instead of fixing it.

I would first look at how the aftermarket gauge is hooked up. It is anybody's guess as to what the previous owner did.

That may give you some insight as to what the problem is.

Awesome 4Runner by the way!

old87yota is offline
Old 04-18-2017, 11:58 PM
  #4
Super Moderator
Staff
iTrader: (1)

Terrys87's Avatar

Join Date: Aug 2008
Location: Anderson Missouri
Posts: 11,788
Likes: 0
Received 4 Likes on 4 Posts
Most issues I have dealt with on the gas gauge is in the float in the tank. There is a fine wire about the size of a human hair that acts like a resistor that gets worn into two pieces. I have even seen the crust build up on the float assembly so bad that the float can not move.

There is a test that you can do where ground out the connector on the Float Assembly and it will make the Fuel Gauge rise to the maximum. Been a while since I have done that test and cant recall right off the correct steps to do it. I would bet your Float Assembly is bad. I have never worked on the Digital Gauge but still would think it is in the tank.
Terrys87 is offline
Old 04-19-2017, 07:16 AM
  #5
Registered User
iTrader: (-1)

Join Date: Dec 2012
Location: Colorado
Posts: 4,275
Likes: 0
Received 82 Likes on 80 Posts
Do a site search here (site:yotatech.com) on Google for digital dash or digital cluster and fuel gauge or fuel sender. It should turn up the specifics..

Iirc the digital dash uses a reverse voltage from the standard.

Likely someone couldn't find or didn't want to pay for the other fuel level sender and put in a random one toyota one and the aftermarket gauge.

The digital one could be loose or disconnected also.
Co_94_PU is offline
Old 04-19-2017, 11:58 AM
  #6
Registered User
Thread Starter

Join Date: Apr 2017
Location: Birmingham, AL
Posts: 466
Likes: 0
Received 2 Likes on 2 Posts
Great, thanks everyone. I'll start searching and let everyone know what I find out!
Charles4x4 is offline
Old 01-31-2019, 04:36 PM
  #7
Registered User

Join Date: Jan 2019
Location: Montana
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Repairable

So my son has an 87 turbo with the digital dash. Same problem. The digital dash fuel level sending unit operates differently than the analog dashes. The fuel sending unit for the digital dash acts like a variable voltage divider sending a voltage to the dash instead of a variable resistance to ground. The moving arm is insulated from ground at the pivot point. The sending unit has not been available for years. I was able to repair his using parts from an available factory Toyota sending unit. It is a tricky repair but possible. It works flawlessly now. (This repair only applies to digital Toyota dashes) I purchased a Toyota sending unit part number 83320-39695 and used the wire winding part in the original digital dash fuel sending unit.

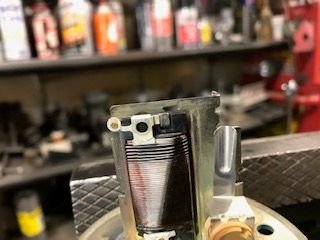

Original bad digital sending unit

New Toyota sending unit for analog dash

Moved the arm out of the way by bending a stop tab on the back side.

Unsolder the tab at the base of the analag unit

Bad digital unit wires

Resolder after placing on the digital sender

You will have to drill a hole at the top. see next picture with screw in place

screw installed at top to make the ground side circuit
RedRino is offline
Old 02-01-2019, 03:32 PM
  #8
Registered User

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 435
Received 43 Likes on 41 Posts
Thank you for posting this... I'm about ready to fix mine...
87-4runner is offline
Old 03-09-2019, 08:27 PM
  #9
Registered User

Greedy's Avatar

Join Date: Apr 2003
Location: Woodinville, WA
Posts: 495
Likes: 0
Received 2 Likes on 2 Posts
How did this fix turn out? I have an 87 that needs fixing too, and was wondering if the new coils give an accurate reading.
Greedy is offline
Old 03-10-2019, 06:06 AM
  #10
Registered User

87-4runner's Avatar

Join Date: Mar 2012
Location: Oklahoma
Posts: 435
Received 43 Likes on 41 Posts
Still haven't ripped into it... buy its on the list...
