3.0 V6 3vze Engine gasket kit ID
#1
Registered User
Thread Starter
3.0 V6 3vze Engine gasket kit ID
So... I'm rebuilding my 3.0 and have this engine gasket kit that comes in one big bag of mixed up parts. I searched, but could only find jumbled bits of information. I thought it would be beneficial for not only me, but anyone else on here in the future that goes for the rebuild. I've got pics of almost all of the parts in the gasket kit with numbers underneath. If anyone wants to help that would be great, but I will be identifying these and labeling with a part number for future reference. Thanks...

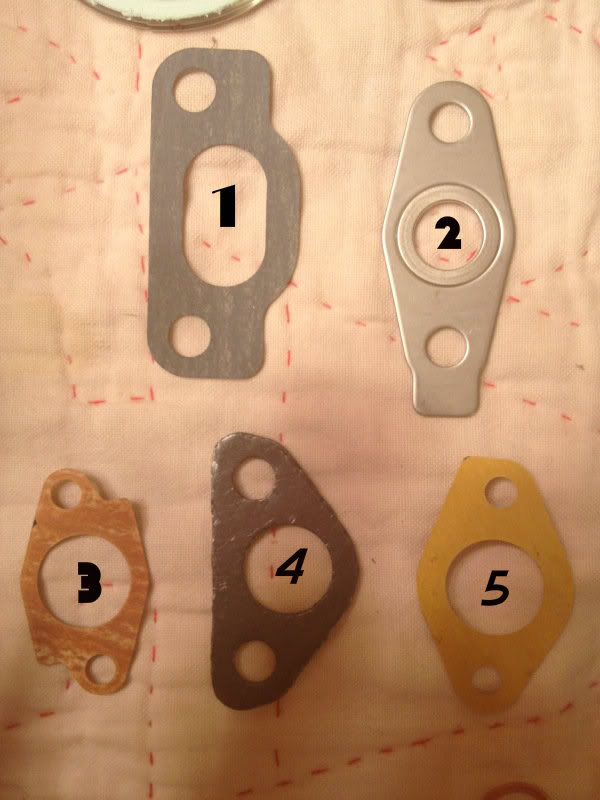

1. Water By-Pass Gasket OEM# 16258-65020
2. EGR Inlet Gasket OEM# 25628-65010
3. Cold Start Injector Gasket OEM# 23293-35020
4. EGR Valve Adapter Gasket OEM# 25629-65011
5. Oil Strainer Gasket OEM# 15147-62020
1. No. 1 Timing Belt Cover Gasket OEM# 11328-65011
2. No. 3 Timing Belt Cover Gasket OEM# 11319-65010
3. No. 2 Timing Belt Cover Gasket OEM# 11329-65010
4. & 5. No. 8 Timing Belt Cover Gasket OEM# 11359-65010

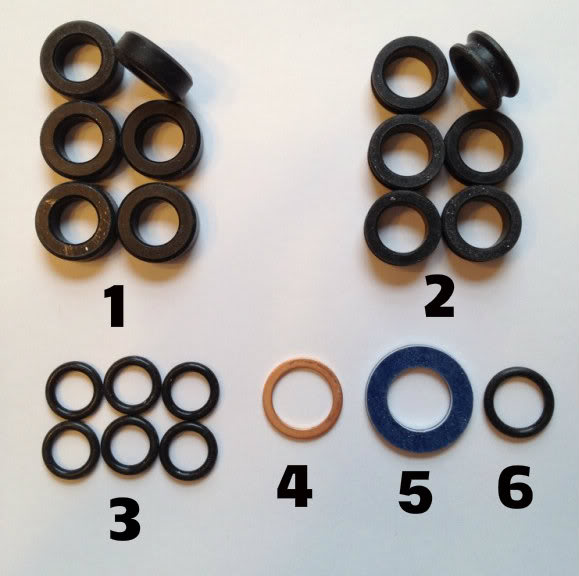

1. No. 1 Fuel Delivery Pipe Spacer OEM# 90560-08055
2. Fuel Injector Grommet OEM# 90480-13005
3. Fuel Injector O-ring OEM# 90301-07001
4. Fuel Pipe Delivery Inlet Gasket OEM# 90430-18016
5. Oil Pan Drain Plug Gasket OEM# 90430-12020
6. Fuel Pressure Regulator O-ring OEM# 90301-09002
1. Intake Valve Stem Oil Seal OEM# 90913-02078
2. Exhaust Valve Stem Oil Seal OEM# 90913-02053
1. ?
2. Fuel Injector Seat/Cup O-rings OEM# 90301-23004
3. Water Outlet (Thermostat) Gasket OEM# 16341-65010
4. Dist. Cap O-ring?
5. Engine Oil Pump O-ring OEM# 96721-24020
1. Fuel Tube Gasket (Cold Start Injector) OEM# 90430-08005
2. Pulsation Damper Hose Gasket OEM# 90430-18016
3. Fuel Tube Gasket (Fuel tube from rail to Cold Start Injector) OEM# 90430-08005
4. Fuel Pipe No. 2 Gasket OEM# 90430-12005

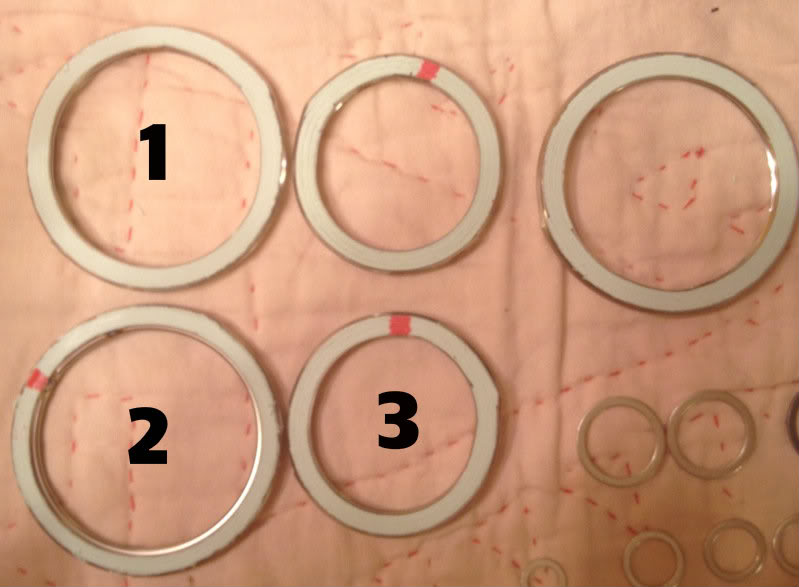

1. Exhaust Pipe Gasket (Main - along exhaust) OEM# 90080-43028
2. Exhaust Pipe Downspout (Driver's Side Manifold) OEM# 90917-06041
3. Exhaust Crossover Pipe Gasket OEM# 90917-06048
1. No. 7 Timing Belt Cover Gasket OEM# 11358-65010
2. No. 9 Timing Belt Cover Gasket OEM# 11349-65020
3. No. 6 Timing Belt Cover Gasket OEM# 11357-65010
1. Water By-Pass Gasket OEM# 16258-65020
2. EGR Inlet Gasket OEM# 25628-65010
3. Cold Start Injector Gasket OEM# 23293-35020
4. EGR Valve Adapter Gasket OEM# 25629-65011
5. Oil Strainer Gasket OEM# 15147-62020
1. No. 1 Timing Belt Cover Gasket OEM# 11328-65011
2. No. 3 Timing Belt Cover Gasket OEM# 11319-65010
3. No. 2 Timing Belt Cover Gasket OEM# 11329-65010
4. & 5. No. 8 Timing Belt Cover Gasket OEM# 11359-65010
1. No. 1 Fuel Delivery Pipe Spacer OEM# 90560-08055
2. Fuel Injector Grommet OEM# 90480-13005
3. Fuel Injector O-ring OEM# 90301-07001
4. Fuel Pipe Delivery Inlet Gasket OEM# 90430-18016
5. Oil Pan Drain Plug Gasket OEM# 90430-12020
6. Fuel Pressure Regulator O-ring OEM# 90301-09002
1. Intake Valve Stem Oil Seal OEM# 90913-02078
2. Exhaust Valve Stem Oil Seal OEM# 90913-02053
1. ?
2. Fuel Injector Seat/Cup O-rings OEM# 90301-23004
3. Water Outlet (Thermostat) Gasket OEM# 16341-65010
4. Dist. Cap O-ring?
5. Engine Oil Pump O-ring OEM# 96721-24020
1. Fuel Tube Gasket (Cold Start Injector) OEM# 90430-08005
2. Pulsation Damper Hose Gasket OEM# 90430-18016
3. Fuel Tube Gasket (Fuel tube from rail to Cold Start Injector) OEM# 90430-08005
4. Fuel Pipe No. 2 Gasket OEM# 90430-12005
1. Exhaust Pipe Gasket (Main - along exhaust) OEM# 90080-43028
2. Exhaust Pipe Downspout (Driver's Side Manifold) OEM# 90917-06041
3. Exhaust Crossover Pipe Gasket OEM# 90917-06048
1. No. 7 Timing Belt Cover Gasket OEM# 11358-65010
2. No. 9 Timing Belt Cover Gasket OEM# 11349-65020
3. No. 6 Timing Belt Cover Gasket OEM# 11357-65010
Last edited by AW1090; 06-18-2012 at 03:09 PM.
#2
YotaTech Milestone-Two Millionth Post
aww crap man. I did the same thing on Joe's thread somewhere. I have to get going to work....
pressed paper = water
flat gold-ish paper = gas
big metal circles are for the exhaust
some rubber ones are for the injectors if you weren't sending them out
bigger rubber ones are for the injectors cups (I call them that) that the injector bottoms go into (those cups are expensive and if you buy them they do NOT come with the gaskets so you have to use the ones in your kit)
there should be a rubber ring approx 3/4'' diameter for where the oil pump meets the block towards the driver's side
I will be home tonight and I will scour his pics.
plain old metal rings (like washers) are crush washers for fuel
pressed paper = water
flat gold-ish paper = gas
big metal circles are for the exhaust
some rubber ones are for the injectors if you weren't sending them out
bigger rubber ones are for the injectors cups (I call them that) that the injector bottoms go into (those cups are expensive and if you buy them they do NOT come with the gaskets so you have to use the ones in your kit)
there should be a rubber ring approx 3/4'' diameter for where the oil pump meets the block towards the driver's side
I will be home tonight and I will scour his pics.
plain old metal rings (like washers) are crush washers for fuel
#3
YotaTech Milestone-Two Millionth Post
Last edited by 92 TOY; 06-05-2012 at 01:55 AM.
#4
Registered User
Thread Starter
I looked for it, but didn't find it.... I found the part where you tried to ID the gaskets in the first pic, but not all the others... I've tried toyotapartseast.com, but the diagrams aren't detailed enough to determine some from others.
Last edited by AW1090; 06-05-2012 at 02:22 AM.
#5
YotaTech Milestone-Two Millionth Post
it's highly likely I did what I suggested and printed off that pic of the diagram of the parts and started trying to make sense of it from there.
and by process of elimination is how you will likely get most of them. bag and tag what you know and start to narrow the unknowns.
Last edited by 92 TOY; 06-05-2012 at 02:24 AM.
#6
Registered User
Thread Starter
I've been bagging and tagging just thought it would be nice to have all this info in one spot online with pics for folks doing this job in the future.
#7
3. PNC 11312 maybe?
4 & 5. No. 8 Timing Belt Cover Gasket OEM# 11359-65010
6. Packing (For Radiator Drain Cock) OEM# 96711-19007
1. Intake Valve Stem Oil Seal OEM# 90913-02078
2. Exhaust Valve Stem Oil Seal OEM# 90913-02053
3. Distributor Housing O-Ring OEM# 96711-35030(1988.08-1991.03) or 90099-14091(1991.03-1995.11)
Edit those into your post and I'll delete these pics atleast.
4 & 5. No. 8 Timing Belt Cover Gasket OEM# 11359-65010
6. Packing (For Radiator Drain Cock) OEM# 96711-19007
1. Intake Valve Stem Oil Seal OEM# 90913-02078
2. Exhaust Valve Stem Oil Seal OEM# 90913-02053
3. Distributor Housing O-Ring OEM# 96711-35030(1988.08-1991.03) or 90099-14091(1991.03-1995.11)
Edit those into your post and I'll delete these pics atleast.
Last edited by MudHippy; 06-06-2012 at 06:29 AM.
