22R Please Help Identify Gasket!

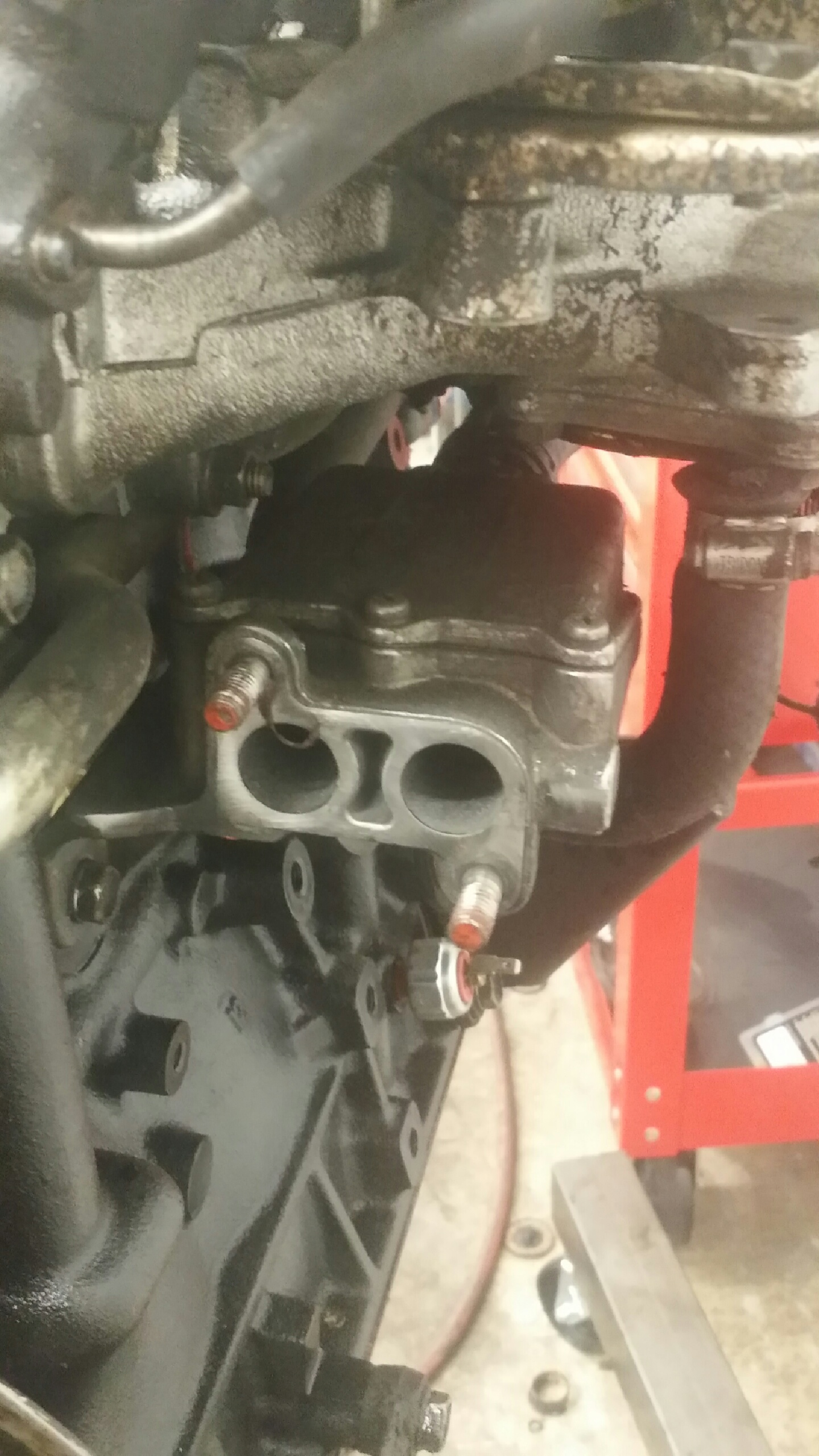

Does anyone know what gasket I need to seal this EGR passage? I can't find out what component it even is? THANK YOU!

Attached Thumbnails

22R Please Help Identify Gasket!-20140523_174656.jpeg

Reply Like

05-23-2014, 07:16 PM

MudHippy

Registered User

Join Date: Jan 2007

Posts: 6,106

Likes: 0

Received 23 Likes on 20 Posts

What year is the motor? Knowing atleast that much would help immensely.

Reply Like

05-24-2014, 11:21 AM

CG92

Registered User

Thread Starter

Join Date: Jul 2013

Posts: 10

Likes: 0

Received 0 Likes on 0 Posts

The motor is from 1986

Reply Like

05-24-2014, 11:29 AM

CG92

Registered User

Thread Starter

Join Date: Jul 2013

Posts: 10

Likes: 0

Received 0 Likes on 0 Posts

It has two pipes from the exhaust manifold that wrap around the engine that connect to it. The pipes run under the EGR cooler.

Reply Like

05-24-2014, 01:02 PM

MudHippy

Registered User

Join Date: Jan 2007

Posts: 6,106

Likes: 0

Received 23 Likes on 20 Posts

It's the AS Reed Valve. The gasket for it is part # 17376-35040.
