1983 Pickup Fuse Panel Info Needed

Reply

LinkBack Thread Tools Search this Thread
Old 04-11-2009, 05:15 PM   #1
Registered User
Thread Starter

Join Date: Apr 2009
Posts: 3
1983 Pickup Fuse Panel Info Needed

Hey. I have a 1983 Pickup 4WD. I don't have the cover to my fuse box, and I need to know which fuse is which. I searched ALL over everywhere to find a fuse diagram, but even my Toyota book only shows diagrams for 70-78 models.

If anyone can tell me what each fuse is, or has a picture of a diagram, or even a picture of the cover (assuming the cover says on it) that would be great.

Thanks.

Last edited by YotaMan2390; 04-11-2009 at 05:17 PM.
YotaMan2390 is offline   Reply With Quote
Old 04-11-2009, 05:50 PM   #2
Fossilized
Staff
iTrader: (6)

dropzone's Avatar

Join Date: Oct 2005
Location: PNW
Posts: 18,617
here is a scan from the wiring diagram for my '81, might get you pointed in the right direction:
dropzone is offline   Reply With Quote
Old 04-11-2009, 09:02 PM   #3
Registered User
Thread Starter

Join Date: Apr 2009
Posts: 3
Thanks but not quite. My friend has a '79 and I used to have an '80. Apparently they use similar fuse set-ups.

'82 and '83 stopped using the bar fuse. =/
YotaMan2390 is offline   Reply With Quote
Old 04-11-2009, 09:59 PM   #4
Registered User

Join Date: Dec 2008
Location: Oregon
Posts: 41
Here you go ...

kjvforme is offline   Reply With Quote
Old 05-13-2018, 11:34 AM   #5
Registered User

Join Date: May 2018
Posts: 3
I have the same problem with my 83 pickup.

Need the fuse box diagram for my 83 pickup. Could anybody help me out?
Toyorider84 is offline   Reply With Quote
Old 05-14-2018, 06:12 AM   #6
Registered User

toy_tek's Avatar

Join Date: Jun 2004
Location: Phoenix, AZ
Posts: 1,306
Quote:
Originally Posted by Toyorider84 View Post
Need the fuse box diagram for my 83 pickup. Could anybody help me out?
you need the fuse layout or the fuse box wiring diagram?
toy_tek is offline   Reply With Quote
Old 05-14-2018, 06:21 AM   #7
Registered User

Join Date: May 2018
Posts: 3
Fuse panel diagram

Yes I need the layout of the fuse box.
Toyorider84 is offline   Reply With Quote
Old 05-14-2018, 07:12 AM   #8
Registered User
iTrader: (2)

Lons81's Avatar

Join Date: Jan 2012
Location: Stepheville, TX
Posts: 463
Here is the one out of 81 4X4. hope it helps. Dang it, can't get pic any smaller

Lons81 is offline   Reply With Quote
Old 05-14-2018, 07:17 AM   #9
Registered User

toy_tek's Avatar

Join Date: Jun 2004
Location: Phoenix, AZ
Posts: 1,306
Quote:
Originally Posted by Toyorider84 View Post
Yes I need the layout of the fuse box.

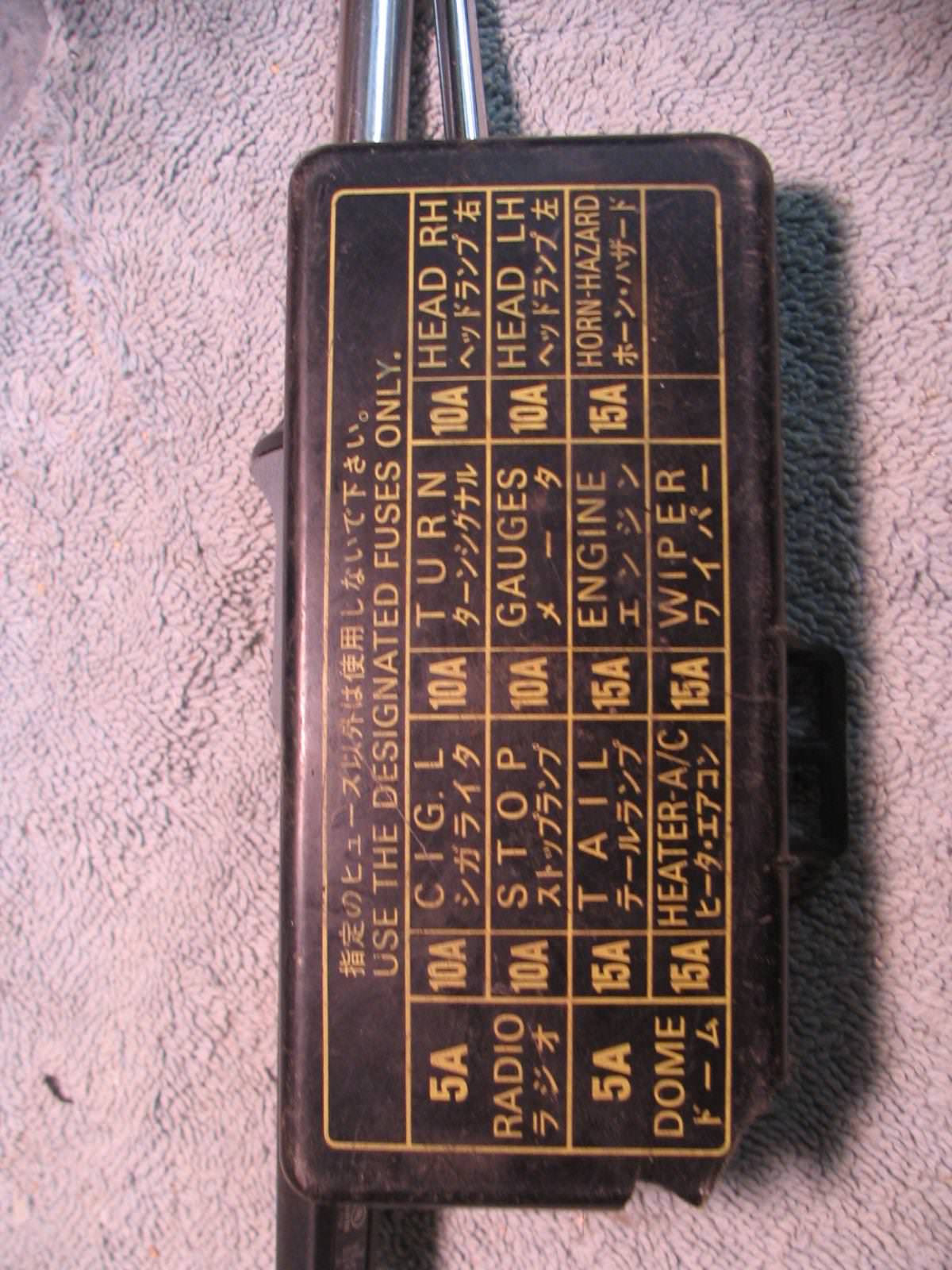

from my 83



toy_tek is offline   Reply With Quote
Old 05-14-2018, 12:03 PM   #10
Registered User

Join Date: May 2018
Posts: 3
Quote:
Originally Posted by toy_tek View Post


from my 83



much thanks
Toyorider84 is offline   Reply With Quote
