No new pics, been buying hardware, mostly from Steinjager since I'm a dealer for them now.
Ok throwing this idea out there, any one ever done hydro assist with IFS?

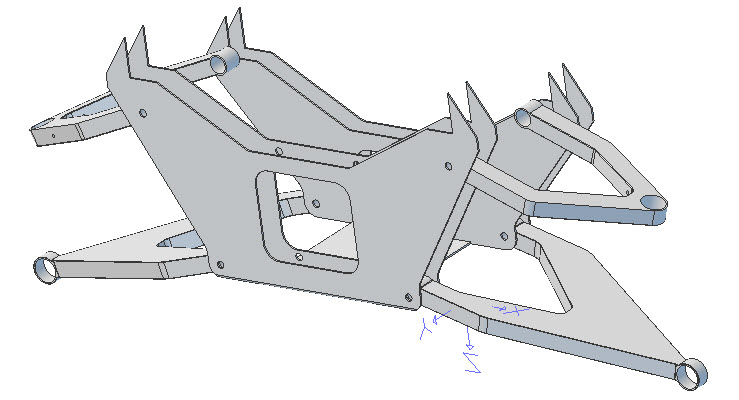

Basic CAD layout, nothing in stone but something to have laid out to tweak on.
Ok throwing this idea out there, any one ever done hydro assist with IFS?
Basic CAD layout, nothing in stone but something to have laid out to tweak on.
Last edited by R.DesJardin; 11-16-2013 at 05:44 AM.
#63
Registered User
iTrader: (1)
Join Date: Jul 2012
Location: Calistoga, CA
Posts: 639
Likes: 0
Received 0 Likes
on
0 Posts
Design looks great, nice and stout!
Will the arms be CNC cut metal that's been boxed and ribbed for structure?
If so, I think that'd be one of the brawniest IFS setups I've ever seen.
Will the arms be CNC cut metal that's been boxed and ribbed for structure?
If so, I think that'd be one of the brawniest IFS setups I've ever seen.
#64
Registered User
Better to have a vertical upper pivot, horizontal lower. The UCA is a shorter lever, thus greater change of angle. Currently the design sacrifices steering angle and travel.
#65
Registered User
Thread Starter
iTrader: (1)
Join Date: Nov 2006
Location: Clarkston,WA
Posts: 363
Likes: 0
Received 0 Likes
on
0 Posts
I think I can still get the pivot angle.
Travel only needs to be 10-12", not building a pre-runner 4x4 setup(yet). I've got 8" travel Fox Air's for the front.
#66
Registered User
Would be better to run dual verticals then to maximize travel to arm length since running a single vertical already limits steering angle.
You can always pull the axles to fool around prerunner style
You can always pull the axles to fool around prerunner style
#67
Registered User
Thread Starter
iTrader: (1)
Join Date: Nov 2006
Location: Clarkston,WA
Posts: 363
Likes: 0
Received 0 Likes
on
0 Posts
Dang, had all the parts for the first time tonight, and as you so correctly stated not enough rotation is available for steering more than 15deg each direction. Good thing its a solid model and not a fabbed part.
#70
Registered User
right, so generally you don't need a ton of steering off road because it usually just breaks things anyways. As long as you have enough.
The car I was working on had dual verticals and it really was only a problem on short course when you were drifting around a corner and you couldn't counter steer enough and it would want to spin around on you.
The car I was working on had dual verticals and it really was only a problem on short course when you were drifting around a corner and you couldn't counter steer enough and it would want to spin around on you.
#73
Registered User
Thread Starter
iTrader: (1)
Join Date: Nov 2006
Location: Clarkston,WA
Posts: 363
Likes: 0
Received 0 Likes
on
0 Posts
Any idea what the max steering angle from straight of a stock IFS Toyota is just for some reference? I'm going to measure my solid axle but I seem to remember hearing that IFS turns sharper?
#74
Registered User
No idea, I don't have an ifs truck.
Also with ackerman, it's even less. Because the inside wheel maxes out the uniball first. Unless you kick them at a compound angle, splitting the difference of the ackerman so they max out at the same time.
Also with ackerman, it's even less. Because the inside wheel maxes out the uniball first. Unless you kick them at a compound angle, splitting the difference of the ackerman so they max out at the same time.
#75
Registered User
That truck fit in the trophy truck class in the VORRA series here, but they also do some short course. It's got skins that fit it. I don't know what it's doing currently. Not associated with the team anymore. I didn't design it, but I did most of the welding on it.
