4 link design check?

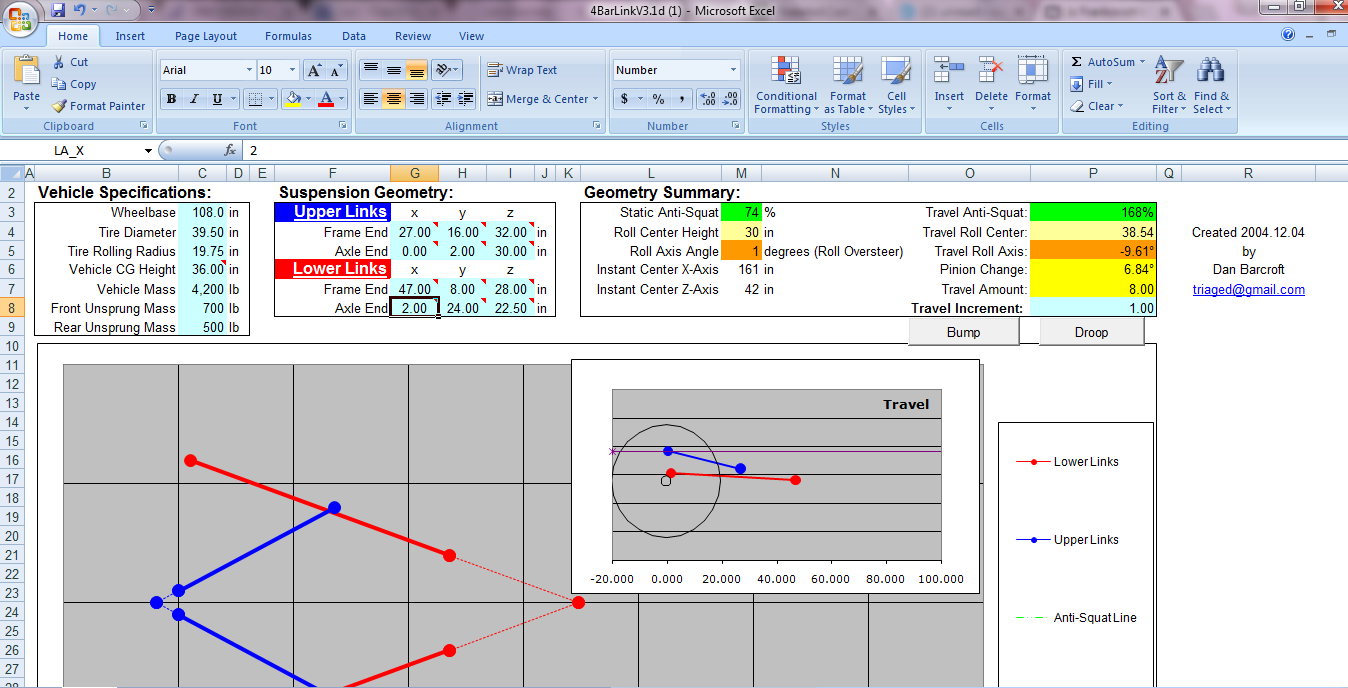

Not sure if its not acceptable to do this but i m building my first dual tri 4 link for my 94 4runner. Its 1uz and im putting dana 60s under it now. Was wondering if i could get tips on my dimensions. Seems like my lower link axle brackets are higher than most i see. Most people seem to have the lower link brackets almost center height wise in front of axle. Mine is about 4 inches higher than axle center line. Any other issues with the design? The instant center axis only effects anti squat correct? upper link frame brackets will be adjustable so my antisquat with go up to around 100. tried to get my roll center as high as i could. Do i need to pay attention to the actual travel specs(can i change them for the better while keeping static the same)? thanks.
