3.0 - 22re swap. Motor mounts. Who'se done them?

Hi everyone. I bought this truck recently for $600. I have ALWAYS wanted an '89-'95 EXT cab with 4wd, standard transmission, and a 4 cyl motor, so here we go.

Before anyone beats me to it.. yes, I know, just put a 3.4 in. It will be much easier. Perhaps I'm a glutton for punishment, maybe I just like the 4 cyl better, but most of all I'm working with what I have. A perfectly good running and driving 4cyl 5 speed 4wd truck that is seriously eaten up with rust, and a pretty nice V6 5spd 4wd with a blown motor.

I'm fairly far along in the project at this point, and feeling considerably less intimidated than before. I have both sets of motors and transmissions removed, and even made my money back on one of the two $600 trucks from selling parts.
I have the dash completely disassembled, and wiring harness switched out inside the cab. everything seems to be plugging up just fine. had to change out the ignition switches, but other than that everything seems to be plug and play. even the rear harness, under the passenger seat hooked up just fine which i did not expect.

Next is to figure out the motor mounting situation. I have something of a plan (if you can call it that) brewing up in my head, but I would appreciate any input from somebody with more experience than myself with this job
My best idea so far is cutting the old ones off the frame with the trusty angle grinder. Bolt 4 cyl frame mounts onto the block, bolting the block up to the transmission, and then setting the motor down and tacking the mounts to the frame. Then of course un bolting/removing the block and finish the welding job.

Any tips to assist me in the process would be greatly appreciated. If you have pictures of the job you did, that would be great, and if you have any better ideas that would be great too.

Thanks in advance,
Ray.

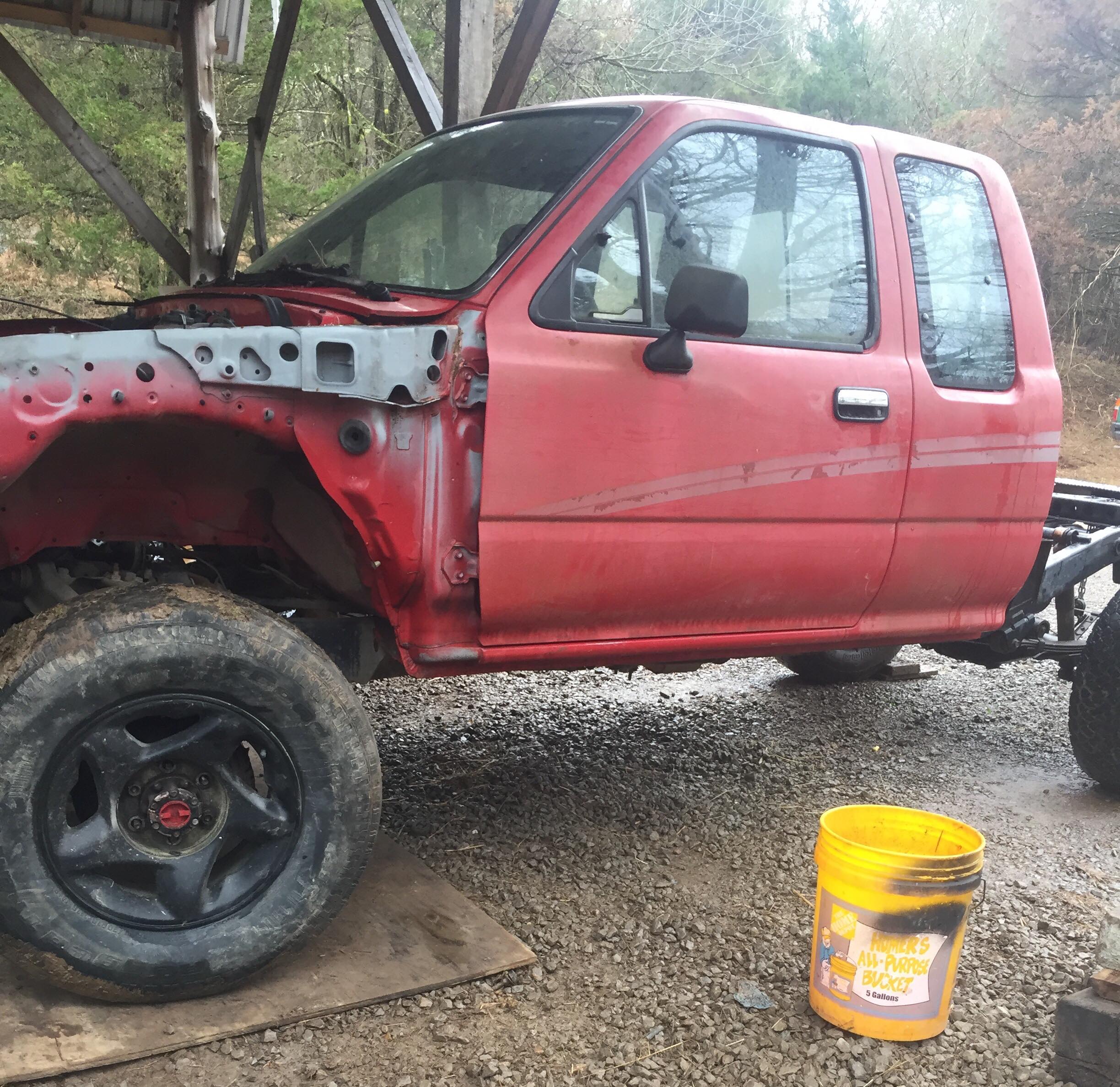

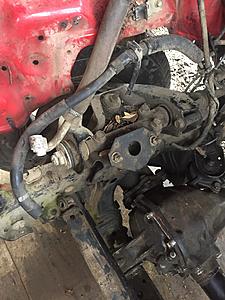

Attached Thumbnails
3.0 - 22re swap. Motor mounts. Who'se done them?-28407544_10211315948242196_1672009950_o.jpg   3.0 - 22re swap. Motor mounts. Who'se done them?-28417481_10211315948282197_1306308685_o.jpg
Dismal is offline   Reply With Quote
Old 02-22-2018, 09:54 AM   #2
Registered User
iTrader: (1)

muddpigg's Avatar

Join Date: Mar 2007
Location: watertown, NY
Posts: 4,263
I haven't done the swap your discussing so my input is limited but.... Aren't mounts the same for both 22RE and 3.0? Meaning you shouldn't need to cut frame supports out of 3.0 truck to mount 22Re in it. The one I see in photo doesn't look bad or is that from the donor?
muddpigg is offline   Reply With Quote
Old 02-22-2018, 10:27 AM   #3
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16

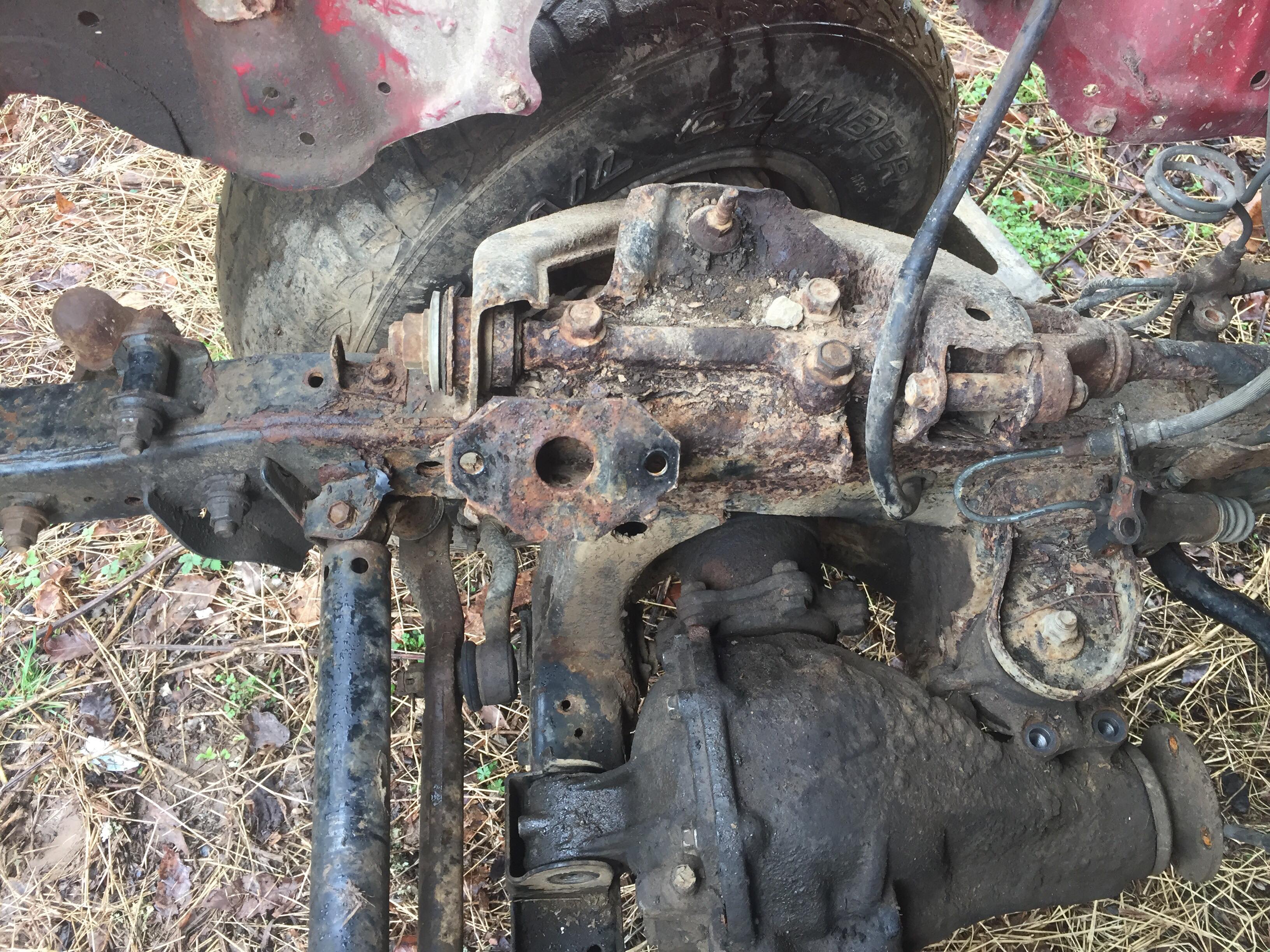

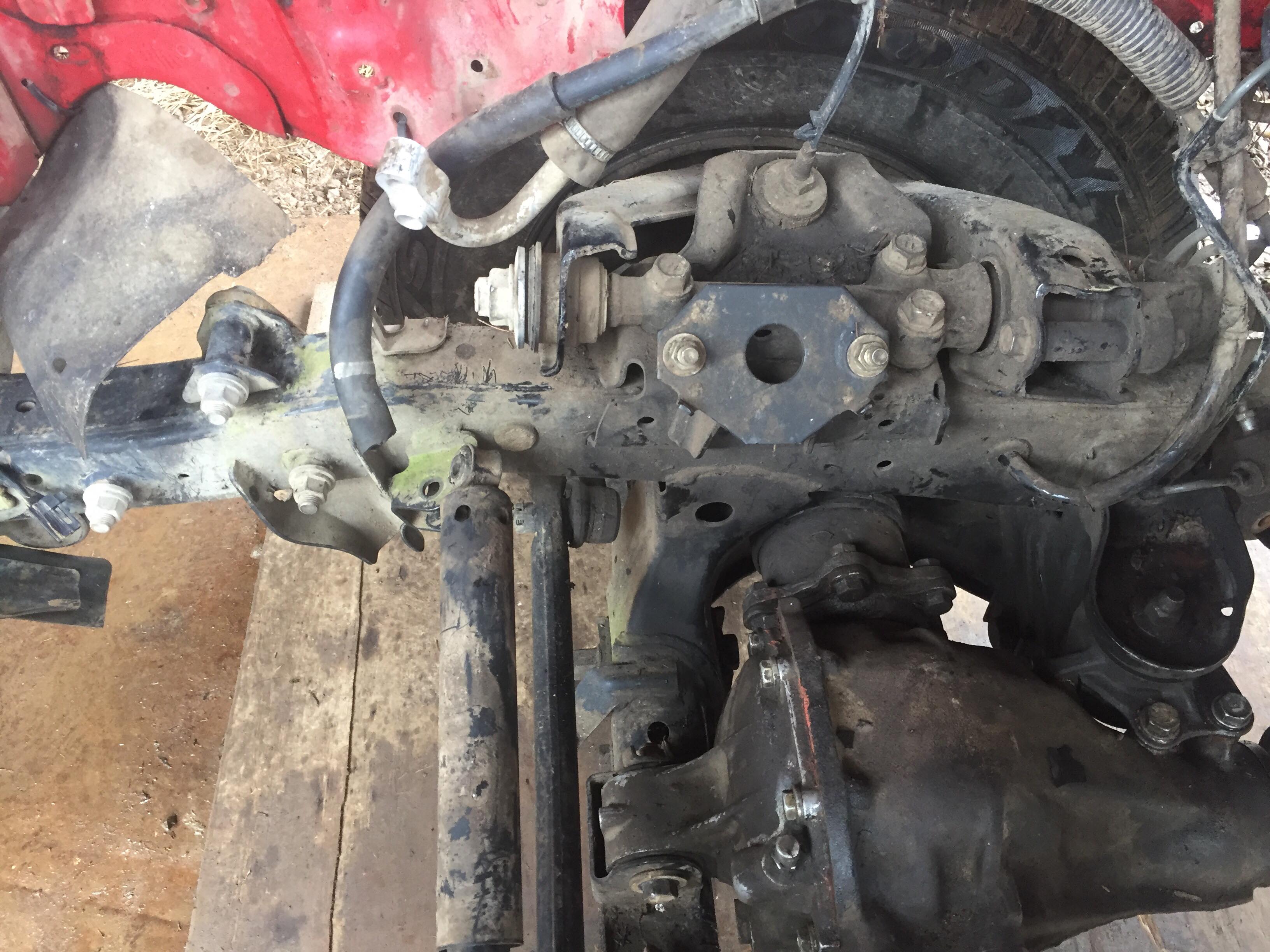

nope. here's a picture of the donor mount. and a side by side comparison of the v6 mount. I wont be using the mounts off that frame for obvious reasons. i'm sure i could clean them up if i had to, but i have another frame i can chop on before it goes off for scrap.
Attached Thumbnails
3.0 - 22re swap. Motor mounts. Who'se done them?-28342620_10211316492095792_1683120845_o.jpg   3.0 - 22re swap. Motor mounts. Who'se done them?-28407653_10211316492175794_1007809205_o.jpg

Last edited by Dismal; 02-22-2018 at 10:37 AM. Reason: bad pictures.
Dismal is offline   Reply With Quote
Old 02-22-2018, 10:30 AM   #4
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
it seems the 4 cyl mount is slightly lower, and further towards the front of the frame in relation to the control arms.

Last edited by Dismal; 02-22-2018 at 10:43 AM.
Dismal is offline   Reply With Quote
Old 02-22-2018, 10:35 AM   #5
Registered User
iTrader: (1)

muddpigg's Avatar

Join Date: Mar 2007
Location: watertown, NY
Posts: 4,263
I see difference. FSM should give dimensions and allow you to compare differences.

I think your plan for swapping mounts is solid and FSM comparison would just serve as a verification.
muddpigg is offline   Reply With Quote
Old 02-22-2018, 10:50 AM   #6
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
Hm. Good call, I do have a Haynes manual. Never thought to look in it.
Dismal is offline   Reply With Quote
Old 02-22-2018, 11:10 AM   #7
Registered User
iTrader: (1)

muddpigg's Avatar

Join Date: Mar 2007
Location: watertown, NY
Posts: 4,263
Doubt Haynes will got into that amount of detail. Factory Service Manual goes into great depth, it was published for Toyota techs to repair the truck. The body section goes into loads of dimensions.
muddpigg is offline   Reply With Quote
Old 02-23-2018, 06:53 AM   #8
RBX
Registered User

RBX's Avatar

Join Date: Jan 2010
Location: Bloodymore
Posts: 3,721
I know a yotatech member used something like this when he went from a 22re to a 5vze.
http://www.chilkatdesigns.com/5VZ-Co...on-Mounts.html
RBX is offline   Reply With Quote
Old 02-24-2018, 01:45 AM   #9
Registered User
iTrader: (1)

wyoming9's Avatar

Join Date: Apr 2009
Location: I live in New Tripoli Pa out in the woods
Posts: 12,695
Red face

I am going the other way 22R to 3.4

Your plan is a good one I used all new Mounts

Make sure it is spot on other wise the transmission mount will be off .

To far front radiator clearance might be a issue

I guess you wanted to pull the dash out and do the extra work .

I am very lazy so just merge the two wiring harnesses

While the dash is out good time for a new heater core and evap coil if you have AC
wyoming9 is offline   Reply With Quote
Old 02-24-2018, 04:38 AM   #10
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
yeah.. seems there is a lot of aftermarket stuff out there for the 3.4 lovers, but not for the 22re.

honestly pulling apart the dash and the wiring harnesses has been the only straight forward part so far. take out screws and bolts.. pull harness, replace.

think my core and coil are good...just needed a good cleaning. something i've done to all of my toyotas, disassemble the dash and clean out all the heater vents and what not. i dont like breathing mouse poop.
Dismal is offline   Reply With Quote
Old 02-24-2018, 04:41 AM   #11
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
honestly if you ask me, it's something that should be done every year. that stuff builds up fast, (whether its from critters crawling around and making nests, or just dirt, dust and old/dead skin cells) and can cause some serious health issues for some people.
Dismal is offline   Reply With Quote
Old 02-24-2018, 05:21 AM   #12
RBX
Registered User

RBX's Avatar

Join Date: Jan 2010
Location: Bloodymore
Posts: 3,721
Sorry I donít read good.
RBX is offline   Reply With Quote
Old 05-16-2018, 08:26 AM   #13
Registered User
iTrader: (1)

skypilot's Avatar

Join Date: Sep 2010
Location: Peekskill, NY
Posts: 1,136
I have to make a pair myself. I have a 3.slo to 22R swap in progress. I have some plate steel to fab some up. I was thing to make another pair to put up on ebay. The 22re mounts are more to the front and at a different angle than 3.slo so a little more effort is required than just a flat plate. Also the crossmember is 4" more to the front than 3.0 so its better to just locate a 22re Xmember. I'm using the factory chain drive case and r150 trans.

No one makes anything for this swap since its always a 3.4 or gm 4.3 or sbc that goes in.
skypilot is offline   Reply With Quote
Old 05-18-2018, 04:38 AM   #14
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
Finished product

I actually got my mounts finished and the motor in. I cut the original mounts off a 22re frame and they fit up just fine on the v6 frame. i'll try and upload a few pictures. As for the transmission and xmember, i just used the w56 and w56 xmember. everything mounted up just fine, just had to shorten the drive shaft. if i'm not mistaken it was 25 1/4 inches from the drive flange on the back of the transfer case to the centers of the bolt holes for the carrier bearing.
Dismal is offline   Reply With Quote
Old 05-18-2018, 04:39 AM   #15
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
Dismal is offline   Reply With Quote
Old 05-18-2018, 04:40 AM   #16
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
Dismal is offline   Reply With Quote
Old 05-18-2018, 04:40 AM   #17
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
Dismal is offline   Reply With Quote
Old 05-18-2018, 04:41 AM   #18
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
Dismal is offline   Reply With Quote
Old 05-18-2018, 04:41 AM   #19
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
Dismal is offline   Reply With Quote
Old 05-18-2018, 04:45 AM   #20
Registered User
Thread Starter

Dismal's Avatar

Join Date: Apr 2016
Posts: 16
My apologies for the huge pictures.. Computers have never been my strong suit. Hopefully this helps somebody!
