Gear Drive Tcase Schematic

Does anyone have a schematic of a gear drive transfer case? When dismantling a tcase, I trashed two off the small, thick snap rings and also one of the shift ball detent allen screws.

I need a schematic or a parts list so I can get the parts ordered.

Thanks!!
Reply
Old Jul 13, 2005 | 11:42 AM
  #2
superjoe83's Avatar
Contributing Member

Joined: Feb 2004
Posts: 1,864
Likes: 1
From: Oregon City, Oregon

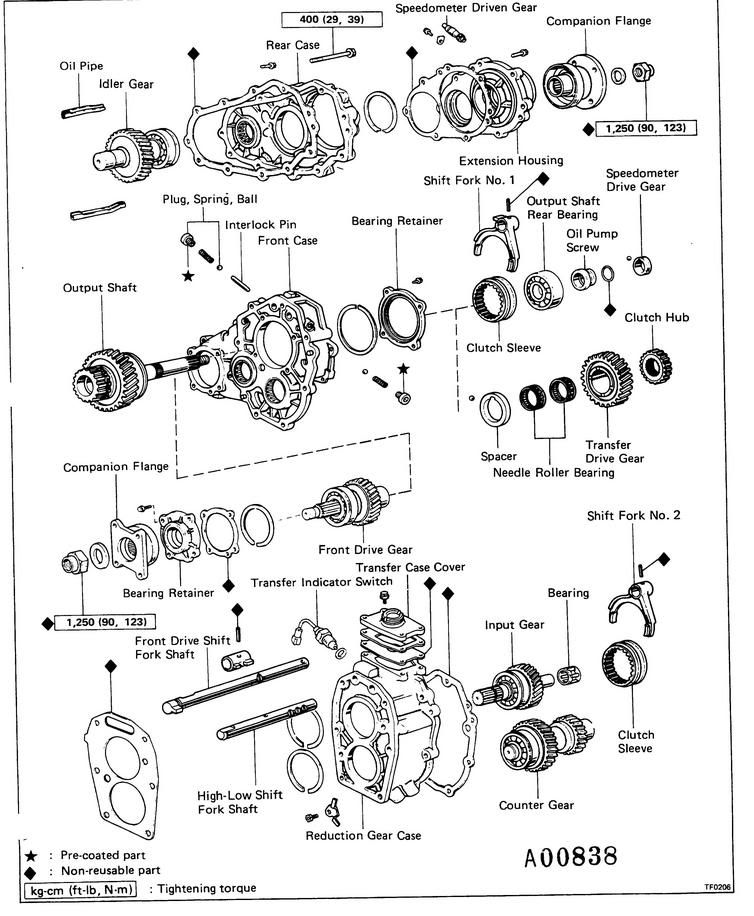

i dont have any part numbers, but i hope this helps, sorry about the size




Last edited by superjoe83; Jul 13, 2005 at 11:47 AM.
Reply
Old Jul 13, 2005 | 11:52 AM
  #3
Cebby's Avatar
Thread Starter
Registered User

Joined: Sep 2002
Posts: 11,199
Likes: 2
From: Pittsburgh, PA
Thanks Joe. This is what I was looking for.

It appears that I need the non-reusable parts.

EDIT: The size fits perfect on my screen.
